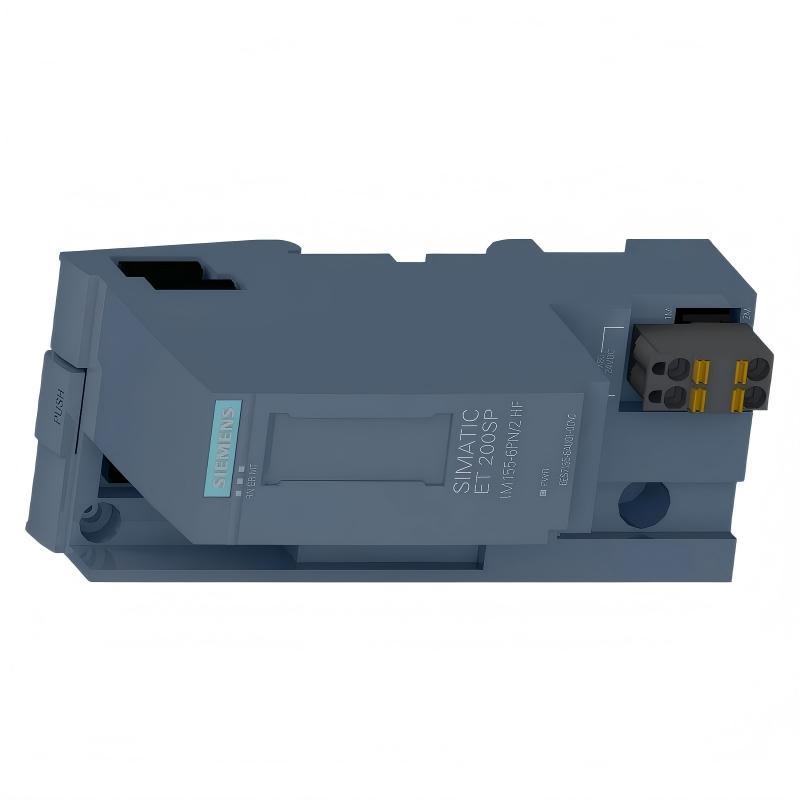

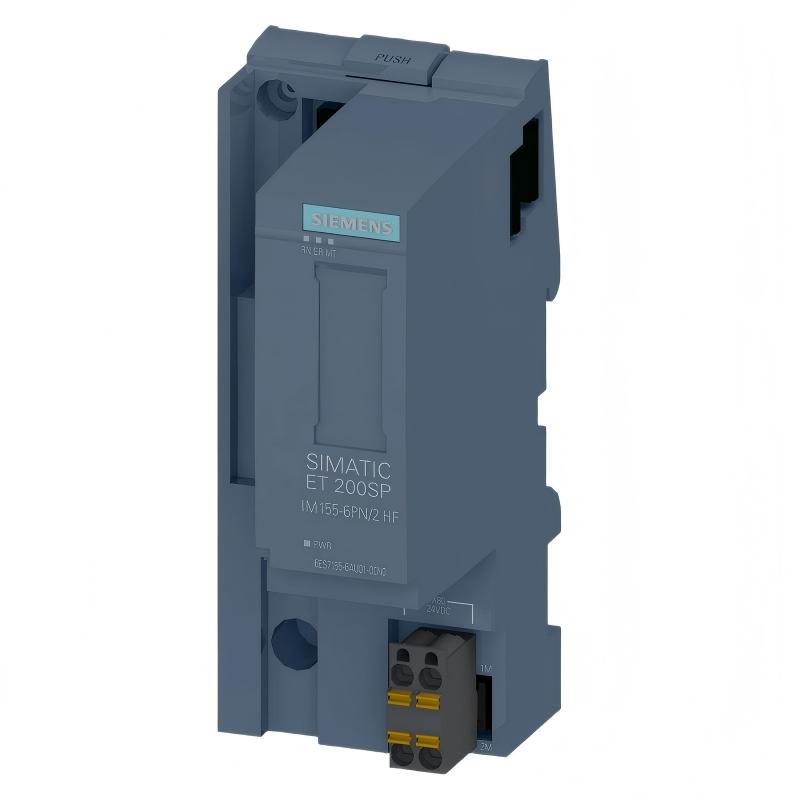

Siemens 6AG1155-6AU01-7CN0 Interface Module

Applications

The Siemens 6AG1155-6AU01-7CN0 is a SIPLUS ET 200SP IM 155-6 PN/2 HF interface module designed for high-performance distributed I/O systems. Based on the Siemens 6ES7155-6AU01-0CN0 platform, it provides a PROFINET connection between an ET 200SP station and a higher-level automation controller.

With support for up to 64 I/O modules and 16 ET 200AL modules, the module can be used for both compact machine-control systems and larger distributed automation stations.

Distributed I/O Automation

The module is suitable for Siemens S7-based automation systems where I/O devices need to be installed close to machines, production lines, or process equipment rather than concentrated in a central control cabinet.

Machine Building

The compact ET 200SP architecture makes the 6AG1155-6AU01-7CN0 suitable for packaging machinery, assembly equipment, material handling, production machines, and automated inspection systems.

High-Speed Industrial Communication

Its High Feature architecture supports fast PROFINET communication with update times down to 0.25 ms, making it appropriate for applications requiring deterministic data exchange between the controller and distributed I/O.

High-Availability Systems

The interface module supports S2 system redundancy, allowing it to be considered for automation applications where communication availability is an important part of the system design.

Harsh Industrial Environments

Unlike a standard ET 200SP interface module, this SIPLUS version uses conformal coating and supports an operating temperature range of -40 to +70 °C, making it suitable for demanding industrial environments.

Synchronized Automation

The 6AG1155-6AU01-7CN0 supports isochronous mode, making it useful in applications where predictable communication timing and synchronization are important.

Flexible Distributed Stations

The module can manage a substantial ET 200SP station, supporting up to 64 I/O modules plus 16 ET 200AL modules. This provides system integrators with considerable flexibility when designing distributed control architectures.

Advantages

SIPLUS Environmental Protection

The conformal-coated design provides additional protection for the electronics compared with standard industrial modules. Combined with the extended temperature range, this makes the module a strong choice for demanding installations.

High Feature PROFINET Interface

The IM 155-6 PN/2 HF architecture provides two PROFINET ports through a compatible BusAdapter, allowing the module to integrate efficiently into distributed Ethernet-based control networks.

S2 System Redundancy

S2 redundancy is an important advantage for systems where loss of communication between the controller and remote I/O could result in production interruption.

Multi-Hot-Swapping

The module supports multi-hot-swapping, which can simplify maintenance in appropriately configured ET 200SP systems and reduce downtime during component replacement.

Fast Update Performance

With a minimum update time of 0.25 ms, the module is designed for demanding cyclic PROFINET applications where rapid I/O communication is required.

Isochronous Mode

Isochronous operation allows the module to participate in applications requiring deterministic communication timing and coordinated control behavior.

Large Station Capacity

Supporting up to 64 I/O modules and 16 ET 200AL modules allows a single interface module to serve a relatively large distributed I/O station.

Flexible BusAdapter Configuration

The BusAdapter architecture allows different PROFINET connection solutions to be selected according to the installation and network cabling requirements.

Technical FAQs

1. What is the Siemens 6AG1155-6AU01-7CN0?

The 6AG1155-6AU01-7CN0 is a SIPLUS ET 200SP IM 155-6 PN/2 HF interface module used to connect ET 200SP distributed I/O stations to PROFINET networks.

2. What standard Siemens module is the 6AG1155-6AU01-7CN0 based on?

The SIPLUS module is based on the SIMATIC ET 200SP 6ES7155-6AU01-0CN0 IM 155-6 PN/2 High Feature interface module.

3. How many I/O modules can this interface module support?

The module supports up to 64 ET 200SP I/O modules, with support for an additional 16 ET 200AL modules under the applicable configuration conditions.

4. Does the 6AG1155-6AU01-7CN0 support S2 redundancy?

Yes. The module supports S2 system redundancy, making it suitable for automation architectures that require redundant controller communication.

5. Does the module support isochronous operation?

Yes. The 6AG1155-6AU01-7CN0 is a High Feature interface module and supports isochronous mode.

6. What is the power supply requirement?

The module uses a 24 V DC supply and accepts an operating range of 19.2 to 28.8 V DC. It also provides reverse-polarity protection.

7. How many PROFINET ports are available?

The module provides two PROFINET ports through its BusAdapter interface. An integrated switch supports the two-port network architecture.

8. What is the maximum current consumption?

The maximum current consumption is approximately 700 mA, with a maximum inrush current of approximately 4.5 A.

9. What is the operating temperature range?

The SIPLUS 6AG1155-6AU01-7CN0 supports an operating temperature range of -40 to +70 °C, making it suitable for applications with wider temperature requirements.

10. Can the module be used for high-speed automation applications?

Yes. The High Feature interface supports PROFINET communication with update times down to 0.25 ms and provides isochronous operation for applications requiring deterministic communication behavior.
