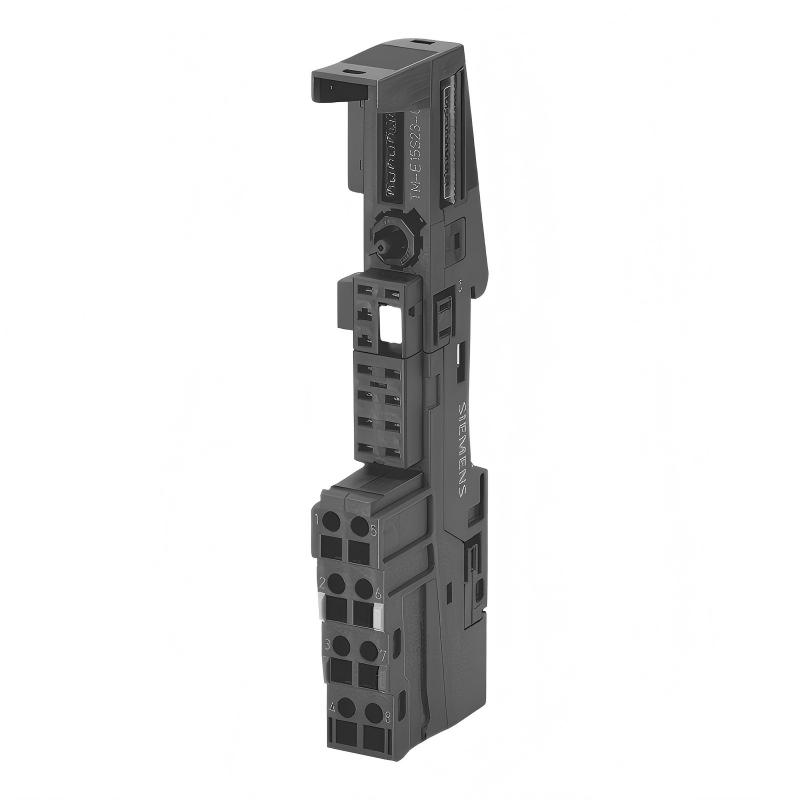

Siemens 6AG1193-4CA30-2AA0 Terminal Module

Applications

The Siemens 6AG1193-4CA30-2AA0 is a SIPLUS ET 200S TM-E15C24-A1 terminal module designed for use with Siemens ET 200S electronic modules. Based on the standard 6ES7193-4CA30-0AA0, it provides the electrical connection between the ET 200S electronic module and the field wiring.

This terminal module is designed for 15 mm wide ET 200S electronic modules and uses spring-loaded terminals with 2 × 4 terminal connections. It also provides access to the AUX1 auxiliary bus, making it useful for distributed I/O installations where compact wiring and reliable field connections are required.

ET 200S Distributed I/O Systems

The 6AG1193-4CA30-2AA0 is installed as part of an ET 200S distributed I/O station. It provides the mechanical and electrical interface required for compatible electronic modules.

Industrial Control Cabinets

Its narrow 15 mm width helps maintain a high component density inside control cabinets. This is useful when many I/O channels need to be installed within limited cabinet space.

Factory Automation

The terminal module can be used in machine automation, production lines, material handling, packaging equipment, and other industrial systems using ET 200S distributed I/O.

Harsh Industrial Environments

As a SIPLUS component, the module uses conformal coating and is designed for enhanced environmental resistance. It is therefore suitable for applications where environmental conditions may be more demanding than those normally encountered by standard ET 200S components.

Field Wiring Applications

The spring-loaded terminal design provides a practical method for connecting field wiring to compatible ET 200S electronic modules while simplifying installation and maintenance.

Existing ET 200S Installations

The 6AG1193-4CA30-2AA0 can be used when maintaining, expanding, or replacing components in existing Siemens ET 200S installations that require the corresponding TM-E15C24-A1 terminal-module configuration.

Advantages

Compact 15 mm Design

The module is designed for 15 mm wide electronic modules, helping engineers build compact ET 200S stations with a high packing density.

Spring-Loaded Terminals

The spring-type terminal arrangement provides a secure electrical connection without requiring conventional screw tightening. This can simplify installation and reduce maintenance effort.

2 × 4 Terminal Connections

The module provides two groups of four terminal connections, giving the connected electronic module a clearly organized field-wiring interface.

AUX1 Access

The terminal module provides access to the AUX1 auxiliary bus, which can be useful for distributing auxiliary electrical connections within an ET 200S station.

SIPLUS Conformal Coating

The SIPLUS version features conformal coating, providing additional protection for the electronic assembly in demanding industrial environments.

Extended Environmental Capability

The 6AG1193-4CA30-2AA0 is designed for an extended temperature range and enhanced environmental resistance, making it appropriate for applications where standard ET 200S components may have more restrictive environmental requirements.

Easy ET 200S Integration

The terminal module follows the established ET 200S modular architecture, allowing compatible electronic modules to be installed without changing the overall distributed I/O concept.

Suitable for Maintenance and Spare Parts

For plants with existing ET 200S equipment, keeping compatible terminal modules available can simplify maintenance activities and reduce the time required to restore a distributed I/O station.

Technical FAQs

1. What is the Siemens 6AG1193-4CA30-2AA0?

The 6AG1193-4CA30-2AA0 is a Siemens SIPLUS ET 200S TM-E15C24-A1 terminal module designed for compatible 15 mm wide ET 200S electronic modules.

2. What standard Siemens model is this terminal module based on?

The SIPLUS version is based on the standard 6ES7193-4CA30-0AA0 terminal module.

3. What type of terminals does the 6AG1193-4CA30-2AA0 use?

The module uses spring-loaded terminals and provides 2 × 4 terminal connections.

4. What electronic modules is the terminal module designed for?

The 6AG1193-4CA30-2AA0 is designed for ET 200S electronic modules with a 15 mm width.

5. Does the module provide AUX1 access?

Yes. The TM-E15C24-A1 configuration provides terminal access to the AUX1 auxiliary bus, which can be used as part of the ET 200S wiring architecture.

6. Is the 6AG1193-4CA30-2AA0 an I/O electronic module?

No. It is a terminal module. Its main function is to provide the mechanical and electrical connection for a compatible ET 200S electronic module and its field wiring.

7. What is the environmental temperature range?

The SIPLUS version is designed for an extended operating temperature range. The product specification identifies a -40 to +70 °C SIPLUS design range, while specific installation conditions should be considered when designing the complete system.

8. Does the module have conformal coating?

Yes. The 6AG1193-4CA30-2AA0 is a SIPLUS version with conformal coating, providing enhanced environmental protection compared with the corresponding standard module.

9. Can this terminal module be used with an ET 200SP system?

No. The 6AG1193-4CA30-2AA0 belongs to the ET 200S product family. It should not be treated as an ET 200SP terminal module. The compatible electronic module and ET 200S system architecture should be verified before installation.

10. Is the 6AG1193-4CA30-2AA0 suitable as a replacement part?

Yes, it can be used as a replacement when the existing installation specifically requires the SIPLUS TM-E15C24-A1 configuration. The electronic module, terminal arrangement, wiring, and system configuration should be checked before replacement.
