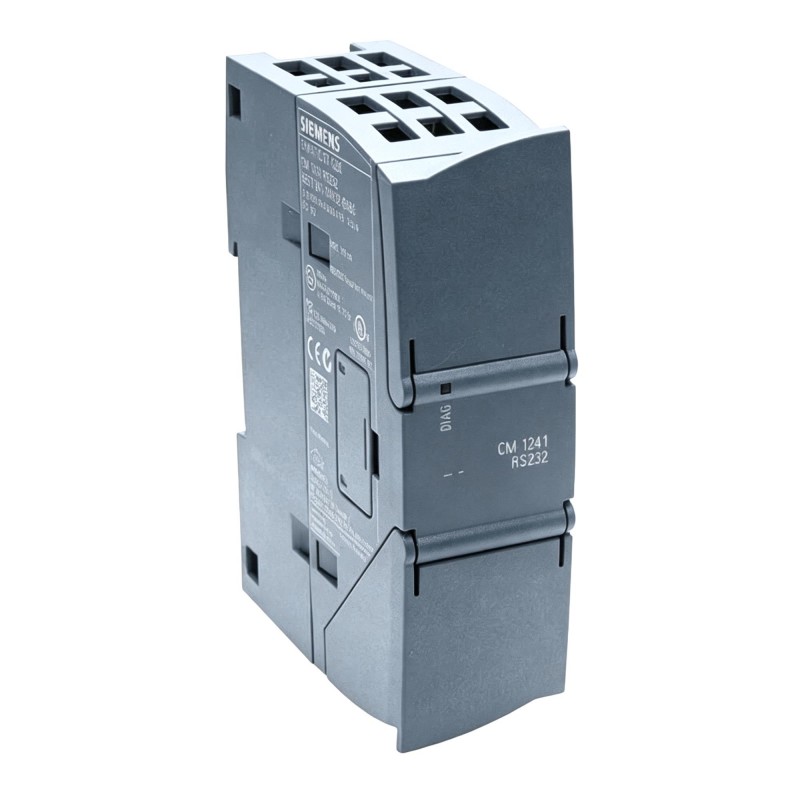

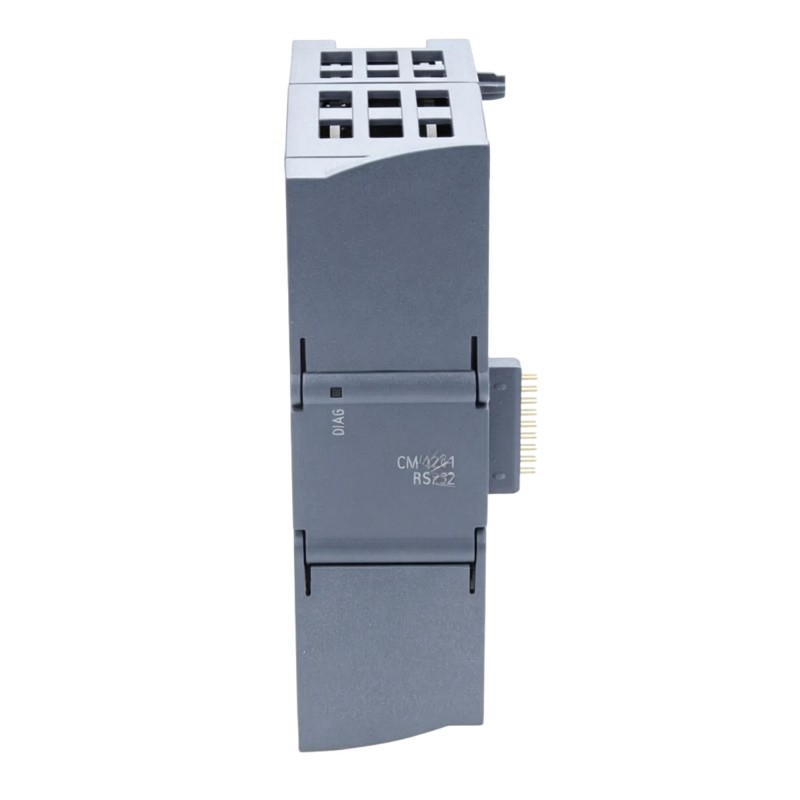

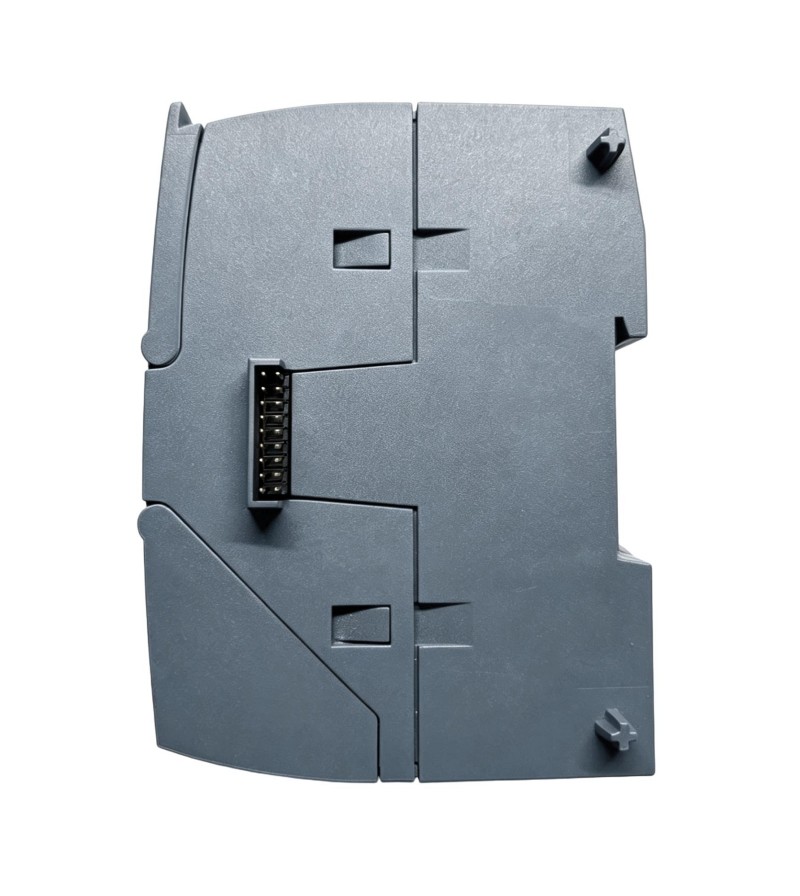

Siemens 6AG1241-1AH32-4XB0 Communication Module

Applications

The Siemens 6AG1241-1AH32-4XB0 is a SIPLUS S7-1200 CM 1241 RS-232 communication module designed for serial point-to-point communication. Based on the standard 6ES7241-1AH32-0XB0, this SIPLUS version features conformal coating and enhanced resistance to demanding industrial environmental conditions.

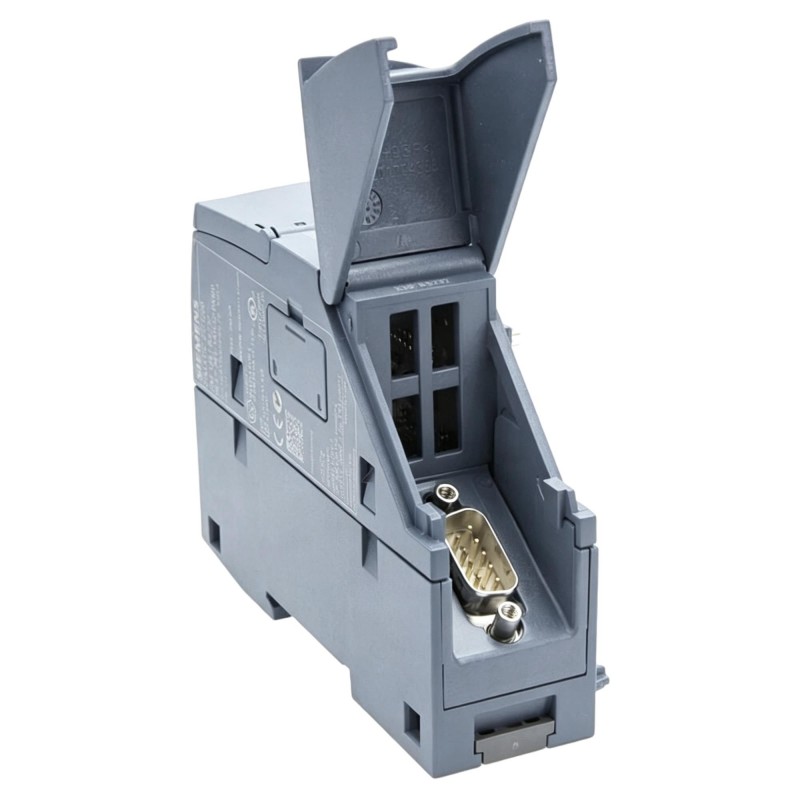

The module provides one RS-232C (V.24) interface through a 9-pin D-sub connector and is suitable for connecting an S7-1200 PLC with external serial devices.

PLC-to-Device Communication

The module provides an additional RS-232 communication channel for an S7-1200 controller, allowing serial devices to exchange process data with the PLC.

Barcode Scanner Integration

Industrial barcode scanners and identification equipment commonly use RS-232 communication. The CM 1241 provides a direct serial interface for integrating these devices into S7-1200 automation systems.

Printers and Labeling Equipment

The module can be used to connect serial printers, label printers, and other RS-232-compatible peripheral equipment used in production and packaging applications.

Weighing and Measurement Equipment

Industrial scales, weighing controllers, meters, analyzers, and other measurement instruments with RS-232 interfaces can be connected to the PLC through this communication module.

Modbus RTU Applications

The CM 1241 supports Modbus RTU Master and Modbus RTU Device functionality, allowing the S7-1200 system to exchange data with compatible serial field devices.

Freeport Communication

Freeport communication provides flexibility when a connected device uses a proprietary serial protocol or a customized telegram structure.

Legacy Equipment Integration

Many existing machines and industrial instruments still use RS-232. The 6AG1241-1AH32-4XB0 provides a convenient way to integrate such equipment with an S7-1200 controller without replacing the external serial device.

Industrial Equipment

The SIPLUS design makes the module appropriate for industrial installations where additional protection against environmental influences is required.

Advantages

Dedicated RS-232 Interface

The module provides a dedicated RS-232C interface, allowing serial equipment to communicate directly with an S7-1200 PLC.

Multiple Communication Options

The CM 1241 platform supports communication methods including Freeport, ASCII, USS drive protocol, and Modbus RTU, providing flexibility for different serial devices and applications.

Modbus RTU Support

The module can be configured for Modbus RTU Master or Modbus RTU Device applications, making it suitable for communication with meters, controllers, drives, and other serial devices.

Freeport Capability

Freeport allows users to implement custom serial communication protocols when the external device does not use a standard supported protocol.

Conformal-Coated Design

The 6AG1241-1AH32-4XB0 uses conformal coating to provide additional protection against environmental contamination and demanding industrial conditions.

Enhanced Environmental Resistance

This particular SIPLUS variant is designed for applications involving increased environmental exposure, including resistance to certain chemically active and biologically active substances.

Compact Installation

With a width of only 30 mm, the communication module integrates efficiently into the S7-1200 system while occupying limited control-panel space.

Simple S7-1200 Integration

The module is designed specifically for the S7-1200 platform and can be configured as part of the PLC system using Siemens engineering tools.

Technical FAQs

1. What is the Siemens 6AG1241-1AH32-4XB0?

The 6AG1241-1AH32-4XB0 is a SIPLUS S7-1200 CM 1241 RS-232 communication module used for serial point-to-point communication between an S7-1200 PLC and external equipment.

2. What standard module is the 6AG1241-1AH32-4XB0 based on?

It is based on the standard 6ES7241-1AH32-0XB0 CM 1241 RS-232 communication module.

3. What communication interface does this module provide?

It provides one RS-232C (V.24) interface using a 9-pin D-sub connector.

4. What is the maximum RS-232 cable length?

The maximum specified cable length for the RS-232 point-to-point connection is 10 meters.

5. Does the module support Modbus RTU?

Yes. The CM 1241 RS-232 platform supports Modbus RTU Master and Modbus RTU Device communication.

6. Does the module support Freeport?

Yes. Freeport communication is supported, allowing customized serial telegrams to be exchanged with compatible devices.

7. Can the module be used for ASCII communication?

Yes. ASCII communication is supported and can be used with devices that communicate using character-based serial messages.

8. What supply voltage is required?

The module has a rated supply voltage of 24 V DC, with a permissible range of 20.4 to 28.8 V DC.

9. What is the operating temperature range?

The specified operating temperature range is -20 to +60 °C, with startup permitted at -25 °C. The storage and transportation range extends from -40 to +70 °C.

10. What makes the 6AG1241-1AH32-4XB0 different from 6AG1241-1AH32-2XB0?

Both models are based on the same 6ES7241-1AH32-0XB0 CM 1241 RS-232 platform. The 6AG1241-1AH32-4XB0 is the SIPLUS variant with conformal coating and enhanced resistance to demanding environmental conditions, while the environmental specifications and application requirements should be checked carefully for the individual installation.
