Brand:Siemens Item No.:6AG1326-1BK02-2AB0 Product Origin:Germany Product Dimensions:80 × 125 × 120 mm Product Weight:0.495 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

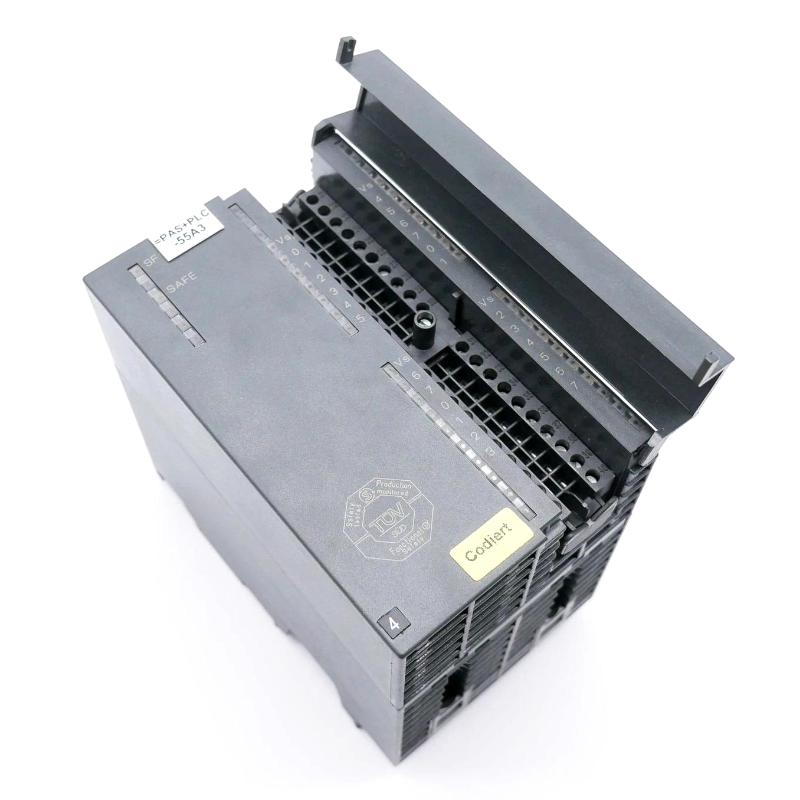

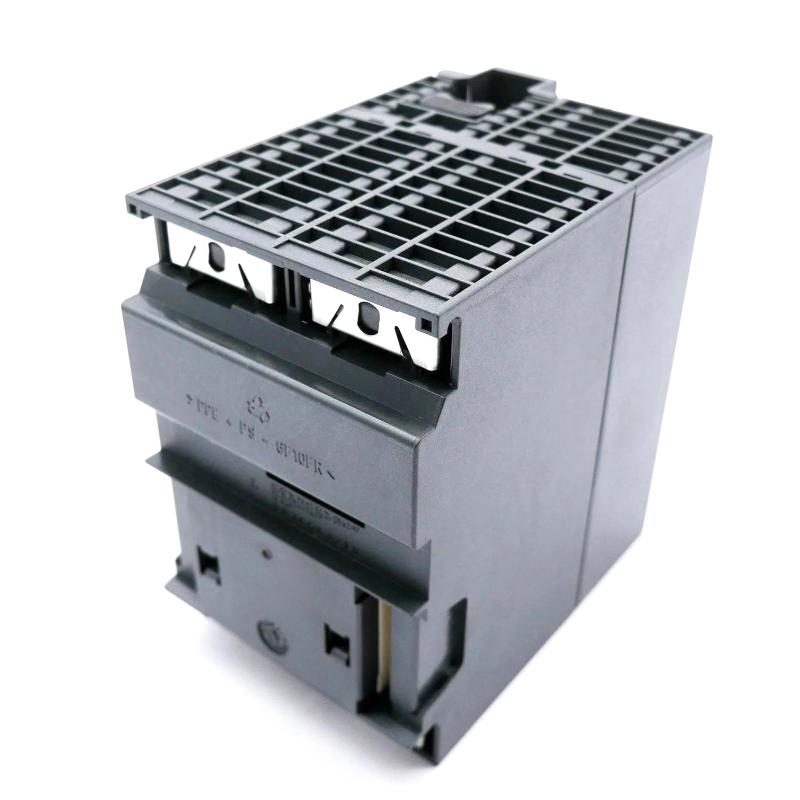

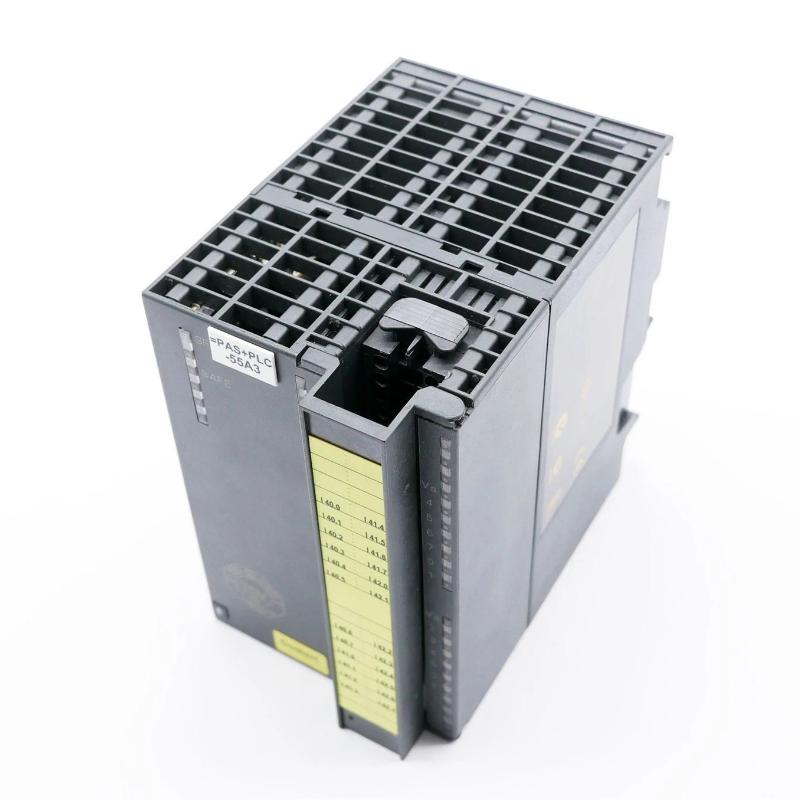

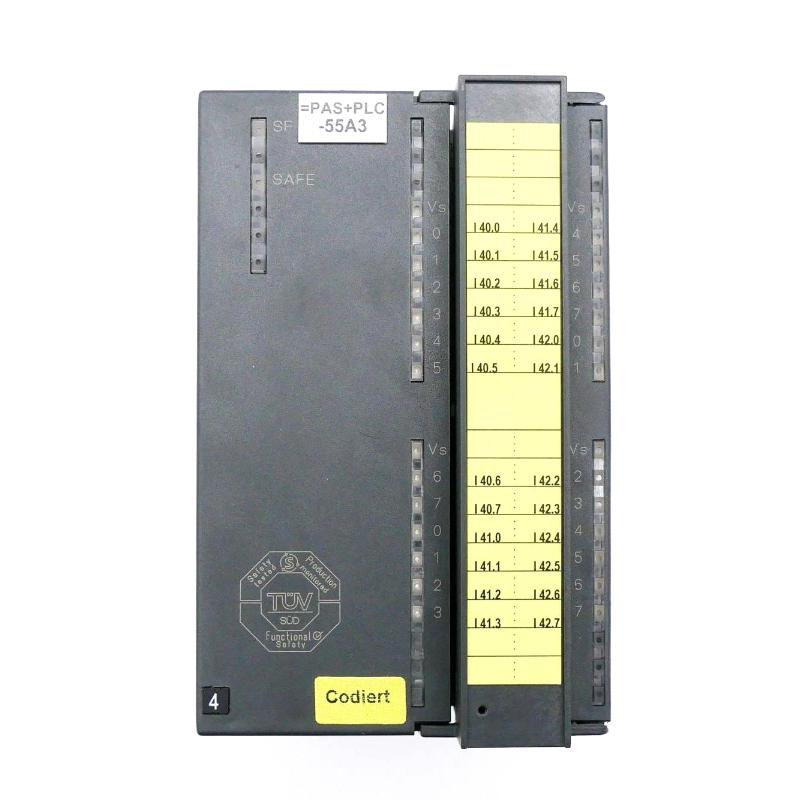

The Siemens 6AG1326-1BK02-2AB0 Digital Input Module is part of the SIPLUS S7-300 SM 326F family and is designed for fail-safe digital signal acquisition in SIMATIC S7 F-systems.
Unlike conventional digital input modules used only for standard control logic, the SM 326F DI24 is intended for safety-related applications where field signals may form part of a machine or process safety function. Its 24 fail-safe inputs can be used to monitor safety switches, emergency-stop devices, interlocks, proximity sensors and other suitable field devices.
The module is based on the 6ES7326-1BK02-0AB0 and uses a 40-pole front connector for field wiring. The 24 inputs operate at a nominal 24 V DC and provide defined voltage thresholds for reliable signal recognition.
The module also includes integrated safety functions and diagnostic capabilities. These features allow it to participate in an appropriately engineered SIMATIC F-system and provide useful information when an input channel or associated wiring does not behave as expected.
Environmental protection is another important characteristic of the SIPLUS version. The module has conformal coating and is designed for an operating temperature range of -25°C to +60°C, with operation up to +70°C possible when forced convection is provided according to the specified conditions.
The 6AG1326-1BK02-2AB0 also supports applications where environmental conditions are more demanding than those normally found in a clean control room. Its environmental specifications cover a range of chemically active and industrial conditions, making it suitable for selected process and machinery applications.
With dimensions of 80 × 125 × 120 mm and a user-specified weight of 0.495 kg (1.09 lb), the module provides 24 fail-safe input channels in a relatively compact S7-300 module format.
For engineers maintaining existing S7-300 safety systems, this module can be an important replacement or expansion component where fail-safe digital input processing and SIPLUS environmental protection are required.
Technical Specifications
Specification
Details
Product Model
Siemens 6AG1326-1BK02-2AB0
Product Type
SIPLUS S7-300 SM 326F DI24 Digital Input Module
Product Family
SIPLUS SM 326 F-Digital Input
Base Module
6ES7326-1BK02-0AB0
Safety Function
Fail-Safe Digital Input
Number of Digital Inputs
24
Input Type
F-DI
Rated Input Voltage
24 V DC
Signal "0"
-30 to +5 V DC
Signal "1"
+11 to +30 V DC
Typical Input Current at "1"
10 mA
Maximum Permissible Quiescent Current
2 mA
Maximum Input Delay
3.4 ms
Diagnostic Function
Yes
Diagnostic Alarm
Yes
2-Wire Sensors
Yes, with specified conditions
Number of Outputs
4 isolated outputs
Output Rated Current
400 mA
Maximum Load Supply Current
450 mA
Maximum Backplane Bus Current
100 mA
Typical Power Loss
10 W
Required Front Connector
40-pole
Maximum Shielded Cable Length
200 m
Maximum Unshielded Cable Length
100 m
Conformal Coating
Yes
Operating Temperature
-25°C to +60°C
Maximum Temperature with Forced Convection
Up to +70°C
Protection Rating
IP20
Width
80 mm
Height
125 mm
Depth
120 mm
Dimensions
80 × 125 × 120 mm
Weight
0.495 kg
Weight in Pounds
1.09 lb
PLC Platform
Siemens S7-300 / S7 F-Systems
Application
Fail-Safe Digital Signal Acquisition
Recommended Related Models
Model
Product Type
Main Function
Siemens 6ES7326-1BK02-0AB0
S7-300 SM 326F DI24
Standard fail-safe 24-channel digital input module
Siemens 6AG1326-1BK02-2AB0
SIPLUS SM 326F DI24
SIPLUS fail-safe digital input module with conformal coating
Siemens 6ES7326-1RF00-0AB0
S7-300 SM 326F DI24
Fail-safe digital input module for specialized applications
Siemens 6AG1326-1RF00-2AB0
SIPLUS SM 326F DI24
SIPLUS fail-safe digital input solution
Siemens 6ES7336-1HE00-0AB0
S7-300 SM 336
Fail-safe analog input module
Siemens 6AG1336-1HE00-2AB0
SIPLUS SM 336
SIPLUS fail-safe analog input module
Popular Related Models
For Siemens S7-300 safety automation and SIPLUS F-system applications, the following models are relevant:
Siemens 6ES7326-1BK02-0AB0 – S7-300 SM 326F DI24 fail-safe digital input module
Siemens 6AG1326-1BK02-2AB0 – SIPLUS SM 326F DI24 with conformal coating
Siemens 6ES7326-1RF00-0AB0 – S7-300 SM 326F fail-safe digital input module
Siemens 6AG1326-1RF00-2AB0 – SIPLUS fail-safe digital input module
Siemens 6ES7336-1HE00-0AB0 – SM 336 fail-safe analog input module
Siemens 6AG1336-1HE00-2AB0 – SIPLUS SM 336 fail-safe analog input module
Applications
The Siemens 6AG1326-1BK02-2AB0 is a SIPLUS S7-300 SM 326F DI24 fail-safe digital input module designed for safety-related applications in SIMATIC S7 F-systems.
Based on the 6ES7326-1BK02-0AB0, the module provides 24 fail-safe digital inputs rated at 24 V DC and incorporates integrated safety functions for reliable monitoring of field signals. It is designed to process signals from switches, sensors, proximity switches and other digital field devices used in safety-oriented automation systems.
The module is particularly suitable for applications where input signals must be monitored as part of a fail-safe control system, including:
Emergency-stop circuit monitoring
Safety door and guard monitoring
Machine interlock systems
Conveyor safety systems
Packaging machinery
Assembly machines
Process safety applications
Material handling equipment
Safety sensor monitoring
Industrial machinery protection
SIMATIC S7 F-system installations
Distributed ET 200M safety applications
Hazardous-area signal acquisition when the overall system configuration permits it
The module provides diagnostic functions and can detect relevant input or module conditions, helping engineers identify wiring and signal problems during commissioning and operation.
Advantages
1. 24 Fail-Safe Digital Inputs
The module provides 24 digital F-DI channels, allowing a large number of safety-related field signals to be processed through one S7-300 signal module.
2. 24 V DC Industrial Input Design
All 24 digital inputs are designed for 24 V DC signals. The input signal range is clearly defined, with a valid "0" range of -30 to +5 V and a valid "1" range of +11 to +30 V.
3. Integrated Safety Functions
Safety functions required for fail-safe operation are integrated into the module. This allows the SM 326F to be used as part of a suitable SIMATIC S7 F-system rather than relying only on standard digital input processing.
4. SIPLUS Environmental Protection
The 6AG1326-1BK02-2AB0 incorporates conformal coating, providing enhanced protection of the electronic assembly against demanding environmental conditions.
5. Extended Temperature Capability
The module is specified for -25°C to +60°C operation, with operation up to +70°C possible with forced convection under the specified conditions.
6. Diagnostic Capability
Diagnostic functions help identify abnormal module or input conditions, making commissioning and maintenance more efficient in safety-related automation installations.
7. Flexible Sensor Connection
The module can interface with suitable switches, mechanical contacts, 2-wire proximity sensors and other compatible digital sensors.
8. S7-300 and S7 F-System Integration
The module is designed around the SIMATIC S7-300 architecture and can be used in appropriate fail-safe configurations with compatible S7 F CPUs and distributed ET 200M installations.
Technical FAQs
1. What is the Siemens 6AG1326-1BK02-2AB0?
The Siemens 6AG1326-1BK02-2AB0 is a SIPLUS S7-300 SM 326F DI24 fail-safe digital input module with 24 × 24 V DC digital inputs.
2. How many digital inputs does the module provide?
The module provides 24 fail-safe digital inputs.
3. What is the rated input voltage?
The rated input voltage is 24 V DC. A signal between +11 V and +30 V is recognized as a logical "1", while -30 V to +5 V is recognized as a logical "0".
4. Is this a standard digital input module?
No. The 6AG1326-1BK02-2AB0 is a fail-safe F-DI module intended for safety-related SIMATIC S7 F-system applications. It should not be treated as an ordinary standard S7-300 digital input module.
5. What type of sensors can be connected?
Suitable devices include switches, mechanical contacts and compatible 2-wire proximity sensors. Sensor selection and wiring must comply with the requirements of the specific safety application.
6. Does the module provide diagnostics?
Yes. The module supports diagnostic functions and diagnostic alarms, helping identify faults associated with the module and connected input signals.
7. What is the input delay time?
For the standard digital inputs, the maximum input delay is approximately 3.4 ms for both the "0" to "1" and "1" to "0" transitions at the rated input voltage.
8. What is the operating temperature range?
The standard specified operating range is -25°C to +60°C. With forced convection, operation up to +70°C is supported under the specified installation conditions.
9. Does the module have conformal coating?
Yes. The 6AG1326-1BK02-2AB0 is a SIPLUS module with conformal coating, providing enhanced environmental resistance compared with the corresponding standard S7-300 module.
10. What is the difference between 6AG1326-1BK02-2AB0 and 6ES7326-1BK02-0AB0?
The 6AG1326-1BK02-2AB0 is the SIPLUS version based on the 6ES7326-1BK02-0AB0. It adds conformal coating and enhanced environmental specifications while retaining the 24-channel fail-safe digital input functionality.
