Brand:Siemens Item No.:6AG1326-1BK02-2AY0 Product Origin:Germany Product Dimensions:80 × 125 × 120 mm Product Weight:0.480 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

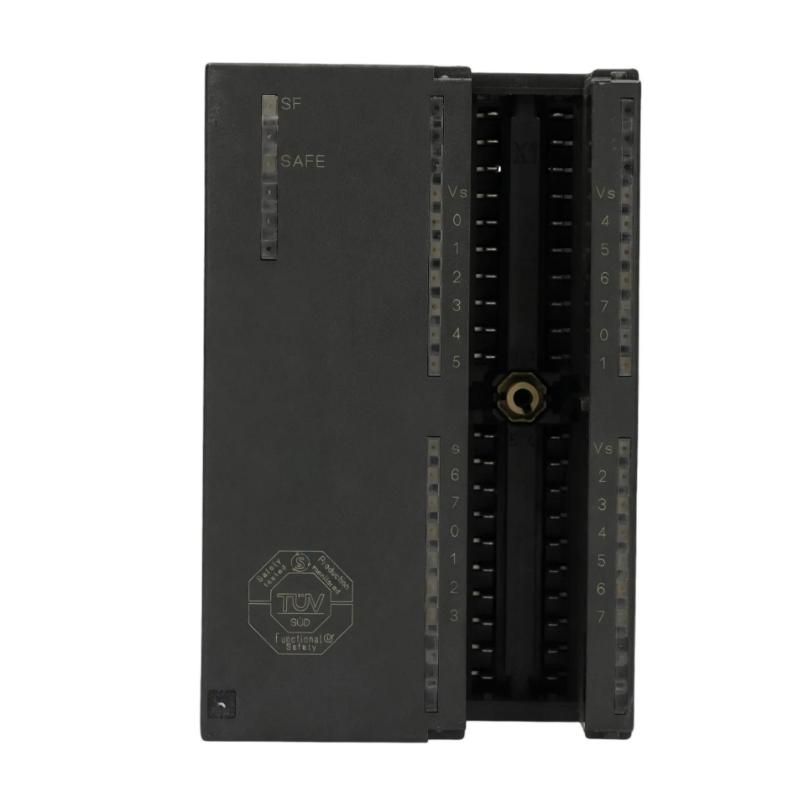

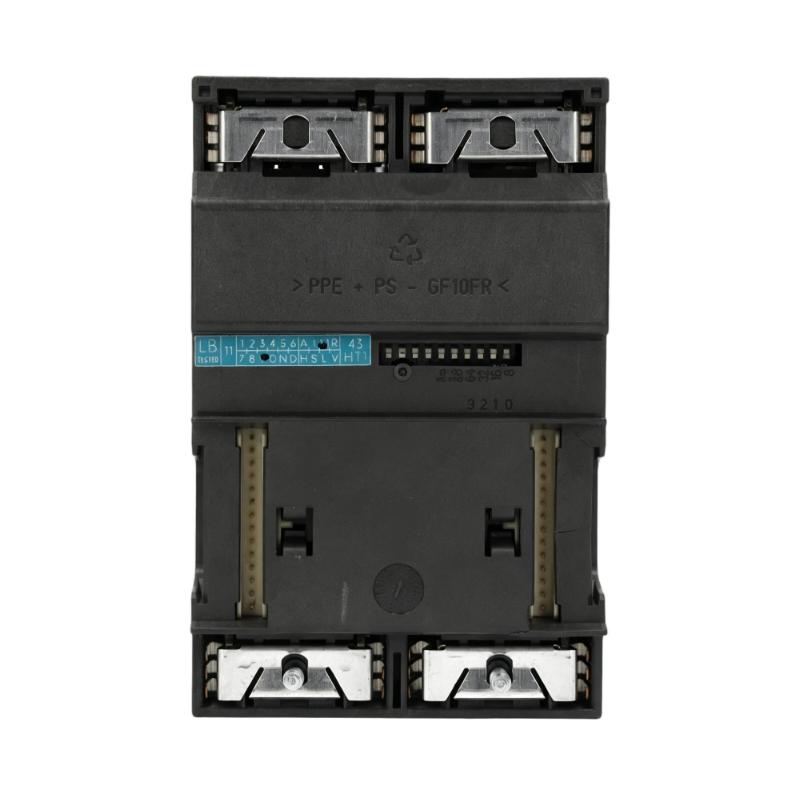

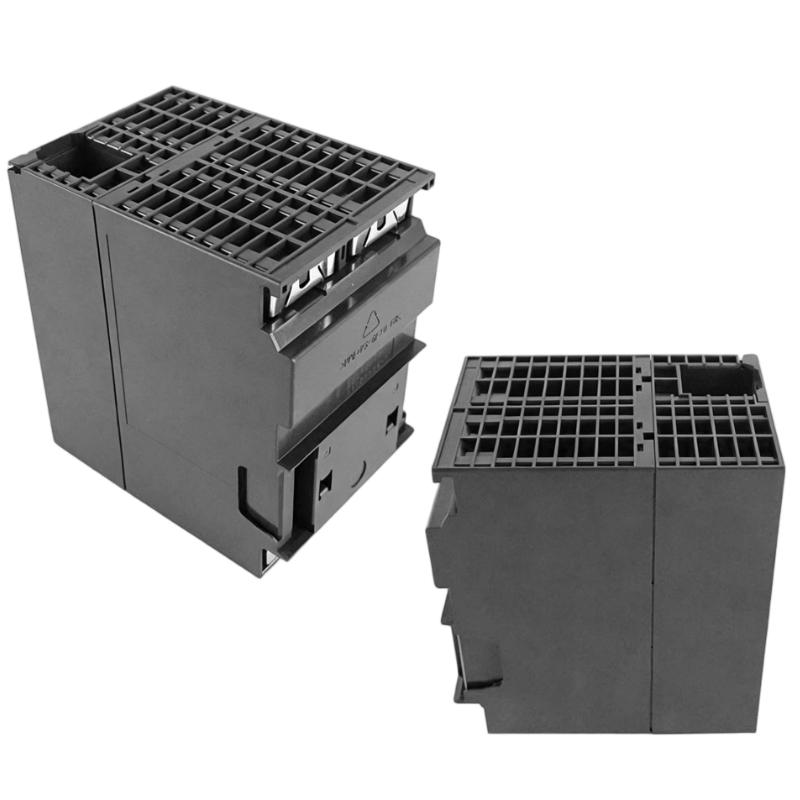

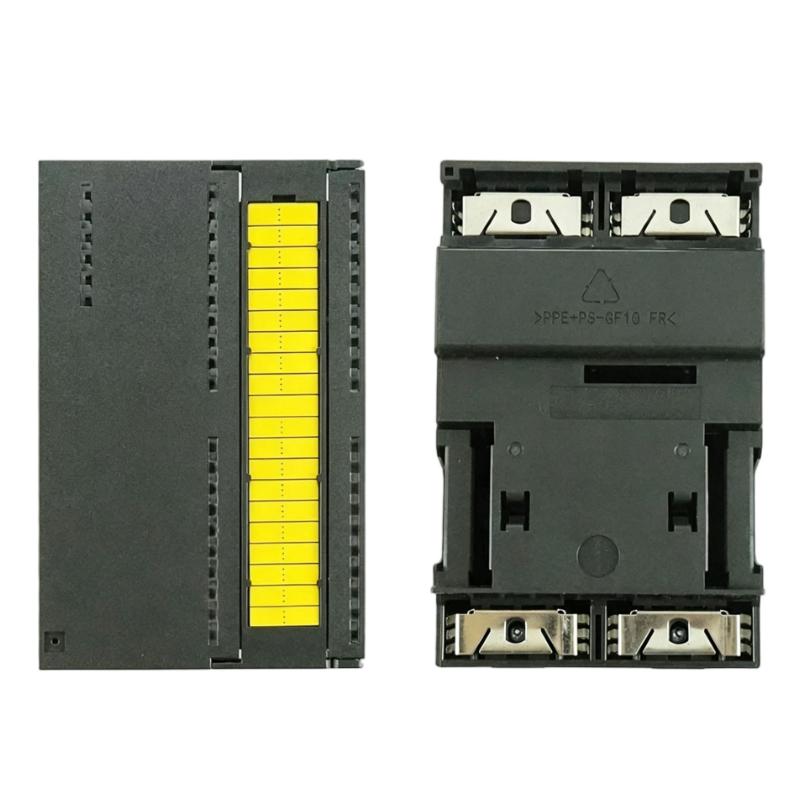

The Siemens 6AG1326-1BK02-2AY0 Digital Input Module is a SIPLUS version of the S7-300 SM 326F DI24 fail-safe digital input module. It is designed to acquire safety-related 24 V DC signals and transfer them into a suitable SIMATIC S7 F-system.
The module is based on the standard 6ES7326-1BK02-0AB0 and provides 24 digital fail-safe inputs. This makes it suitable for applications where multiple safety signals need to be monitored, such as emergency stops, safety doors, protective devices, machine interlocks and other safety sensors.
A major characteristic of this particular model is its SIPLUS environmental design. The module uses conformal coating to improve protection of the electronic components against demanding environmental conditions. The -2AY0 variant additionally carries environmental conformity associated with EN 50155 T1 Category 1 Class A/B, making it a suitable choice for certain railway and transportation automation systems.
The input circuits are designed for 24 V DC signals. A voltage between +11 V and +28.8 V is interpreted as a logical "1", while -28.8 V to +5 V represents a logical "0". The module also provides diagnostic functions and diagnostic alarms, which can simplify troubleshooting in safety-related systems.
For field wiring, the module uses a 40-pole front connector. Shielded cable lengths of up to 200 m and unshielded cable lengths of up to 100 m are specified, although actual installation performance depends on the sensor type, wiring arrangement and electromagnetic environment.
The module also provides four isolated outputs with a rated current of 400 mA. These functions are part of the module's overall fail-safe architecture and should be evaluated according to the intended S7 F-system configuration.
With dimensions of 80 × 125 × 120 mm and a user-specified weight of 0.480 kg (1.06 lb), the 6AG1326-1BK02-2AY0 is a substantial S7-300 safety module intended for applications where reliability and environmental resistance are more important than minimum physical size.
Technical Specifications
Specification
Details
Product Model
Siemens 6AG1326-1BK02-2AY0
Product Type
SIPLUS S7-300 SM 326F DI24 Digital Input Module
Product Family
SIPLUS SM 326 F-Digital Input
Base Module
6ES7326-1BK02-0AB0
Safety Function
Fail-Safe Digital Input
Number of Digital Inputs
24
Rated Input Voltage
24 V DC
Input Signal "0"
-28.8 to +5 V DC
Input Signal "1"
+11 to +28.8 V DC
Typical Input Current at Signal "1"
10 mA
Maximum Permissible Quiescent Current
2 mA
Maximum Input Delay
3.4 ms
Diagnostic Function
Yes
Diagnostic Alarm
Yes
Connectable 2-Wire Sensor
Yes, under specified conditions
Number of Isolated Outputs
4
Rated Output Current
400 mA
Maximum Load Supply Current
450 mA
Maximum Backplane Bus Current
100 mA
Typical Power Loss
10 W
Front Connector
40-pole
Maximum Shielded Cable Length
200 m
Maximum Unshielded Cable Length
100 m
Conformal Coating
Yes
Environmental Standard
EN 50155 T1 Category 1 Class A/B
Operating Temperature
-25°C to +60°C
Extended Temperature
Up to +70°C with forced convection, where specified
Protection Rating
IP20
Width
80 mm
Height
125 mm
Depth
120 mm
Dimensions
80 × 125 × 120 mm
Weight
0.480 kg
Weight in Pounds
1.06 lb
PLC Platform
Siemens S7-300 / S7 F-System
Application
Fail-Safe Digital Signal Acquisition
Recommended Related Models
Model
Product Type
Main Function
Siemens 6ES7326-1BK02-0AB0
S7-300 SM 326F DI24
Standard 24-channel fail-safe digital input
Siemens 6AG1326-1BK02-2AB0
SIPLUS SM 326F DI24
SIPLUS fail-safe digital input with conformal coating
Siemens 6AG1326-1BK02-2AY0
SIPLUS SM 326F DI24
SIPLUS fail-safe input with EN 50155 characteristics
Siemens 6ES7326-1RF00-0AB0
S7-300 SM 326F
Fail-safe digital input for S7 F-systems
Siemens 6AG1336-1HE00-2AB0
SIPLUS SM 336
Fail-safe analog input module
Siemens 6ES7336-1HE00-0AB0
S7-300 SM 336
Fail-safe analog signal acquisition
Popular Related Models
For Siemens S7-300 safety and SIPLUS applications, the following models are commonly considered alongside the 6AG1326-1BK02-2AY0:
Siemens 6ES7326-1BK02-0AB0 – SM 326F DI24 standard fail-safe digital input module
Siemens 6AG1326-1BK02-2AB0 – SIPLUS SM 326F DI24 with conformal coating
Siemens 6AG1326-1BK02-2AY0 – SIPLUS SM 326F DI24 with EN 50155-related environmental characteristics
Siemens 6ES7326-1RF00-0AB0 – S7-300 fail-safe digital input module
Siemens 6AG1336-1HE00-2AB0 – SIPLUS SM 336 fail-safe analog input module
Siemens 6ES7336-1HE00-0AB0 – S7-300 SM 336 fail-safe analog input module
Applications
The Siemens 6AG1326-1BK02-2AY0 is a SIPLUS S7-300 SM 326F DI24 fail-safe digital input module designed for safety-related digital signal acquisition in SIMATIC S7 F-systems.
Based on the standard 6ES7326-1BK02-0AB0, this module provides 24 fail-safe digital inputs for 24 V DC signals. It is equipped with conformal coating and is designed according to the environmental requirements associated with EN 50155 T1 Category 1 Class A/B, making it particularly suitable for demanding mobile and industrial environments.
Typical applications include:
Safety-related machine control
Emergency-stop monitoring
Safety door and guard monitoring
Conveyor and material-handling systems
Railway and transportation automation
Mobile industrial equipment
Machine interlock systems
Safety sensor monitoring
Industrial process protection
SIMATIC S7 F-system installations
ET 200M distributed safety systems
Harsh-environment automation
Applications requiring EN 50155-related environmental characteristics
The 24 digital inputs can be used with suitable switching devices, contacts and compatible 2-wire sensors. Integrated diagnostics provide additional information for commissioning and fault detection.
Advantages
1. 24 Fail-Safe Digital Inputs
The 6AG1326-1BK02-2AY0 provides 24 F-DI channels, allowing multiple safety-related signals to be monitored through a single S7-300 signal module.
2. Designed for Safety Applications
The module is intended for use in SIMATIC S7 F-systems, where digital signals are processed as part of a fail-safe automation architecture.
3. 24 V DC Input Technology
All 24 channels are designed for a nominal 24 V DC input signal. The defined input thresholds help provide reliable recognition of field signals.
4. SIPLUS Conformal Coating
The electronics feature conformal coating, providing additional protection against condensation and chemically, biologically and mechanically active environmental influences.
5. EN 50155 Environmental Characteristics
The 6AG1326-1BK02-2AY0 is the SIPLUS variant associated with EN 50155 T1 Category 1 Class A/B requirements, making it especially relevant for railway and transportation-related applications.
6. Diagnostic Alarm Capability
The module supports diagnostic functions and diagnostic alarms, allowing faults affecting the module or input signals to be identified more efficiently.
7. Long Sensor Cable Capability
Shielded sensor cables can be used up to 200 m, while unshielded cables can reach up to 100 m under the specified conditions.
8. Compact S7-300 Installation
With dimensions of 80 × 125 × 120 mm, the module maintains the familiar S7-300 form factor while providing 24 fail-safe digital inputs.
Technical FAQs
1. What is the Siemens 6AG1326-1BK02-2AY0?
The Siemens 6AG1326-1BK02-2AY0 is a SIPLUS S7-300 SM 326F DI24 fail-safe digital input module with 24 × 24 V DC digital inputs.
2. How many digital inputs does it have?
The module provides 24 fail-safe digital inputs.
3. What is the rated input voltage?
The rated input voltage is 24 V DC. A signal from +11 V to +28.8 V is recognized as signal "1", while -28.8 V to +5 V is recognized as signal "0".
4. Is the 6AG1326-1BK02-2AY0 a standard or fail-safe input module?
It is a fail-safe digital input module designed for SIMATIC S7 F-systems. It should therefore be applied as part of an appropriately engineered safety system rather than used simply as a conventional standard DI module.
5. What is the difference between 6AG1326-1BK02-2AY0 and 6AG1326-1BK02-2AB0?
Both models are SIPLUS SM 326F DI24 modules based on 6ES7326-1BK02-0AB0 and provide 24 fail-safe 24 V DC digital inputs. The -2AY0 variant has the specific environmental/conformity designation associated with EN 50155 T1 Category 1 Class A/B, making it particularly relevant to railway and transportation applications.
6. Can 2-wire sensors be connected?
Yes. Compatible 2-wire sensors can be connected when the specified conditions are met, including the permissible quiescent current and appropriate configuration of the short-circuit test.
7. Does the module provide diagnostics?
Yes. The module provides diagnostic functions and diagnostic alarms for monitoring module and signal conditions.
8. What is the maximum input cable length?
The maximum specified cable length is 200 m for shielded cables and 100 m for unshielded cables.
9. What is the maximum input delay?
For the standard inputs at the rated input voltage, the maximum input delay is approximately 3.4 ms for both the "0" to "1" and "1" to "0" transitions.
10. What environments is the 6AG1326-1BK02-2AY0 suitable for?
The module is particularly suited to demanding industrial and transportation environments. Its conformal coating and EN 50155-related characteristics make it useful where condensation, temperature variation and chemically or mechanically active environmental conditions may occur.
