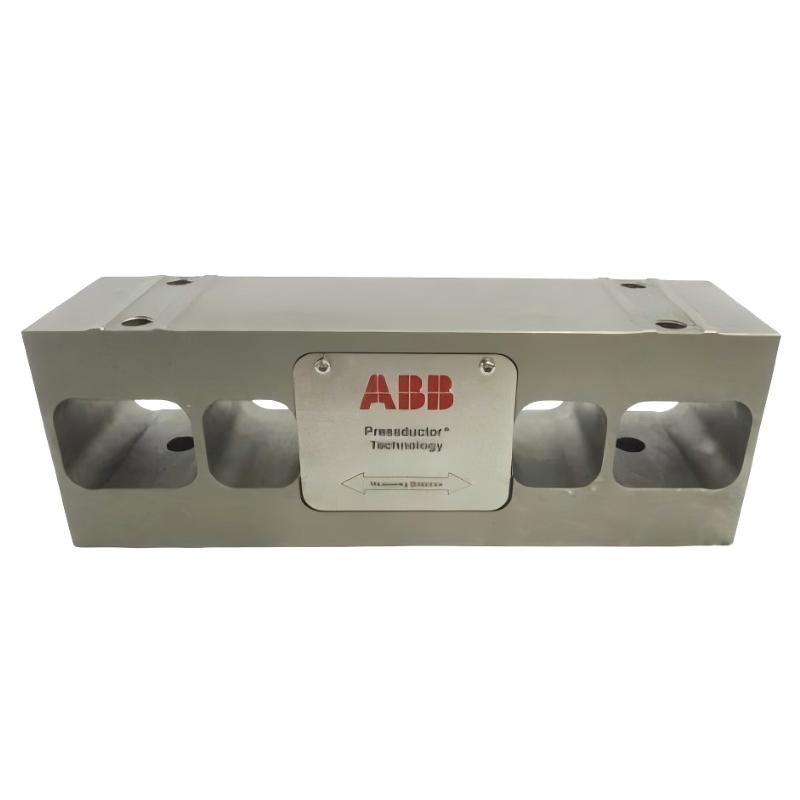

ABB PFCL 101B 3BSE004191R1 Load Cell

Applications

The ABB PFCL 101B 3BSE004191R1 Load Cell is a specialized industrial force-measurement component designed for continuous web and strip-processing applications. Its PillowBlock configuration allows the load cell to be integrated directly into machinery where accurate horizontal force measurement is required.

In continuous production systems, material tension has a direct influence on product quality, machine stability, and process efficiency. The PFCL 101B provides force feedback that can be incorporated into a tension-measurement and control system, helping operators and automation equipment maintain more consistent process conditions.

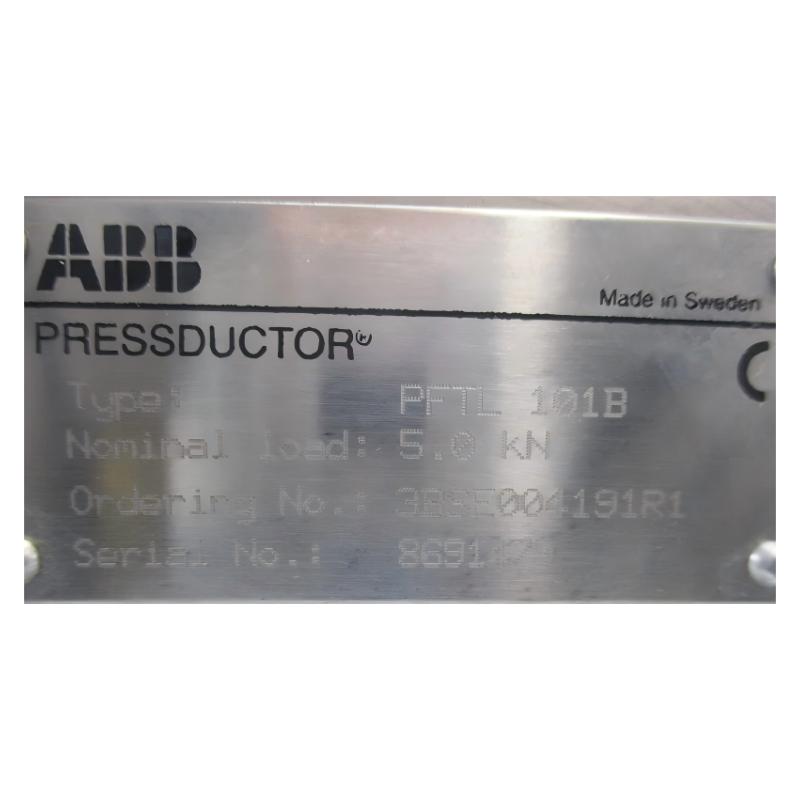

The 3BSE004191R1 version is associated with the PFTL 101B 5.0 kN configuration, making it suitable for applications requiring a 5.0 kN nominal measurement capacity.

Typical applications include:

• Steel strip processing
• Aluminum processing
• Paper production
• Film and foil processing
• Printing machinery
• Converting equipment
• Winding and unwinding systems
• Continuous web handling
• Roll-to-roll production
• Industrial tension-control systems

The PFCL 101B is especially useful where the force generated by material tension needs to be measured through a process roll. By measuring the horizontal force component, the system can obtain useful tension information without making the roll's own static weight the primary measurement variable.

For industrial maintenance teams, the 3BSE004191R1 identification provides a precise reference when replacing an existing load cell. Correct selection is important because the PFTL 101B family includes different load capacities and configurations.

Key Advantages

Accurate Horizontal Force Measurement
The PFCL 101B is designed for horizontal force measurement, making it a practical solution for industrial tension-measurement applications.

PillowBlock Mechanical Design
Its PillowBlock construction allows the load cell to form part of the roll-support structure, providing a compact and mechanically integrated approach to force measurement.

5.0 kN Measurement Capacity
The 3BSE004191R1 version corresponds to a 5.0 kN PFTL 101B configuration, making it suitable for systems requiring this specific measurement range.

Pressductor Technology
ABB Pressductor technology provides a robust measurement principle based on changes in magnetic properties caused by mechanical stress.

Suitable for Continuous Production
The PFCL 101B is intended for industrial machinery where measurement equipment must operate continuously as part of a larger automated process.

Supports Stable Tension Control
Reliable force feedback can help the automation system regulate web or strip tension, reducing the risk of production instability caused by uncontrolled material forces.

Practical Replacement Solution
For existing ABB tension-measurement systems, using the correct PFCL 101B version can help maintenance teams restore equipment without unnecessary changes to the surrounding mechanical arrangement.

Industrial-Grade Construction
The load cell is designed for integration into production machinery rather than lightweight laboratory applications, making it a strong option for demanding industrial installations.

Technical FAQs

1. What is the ABB PFCL 101B 3BSE004191R1 used for?
The PFCL 101B is an industrial load cell designed for horizontal force measurement. The 3BSE004191R1 version is associated with a 5.0 kN measurement configuration and is suitable for industrial tension-measurement systems.

2. Why is horizontal force measurement useful in web-processing equipment?
Material tension creates a force on the process roll. Measuring the horizontal component of this force allows the control system to obtain useful tension information while minimizing the influence of the roll's static weight.

3. What is the nominal measuring capacity of 3BSE004191R1?
The 3BSE004191R1 corresponds to the PFTL 101B 5.0 kN configuration.

4. Can the PFCL 101B be used in an automatic tension-control loop?
Yes. The load-cell signal can be processed by suitable measurement electronics and used as feedback for an automatic tension-control system.

5. What mechanical conditions can affect measurement accuracy?
Incorrect mounting, misalignment, mechanical friction, vibration, bearing problems, unintended force paths, and external mechanical interference can all influence the measurement.

6. What can cause an unstable load-cell signal?
Possible causes include damaged cables, loose electrical connections, excessive vibration, mechanical problems, electrical interference, signal-conditioning faults, or abnormal loading conditions.

7. Can a different PFTL 101B capacity be used as a direct replacement?
A different capacity should not automatically be treated as a direct replacement. The complete part number, required measurement range, mechanical configuration, and control-system requirements must be verified before substitution.

8. What should be inspected when a tension-control system gives incorrect readings?
The complete measurement chain should be inspected, including the load cell, mechanical mounting, roll bearings, cabling, junction box, measurement electronics, and control-system configuration.

9. Does the load cell need to be mechanically aligned during installation?
Yes. Correct mechanical alignment is essential because the sensor must receive the intended measurement force without additional mechanical loads affecting the signal.

10. What should be done after replacing the PFCL 101B?
The mechanical installation and electrical connections should be inspected first. The measurement signal should then be checked under controlled conditions, including zero stability and response to known operating forces, before the equipment returns to normal production.
