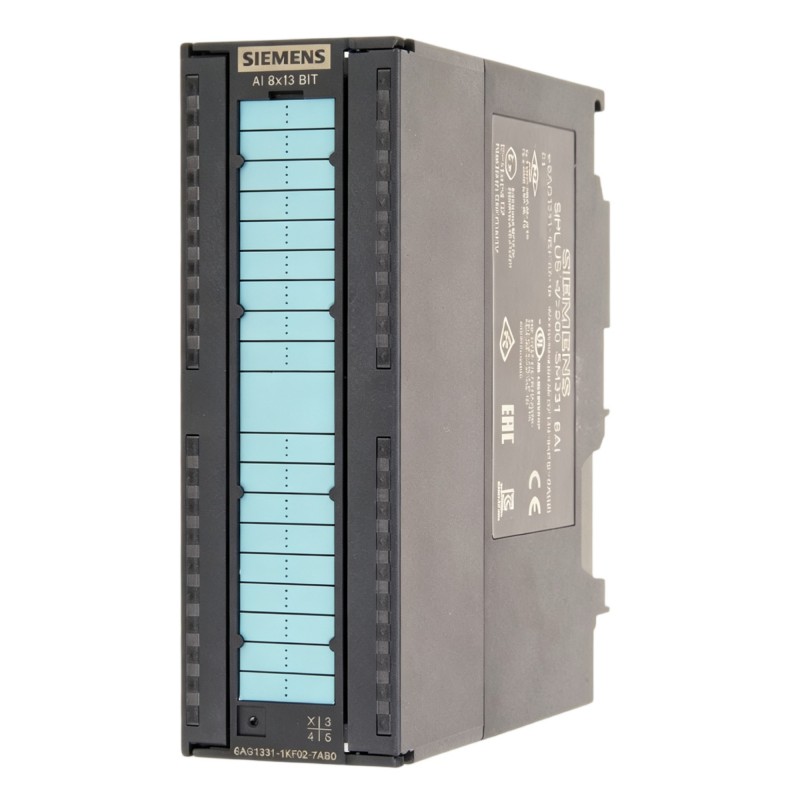

Siemens 6AG1331-1KF02-7AB0 Analog Input Module

Industrial Applications and Field Integration

The Siemens 6AG1331-1KF02-7AB0 Analog Input Module is designed for automation systems that need to acquire continuous process signals and transfer measured values into a PLC-based control architecture. Analog input modules are essential wherever industrial controllers must work with physical variables rather than simple ON/OFF states.

Typical applications include process monitoring, machine automation, temperature measurement, pressure monitoring, flow measurement, level control, and general-purpose instrumentation. The module can be integrated into automation systems where reliable acquisition of field signals is important for closed-loop control, process supervision, and data collection.

In manufacturing plants, the module can serve as an interface between sensors and the control system, allowing engineering teams to incorporate real-world measurement data into PLC programs and higher-level automation functions.

Key Strengths for Automation Projects

The 6AG1331-1KF02-7AB0 combines compact installation with dependable analog signal acquisition, making it a practical component for industrial control and process automation projects.

Accurate Process Signal Acquisition
The module is intended to acquire analog field information and make that data available to the automation controller for monitoring and control tasks.

Suitable for Process Applications
Analog input functionality makes it useful in systems where continuously changing values must be monitored rather than simple digital states.

Compact Cabinet Installation
Its compact design helps engineers organize automation cabinets efficiently, particularly when multiple I/O modules are installed within a limited space.

Industrial Reliability
The SIPLUS platform is designed for demanding industrial applications, making the module suitable for automation environments where dependable operation is a priority.

Practical System Expansion
For existing Siemens automation installations, the module can provide additional analog input capability when new measuring points or process signals need to be incorporated.

Technical FAQs — Engineering Questions Answered

1. What is the main function of the Siemens 6AG1331-1KF02-7AB0?

The module provides analog input functionality, allowing continuous electrical signals from compatible field instrumentation to be acquired by a Siemens automation system.

2. What types of industrial signals are typically connected to analog input modules?

Depending on the module's specified electrical configuration, analog input systems may be used with signals from instruments measuring variables such as temperature, pressure, flow, level, or other process conditions. The exact supported signal type should always be matched with the module configuration.

3. Why are analog input modules important in process automation?

Many industrial variables change continuously. An analog input module converts these field measurements into usable process data so the PLC can monitor conditions, execute control logic, and respond to changing operating parameters.

4. How should an analog sensor be connected to the module?

The sensor should be wired according to the module's specified channel configuration and electrical requirements. Signal polarity, grounding, shielding, and the selected sensor type should be verified before commissioning.

5. What can cause an unstable analog reading?

Common causes include electrical interference, inadequate shielding, incorrect wiring, grounding problems, unsuitable signal sources, loose terminals, or configuration errors. The sensor and field wiring should also be checked before replacing the I/O module.

6. How can engineers troubleshoot an incorrect analog value?

Start by checking the sensor output with suitable test equipment. Then verify wiring, channel configuration, supply conditions, scaling parameters, and PLC diagnostics. Comparing the measured field signal with the value received by the controller can help isolate the problem.

7. Is signal shielding important for analog inputs?

Yes. Analog signals can be more susceptible to electromagnetic interference than simple digital signals. Appropriate cable selection, shielding, grounding, and separation from high-power wiring can significantly improve signal stability.

8. Can an analog input module be used for closed-loop control?

Yes. When the acquired process value is correctly configured and scaled, the PLC can use the measurement as feedback for control algorithms such as temperature, pressure, flow, or level regulation.

9. What should be checked before commissioning the module?

Engineers should verify the module type, system configuration, sensor compatibility, terminal wiring, signal polarity, grounding, channel parameters, and PLC hardware configuration before putting the system into service.

10. What is the best approach when an analog channel stops providing a valid signal?

Check the field sensor and its power supply first, followed by wiring and terminals. The engineering configuration and diagnostic status should then be checked. If the field signal is confirmed to be correct but the controller still receives an abnormal value, the I/O channel and associated hardware should be investigated.
