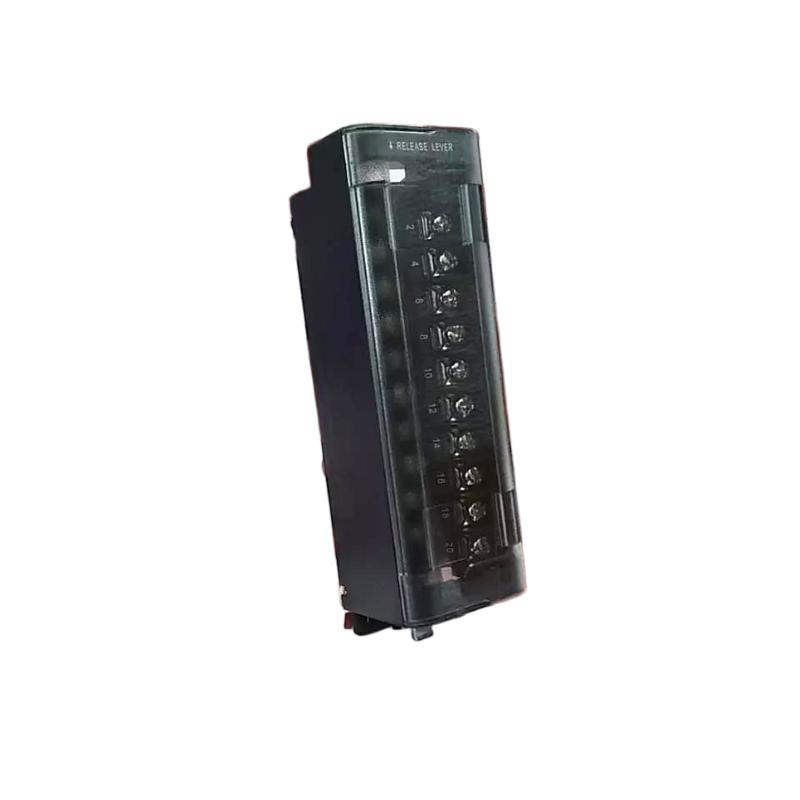

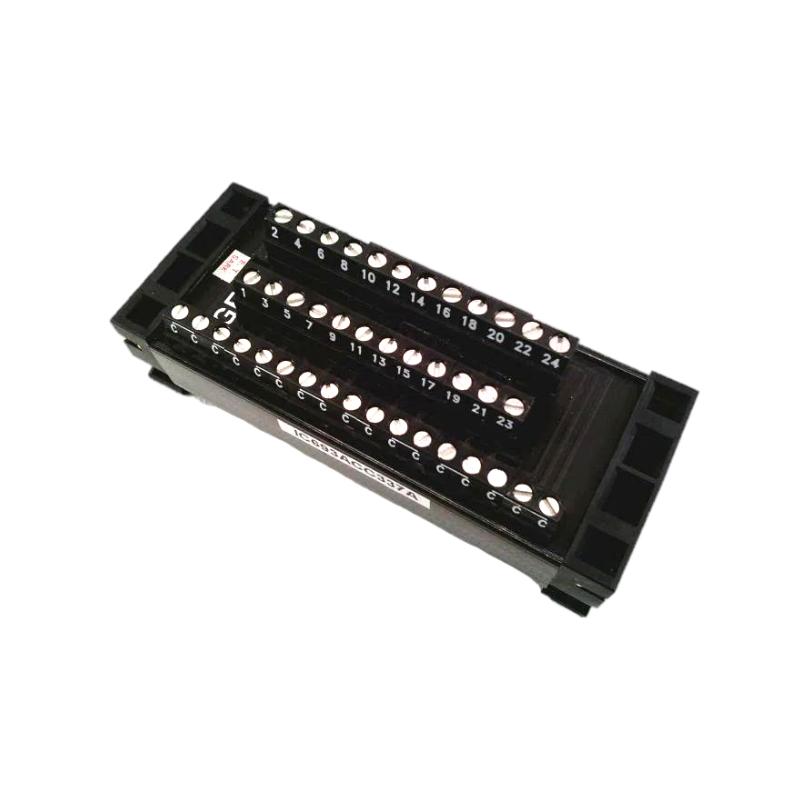

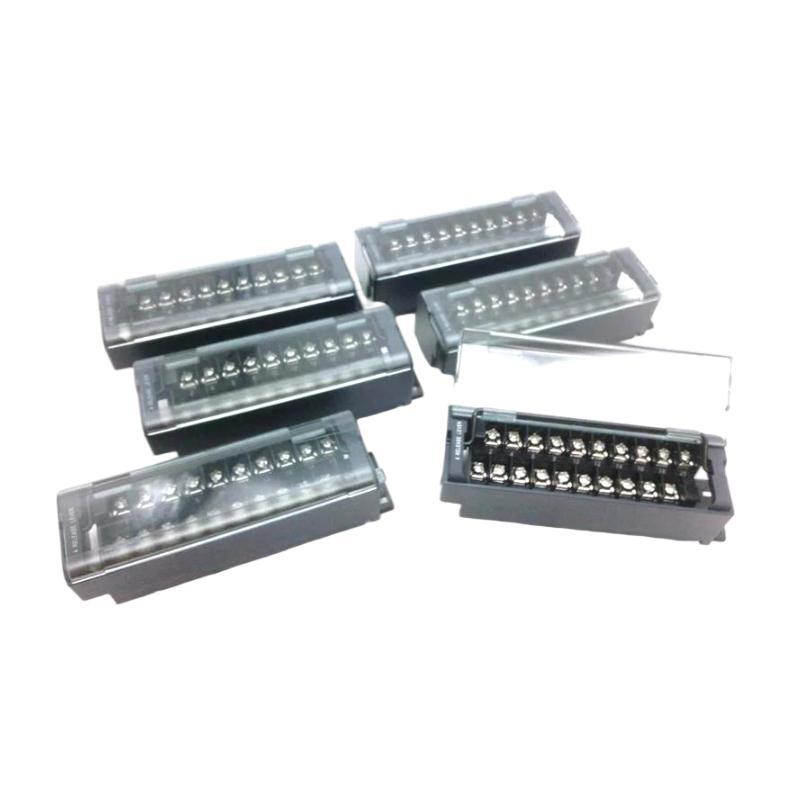

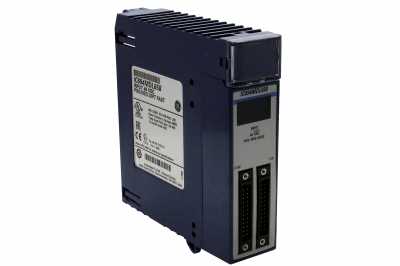

The GE IC694ACC311 is a RX3i PACSystems terminal block accessory designed for use with GE IC694 series low-density I/O modules. It provides a structured and secure interface for field wiring connections, enabling reliable signal distribution between PLC I/O modules and external field devices.
This accessory is widely used in GE RX3i automation systems, especially in industrial environments where modular wiring, fast replacement, and maintenance-friendly design are required. It supports efficient installation and safe wiring management for control cabinets in manufacturing, utilities, and process industries.
Unlike active modules, the IC694ACC311 is a passive wiring terminal assembly, but it plays a critical role in ensuring system reliability and serviceability.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (General Electric / Emerson legacy) |
| Model | IC694ACC311 |
| Product Type | Terminal Block / I/O Wiring Accessory |
| Series | PACSystems RX3i (IC694 I/O family) |
| Function | Field wiring termination |
| Terminal Count | 20 screw terminals (per block) |
| Compatibility | IC694xx low-density I/O modules |
| Wiring Type | Screw clamp terminals |
| Conductor Type | Solid and stranded copper wires |
| Wire Range | Typically AWG 14–22 |
| Mounting | Plug-in front terminal assembly |
| Service Feature | Hot-swap compatible (system dependent) |
| Indicators | Module status via I/O module LEDs |
| Operating Environment | Industrial control cabinet use |
| Temperature Range | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
Physical Dimensions
| Item | Value |
|---|---|
| Size (L × W × H) | 70 × 60 × 110 mm |
| Weight | ~0.30 – 0.82 kg |
The compact 70 × 60 × 110 mm structure allows easy front-mounted installation on RX3i I/O modules while maintaining secure and organized field wiring connections.
Recommended Related Models
- GE IC694MDL646 – 16-point DC input module
- GE IC694MDL740 – Relay output module
- GE IC694ALG508 – Analog input module
- GE IC695CPU310 – RX3i processor module
- GE IC694PWR330 – Power supply module
Popular GE RX3i System Components
- RX3i CPU and rack systems
- IC694 series digital I/O modules
- IC695 advanced control modules
- Industrial terminal and wiring accessories
- Distributed control system components
These components are widely used in industrial automation, energy systems, and large-scale manufacturing control systems.
