Introduction

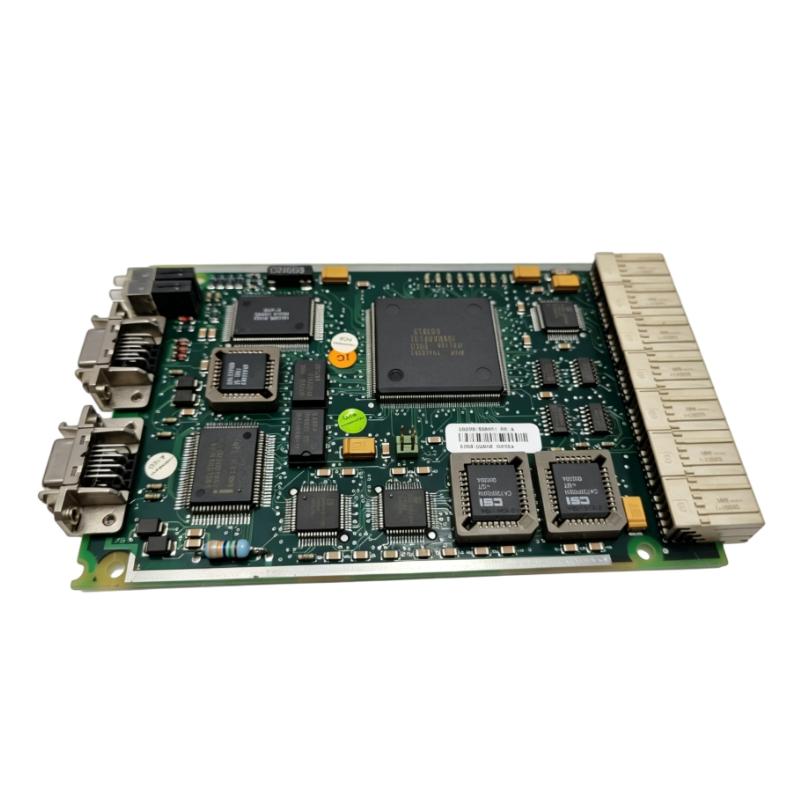

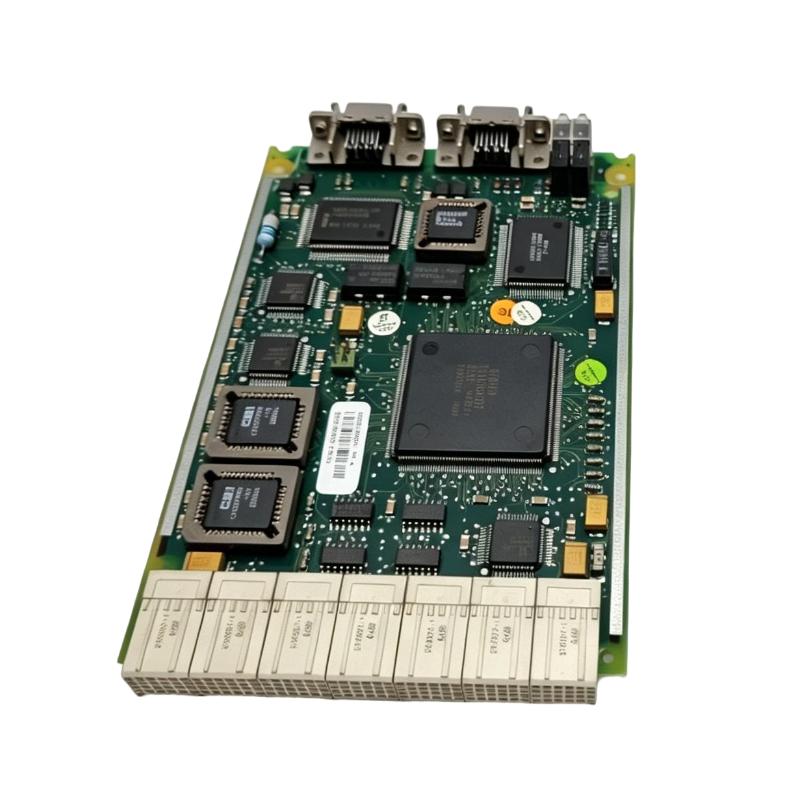

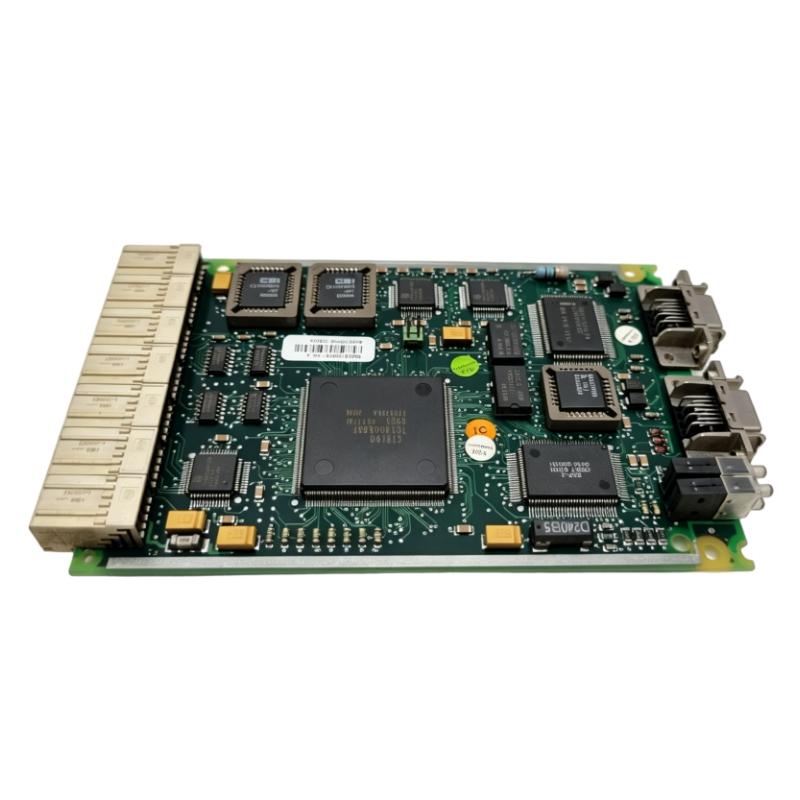

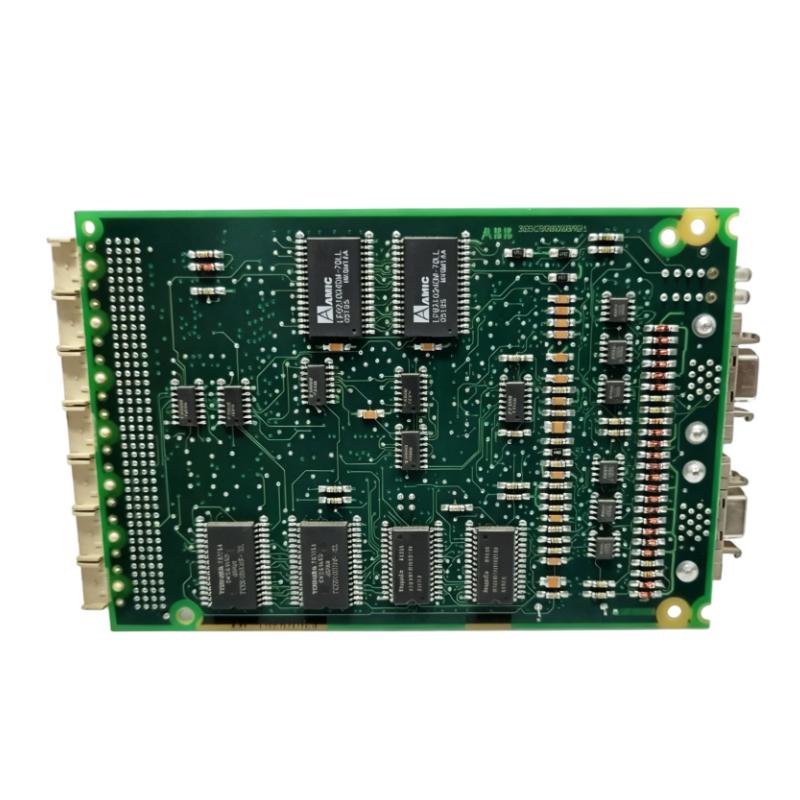

The ABB CI522AK14 3BSE018460R1 AF 100 Communication Interface is a specialized communication solution for ABB Advant automation environments using Advant Fieldbus 100. It is particularly relevant to industrial facilities that continue to operate established ABB control systems and require dependable replacement hardware to keep those systems running.

The CI522 communication interface serves as an important connection point within the AF 100 communication architecture. Rather than treating communication hardware as an interchangeable commodity, the CI522 family was designed around the requirements of ABB's Advant control environment.

The CI522AK14 configuration is especially useful from a maintenance perspective because it represents a complete interface kit. The specified configuration includes one 3BSE018283R1 CI522A, one 3BSE018059R1 TC512V1 twisted-pair modem, and one 3BSC950130R2 TK803V036 cable. This gives maintenance engineers a more complete replacement option when the communication interface assembly needs to be restored.

For plants operating mature process-control systems, reliable spare-part selection is critical. A communication failure can affect controller-to-network data exchange and may have consequences well beyond the communication module itself. Using the correct ABB type and part number helps reduce compatibility risks and supports a more controlled maintenance process.

The CI522AK14 is therefore best viewed as a lifecycle support component for compatible ABB Advant control installations. Its value lies not only in communication functionality, but also in helping plants preserve proven automation infrastructure without unnecessary changes to the overall control strategy.

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model / Type	CI522AK14
ABB Product Number	3BSE018460R1
Product Type	AF 100 Communication Interface
Communication System	Advant Fieldbus 100 (AF 100)
Associated Interface	CI522A
Associated Modem	TC512V1 Twisted-Pair Modem
Associated Cable	TK803V036
Application	ABB Advant control and communication systems
System Family	Advant Controller 400 Series
Dimensions	148 × 45 × 117 mm
Weight	0.40 kg (0.88 lb)

Kit Configuration

Component	Part Number	Function
CI522A	3BSE018283R1	AF 100 communication interface
TC512V1	3BSE018059R1	Twisted-pair communication modem
TK803V036	3BSC950130R2	Communication cable

The dimensions and weight above correspond to the product information provided for the CI522AK14 listing. When planning a replacement, engineers should also account for the installation arrangement, associated connectors, cable routing, and available cabinet clearance.

Recommended Related Models

For maintenance teams working with ABB Advant Fieldbus 100 equipment, the following models and part numbers are relevant when evaluating related communication-interface requirements:

Model	Product Type
ABB CI522A — 3BSE018283R1	Advant Fieldbus 100 Communication Interface
ABB CI522AK11 — 3BSE018457R1	AF 100 Communication Interface
ABB CI522AK12 — 3BSE018458R1	AF 100 Communication Interface
ABB CI522AK13 — 3BSE018459R1	AF 100 Communication Interface
ABB CI522AK15 — 3BSE018461R1	AF 100 Interface for Bus
ABB CI522AK16 — 3BSE018462R1	AF 100 Interface for Bus

These models belong to the same general CI522/AF 100 product family, but their exact functions and kit configurations should be checked against the existing system before substitution.

Popular Related Models

Model	Product Type
ABB CI522AK01 — 3BSE018448R1	AF 100 Communication Interface
ABB CI522AK02 — 3BSE018449R1	AF 100 Interface for Bus
ABB CI522AK03 — 3BSE018450R1	AF 100 Interface for Bus
ABB CI522AK04 — 3BSE018451R1	AF 100 Communication Interface
ABB CI522AK05 — 3BSE018452R1	AF 100 Interface for Bus
ABB CI522AK06 — 3BSE018453R1	AF 100 Interface for Bus
ABB CI522AK21 — 3BSE018464R1	AF 100 Communication Interface
ABB CI522AK22 — 3BSE018465R1	AF 100 Communication Interface
ABB CI522AK23 — 3BSE018466R1	AF 100 Communication Interface
ABB CI522AK24 — 3BSE018467R1	AF 100 Communication Interface
ABB CI522AK25 — 3BSE018468R1	AF 100 Interface for Bus
ABB CI522AK26 — 3BSE018469R1	AF 100 Interface for Bus

Applications

The ABB CI522AK14 3BSE018460R1 AF 100 Communication Interface is designed for communication within ABB Advant Controller 400 Series and compatible AF 100-based control architectures. It provides the communication interface required for exchanging control, status, diagnostic, and process information between the control system and the Advant Fieldbus 100 network.

A key characteristic of this product is that the CI522AK14 is supplied as an AF 100 communication interface kit, rather than simply being a standalone interface board. The kit configuration includes the CI522A interface, a TC512V1 twisted-pair modem, and the TK803V036 cable, providing a practical solution for maintaining or restoring an existing AF 100 communication connection.

Typical applications include:

Process Control Systems — Used in industrial process automation where dependable fieldbus communication is essential for coordinated control and monitoring.
Advant Controller 400 Systems — Suitable for compatible ABB Advant Controller 400 architectures using Advant Fieldbus 100.
Distributed Control Architectures — Helps establish communication between controllers and associated field-level or system-level equipment.
Industrial Plant Automation — Appropriate for chemical, power, manufacturing, utilities, and other process-oriented automation installations.
System Maintenance and Refurbishment — Particularly useful when an existing AF 100 communication interface needs to be replaced while retaining the established control architecture.
Control System Expansion — Can support compatible system configurations where an AF 100 communication interface is required.
Spare Parts Management — The complete product designation and kit configuration make it easier for maintenance teams to identify the correct replacement assembly.

For legacy ABB automation systems, maintaining the original communication architecture can be more practical than redesigning an entire control network. The CI522AK14 therefore remains a valuable component for long-term system maintenance and lifecycle management.

Why the CI522AK14 Is a Practical Choice

The CI522AK14 is valued primarily for its role in maintaining established AF 100 communication infrastructure. Instead of introducing an unrelated communication technology into an existing installation, engineers can use a compatible interface designed around the original ABB control architecture.

Complete communication interface solution
The CI522AK14 designation represents a communication interface kit that brings together the required interface, twisted-pair modem, and connecting cable. This can simplify replacement planning for maintenance teams.

Designed for AF 100 architectures
The module is specifically associated with the Advant Fieldbus 100 environment, making it a logical choice for compatible legacy ABB process-control installations.

Useful for lifecycle support
Many industrial plants continue to operate proven control platforms for years. Maintaining compatible communication hardware helps extend the practical service life of these installations.

Straightforward product identification
The combination of CI522AK14 and 3BSE018460R1 provides a clear identification reference when purchasing replacement equipment or checking installed hardware.

Compact industrial construction
With a supplied module size of 148 × 45 × 117 mm, the interface assembly is suitable for integration into industrial control equipment and cabinet environments where space must be managed carefully.

Supports systematic troubleshooting
When communication problems occur, having a dedicated interface assembly makes it easier for maintenance engineers to separate network-related issues from controller, cabling, or field-device problems.

A strong option for legacy ABB systems
For facilities seeking to preserve an existing Advant control installation, using the correct communication interface can reduce unnecessary system modifications and associated engineering work.

Technical FAQs

1. What is the primary function of the ABB CI522AK14?

The CI522AK14 is an AF 100 communication interface kit intended to provide communication between compatible ABB Advant control equipment and the Advant Fieldbus 100 network. It forms part of the communication path used for transferring control and process information.

2. Which ABB system is the CI522 communication interface associated with?

The CI522 communication interface is associated with the Advant Controller 400 Series and Advant Fieldbus 100 communication architecture. Its application should therefore be evaluated against the specific controller and system configuration before installation.

3. What does the 3BSE018460R1 designation identify?

3BSE018460R1 is the ABB product number associated with the CI522AK14 AF 100 communication interface kit. It should be used together with the CI522AK14 type designation when identifying the required replacement or spare part.

4. Is CI522AK14 a standalone communication board?

The CI522AK14 product designation refers to a communication interface kit. The kit configuration includes the CI522A interface together with the associated TC512V1 twisted-pair modem and TK803V036 cable. This distinction is important when ordering replacement equipment.

5. What communication network does the CI522 support?

The CI522 is intended for communication through Advant Fieldbus 100 (AF 100). It is therefore not a general-purpose Ethernet or Modbus communication module. The existing control system architecture should be checked before selecting it for a new application.

6. What should be checked before replacing a CI522AK14?

Engineers should verify the complete part number, installed CI522 configuration, AF 100 network arrangement, controller compatibility, communication cabling, modem arrangement, and system configuration. The replacement should match the original application rather than being selected solely because the physical module appears similar.

7. What are common causes of communication problems in an AF 100 installation?

Communication problems can originate from several areas, including damaged or incorrectly connected fieldbus cabling, modem problems, incorrect configuration, controller-side issues, interface faults, or problems elsewhere on the network. A structured diagnostic procedure should isolate the network, interface, controller, and connected equipment separately.

8. Why is the twisted-pair modem important in this communication arrangement?

The twisted-pair modem forms part of the communication path between the interface and the physical AF 100 network connection. A fault in the modem or its associated wiring can therefore result in communication errors even when the controller and communication interface itself are functioning correctly.

9. Can the CI522AK14 be used to modernize an AF 100 network directly?

The CI522AK14 is primarily intended to maintain compatible AF 100-based systems rather than act as a universal modernization gateway. If a legacy system is being migrated to another communication technology, the complete control architecture and required protocol conversion should be evaluated separately.

10. What is a sensible troubleshooting sequence when the CI522 communication path fails?

Start by checking controller diagnostics and communication status, then inspect the AF 100 network connections and cabling. The interface and associated modem should subsequently be checked for hardware or connection faults. If the physical communication path is healthy, configuration and system-level diagnostics should be reviewed to determine whether the problem originates elsewhere in the control architecture.
