Introduction

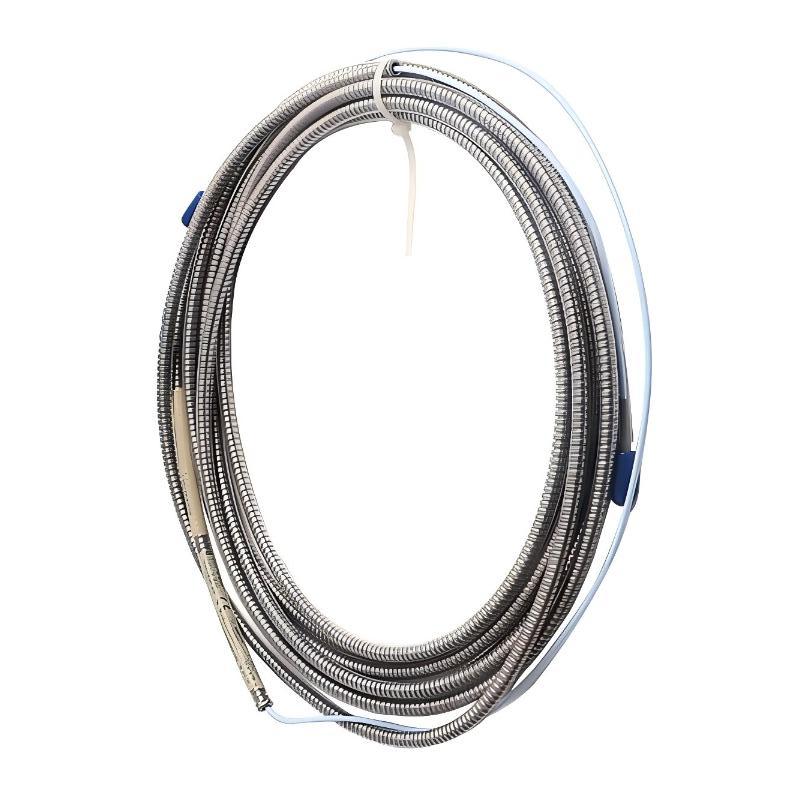

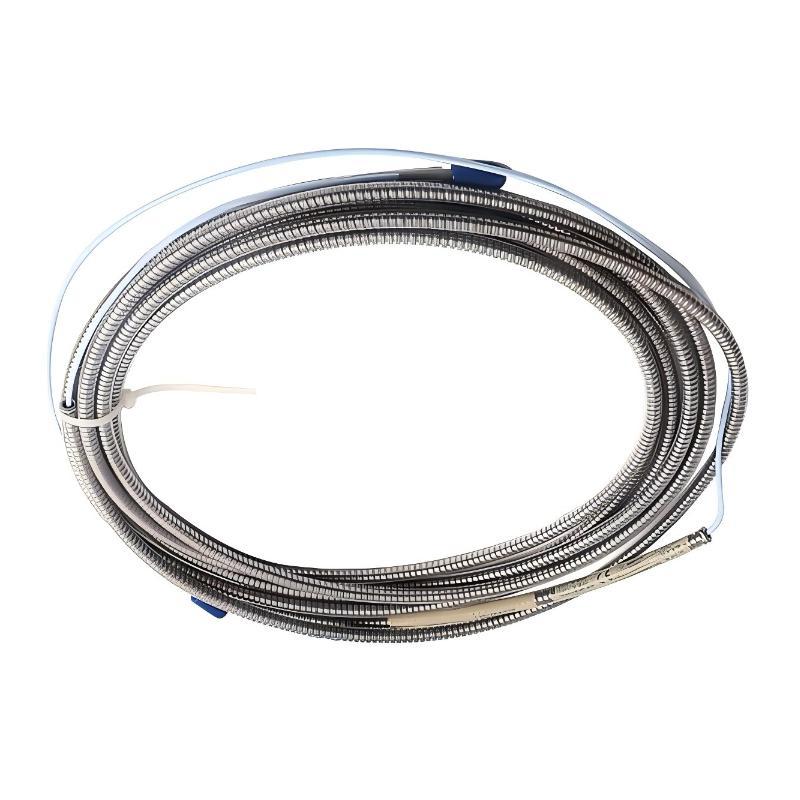

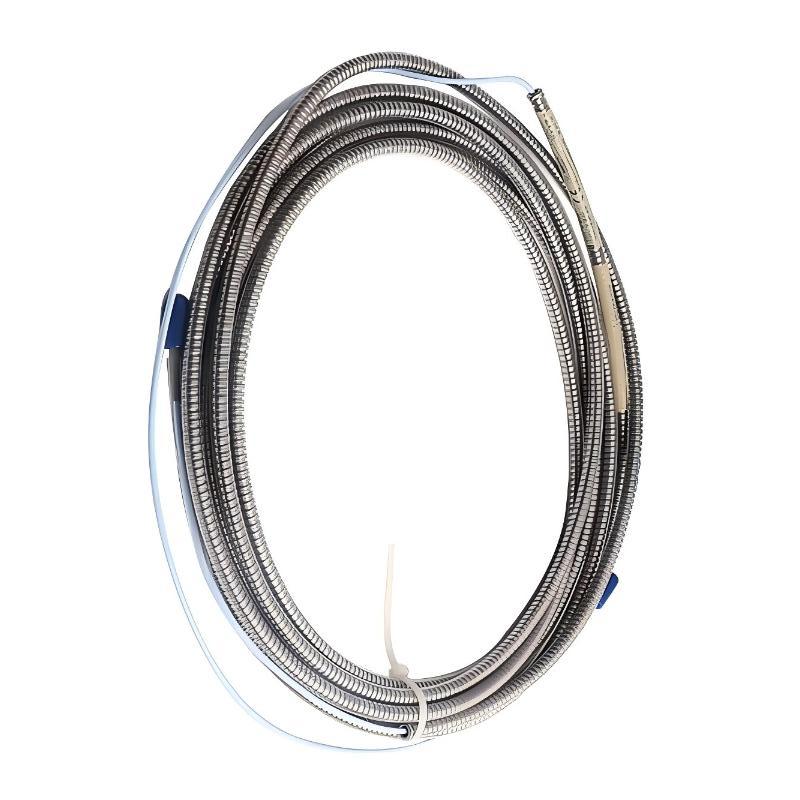

The Bently Nevada 330930-060-02-05 3300 NSv Extension Cable is a specialized 6-meter cable intended for compatible 3300 NSv proximity monitoring systems. It serves an important but often overlooked role in machinery protection and condition-monitoring installations: maintaining the electrical connection between sensing equipment and the associated monitoring electronics.

In a proximity measurement system, the cable is part of the measurement circuit rather than simply a passive means of extending physical distance. For this reason, using the correct cable type and length is important when replacing an installed component.

The 330930-060-02-05 designation identifies a 6-meter configuration within the 330930 cable family. This makes it particularly useful when the standard probe connection does not provide sufficient reach for the physical arrangement of the machinery, junction points, and monitoring cabinet.

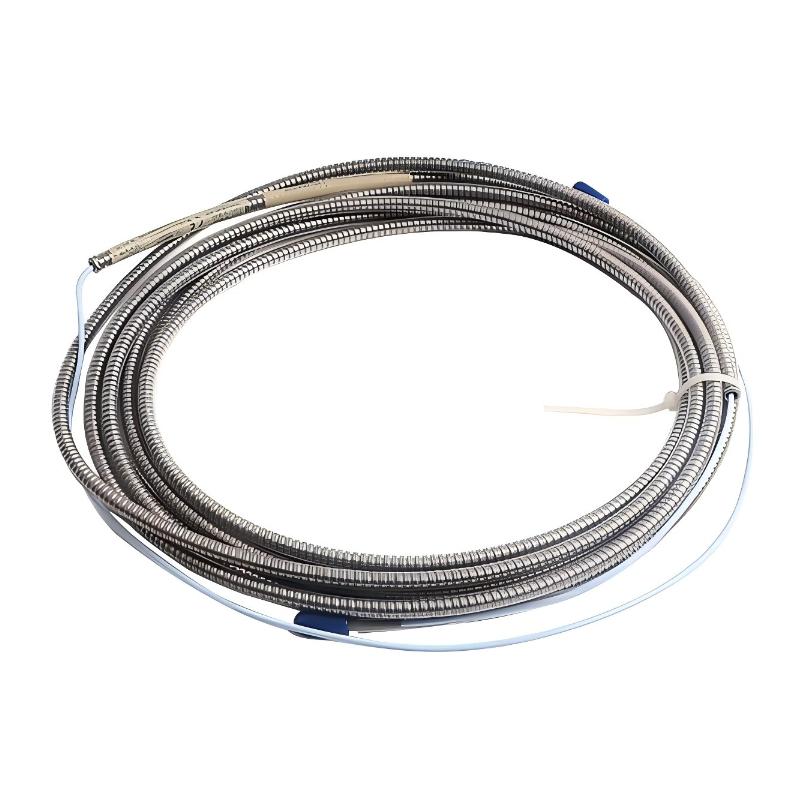

The product information provided for this listing also identifies different weight values for the cable construction: 0.045 kg for the standard version and 0.064 kg for the armored version. These values are useful when distinguishing the cable construction, while the supplied product-page shipping or overall listed weight is 0.384 kg.

For maintenance engineers, selecting the correct extension cable can help avoid unnecessary changes to an established machinery-monitoring installation. When a cable is damaged or requires replacement, maintaining the original 3300 NSv-compatible configuration is often a more straightforward approach than redesigning the measurement chain.

The 330930-060-02-05 is therefore a practical component for industrial plants that depend on continuous machinery monitoring. Its 6-meter length, compatible 3300 NSv application, and available standard or armored construction make it suitable for a range of installation and maintenance requirements.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model	330930-060-02-05
Product Type	3300 NSv Extension Cable
Cable Family	330930
Cable Length	6 meters
Application	Compatible 3300 NSv Proximity Monitoring Systems
Standard Cable Weight	0.045 kg (0.10 lb)
Armored Cable Weight	0.064 kg (0.14 lb)
Listed Product Weight	0.384 kg (0.85 lb)
Dimensions	Cable length: 6 m

Weight clarification: The 0.384 kg (0.85 lb) value is the supplied product-page weight for the 6-meter product. The standard and armored construction weights provided separately are 0.045 kg (0.10 lb) and 0.064 kg (0.14 lb) respectively.

For installation planning, the 6-meter cable length should be considered together with the primary probe cable and the complete measurement-chain configuration. Proper routing should also minimize unnecessary mechanical stress, sharp bends, and potential sources of physical damage.

Recommended Related Models

For applications involving the 3300 NSv proximity monitoring family, the following related Bently Nevada components are useful references when planning a compatible measurement system:

Model	Product Type
Bently Nevada 330171	3300 NSv Proximity Probe
Bently Nevada 330173	3300 NSv Proximity Probe
Bently Nevada 330930-060-01-05	3300 NSv Extension Cable
Bently Nevada 330930-090-02-05	3300 NSv Extension Cable
Bently Nevada 330930-120-02-05	3300 NSv Extension Cable
Bently Nevada 3300 XL Proximitor Sensor	Proximity Signal Conditioner

Selection between related models should be based on the exact probe configuration, cable length, connector arrangement, and monitoring-system requirements.

Popular Related Models

Model	Product Type
Bently Nevada 330930-030-02-05	3300 NSv Extension Cable
Bently Nevada 330930-045-02-05	3300 NSv Extension Cable
Bently Nevada 330930-060-02-05	3300 NSv Extension Cable
Bently Nevada 330930-075-02-05	3300 NSv Extension Cable
Bently Nevada 330930-090-02-05	3300 NSv Extension Cable
Bently Nevada 330930-120-02-05	3300 NSv Extension Cable
Bently Nevada 330930-150-02-05	3300 NSv Extension Cable
Bently Nevada 330171-00-12-10-02-00	3300 NSv Proximity Probe
Bently Nevada 330173-00-12-10-02-00	3300 NSv Proximity Probe
Bently Nevada 3300 XL 8 mm Proximitor Sensor	Proximity Sensor
Bently Nevada 3300 XL 11 mm Proximitor Sensor	Proximity Sensor

When ordering a replacement, the complete 330930-060-02-05 designation should be compared with the existing cable and the installed 3300 NSv system configuration. Cable length, construction, and compatibility are all important to maintaining reliable machinery-monitoring performance.

Applications

The Bently Nevada 330930-060-02-05 3300 NSv Extension Cable is a 6-meter extension cable designed for compatible 3300 NSv proximity transducer systems. As part of a proximity measurement chain, the extension cable provides the physical connection between the appropriate probe and associated signal-processing equipment while preserving the intended electrical characteristics of the measurement circuit.

In machinery monitoring applications, cable selection is more than a matter of reaching the required distance. Probe systems rely on properly matched cables and connectors to maintain signal integrity and ensure that the monitoring system can interpret vibration or displacement measurements correctly. The 330930-060-02-05 is therefore intended for use as part of a compatible 3300 NSv configuration rather than as a general-purpose instrumentation cable.

Typical applications include:

Rotating Machinery Monitoring — Used within compatible monitoring arrangements for pumps, compressors, motors, turbines, and other rotating equipment.
Vibration Measurement Systems — Provides the cable connection required within a compatible proximity probe measurement chain.
Shaft Displacement Monitoring — Supports applications where proximity sensing is used to observe shaft position or movement.
Industrial Machinery Protection — Can form part of a monitoring installation designed to detect abnormal machinery behavior.
Predictive Maintenance Systems — Helps maintain the physical signal path between sensing equipment and monitoring electronics.
Process Industry Equipment — Suitable for compatible machinery-monitoring installations in demanding industrial environments.
Maintenance and Replacement Work — A useful replacement option when an installed extension cable is damaged, degraded, or requires replacement during system maintenance.

With a 6-meter cable length, the 330930-060-02-05 provides additional installation flexibility where the distance between the probe and monitoring equipment exceeds the reach of the primary cable.

Key Benefits for Machinery Monitoring

The 330930-060-02-05 is best suited to engineers who need a correctly matched extension cable for an existing 3300 NSv monitoring installation. Its value comes from maintaining the designed measurement chain rather than simply extending a cable run.

Purpose-built for 3300 NSv systems
The cable is associated with the Bently Nevada 3300 NSv product family, making it appropriate for compatible proximity measurement configurations.

6-meter reach
The 6-meter length provides useful installation flexibility for machinery-monitoring cabinets and field-mounted probes where additional cable distance is required.

Supports measurement-system integrity
A correctly selected extension cable helps preserve the intended electrical connection between the proximity probe and the associated monitoring electronics.

Available in different construction options
The 330930 cable family includes standard and armored configurations. The armored version provides additional mechanical protection where the installation environment demands greater cable protection.

Useful for replacement maintenance
When an existing cable is damaged or has deteriorated over time, replacing the cable with the correct model can restore the intended measurement path without changing the surrounding monitoring architecture.

Suitable for industrial machinery applications
The cable is intended for instrumentation environments where reliable signal transmission is an essential part of machinery condition monitoring.

Practical spare-part selection
The complete designation 330930-060-02-05 gives maintenance personnel a specific reference when identifying a replacement for an existing installation.

Technical FAQs

1. What is the Bently Nevada 330930-060-02-05 used for?

The 330930-060-02-05 is a 6-meter 3300 NSv extension cable used as part of a compatible proximity measurement system. It extends the connection between the appropriate sensing component and the associated monitoring electronics.

2. What does “060” indicate in the model designation?

The 060 portion of the designation corresponds to the 6-meter cable length specified for this product. Cable length is an important selection parameter because the extension must suit the physical installation without introducing an incorrect cable configuration.

3. Is the 330930-060-02-05 a complete proximity probe system?

No. It is an extension cable, not a complete proximity transducer system. It must be used with compatible 3300 NSv components to form the appropriate measurement circuit.

4. Why is cable matching important in a proximity measurement system?

Proximity measurement systems depend on defined electrical characteristics across the probe, extension cable, and associated electronics. An incorrectly matched cable can affect the measurement circuit and may lead to unreliable or inaccurate monitoring results.

5. What is the difference between standard and armored versions?

The standard version is intended for installations where normal cable protection is sufficient. An armored configuration provides additional mechanical protection and can be preferable where the cable is exposed to increased physical stress, impact, or demanding routing conditions.

6. Can a general-purpose instrumentation cable replace the 330930-060-02-05?

It should not be assumed that a general-purpose cable is an equivalent replacement. The cable should be selected according to the requirements of the complete 3300 NSv measurement chain, including electrical characteristics, connectors, length, and installation conditions.

7. What machinery can use a 3300 NSv proximity monitoring arrangement?

Compatible proximity monitoring systems can be used on various rotating machines, including pumps, compressors, motors, turbines, and other machinery where shaft vibration or displacement information is required.

8. What should be checked if a machinery-monitoring signal becomes unstable after cable replacement?

Check the probe connection, extension cable connections, cable routing, connector condition, grounding considerations, and the associated monitoring electronics. The replacement cable should also be verified against the original system requirements rather than being judged only by physical appearance.

9. Can excessive cable length affect a proximity measurement system?

Yes. The total electrical characteristics of a proximity measurement chain are part of the system design. The extension cable should therefore have the correct length and type for the associated 3300 NSv configuration.

10. What are common reasons for replacing a 3300 NSv extension cable?

Typical reasons include physical damage, insulation deterioration, connector damage, installation changes, cable aging, or troubleshooting that identifies the cable as a potential source of signal problems. Replacement should be followed by verification of the complete measurement channel.
