PowerFlex 700S Drive Overview

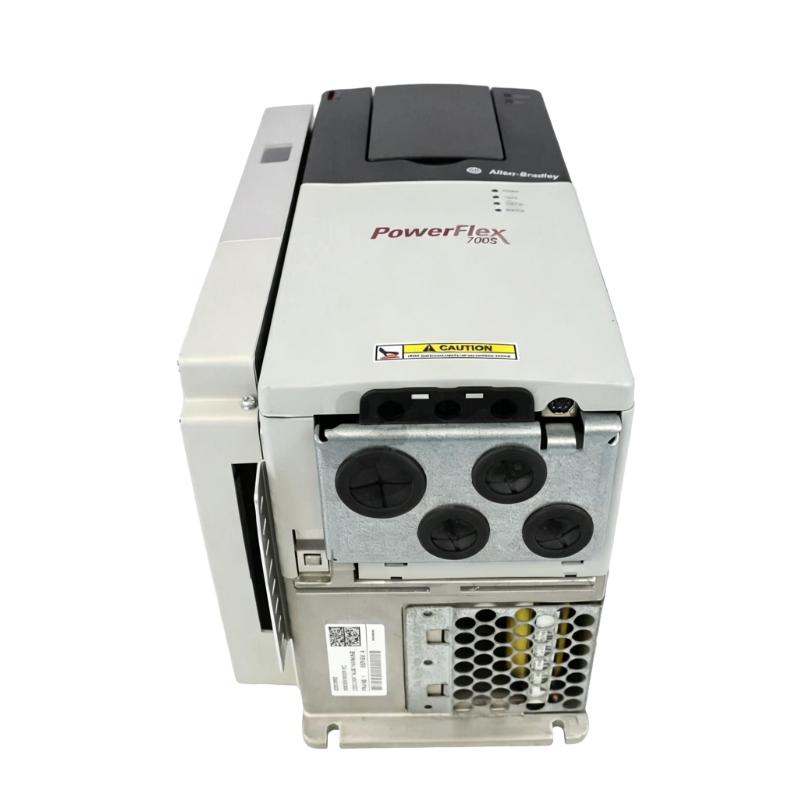

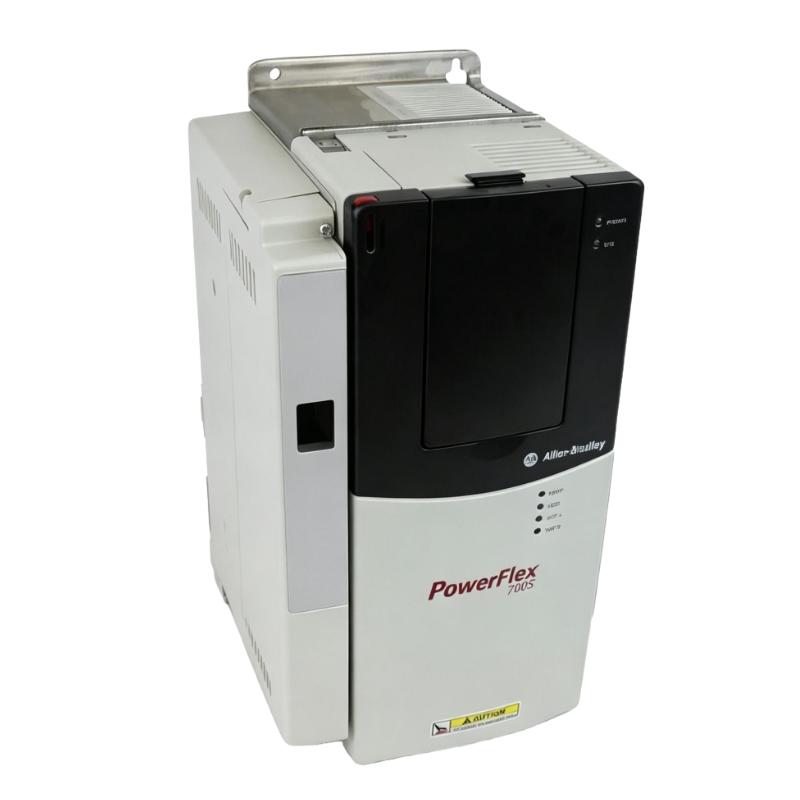

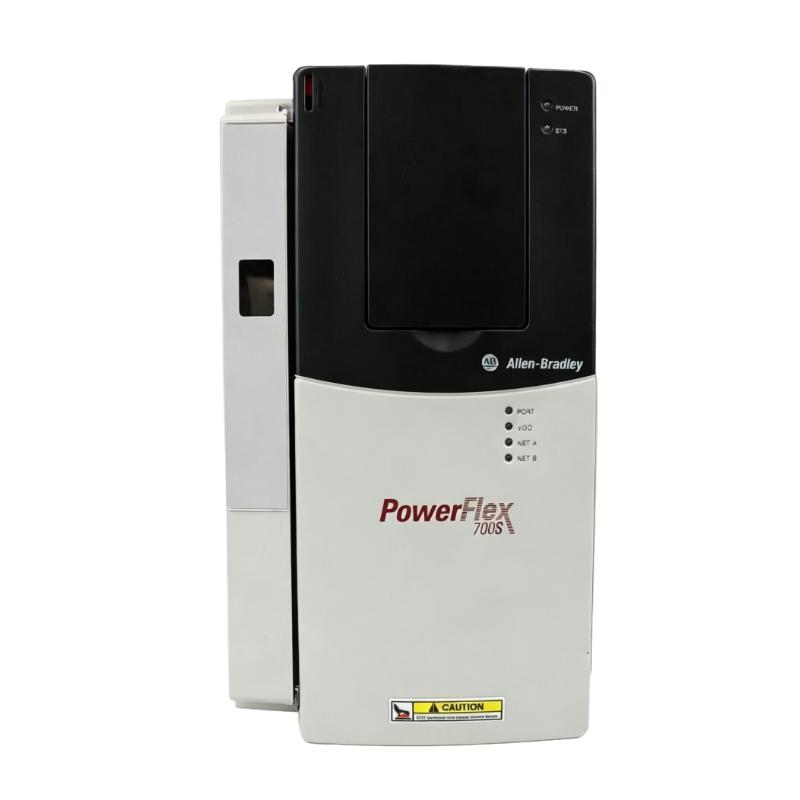

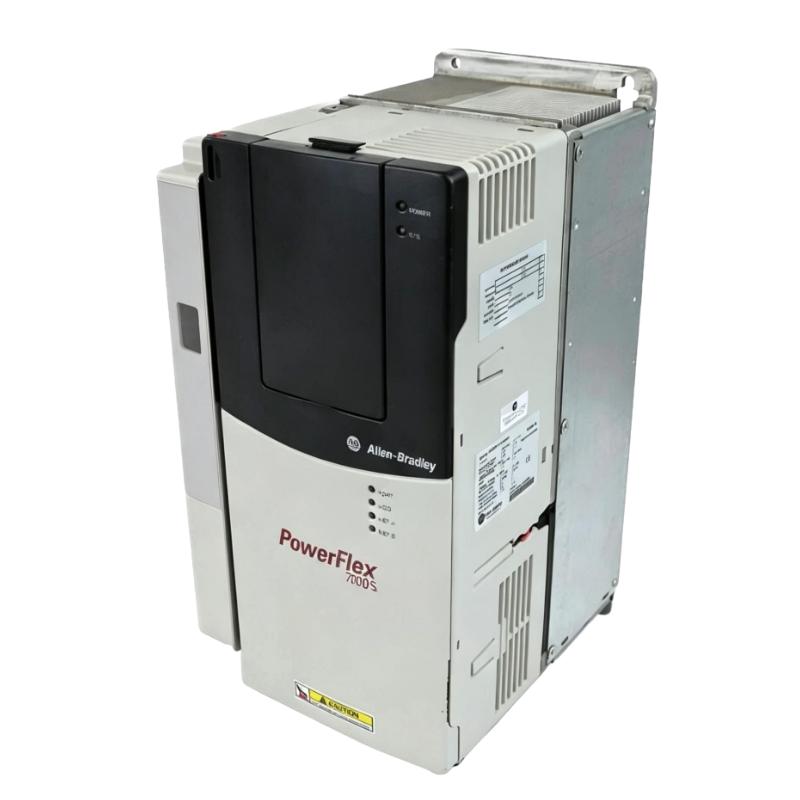

The Allen Bradley 20DJ096A3NNNA1CNL PowerFlex 700S AC Drive belongs to the PowerFlex 700S family, a platform developed for industrial applications requiring advanced variable-speed motor control. It is intended for equipment where reliable motor regulation and integration with an automation system are important factors.

The PowerFlex 700S architecture makes the drive particularly attractive for machinery that needs more than basic speed adjustment. Production equipment, material handling systems, process machinery, and coordinated industrial systems can benefit from a drive platform designed around more advanced control requirements.

For engineering teams, another important advantage is familiarity. Facilities already operating Allen Bradley equipment can maintain a consistent approach to drive configuration and troubleshooting. This can simplify maintenance activities and reduce the disruption associated with introducing an entirely different drive platform.

The 20DJ096A3NNNA1CNL is also well suited to industrial replacement and retrofit considerations. When an existing PowerFlex 700S installation requires a service unit, refurbishment, or replacement, the complete catalog number should be carefully checked because individual configurations can differ in control hardware, communication, feedback, and other options.

For new equipment planning, engineers should evaluate the motor's electrical characteristics and the application's mechanical load before selecting the drive. Proper sizing is essential for reliable acceleration, stable operation, overload performance, and long-term equipment life.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	PowerFlex 700S
Complete Model	20DJ096A3NNNA1CNL
Product Type	PowerFlex 700S AC Drive
Continuous Output Current Class	96 A
Application	Industrial AC Motor Control
Drive Type	Adjustable Frequency AC Drive
Control Platform	PowerFlex 700S
Dimensions	657 × 275.4 × 339.9 mm
Weight	37.19 kg / 82.00 lb

The 657 × 275.4 × 339.9 mm dimensions should be considered when planning cabinet installation, particularly where the enclosure has limited space or where additional clearance is required for power wiring and service access.

The drive weighs 37.19 kg, equivalent to approximately 82.00 lb. Mechanical support should be adequate for the installed unit, while installation planning should also account for cable routing, ventilation, inspection, and maintenance access.

Recommended Related Models

For applications requiring other PowerFlex 700S configurations, the following models can be considered as related products:

Model	Product Type	Typical Application
20AD030A3AYNAE	PowerFlex 700S AC Drive	Medium-duty industrial motor control
20AD054A3AYNAE	PowerFlex 700S AC Drive	Variable-speed machinery
20AD065A3AYNAE	PowerFlex 700S AC Drive	Industrial process equipment
20AD088A3AYNAE	PowerFlex 700S AC Drive	Higher-current motor applications
20DJ096A3NNNA1CNL	PowerFlex 700S AC Drive	High-capacity industrial motor control

When selecting a related model, output current should be evaluated together with motor voltage, motor full-load current, duty cycle, control requirements, feedback, communication, and environmental conditions.

Popular Related Models

The following Allen Bradley models are also relevant when working with PowerFlex 700S and related high-performance drive applications:

Model	Product Type	Typical Application
20AD030	PowerFlex 700S AC Drive	Industrial motor control
20AD054	PowerFlex 700S AC Drive	Variable-speed equipment
20AD065	PowerFlex 700S AC Drive	Process machinery
20AD088	PowerFlex 700S AC Drive	High-current applications
20DJ096	PowerFlex 700S AC Drive	Large industrial motor systems
20DJ120	PowerFlex 700S AC Drive	Higher-capacity applications
20DJ156	PowerFlex 700S AC Drive	Heavy-duty industrial equipment

For maintenance and procurement, the complete catalog number is the safest identification method. A related PowerFlex 700S model should only be considered a direct replacement after its electrical rating, control architecture, installed options, feedback, communication, and application requirements have been checked.

Applications

The Allen Bradley 20DJ096A3NNNA1CNL PowerFlex 700S AC Drive is designed for demanding industrial motor-control applications that require precise speed regulation, reliable operation, and advanced drive functionality. As part of the PowerFlex 700S platform, it is suited to machinery where coordinated motion, process control, and repeatable motor performance are important.

Typical applications include:

Industrial conveyors
Pumps and pumping systems
Fans and blowers
Compressors
Extruders
Material handling equipment
Process machinery
Packaging equipment
Production lines
Heavy-duty machine systems

The drive is a strong fit for industrial installations where motor control must work closely with a broader automation architecture. Its PowerFlex 700S platform is particularly useful in applications that demand more sophisticated control than a basic variable-frequency drive.

Advantages and Key Benefits

Advanced drive platform
The PowerFlex 700S family is designed for applications requiring sophisticated AC motor control and greater flexibility in drive-system configuration.

Reliable speed regulation
The drive provides controlled motor operation for machinery where maintaining a stable operating speed is important to product quality and process consistency.

Suitable for demanding industrial machinery
Its industrial design makes it appropriate for continuous production equipment and machinery exposed to changing loads and frequent operating cycles.

Flexible control capabilities
The PowerFlex 700S platform supports advanced drive-control functions, allowing engineers to configure the drive around the requirements of the machine and process.

Integration-oriented architecture
The drive can form part of a larger Allen Bradley automation system, making it useful for installations where drives, controllers, operator interfaces, and industrial networks need to work together.

Useful for retrofit applications
For plants maintaining established PowerFlex 700S systems, the 20DJ096A3NNNA1CNL can be valuable for maintenance, repair, refurbishment, and replacement planning.

Compact industrial form factor
With dimensions of 657 × 275.4 × 339.9 mm, the drive provides substantial drive functionality while maintaining a manageable cabinet footprint for its power class.

Long-term maintenance value
Accurate identification of the complete catalog number helps maintenance teams source the correct configuration and avoid compatibility problems when servicing existing equipment.

Technical FAQs

1. What type of drive is the 20DJ096A3NNNA1CNL?
It is an Allen Bradley PowerFlex 700S AC Drive designed for industrial variable-speed motor-control applications.

2. What is the main difference between PowerFlex 700 and PowerFlex 700S?
The PowerFlex 700S is intended for more advanced drive-control applications and provides additional control capabilities compared with standard PowerFlex 700 configurations.

3. What type of motor can be used with this drive?
The drive is intended for compatible industrial AC motor applications. Motor selection should be based on rated voltage, current, frequency, power, speed, load characteristics, and the required control method.

4. Why is accurate motor data important during commissioning?
Correct motor data allows the drive to establish appropriate control and protection parameters. Incorrect voltage, current, frequency, or speed information can result in poor motor performance or unnecessary drive trips.

5. What should be checked before commissioning the drive?
Verify incoming power, motor wiring, grounding, motor nameplate parameters, control commands, acceleration and deceleration settings, current limits, and any installed feedback or communication equipment.

6. What can cause excessive drive current during acceleration?
Possible causes include excessive mechanical load, insufficient acceleration time, incorrect motor parameters, unsuitable control settings, motor wiring problems, or mechanical restrictions in the driven equipment.

7. How can unstable motor speed be investigated?
Check the selected control mode, motor parameters, speed reference signal, feedback configuration if used, acceleration and deceleration settings, and mechanical load. External reference signals should also be checked for noise or instability.

8. Can the drive communicate with an industrial automation controller?
Yes. PowerFlex 700S systems can be incorporated into industrial automation architectures using compatible communication and control hardware. The exact method depends on the installed configuration.

9. What should be considered when replacing a 20DJ096A3NNNA1CNL?
The complete catalog number should be matched, together with voltage class, current rating, control hardware, feedback requirements, communication options, enclosure configuration, I/O requirements, and application-specific functions.

10. Is the PowerFlex 700S suitable for complex industrial applications?
Yes. The 700S platform was developed for applications where advanced drive control and system integration are important, making it suitable for machinery requiring more sophisticated motor-control functionality.
