PowerFlex 700S High-Performance Drive Overview

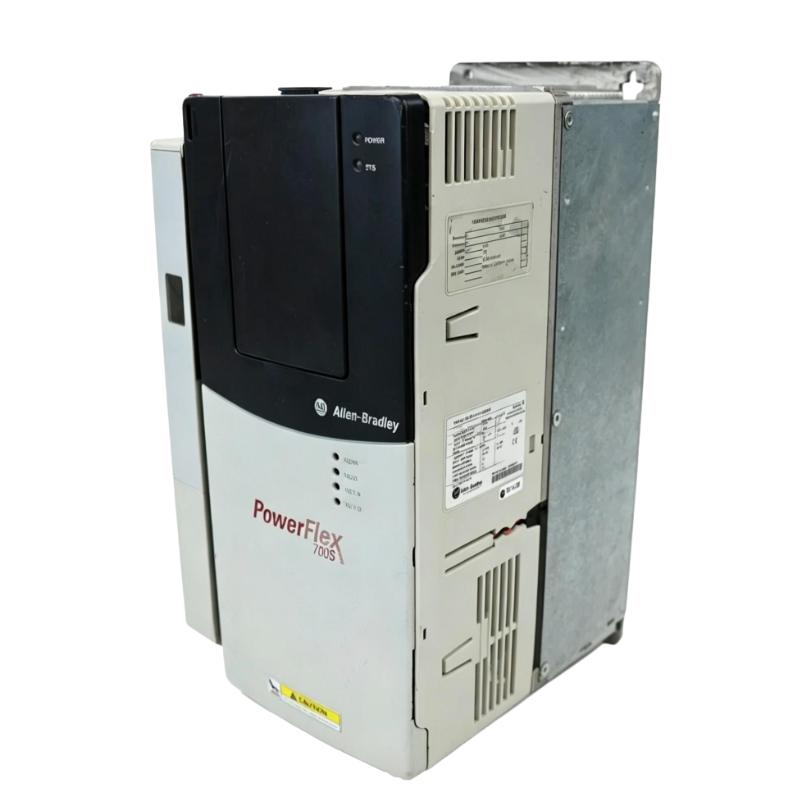

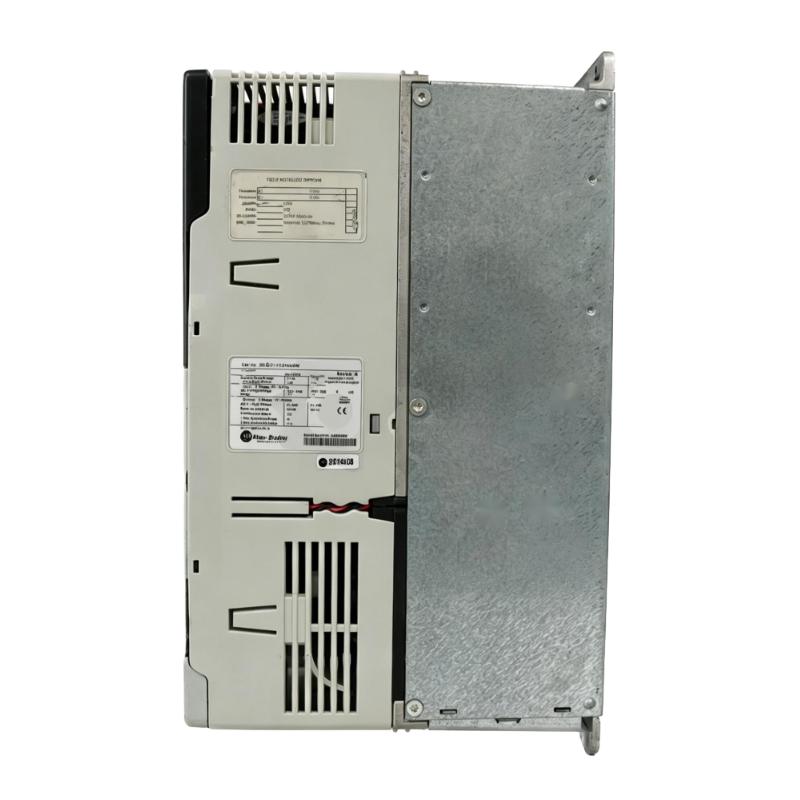

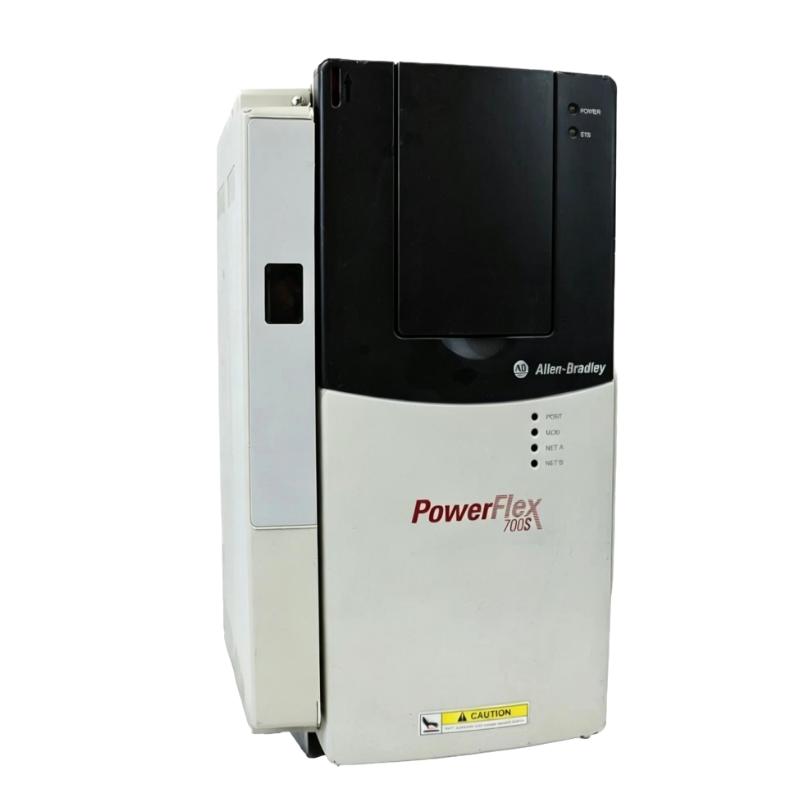

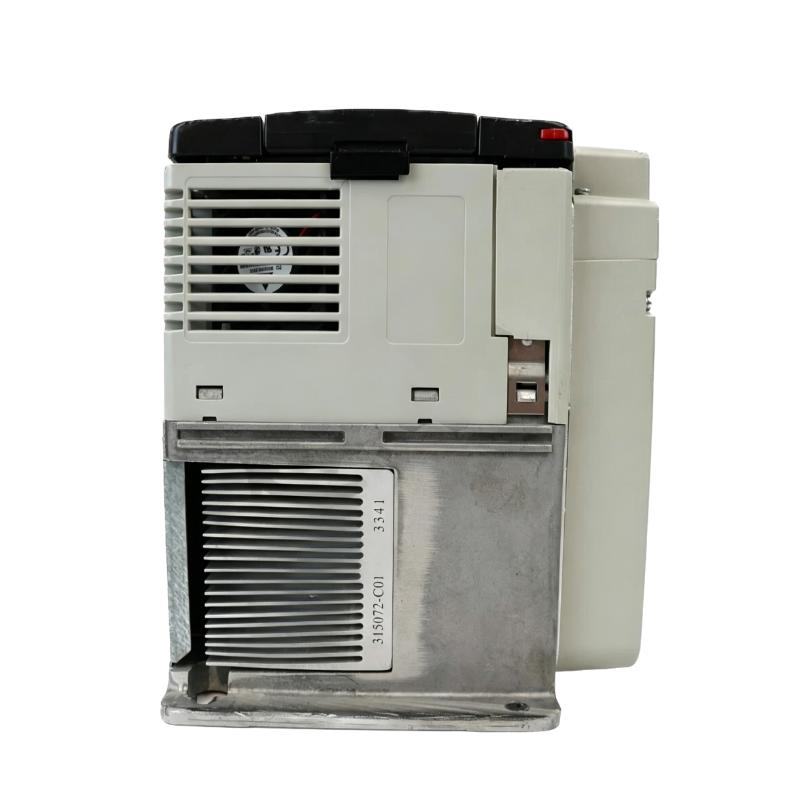

The Allen Bradley 20DJ248A0NNNACGNE PowerFlex 700S AC Drive is a high-capacity member of the PowerFlex 700S family, developed for industrial motor-control applications where advanced drive performance and system integration are important.

Compared with basic variable-frequency drive applications, the PowerFlex 700S platform is better suited to machinery requiring sophisticated control functions. Large conveyors, process equipment, compressors, pumps, and production machinery can benefit from a drive architecture capable of supporting more demanding operating strategies.

The 20DJ248A0NNNACGNE is also a strong candidate for industrial installations where maintaining an established Allen Bradley architecture is a priority. Using a familiar drive platform can help maintenance personnel work more efficiently with existing control systems, operating procedures, and troubleshooting practices.

For industrial equipment suppliers and system integrators, accurate catalog-number identification is particularly important. PowerFlex 700S configurations can vary according to their electrical ratings, control hardware, feedback arrangements, communication capabilities, and other options. Matching only the base model designation is therefore not sufficient when selecting a replacement.

The drive's substantial physical dimensions and 71.44 kg weight also make installation planning important. Cabinet layout, cable routing, ventilation, mechanical support, and service access should be considered before the drive is installed.

For existing equipment, the 20DJ248A0NNNACGNE can provide useful value in maintenance and lifecycle management programs, especially where the surrounding automation system has already been built around the PowerFlex platform.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	PowerFlex 700S
Complete Model	20DJ248A0NNNACGNE
Product Type	PowerFlex 700S AC Drive
Drive Series	PowerFlex 700S
Application	Industrial AC Motor Control
Drive Type	Adjustable Frequency AC Drive
Dimensions	976.3 × 275.5 × 435.8 mm
Weight	71.44 kg / 157.50 lb

The supplied physical dimensions are 976.3 × 275.5 × 435.8 mm, with a specified weight of 71.44 kg / 157.50 lb. These values should be considered when designing the electrical cabinet and planning equipment transportation.

The drive's installation space should allow sufficient room for power and control wiring, ventilation, inspection, and service activities. The mounting structure should also be capable of supporting the unit securely during long-term operation.

For replacement projects, the physical dimensions are particularly important because a new drive must fit within the available cabinet space while maintaining appropriate clearance for wiring and cooling.

Recommended Related Models

The following PowerFlex 700S models can be considered when comparing related drive configurations for industrial motor-control projects:

Model	Product Type	Typical Application
20DJ096	PowerFlex 700S AC Drive	High-capacity industrial motor control
20DJ120	PowerFlex 700S AC Drive	Large motor applications
20DJ156	PowerFlex 700S AC Drive	Heavy-duty industrial machinery
20DJ180	PowerFlex 700S AC Drive	High-power process equipment
20DJ248	PowerFlex 700S AC Drive	Large industrial motor systems

These models provide useful comparison points when evaluating PowerFlex 700S drive capacity. Final selection should be based on the actual motor current, voltage, duty cycle, control requirements, feedback, communication, enclosure, and application conditions.

Popular Related Models

For maintenance, replacement, and industrial automation projects involving PowerFlex 700S equipment, the following models are also relevant:

Model	Product Type	Typical Application
20AD030	PowerFlex 700S AC Drive	Industrial motor control
20AD054	PowerFlex 700S AC Drive	Variable-speed machinery
20AD065	PowerFlex 700S AC Drive	Process equipment
20AD088	PowerFlex 700S AC Drive	Higher-current applications
20DJ096	PowerFlex 700S AC Drive	High-capacity motor systems
20DJ156	PowerFlex 700S AC Drive	Heavy-duty machinery
20DJ248	PowerFlex 700S AC Drive	Large industrial equipment

When sourcing a replacement, the complete catalog number should be used as the primary identification reference. Electrical ratings and installed options should be compared carefully before selecting another PowerFlex 700S model to ensure that the replacement is appropriate for the existing motor and automation system.

Applications

The Allen Bradley 20DJ248A0NNNACGNE PowerFlex 700S AC Drive is a high-capacity industrial drive intended for applications that require dependable variable-speed control, substantial motor current capability, and advanced drive functionality. As part of the PowerFlex 700S family, it is well suited to demanding machinery where precise and repeatable motor operation is important.

Typical applications include:

Heavy-duty conveyor systems
Large pumps and pumping equipment
Industrial fans and blowers
Compressors
Extrusion machinery
Mixers and agitators
Material handling systems
Process production equipment
Large machine tools
Mining and bulk-material handling systems

The 20DJ248A0NNNACGNE is particularly attractive for industrial facilities that need high-performance motor control while retaining an established Allen Bradley automation environment. It can support applications where motor speed, torque response, acceleration, and deceleration need to be carefully managed.

Advantages and Key Benefits

High-capacity drive design
The 20DJ248 configuration is designed for large motor-control applications requiring a substantial output-current capability.

Advanced PowerFlex 700S architecture
The 700S platform provides more sophisticated drive-control functionality than basic variable-frequency drive applications, making it appropriate for demanding industrial machinery.

Consistent motor regulation
Controlled speed and torque operation can help machinery maintain stable production conditions, particularly when load characteristics change during operation.

Suitable for heavy industrial equipment
The drive is designed around industrial applications where reliability, repeatable performance, and serviceability are important considerations.

Flexible automation integration
PowerFlex 700S drives can be incorporated into broader automation systems using compatible control, feedback, I/O, and communication configurations.

Useful for established installations
For facilities already operating PowerFlex 700S equipment, maintaining the same drive family can simplify engineering, troubleshooting, and maintenance activities.

High-power application capability
The 20DJ248 configuration provides a practical solution for larger motors used in process equipment, conveyors, pumps, compressors, and other high-demand machinery.

Valuable for maintenance planning
The complete catalog number helps maintenance and procurement teams identify the required drive configuration when planning replacement, refurbishment, or system service.

Technical FAQs

1. What type of equipment is the 20DJ248A0NNNACGNE designed for?
It is an Allen Bradley PowerFlex 700S AC Drive intended for industrial variable-speed motor-control applications, particularly machinery requiring substantial drive capacity and advanced control functionality.

2. What is the significance of the PowerFlex 700S platform?
PowerFlex 700S is designed for applications requiring advanced AC drive control, making it suitable for machinery where speed regulation, torque control, and coordinated automation functions are important.

3. What type of motor should be paired with this drive?
The drive should be matched with a compatible three-phase AC motor based on motor voltage, full-load current, rated power, frequency, speed, duty cycle, and the mechanical characteristics of the driven equipment.

4. Why is motor full-load current important when sizing the drive?
The motor's full-load current must be compatible with the drive's continuous output capability. Proper sizing helps prevent unnecessary overload conditions and provides adequate capacity during normal operation and acceleration.

5. What parameters should be verified before commissioning?
Motor nameplate information, control mode, motor current, voltage, frequency, rated speed, acceleration and deceleration times, current limits, protection parameters, and feedback settings should all be reviewed before commissioning.

6. What can cause a drive to trip during acceleration?
Potential causes include excessive mechanical load, insufficient acceleration time, incorrect motor parameters, excessive current demand, motor wiring problems, or inappropriate control settings.

7. How can unstable speed regulation be diagnosed?
Check the speed reference, control mode, motor parameters, feedback configuration where applicable, tuning parameters, acceleration and deceleration settings, and mechanical load. An unstable external reference signal can also affect motor speed.

8. Can the PowerFlex 700S communicate with an industrial controller?
Yes. The PowerFlex 700S platform supports integration into industrial automation architectures through compatible control and communication configurations. The actual communication method depends on the installed hardware and system design.

9. What should be checked before replacing this drive?
The complete catalog number should be verified along with voltage class, output-current requirement, control architecture, feedback, communication hardware, I/O configuration, enclosure requirements, braking functions, and application-specific parameters.

10. How should a replacement drive be commissioned?
After installation, verify all power and control connections, enter the correct motor data, confirm the control reference and direction, check protection settings, test the motor at low speed, and gradually introduce the normal production load.
