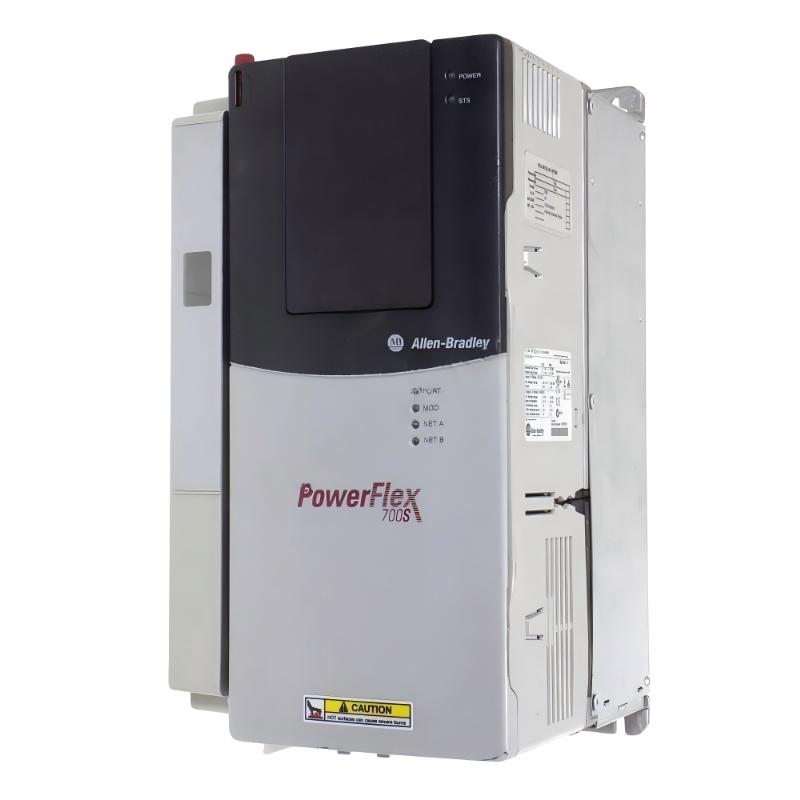

Allen Bradley 20DR180A3NNNACANE PowerFlex 700S AC Drive

Applications

The Allen Bradley 20DR180A3NNNACANE PowerFlex 700S AC Drive is designed for industrial motor-control applications where stable speed regulation, coordinated machine operation, and dependable drive performance are required. The PowerFlex 700S platform is particularly suitable for machinery and production systems that demand more sophisticated control than a basic variable-frequency drive.

Typical applications include:

• Material handling and conveyor systems
• Industrial pumps and fans
• Extrusion and plastics processing
• Packaging machinery
• Printing and converting equipment
• Machine tools
• Process machinery
• Paper and web-handling systems
• Hoisting and lifting equipment
• Automated production lines

The drive can be incorporated into a larger control architecture involving PLCs, HMIs, sensors, feedback devices, and other industrial automation equipment.

Why Engineers Choose the PowerFlex 700S

Advanced industrial motor control

The PowerFlex 700S family is intended for applications where accurate motor response and repeatable operation are important. It provides a platform for implementing demanding speed and torque-control requirements within automated machinery.

Designed for coordinated machine operation

In many production systems, the AC drive needs to work together with PLC logic and other control devices. The PowerFlex 700S platform is suitable for this type of coordinated architecture, helping the drive become part of the overall machine-control strategy.

Broad application flexibility

The 20DR180A3NNNACANE can be used across different industrial applications where variable-speed AC motor control is required. Its suitability for machinery, process equipment, and material-handling systems makes it useful for both OEM and plant-level automation projects.

Practical diagnostics for maintenance

Drive status information and fault conditions can help maintenance technicians identify problems during commissioning and operation. Proper parameter documentation also makes troubleshooting and replacement work more manageable.

Useful for equipment modernization

For facilities maintaining existing Allen Bradley automation equipment, a PowerFlex 700S drive can be considered as part of a modernization or replacement strategy. Compatibility should always be evaluated using the complete catalog number and the original machine's electrical and control requirements.

Technical FAQs

1. What is the Allen Bradley 20DR180A3NNNACANE used for?

The 20DR180A3NNNACANE is a PowerFlex 700S AC Drive intended for variable-speed control of industrial AC motors. It can be used in automated machinery and production systems where controlled motor operation is required.

2. What information should be entered before commissioning the drive?

Technicians should configure the motor's rated voltage, current, frequency, speed, and other required motor data according to the motor nameplate and application requirements. Command sources, speed references, acceleration, deceleration, and protection parameters should also be reviewed.

3. Can the PowerFlex 700S be integrated with a PLC system?

Yes. The drive can form part of an industrial automation architecture in which drive commands, status information, references, and diagnostic information are exchanged with a PLC or other control equipment through the selected control and communication configuration.

4. What should be checked if the drive powers up but the motor will not run?

Check for active faults, drive enable conditions, start-command configuration, speed-reference settings, motor wiring, interlocks, and external control signals. If a PLC controls the drive, verify that the PLC is actually providing the expected command and reference.

5. What are common causes of drive overcurrent faults?

Overcurrent conditions can result from excessive mechanical loading, incorrect motor parameters, an acceleration rate that is too aggressive, motor or cable problems, or a mechanical obstruction. The fault should be analyzed together with motor current, load behavior, and the drive configuration.

6. How can an unstable motor speed problem be investigated?

Start by checking the speed-reference source and confirming that the reference value is correct. Then examine scaling, minimum and maximum speed limits, control parameters, feedback configuration, and external PLC commands. Mechanical load changes should also be considered when diagnosing speed instability.

7. What should be done when replacing an existing PowerFlex 700S drive?

Record the existing drive configuration before removal whenever possible. The replacement should then be checked for catalog-number compatibility, motor requirements, control architecture, I/O configuration, communication settings, and application parameters before commissioning.

8. Why is motor nameplate data important for drive setup?

The drive uses motor information to establish the appropriate motor-control behavior. Incorrect voltage, current, frequency, or speed data can result in poor motor performance, incorrect protection behavior, or unnecessary faults.

9. What should be monitored during initial commissioning?

Technicians should monitor drive status, motor current, motor speed, acceleration and deceleration behavior, fault indications, and mechanical load response. Starting the machine under controlled conditions allows abnormal behavior to be identified before full production operation.

10. How can recurring drive faults be diagnosed efficiently?

Begin by recording the exact fault condition and operating circumstances. Check the drive's configuration, motor and power connections, load conditions, control commands, and environmental factors. Comparing recurring faults with operating conditions can help distinguish electrical, mechanical, configuration, and control-system problems.
