Introduction

Modern process plants increasingly rely on intelligent field instrumentation to provide both accurate process measurements and useful diagnostic information. A conventional analog signal can provide the primary measurement, but intelligent instruments can also deliver additional information that helps operators and maintenance teams understand equipment condition.

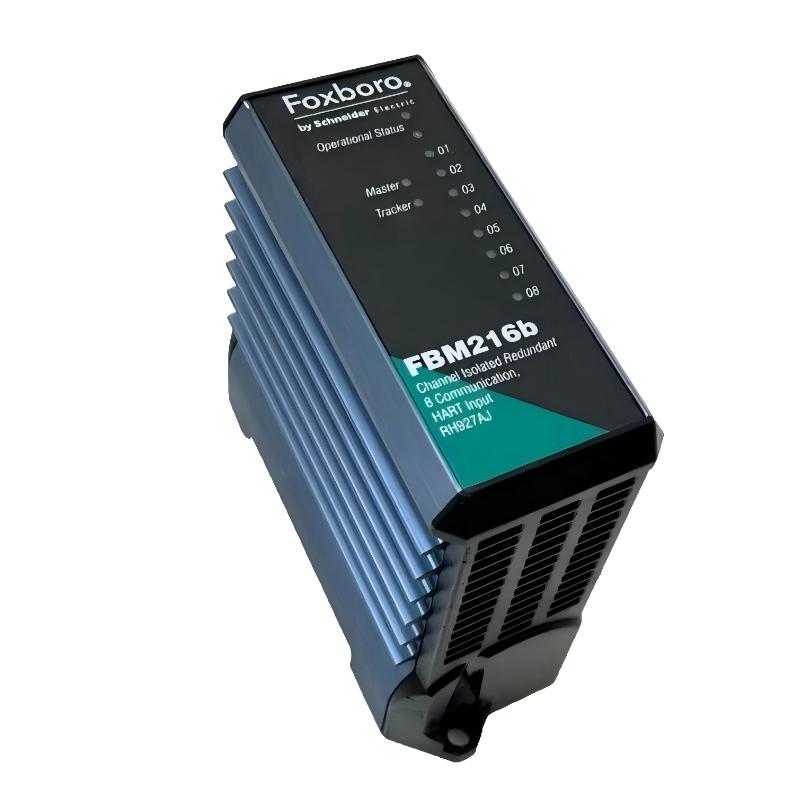

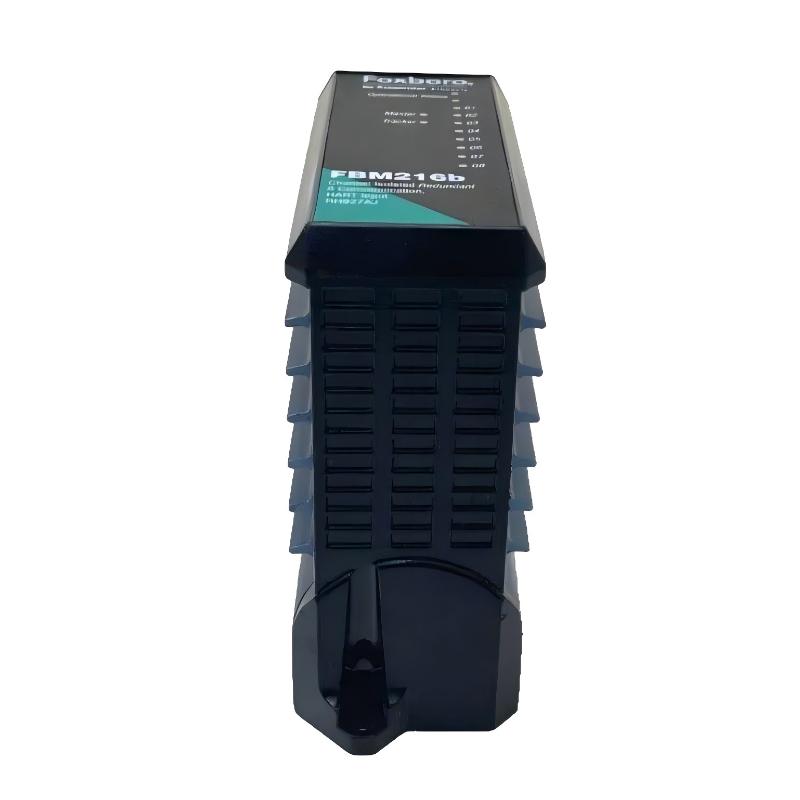

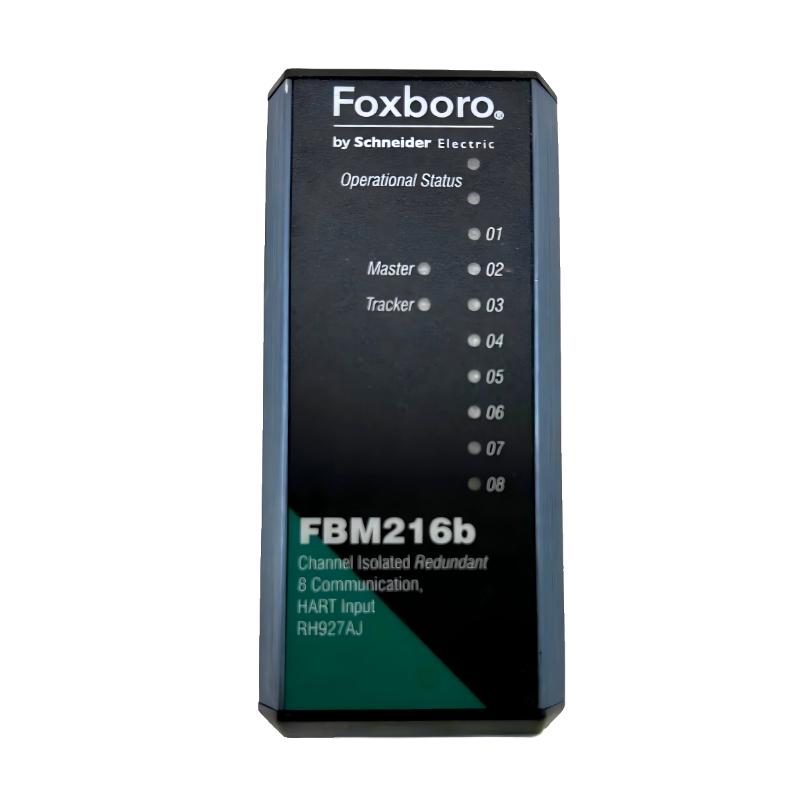

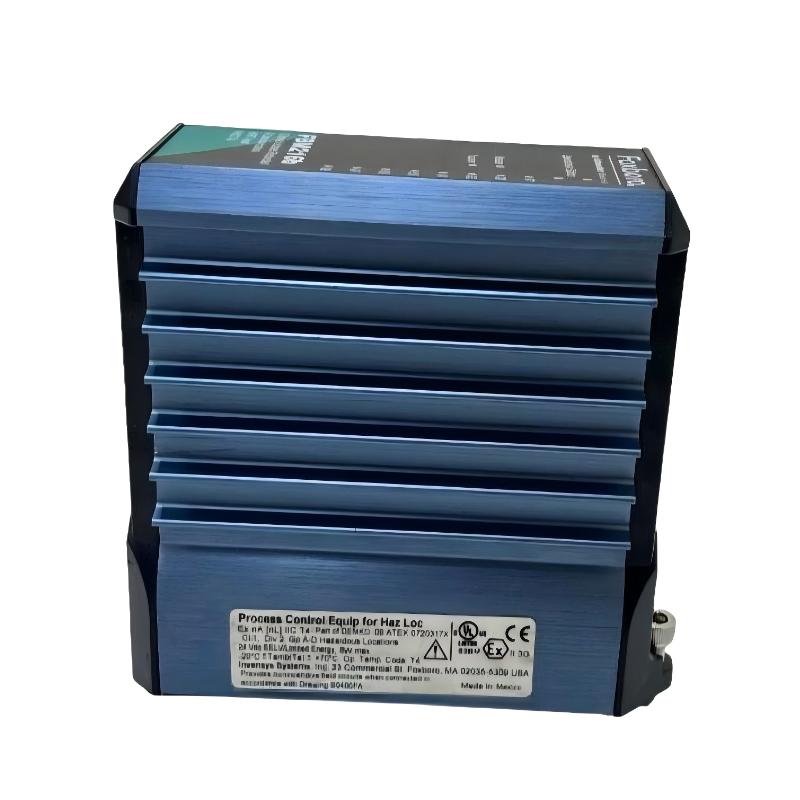

The Foxboro FBM216b P0927AJ Redundant HART Communication Input Module is designed for this type of process-control environment. It combines analog input interfacing with HART communication, allowing compatible field instruments to participate in a more informative control and maintenance architecture.

Its redundant design is especially relevant to process industries where control-system availability is a major consideration. Oil and gas facilities, chemical plants, power stations, and other continuous-process operations can face significant production consequences when critical instrumentation or I/O infrastructure becomes unavailable. A properly engineered redundant architecture can therefore provide an important additional layer of system resilience.

The FBM216b also supports a more connected approach to instrumentation maintenance. Through HART communication, compatible field devices can expose information beyond the basic process variable. Maintenance personnel can use this information to investigate instrument status, identify potential problems, and improve troubleshooting efficiency.

For system integrators and industrial automation users, the FBM216b P0927AJ is a practical interface module for projects requiring dependable analog process input acquisition together with HART-enabled field-device communication.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	FBM216b
Part Number	P0927AJ
Product Type	Redundant HART Communication Input Module
System	Foxboro I/A Series
I/O Function	Analog Input
Communication	HART
Architecture	Redundant
Application	Process Control and Instrumentation
Mounting	FBM Distributed Control System Architecture
Dimensions	114 × 45 × 104 mm
Weight	0.28 kg (0.63 lb)

The specified physical dimensions of the FBM216b P0927AJ are 114 × 45 × 104 mm, making the module suitable for compact distributed control system installations. Its specified weight is 0.284 kg, which is 0.28 kg (0.63 lb) when rounded to two decimal places.

For replacement and system-expansion projects, physical dimensions should not be the only selection criteria. The module's exact part number, I/O functionality, HART requirements, redundancy arrangement, termination hardware, system configuration, and software compatibility should all be verified before installation.

Recommended Related Models

When expanding or maintaining a Foxboro I/A Series control system, the following FBM models may be considered alongside the FBM216b depending on the required I/O function:

Model	Product Type	Application
Foxboro FBM216	HART Communication Input Module	Analog input and HART field-device integration
Foxboro FBM218	HART Communication Input Module	Process instrumentation input applications
Foxboro FBM201	Analog Input Module	Analog process signal acquisition
Foxboro FBM202	Analog Output Module	Analog control signal output
Foxboro FBM203	Digital Input Module	Discrete field signal acquisition

Selection between these modules should be based on the required signal type, field-device interface, redundancy arrangement, termination configuration, and control-system architecture.

Popular Related Models

For broader Foxboro I/A Series DCS projects, the following FBM modules are commonly relevant when building or maintaining distributed I/O systems:

Model	Product Type	Typical Application
Foxboro FBM201	Analog Input Module	Process measurement acquisition
Foxboro FBM202	Analog Output Module	Analog actuator and control-loop output
Foxboro FBM203	Digital Input Module	Status and discrete signal monitoring
Foxboro FBM204	Digital Output Module	Discrete control and switching applications
Foxboro FBM216b	Redundant HART Communication Input Module	HART-enabled analog field instrumentation
Foxboro FBM218	HART Communication Input Module	Intelligent process instrumentation

For projects where instrument diagnostics and intelligent device communication are important, the FBM216b provides a stronger fit than a basic analog input module. Its combination of HART functionality and redundant architecture makes it particularly attractive for process plants where maintenance visibility and system availability are both important.

Applications

The Foxboro FBM216b P0927AJ Redundant HART Communication Input Module is designed for industrial process control systems that require reliable analog input acquisition together with HART communication capability. As part of a Foxboro I/A Series control architecture, the module can be used to connect field instrumentation with the control system while supporting access to intelligent device information.

Typical applications include process plants, chemical production, oil and gas facilities, power generation, refining, water treatment, and other continuous-process environments where dependable field signal acquisition is essential.

The redundant architecture is particularly valuable in installations where system availability is a priority. By incorporating redundancy into the communication and input architecture, the module can support control strategies designed to reduce the impact of individual hardware failures.

The FBM216b is also a practical choice for modernization projects involving HART-enabled field instruments. It provides a bridge between conventional analog process signals and intelligent field-device information, helping operators and maintenance teams obtain more useful diagnostic and configuration data from connected instruments.

Designed for Reliable Process Signal Integration

Redundant Architecture

The FBM216b is designed for redundant applications where continued operation and fault tolerance are important. This makes it suitable for process facilities with demanding availability requirements.

HART Communication Support

HART capability allows compatible smart field devices to exchange digital information in addition to the conventional analog process signal. This can improve access to instrument status, diagnostics, and configuration information.

Industrial Analog Input Acquisition

The module provides an interface between field instrumentation and the Foxboro control system, supporting the acquisition of process measurements for monitoring and control.

Improved Maintenance Visibility

HART communication can provide maintenance personnel with additional device information, making it easier to identify instrument conditions and investigate abnormal process signals.

Integration with Foxboro Control Systems

As a Foxboro FBM-series module, the FBM216b is intended for integration within the corresponding control-system architecture, providing a dedicated interface between field devices and the control environment.

Suitable for Continuous-Process Industries

The module is well suited to applications where process measurements must remain available for extended operating periods and where instrumentation reliability directly affects plant performance.

Compact Module Format

The 114 × 45 × 104 mm form factor provides a practical balance between installation density and field-interface functionality, making it appropriate for distributed control system cabinets.

Technical FAQs

1. What is the primary function of the Foxboro FBM216b P0927AJ?

The FBM216b P0927AJ is a HART-capable input module used to interface compatible field instruments with a Foxboro control system. It acquires process input signals and supports HART communication with intelligent field devices.

2. What is HART communication used for on this module?

HART communication enables digital information to be exchanged with compatible smart field instruments. In addition to the primary process measurement, this can provide access to device diagnostics, status information, configuration parameters, and other instrument data.

3. Why is redundancy important for the FBM216b?

Redundancy is valuable in process applications where loss of an individual interface module could affect monitoring or control functions. A redundant architecture can improve system availability and reduce the operational impact of certain hardware failures.

4. Can the FBM216b be used with conventional analog instruments?

The module is intended for analog process input applications and can be used with compatible field instrumentation. When HART functionality is required, the connected instrument must also support the appropriate HART communication arrangement.

5. Does HART replace the analog process signal?

No. HART normally operates as a digital communication layer associated with the analog signal. This allows the control system to continue using the process measurement while additional digital information can be exchanged with a compatible instrument.

6. What types of instruments can be connected to a HART input module?

Compatible HART-enabled process instruments can include transmitters used for pressure, temperature, flow, level, and other process measurements. Exact compatibility depends on the instrument, wiring arrangement, signal configuration, and control-system implementation.

7. Can the FBM216b provide instrument diagnostics?

HART communication can make additional diagnostic and status information available from compatible field instruments. The actual diagnostic functions available depend on the connected device and the control-system software.

8. What should be checked if an input signal is unstable?

Start by checking field wiring, termination points, power supply conditions, grounding, the connected transmitter, and the input-channel configuration. For HART-enabled devices, communication status should also be examined because wiring or signal-quality problems can affect digital communication.

9. Can the FBM216b be installed as a replacement for another FBM module?

Replacement should be based on verified system compatibility rather than physical dimensions alone. Engineers should confirm the module part number, I/O function, redundancy requirements, field wiring, system revision, and software configuration before installation.

10. What should be considered when commissioning an FBM216b?

Commissioning should include verification of the module identity, rack and termination connections, field-device wiring, input-channel configuration, signal scaling, HART communication, redundancy status, and system diagnostics. A controlled loop test should be performed before the associated process loop is returned to normal operation.
