Introduction

Industrial process plants depend on reliable field instrumentation to maintain stable operation and accurate process control. As plants become more connected, however, simply collecting an analog process value is often not enough. Intelligent instruments can provide additional diagnostic and configuration information that can help operators and maintenance teams understand equipment conditions more effectively.

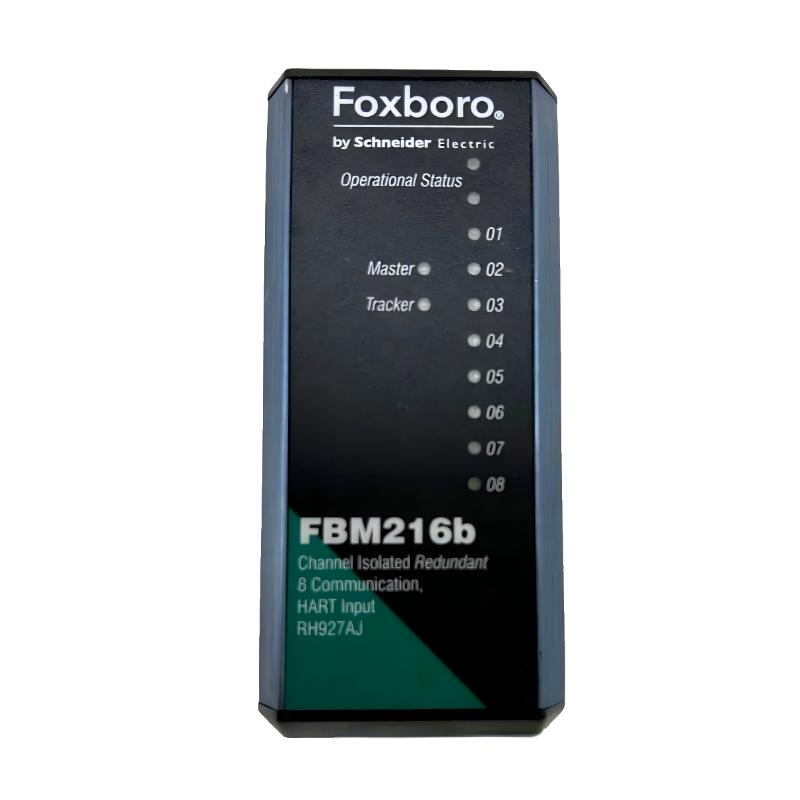

The Foxboro FBM216b RH927AJ Redundant HART Communication Input Module is designed for this type of process-control environment. It provides an interface for compatible analog field instrumentation while supporting HART communication, allowing intelligent device information to be incorporated into the wider control architecture.

The redundant design is an important feature for high-availability applications. In industries such as refining, chemical processing, power generation, and oil and gas, an interruption in process instrumentation can have consequences that extend beyond a single measurement loop. A properly engineered redundant I/O architecture can therefore contribute to greater operational resilience.

HART functionality adds another practical benefit. Compatible field devices can communicate information beyond the primary analog measurement, giving maintenance personnel additional visibility into instrument status and helping them diagnose certain problems more efficiently.

The FBM216b RH927AJ is therefore a strong candidate for Foxboro DCS installations where reliable process input acquisition, intelligent instrument integration, and availability are important design considerations.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	FBM216b
Part Number	RH927AJ
Product Type	Redundant HART Communication Input Module
System	Foxboro I/A Series
I/O Type	Analog Input
Communication	HART
Architecture	Redundant
Application	Process Control and Instrumentation
Installation	Distributed Control System I/O Architecture
Dimensions	114 × 45 × 104 mm
Weight	0.28 kg (0.63 lb)

The supplied dimensions for the FBM216b RH927AJ are 114 × 45 × 104 mm. The specified weight is 0.284 kg, equivalent to 0.28 kg (0.63 lb) when rounded to two decimal places.

For replacement applications, engineers should verify more than the physical dimensions. The complete RH927AJ part number, I/O function, HART requirements, redundancy configuration, termination arrangement, system revision, and software configuration should all be checked before commissioning.

Recommended Related Models

For Foxboro DCS projects requiring additional or alternative field-interface functions, the following FBM models may be considered:

Model	Product Type	Typical Application
Foxboro FBM216	HART Communication Input Module	Analog process input and intelligent field-device integration
Foxboro FBM218	HART Communication Input Module	HART-enabled process instrumentation
Foxboro FBM201	Analog Input Module	Standard analog process measurement
Foxboro FBM202	Analog Output Module	Analog control-loop output
Foxboro FBM203	Digital Input Module	Discrete process-status acquisition

The correct replacement or expansion module should be selected according to the required signal type, HART functionality, redundancy architecture, field termination equipment, and DCS configuration.

Popular Related Models

The following Foxboro FBM products are also relevant to distributed I/O and process automation projects:

Model	Product Type	Typical Application
Foxboro FBM201	Analog Input Module	Process measurement acquisition
Foxboro FBM202	Analog Output Module	Analog control and actuator signals
Foxboro FBM203	Digital Input Module	Discrete field-status monitoring
Foxboro FBM204	Digital Output Module	Discrete control functions
Foxboro FBM216b	HART Communication Input Module	Intelligent analog field instrumentation
Foxboro FBM218	HART Communication Input Module	HART-based process instrumentation

For applications where intelligent transmitter communication and high availability are important, the FBM216b RH927AJ provides a focused solution within the Foxboro I/O platform. Its redundant architecture and HART capability make it particularly suitable for demanding process-control environments where dependable signal acquisition and improved instrument visibility are key priorities.

Applications

The Foxboro FBM216b RH927AJ Redundant HART Communication Input Module is designed for process automation systems that require dependable analog input acquisition together with HART communication for intelligent field instrumentation.

It is well suited to distributed control system installations in industries such as oil and gas, chemical processing, refining, power generation, pharmaceuticals, water treatment, and other continuous-process applications. The module provides an interface between compatible field instruments and the Foxboro control system, allowing process measurements to be incorporated into monitoring and control strategies.

The redundant configuration is particularly valuable in plants where control-system availability is a major operational priority. It can support architectures designed to maintain I/O functionality and minimize the effect of individual hardware failures.

The FBM216b RH927AJ is also a useful choice for modernization projects where existing HART-enabled transmitters need to be integrated into a Foxboro-based process control environment. By combining analog signal acquisition with digital instrument communication, the module can provide operators and maintenance personnel with more information than a basic analog input interface.

Why the FBM216b RH927AJ Fits Demanding Process Systems

Redundant I/O Architecture

The redundant design of the FBM216b supports high-availability process control architectures. This is particularly beneficial for applications where unexpected I/O interruption could affect production or process stability.

HART Communication Capability

HART communication allows compatible smart field devices to exchange digital information with the control system in addition to the primary analog measurement. This can improve access to device status, diagnostics, and configuration information.

Reliable Process Signal Acquisition

The module provides an interface for compatible analog field instrumentation, making it suitable for monitoring important process variables throughout a distributed control system.

Better Instrument Maintenance Visibility

Access to HART information can help maintenance personnel investigate field-device conditions without relying exclusively on the basic process value. This can support more efficient troubleshooting and preventive maintenance.

Designed for DCS Applications

The FBM216b belongs to the Foxboro FBM family and is intended for integration into Foxboro distributed control system architectures, making it a natural fit for process automation projects based on this platform.

Compact Installation

At 114 × 45 × 104 mm, the module provides substantial process-interface functionality in a compact package. This helps system designers maintain efficient cabinet utilization.

Useful for Plant Modernization

The combination of analog input and HART functionality makes the module attractive for control-system upgrades where intelligent field instrumentation must be incorporated into an established DCS architecture.

Technical FAQs

1. What is the function of the Foxboro FBM216b RH927AJ?

The FBM216b RH927AJ is a redundant HART communication input module designed to interface compatible analog field instruments with a Foxboro process control system while supporting HART communication.

2. What is the purpose of HART communication in this application?

HART provides a digital communication channel associated with the analog process signal. Compatible instruments can use it to provide additional information such as device status, diagnostics, and configuration data.

3. Why would a process plant use a redundant input module?

Redundancy is used to improve system availability. In critical process applications, maintaining I/O functionality during certain hardware failures can help reduce the possibility of an unexpected interruption to monitoring or control.

4. Can the FBM216b RH927AJ be used with smart transmitters?

Yes. Its HART communication capability makes it suitable for compatible intelligent transmitters used for process measurements such as pressure, temperature, flow, and level.

5. Does HART communication replace the analog process signal?

No. HART generally works alongside the analog process signal, allowing the primary measurement to remain available while additional digital information is exchanged with the field device.

6. Can HART information be used for troubleshooting?

Yes. When supported by the connected field device and control-system configuration, HART information can provide useful diagnostic and status data for troubleshooting instrumentation problems.

7. What should be checked when a field signal is not being detected?

The troubleshooting process should include checking field wiring, termination connections, instrument power, transmitter operation, channel configuration, signal continuity, and the associated I/O hardware. HART communication status can also provide useful diagnostic information.

8. Can the FBM216b RH927AJ be used in a new DCS installation?

Yes, provided that the module is compatible with the selected Foxboro control-system architecture, software configuration, termination equipment, and redundancy design.

9. What is important when replacing an FBM216b module?

The exact model and part number should be verified before replacement. Engineers should also confirm I/O function, redundancy requirements, field wiring, termination arrangement, system compatibility, and configuration parameters.

10. How should the module be commissioned after installation?

Commissioning should include verification of module identification, system configuration, field connections, channel assignments, signal scaling, HART communication, redundancy status, and alarm behavior. Loop testing should be completed before returning the associated process loop to normal service.
