Brand:Foxboro Module Item No.:FBM217 Product Origin:USA Product Dimensions:114 x 45 x 104 mm Product Weight:0.284 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Discrete field signals are fundamental to industrial automation. Although a binary signal may represent only two states, such as ON/OFF or OPEN/CLOSED, these signals often provide essential information for equipment monitoring, process sequences, alarms, and control decisions.

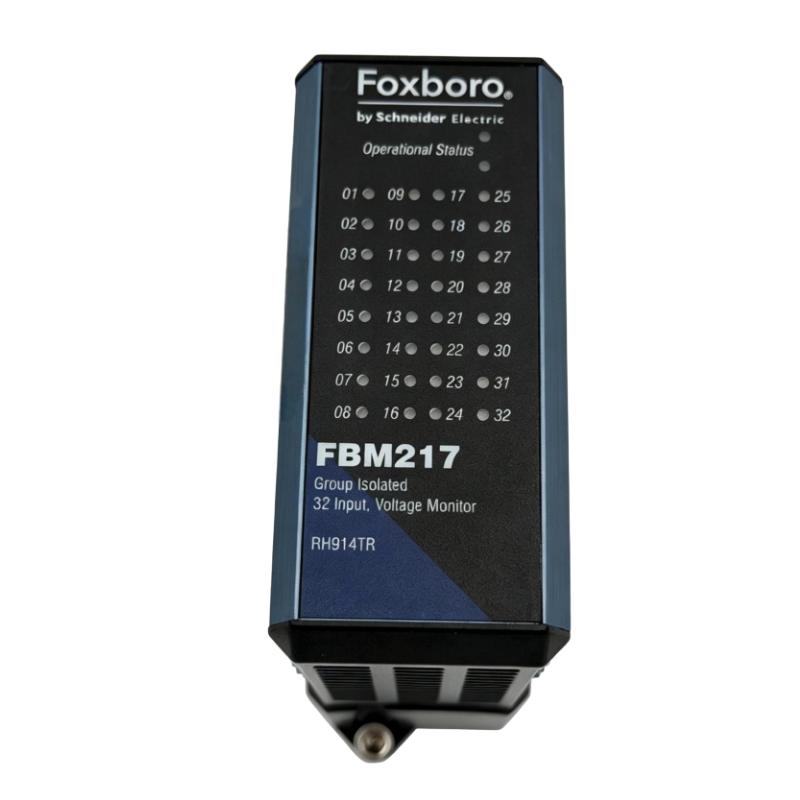

The Foxboro FBM217 RH914TR Discrete Input Interface Module provides a dedicated interface for bringing these field conditions into a Foxboro distributed control system. It enables discrete information from compatible field devices to become part of the plant's centralized automation environment.
In a typical process facility, numerous devices depend on discrete feedback. A pump may provide a running or fault indication, a valve may provide open and closed position feedback, and a switch may indicate that a particular process condition has been reached. When these signals are properly integrated into the DCS, operators gain a clearer view of equipment status and process events.
The FBM217 RH914TR is particularly appropriate for installations where dependable field-status acquisition and efficient cabinet integration are important. Its compact form factor allows it to fit into distributed I/O arrangements without consuming excessive panel space.
For plant engineers, system integrators, and maintenance professionals, the FBM217 RH914TR offers a practical solution for discrete signal acquisition in Foxboro-based process automation systems. It can support both ongoing plant operation and modernization work where reliable field-interface hardware is required.
Technical Specifications
Parameter
Specification
Brand
Foxboro
Model
FBM217
Part Number
RH914TR
Product Type
Discrete Input Interface Module
I/O Type
Discrete Input
System
Foxboro I/A Series
Signal Category
Binary / Discrete Field Signals
Application
Process Control and Industrial Automation
Installation
Distributed I/O Architecture
Dimensions
114 × 45 × 104 mm
Weight
0.28 kg (0.63 lb)
The Foxboro FBM217 RH914TR has supplied dimensions of 114 × 45 × 104 mm. Its specified weight is 0.284 kg, which is 0.28 kg (0.63 lb) when rounded to two decimal places.
For replacement applications, the physical size should be considered together with the electrical and system requirements. Before installation, verify the RH914TR part number, field-interface arrangement, termination hardware, DCS compatibility, channel configuration, and applicable system revision.
Recommended Related Models
For Foxboro DCS installations requiring additional discrete, analog, or intelligent field interfaces, the following models may be considered:
Model
Product Type
Typical Application
Foxboro FBM203
Discrete Input Module
Binary field-status acquisition
Foxboro FBM204
Discrete Output Module
Discrete equipment control
Foxboro FBM201
Analog Input Module
Analog process measurement
Foxboro FBM202
Analog Output Module
Analog control-loop output
Foxboro FBM216b
HART Communication Input Module
HART-enabled analog instrumentation
The correct module should be selected according to the required signal type, field wiring, termination configuration, DCS architecture, and system compatibility. Model numbers that appear similar should not be treated as direct replacements without technical verification.
Popular Related Models
The following Foxboro FBM-series modules are also relevant to process automation and distributed I/O applications:
Model
Product Type
Typical Application
Foxboro FBM201
Analog Input Module
Process variable acquisition
Foxboro FBM202
Analog Output Module
Analog control signals
Foxboro FBM203
Discrete Input Module
Equipment status and alarm monitoring
Foxboro FBM204
Discrete Output Module
Discrete field-device control
Foxboro FBM216b
HART Communication Input Module
Intelligent field instrumentation
Foxboro FBM217
Discrete Input Interface Module
Discrete field signal acquisition
For Foxboro DCS projects that require dependable monitoring of equipment states and process events, the FBM217 RH914TR provides a focused discrete-input interface. Its compact design and dedicated field-signal acquisition role make it a practical choice for process plants, equipment monitoring systems, control cabinets, and Foxboro DCS maintenance or expansion projects.
Applications
The Foxboro FBM217 RH914TR Discrete Input Interface Module is designed for industrial process control applications where reliable acquisition of discrete field signals is required. It provides an interface between field devices and the Foxboro distributed control system, allowing binary operating conditions to be monitored and incorporated into process logic.
The module can be used in oil and gas facilities, chemical plants, refineries, power generation, water treatment, and other process industries. Typical field signals may include equipment running status, valve position feedback, switch contacts, alarm conditions, permissive signals, and other ON/OFF process information.
The FBM217 RH914TR is also well suited to existing Foxboro DCS installations that require replacement hardware or additional discrete signal interface capability. Its compact construction helps maintain efficient cabinet utilization while providing a dedicated interface for discrete field information.
For system integrators and plant maintenance teams, the module offers a practical way to bring equipment status and process events into the DCS, supporting centralized monitoring, alarm handling, sequencing, and control logic.
Key Benefits for Process Automation
Reliable Discrete Signal Acquisition
The FBM217 RH914TR is designed to acquire binary field signals and transfer their status into the Foxboro control environment, providing dependable visibility of connected equipment and process devices.
Well Suited to Process Applications
Discrete signals are widely used throughout process plants for monitoring pumps, motors, valves, switches, breakers, alarms, and interlocks. The FBM217 provides a dedicated interface for these important field conditions.
Efficient DCS Integration
As part of the Foxboro FBM family, the module is intended for distributed I/O applications and can form part of a larger process-control architecture.
Supports Centralized Equipment Monitoring
Once discrete field conditions are available within the DCS, operators can monitor equipment states from the control room and use the information within alarms, sequences, permissives, and other control functions.
Compact Cabinet Design
With dimensions of 114 × 45 × 104 mm, the FBM217 RH914TR can be incorporated into space-conscious control and I/O cabinets.
Practical for Maintenance and Replacement
The module can be considered for Foxboro system maintenance and modernization projects where an existing discrete input interface needs to be replaced or additional input capacity is required.
Flexible Industrial Application
From basic equipment status monitoring to more sophisticated process sequences, discrete inputs can provide essential information for maintaining safe and efficient plant operation.
Technical FAQs
1. What is the main function of the Foxboro FBM217 RH914TR?
The FBM217 RH914TR is a discrete input interface module used to collect binary field signals and make their status available to a Foxboro distributed control system.
2. What types of field signals can be connected to a discrete input module?
Typical signals include limit-switch feedback, valve-position contacts, motor status, pump status, alarm contacts, equipment interlocks, and other compatible binary signals.
3. Why are discrete inputs important in a process-control system?
Discrete inputs provide information about specific operating states. They can indicate whether equipment is running, stopped, open, closed, available, faulted, or in another defined condition.
4. Can the FBM217 RH914TR be used for valve position feedback?
Yes. Compatible valve-position switches or contacts can provide discrete feedback signals to the DCS, allowing operators and control logic to determine the valve's field state.
5. Can discrete input signals be used for interlocks?
Yes. When appropriately engineered and configured, discrete input information can be used by control logic for permissives, sequences, alarms, and interlock functions.
6. What should be checked if the DCS shows an incorrect input state?
Check the field device, wiring continuity, terminal connections, signal polarity, field power, channel configuration, and DCS database assignment. The physical field state should also be verified independently during troubleshooting.
7. Can the FBM217 RH914TR be used with safety instrumented functions?
Application suitability depends on the complete safety architecture and applicable certification requirements. A standard DCS I/O module should not automatically be treated as a safety-rated I/O component.
8. What is the difference between a discrete input and a discrete output module?
A discrete input module receives binary information from field devices and sends the status to the control system. A discrete output module performs the opposite function by sending control commands from the system to field devices.
9. What should be verified before installing an FBM217 RH914TR?
Engineers should verify the complete model and part number, field signal requirements, termination arrangement, DCS compatibility, channel configuration, wiring, and any applicable redundancy or availability requirements.
10. How can the FBM217 be troubleshot during commissioning?
A structured loop check should be performed from the field device through the wiring and termination points to the FBM channel and DCS display. The physical state, channel indication, configuration, and alarm response should all be compared during testing.
