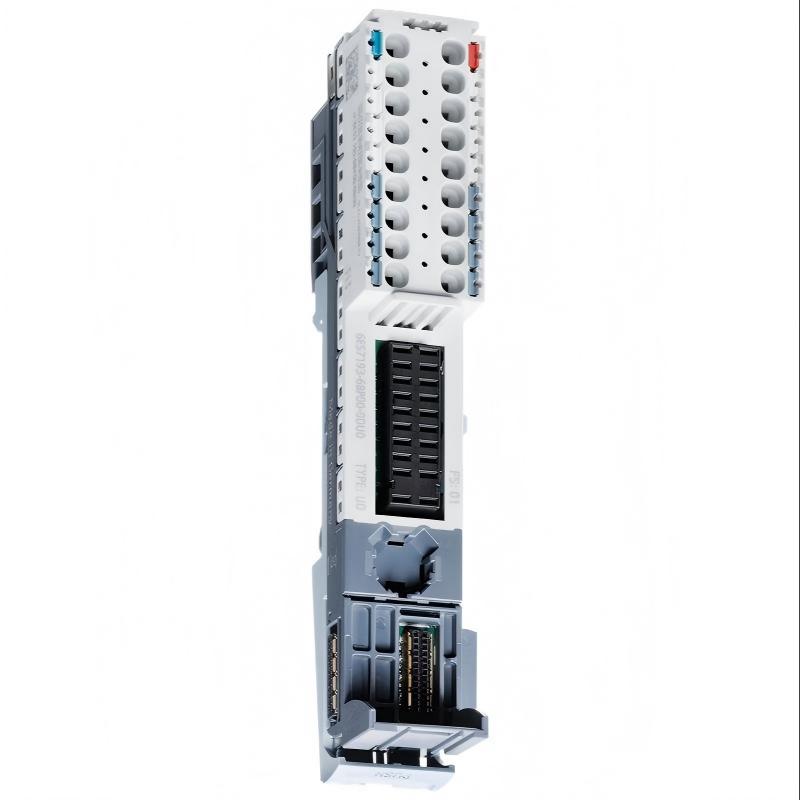

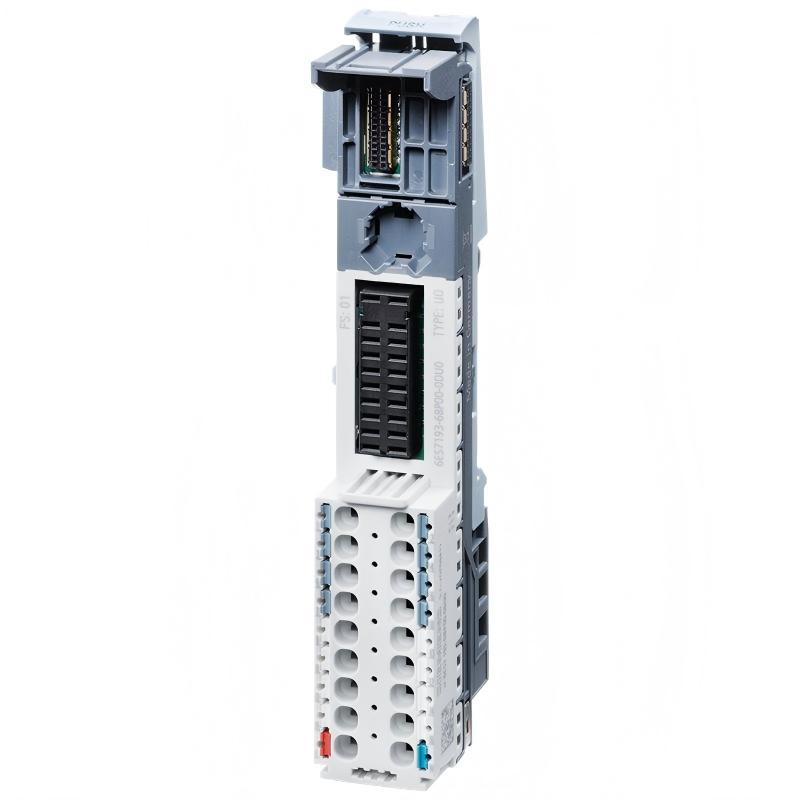

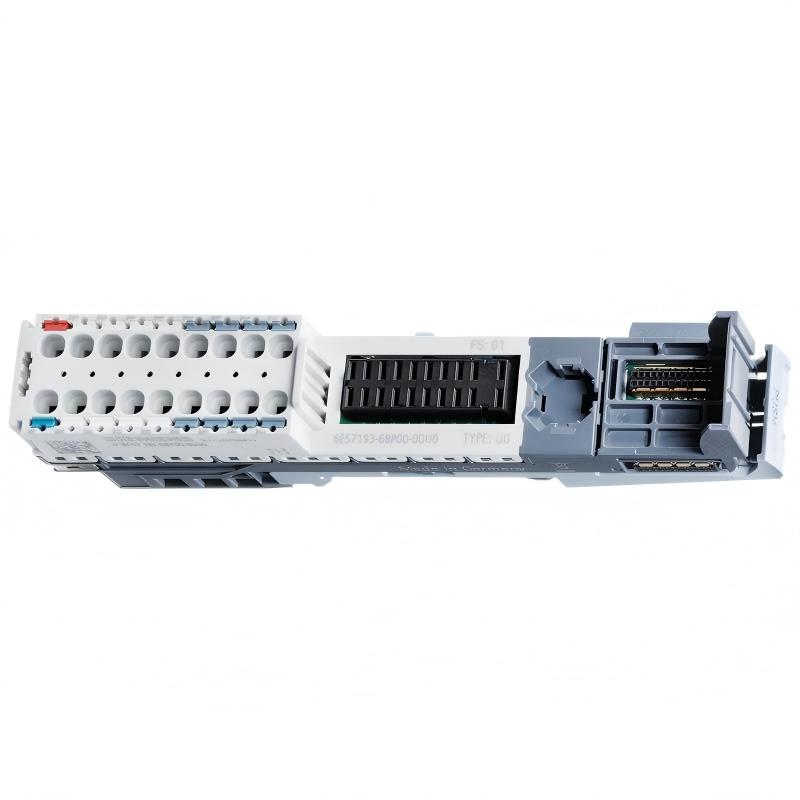

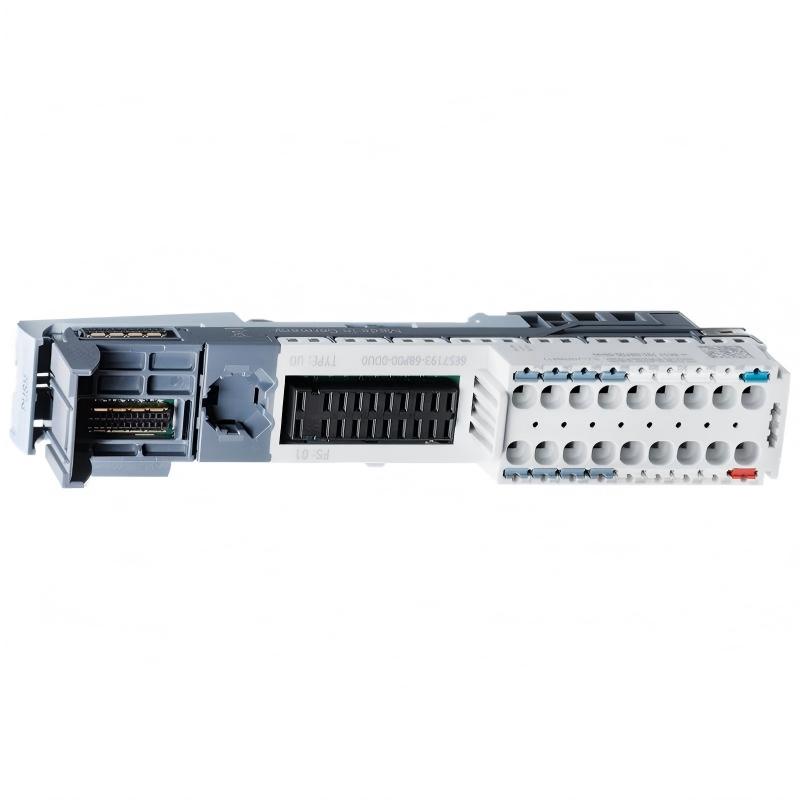

Siemens 6AG1193-6BP00-7DU0 Basic Unit

Applications

The Siemens 6AG1193-6BP00-7DU0 is a compact Basic Unit designed for use in modular industrial automation systems. With a 20 mm width, it is suitable for installations where reliable modular integration and efficient use of control-panel space are important.

Typical applications include:

• Distributed I/O installations
• Factory automation systems
• Machine control equipment
• Industrial control cabinets
• Production and assembly machinery
• Process automation systems
• Modular automation architectures
• Control-system expansion projects
• Maintenance and replacement applications

The Basic Unit is intended to form part of a compatible Siemens modular automation configuration. The complete system and associated modules should be checked before installation.

Advantages

Space-efficient 20 mm design
The 20 mm width allows the unit to be incorporated into compact automation cabinets and machine enclosures.

Lightweight construction
The unit weighs only 0.05 kg (0.11 lb), minimizing its contribution to the overall weight of the modular installation.

Modular system integration
The Basic Unit provides a practical foundation for integrating compatible modules into a structured automation system.

Efficient control-panel layout
Its compact dimensions support high-density installation where cabinet space is limited.

Suitable for replacement projects
The 6AG1193-6BP00-7DU0 can be considered for maintenance and replacement applications when the complete order number and system compatibility have been verified.

Technical FAQs

1. What is the Siemens 6AG1193-6BP00-7DU0?
It is a Siemens Basic Unit intended for integration into a compatible modular industrial automation system.

2. What is the purpose of a Basic Unit?
A Basic Unit provides the physical foundation for integrating compatible automation modules within a modular system.

3. Is the 6AG1193-6BP00-7DU0 a PLC CPU?
No. It is a Basic Unit rather than a standalone PLC CPU or programmable controller.

4. Where can this Basic Unit be used?
It is intended for compatible modular automation applications such as distributed I/O, machine control, factory automation, and industrial control.

5. Why is compatibility important when selecting modules?
Modular components can have specific mechanical, electrical, and system-level requirements. The Basic Unit must therefore be matched with compatible modules.

6. Can this Basic Unit be used for system expansion?
It can be used in an expansion project when the additional modules and existing automation architecture support the selected Basic Unit.

7. What should be checked before ordering a replacement?
Check the complete Siemens order number, module configuration, mounting requirements, electrical interfaces, and system compatibility.

8. Can a Basic Unit with similar dimensions be used as a substitute?
Not automatically. Similar dimensions do not guarantee identical functionality or compatibility.

9. What can cause problems after installation?
Incorrect module selection, improper mounting, wiring errors, incompatible components, and incorrect system configuration can cause system-level problems.

10. What should be verified during commissioning?
Verify the mechanical assembly, module arrangement, wiring, system configuration, and operation of the connected automation components before production use.
