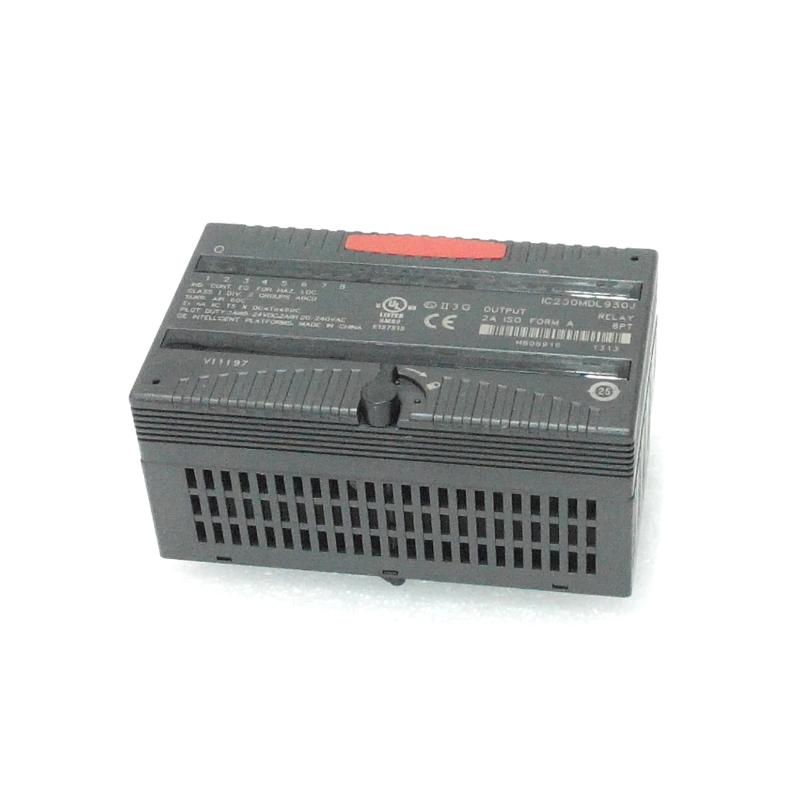

The GE IC200MDL930B is a high-performance 8-point isolated relay output module within the VersaMax distributed I/O family, tailored for industrial automation environments where reliable switching of both AC and DC loads is essential. As an upgraded version of the IC200MDL930 series, this module offers individually isolated Form A relay outputs, durable silver alloy contacts, and integrated LED status feedback — delivering dependable signal control for actuators, solenoids, lamps, and other field devices. Designed for longevity and seamless system integration, the IC200MDL930B provides the balance of robust durability, clear diagnostics, and flexible load support that automation professionals rely on.

Technical Specifications

Specification	Description
Module Type	Isolated Relay Output Module
Output Points	8 individually isolated outputs
Contact Type	Form A (Normally Open) dry contacts
Nominal Output Voltage	5/24/125 VDC; 120/240 VAC
Output Voltage Range	0–125 VDC; 0–265 VAC
Max Resistive Load	2.0 A per point
Minimum Load	10 mA per point
Response Time	Up to 10 ms
Backplane Current Draw	~245 mA (5 V)
Isolation	Channel-to-channel & channel-to-logic
LED Indicators	Individual per output + “Module OK”
Mounting	DIN rail or panel
Approx. Dimensions (W×H×D)	~110 × 66.8 × 50 mm
Approx. Weight	~0.25 kg

This module supports a wide range of AC and DC loads, making it suitable for both legacy and modern industrial systems.

Recommended Related Models

Model	Functional Description
IC200MDL740	16-point DC positive logic output module
IC200MDL741B	16-point DC output with protection
IC200MDL742H	32-point DC high-density output module
IC200MDL940	16-point isolated relay output module

Popular GE VersaMax Modules

Category	Example Models
PLC CPUs	IC200CPU001, IC200CPU002
I/O Carriers	IC200CHS022, IC200CHS044
Mixed I/O	IC200MDD840, IC200MDD846
Input Modules	IC200MDL640, IC200MDL650

Applications

The IC200MDL930B excels in applications where precise and reliable relay switching is required across multiple loads:

AC or DC drive signal switching for motors and solenoids
Control panel output consolidation with high isolation needs
Industrial machine actuation and discrete field control
Process automation systems requiring rugged output stages

Its ability to handle both AC and DC output voltages and isolate each contact point makes it a go-to choice in manufacturing, material handling, and plant automation environments.

Advantages

Individually isolated relay contacts enhance noise immunity and safety
Dry contact design eliminates leakage current when de-energized
Wide voltage support spans both AC and DC industrial loads
Clear status LEDs per output accelerate commissioning and troubleshooting
Compact module form factor saves panel space and integrates with standard DIN rail systems
Proven reliability for continuous industrial duty

Technical FAQs

How many output points are on the IC200MDL930B?
It provides 8 isolated relay outputs.
What types of loads can this module switch?
Both AC and DC loads up to 265 VAC or 125 VDC are supported.
Does the module require an external power source?
Yes — the relay contacts are dry and need an external supply to power connected loads.
What is the maximum current per output contact?
Each relay output is rated up to 2.0 A for resistive loads.
Are there visual indicators for output status?
Yes — there is one LED per output channel plus a module “OK” LED.
Is each output isolated from others?
Yes — each channel offers independent isolation for improved signal integrity.
What is the typical response time?
Relay switching response is up to 10 ms, suitable for standard discrete control tasks.
Can it be mounted on DIN rails?
Yes — it supports DIN rail or panel mounting for flexible installation.
Is this module compatible with all VersaMax PLCs?
Yes — it integrates seamlessly with VersaMax distributed I/O systems.
What environments is this module suitable for?
Designed for industrial control cabinets and machinery where robust relay outputs are needed.
