Brand:Siemens Item No.:6AG1193-6BP40-7DA1 Product Origin:Germany Product Dimensions:15 × 141 × 35 mm Product Weight:0.05 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

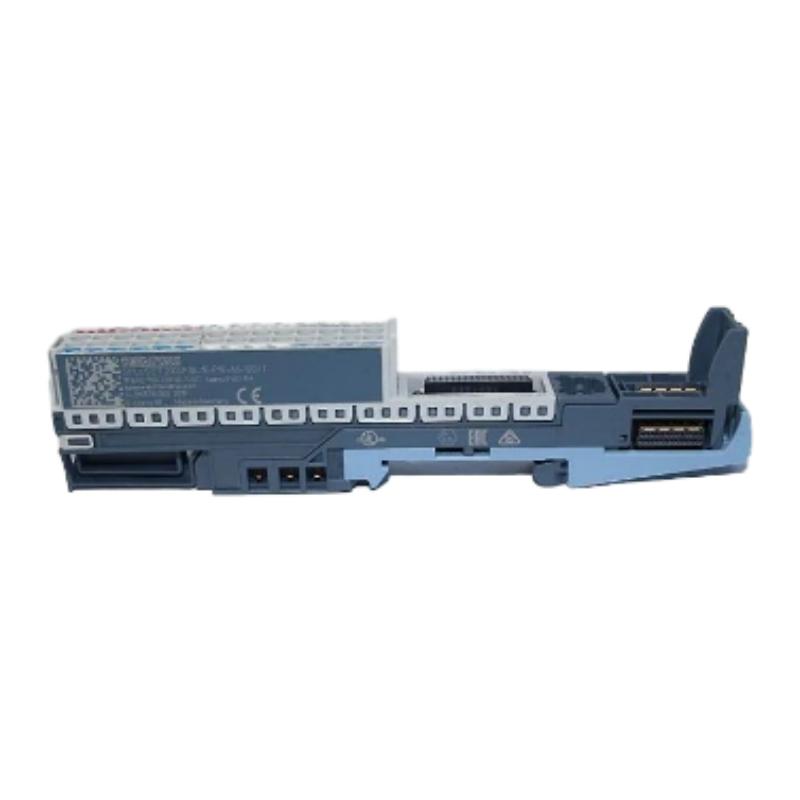

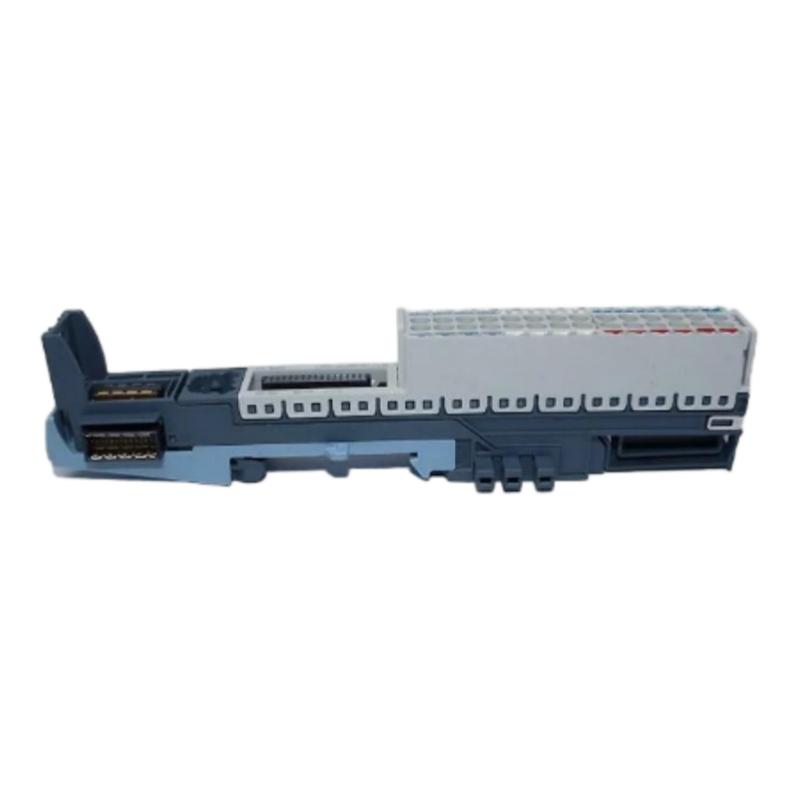

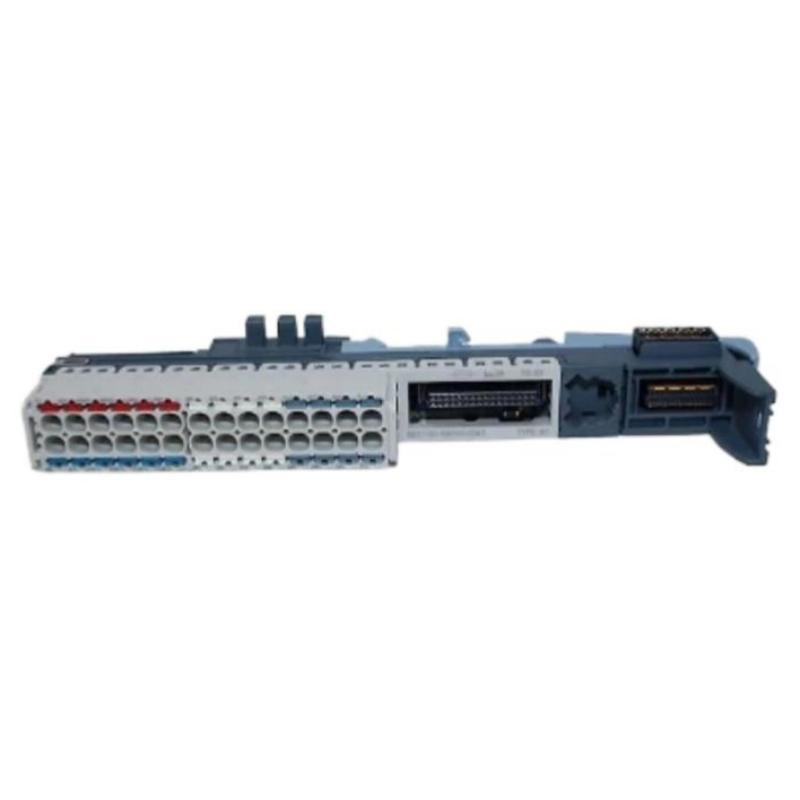

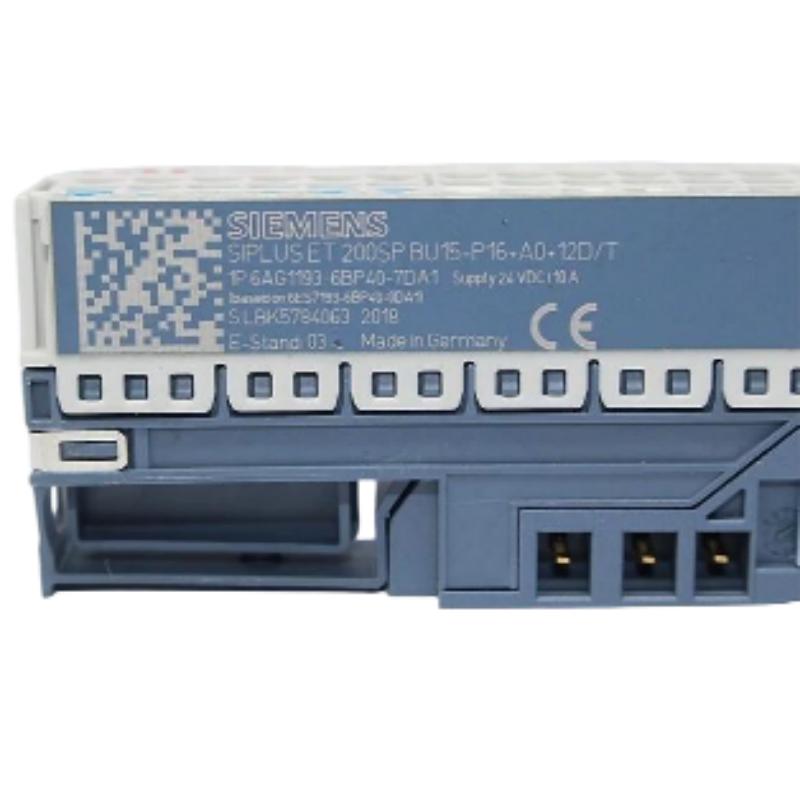

The Siemens 6AG1193-6BP40-7DA1 Base Unit is a compact component for modular industrial automation systems. Rather than performing signal processing itself, the Base Unit provides the structural and connection foundation needed to integrate compatible electronic modules into a properly organized automation station.
In practical control-system design, small interface and mounting components can have a significant effect on installation quality. A correctly selected Base Unit helps maintain consistent module positioning, supports reliable connections, and makes the overall I/O architecture easier to inspect and service.
With dimensions of 15 × 141 × 35 mm and a weight of only 0.05 kg (0.11 lb), the 6AG1193-6BP40-7DA1 is especially attractive for installations where compact equipment arrangement is a priority. Its low weight also makes handling straightforward during panel assembly, equipment replacement, and system refurbishment.
For automation integrators and industrial maintenance teams looking for a genuine Siemens modular-system component, this Base Unit offers a practical combination of compact construction, organized installation, and dependable system integration.
Technical Specifications
Specification
Details
Product
Siemens 6AG1193-6BP40-7DA1
Product Type
Base Unit
Application
Modular industrial automation system
Installation Concept
Modular
Dimensions (W × H × D)
15 × 141 × 35 mm
Weight
0.05 kg (0.11 lb)
Mounting
System-dependent modular installation
Product Design
Compact industrial automation component
The compact 15 × 141 × 35 mm dimensions make the unit suitable for space-conscious control cabinet layouts. At 0.05 kg (0.11 lb), it adds minimal mechanical load to the overall modular assembly while remaining easy to handle during installation and servicing.
Recommended Related Models
For engineers building or maintaining a Siemens modular I/O system, the following product families and components can be considered when selecting related hardware:
Model
Product Type
Typical Role
Siemens 6AG1193-6BP40-7DA1
Base Unit
Modular installation and connection
Siemens 6AG1193 series
Base Unit / System Component
Modular I/O integration
Siemens ET 200SP components
Distributed I/O System
Remote I/O and field-level control
Siemens ET 200SP interface modules
Interface Module
Network and station integration
Popular Related Models
The following Siemens products are commonly considered alongside modular I/O infrastructure when designing a complete automation solution:
Model
Product Type
Application
Siemens 6AG1193-6BP40-7DA1
Base Unit
Modular I/O installation
Siemens 6AG1193-6BP00-7AA1
Base Unit
ET 200SP system configuration
Siemens 6AG1193-6BP20-7AA1
Base Unit
Modular I/O station
Siemens 6AG1193-6BP30-7AA1
Base Unit
Distributed I/O architecture
Siemens 6AG1193-6BP40-7AA1
Base Unit
ET 200SP modular assembly
Applications
The Siemens 6AG1193-6BP40-7DA1 Base Unit is designed to provide a reliable mounting and electrical connection platform within Siemens modular I/O systems. As a compact base component, it supports the practical installation of compatible electronic modules while helping maintain an organized and serviceable control cabinet layout.
This Base Unit is well suited to industrial automation applications where modular architecture, straightforward wiring, and efficient panel utilization are important. It can be used in machine control, process automation, production lines, distributed I/O installations, and other industrial control environments.
Its compact construction makes it particularly useful where cabinet space is limited but dependable module integration is still required. For system builders and maintenance teams, the 6AG1193-6BP40-7DA1 can contribute to a clean and structured modular installation.
Advantages
Compact installation concept
The 6AG1193-6BP40-7DA1 uses a compact form factor that helps engineers make efficient use of available control cabinet space.
Reliable module integration
The Base Unit provides the physical foundation required for compatible modular I/O components, supporting a stable and organized system configuration.
Designed for industrial automation
Its application-oriented construction makes it suitable for demanding automation environments where reliable electrical and mechanical integration is essential.
Simplified cabinet organization
A dedicated base unit helps keep modular components properly positioned, making wiring and system maintenance easier to manage.
Service-friendly architecture
Modular installation can make replacement and maintenance tasks more convenient compared with permanently integrated control hardware.
Practical choice for system builders
For OEMs, panel builders, integrators, and automation maintenance teams, this Base Unit offers a straightforward way to build structured Siemens modular I/O configurations.
Technical FAQs
1. What is the primary function of the Siemens 6AG1193-6BP40-7DA1?
The 6AG1193-6BP40-7DA1 serves as a Base Unit for compatible Siemens modular I/O components. It provides the necessary mechanical and electrical foundation for integrating modules into an automation station.
2. Is the Base Unit itself an I/O module?
No. The Base Unit is an installation and connection component rather than a conventional digital or analog I/O module. Its role is to support the integration of compatible electronic modules within the modular system.
3. What type of automation architecture is the 6AG1193-6BP40-7DA1 suitable for?
It is intended for modular automation architectures in which I/O and related electronic components are installed as individual modules on a common system structure.
4. Why is a dedicated Base Unit important in a modular I/O system?
A Base Unit provides a defined mechanical mounting position and electrical interface for compatible modules. This helps establish consistent module installation and improves overall system organization.
5. Can the Base Unit be used with any Siemens I/O module?
Compatibility should always be checked against the specific Siemens system family and module type. Base Units are designed around defined module and system combinations rather than universal compatibility.
6. Does the Base Unit affect the communication protocol of the automation system?
The Base Unit does not independently determine the communication protocol. Communication characteristics are primarily determined by the controller, interface, and electronic modules used in the overall automation station.
7. What should be checked before installing a replacement Base Unit?
Engineers should verify the complete part number, compatible module family, mechanical arrangement, wiring requirements, and system configuration before replacing an existing Base Unit.
8. Is the 6AG1193-6BP40-7DA1 suitable for control cabinet installations?
Yes. Its compact construction is appropriate for structured industrial control cabinet installations where modular components need to be mounted in an organized arrangement.
9. What are common reasons for replacing a Base Unit?
Replacement may be necessary because of mechanical damage, damaged connection points, installation wear, incorrect previous installation, or refurbishment of an existing modular I/O station.
10. How can engineers improve reliability when installing this Base Unit?
Reliable installation depends on using compatible modules, following the appropriate Siemens installation arrangement, ensuring secure mechanical mounting, checking electrical connections, and verifying the complete station configuration before commissioning.
