Brand:Siemens Item No.:6AG1193-6PA00-7AA0 Product Origin:Germany Product Dimensions:7 × 117 × 36 mm Product Weight:0.019 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

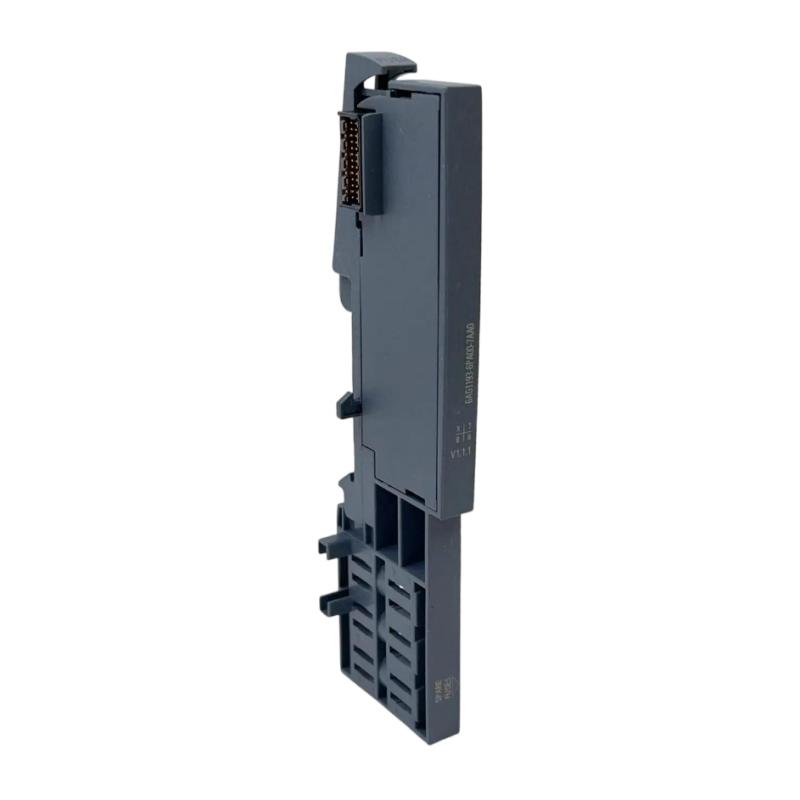

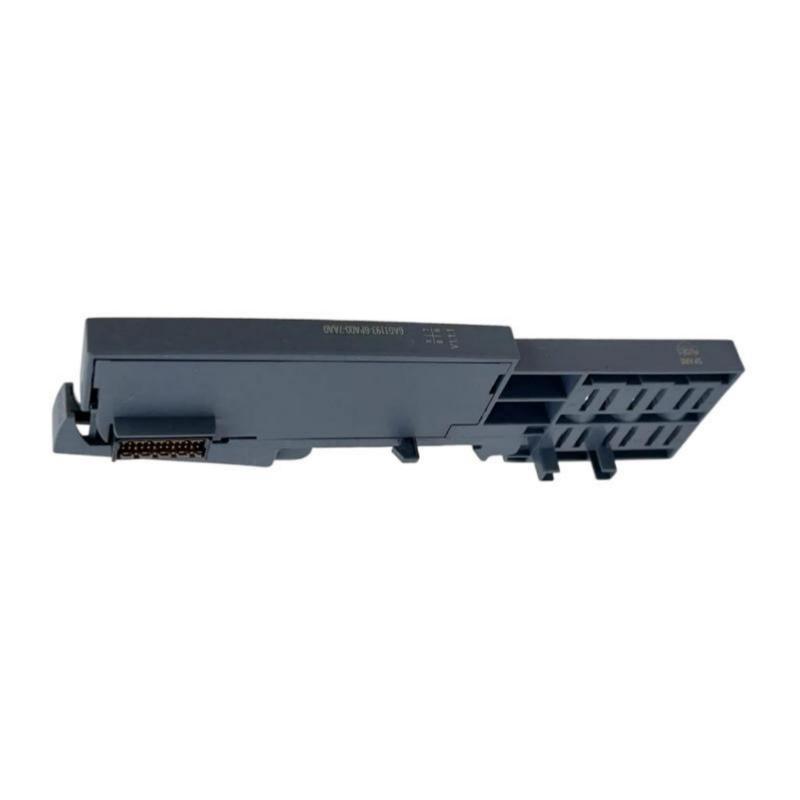

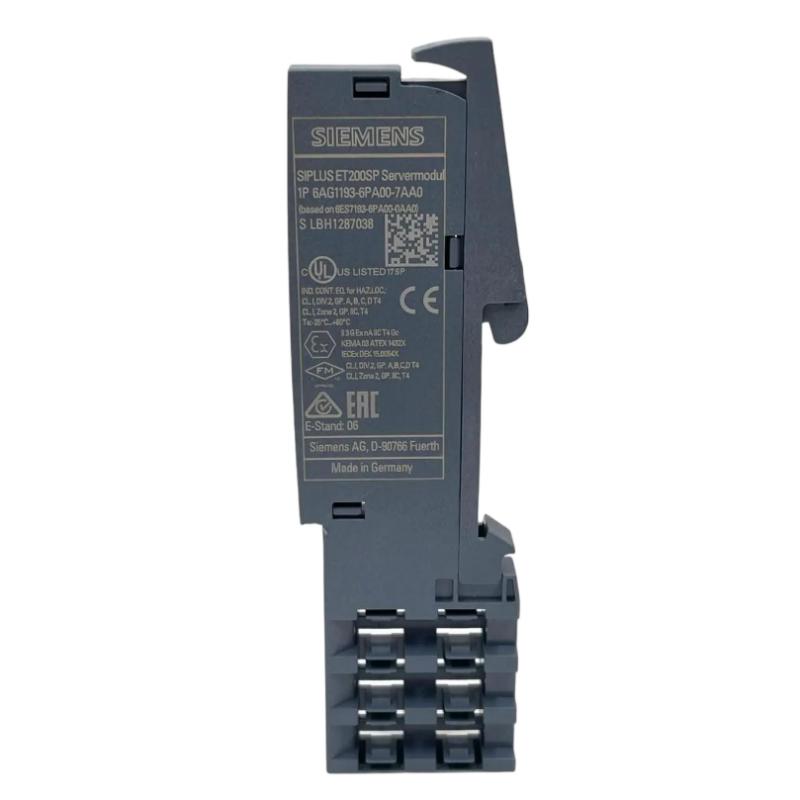

The Siemens 6AG1193-6PA00-7AA0 Terminal Module is a specialized SIPLUS component for ET 200SP distributed I/O systems. More specifically, it serves as the server/termination module for compatible ET 200SP stations, making it an important but highly compact part of the overall modular architecture.
In a distributed automation system, reliable operation depends not only on controllers and I/O modules but also on the smaller components that establish the correct physical and electrical system structure. The 6AG1193-6PA00-7AA0 addresses this requirement with a dedicated termination design tailored to the ET 200SP platform.
The SIPLUS design also makes this component attractive for industrial installations where environmental robustness is an important purchasing consideration. It can be integrated into applications ranging from machine building and factory automation to demanding distributed control environments.
With a supplied size of 7 × 117 × 36 mm and a specified weight of 0.02 kg (0.04 lb), the module has an exceptionally compact installation profile. This makes it particularly useful in densely populated control cabinets and modular I/O stations where space efficiency is a major design consideration.
For automation integrators, OEMs, and maintenance professionals, the 6AG1193-6PA00-7AA0 offers a practical way to complete compatible SIPLUS ET 200SP station configurations while maintaining the compact architecture associated with the ET 200SP platform.
Technical Specifications
Specification
Details
Product
Siemens 6AG1193-6PA00-7AA0
Product Type
Terminal Module / Server Module
Product Family
SIPLUS ET 200SP
System
ET 200SP Distributed I/O
Main Function
Station termination
Dimensions (W × H × D)
7 × 117 × 36 mm
Weight
0.02 kg (0.04 lb)
Installation Concept
Modular ET 200SP system
Application
Industrial automation and distributed I/O
The 7 × 117 × 36 mm form factor gives the 6AG1193-6PA00-7AA0 a very small installation footprint. Its 0.02 kg (0.04 lb) weight also makes it easy to handle during system assembly and maintenance.
Recommended Related Models
For engineers working with SIPLUS ET 200SP stations, the following components are relevant when developing a compatible system architecture:
Model
Product Type
Typical Role
Siemens 6AG1193-6PA00-7AA0
Server / Terminal Module
ET 200SP station termination
Siemens 6AG1155-6AU02-7BN0
Interface Module
SIPLUS ET 200SP PROFINET interface
Siemens 6AG1193-6AR00-7AA0
Bus Adapter
Network connection
Siemens 6AG1193-6BP40-7DA1
Base Unit
Modular I/O installation
Siemens 6AG1131-6BF00-7BA0
Digital Input Module
24 V DC digital signal acquisition
Popular Related Models
The following Siemens models can be considered when expanding, repairing, or configuring SIPLUS ET 200SP-based automation systems:
Model
Product Type
Application
Siemens 6AG1193-6PA00-7AA0
Server / Terminal Module
ET 200SP station termination
Siemens 6AG1155-6AA02-7BN0
Interface Module Bundle
SIPLUS ET 200SP PROFINET station
Siemens 6AG1155-6AU02-7BN0
Interface Module
Distributed I/O communication
Siemens 6AG1193-6AR00-7AA0
Bus Adapter
PROFINET network connection
Siemens 6AG1193-6BP20-7BB0
Base Unit
ET 200SP modular I/O installation
Applications
The Siemens 6AG1193-6PA00-7AA0 Terminal Module is a compact system component designed for Siemens SIPLUS ET 200SP automation architectures. It functions as the server/termination module for the ET 200SP station, providing an important finishing element for the modular station structure.
This component is particularly suitable for industrial control cabinets, distributed I/O installations, machine automation, process control systems, and applications where a compact and serviceable modular I/O architecture is required.
The 6AG1193-6PA00-7AA0 is also well suited to SIPLUS environments where enhanced environmental protection and robust industrial deployment are important considerations. Its small footprint makes it practical for high-density automation panels where every millimeter of installation space matters.
Advantages
Compact station termination
The 6AG1193-6PA00-7AA0 provides a dedicated termination solution for compatible ET 200SP stations without adding unnecessary bulk to the installation.
Designed for SIPLUS environments
As a SIPLUS ET 200SP component, it is suitable for industrial applications requiring enhanced environmental robustness compared with standard automation hardware.
Efficient modular integration
The module works as part of the ET 200SP modular architecture, helping engineers build compact and well-organized distributed I/O stations.
Minimal installation footprint
Its slim 7 mm width is advantageous in control panels where high component density and efficient cabinet utilization are priorities.
Lightweight construction
With a specified weight of only 0.02 kg, the component is easy to handle during panel assembly, replacement, and maintenance work.
Reliable system finishing component
Using the appropriate server/termination component helps complete the physical architecture of a compatible ET 200SP station and supports a clean system design.
Technical FAQs
1. What is the function of the Siemens 6AG1193-6PA00-7AA0?
The 6AG1193-6PA00-7AA0 is a SIPLUS ET 200SP server/termination module. It is used as the termination component of a compatible ET 200SP station.
2. Is the 6AG1193-6PA00-7AA0 an input or output module?
No. It does not provide conventional digital or analog input/output channels. Its function is associated with the structure and termination of the modular ET 200SP station.
3. Which Siemens automation family is this module associated with?
The product belongs to the SIPLUS ET 200SP product family and is based on the corresponding ET 200SP server module architecture.
4. What role does a server module play in an ET 200SP station?
The server module provides the appropriate termination for the station's backplane architecture and is used to complete the modular arrangement after the installed I/O and interface components.
5. Can the 6AG1193-6PA00-7AA0 replace a standard ET 200SP server module?
It is based on the SIPLUS version of the ET 200SP server module. Replacement should be made only after checking the complete system configuration and environmental requirements.
6. Does this module process field signals?
No. Field signal processing is performed by the appropriate ET 200SP electronic modules. The 6AG1193-6PA00-7AA0 provides the required station termination function.
7. Can it be used with SIPLUS ET 200SP interface modules?
Yes, it is designed for use within compatible SIPLUS ET 200SP configurations and is supplied as the server/termination component for applicable stations.
8. Does the module require independent power wiring?
The server/termination module is not an independent power supply module. Its electrical role is determined by the architecture of the ET 200SP station in which it is installed.
9. What should be checked before replacing this module?
The exact Siemens article number, ET 200SP station architecture, compatible interface module, environmental requirements, and existing system configuration should be verified before replacement.
10. Is the 6AG1193-6PA00-7AA0 important for commissioning an ET 200SP station?
Yes. Where required by the selected ET 200SP configuration, the correct server/termination module is part of completing the station architecture and should be installed correctly before final commissioning.
