Brand:Siemens Item No.:6ES7212-1AE40-0XB0 Product Origin:Germany Product Dimensions:90 x 100 x 75 mm Product Weight:0.37 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

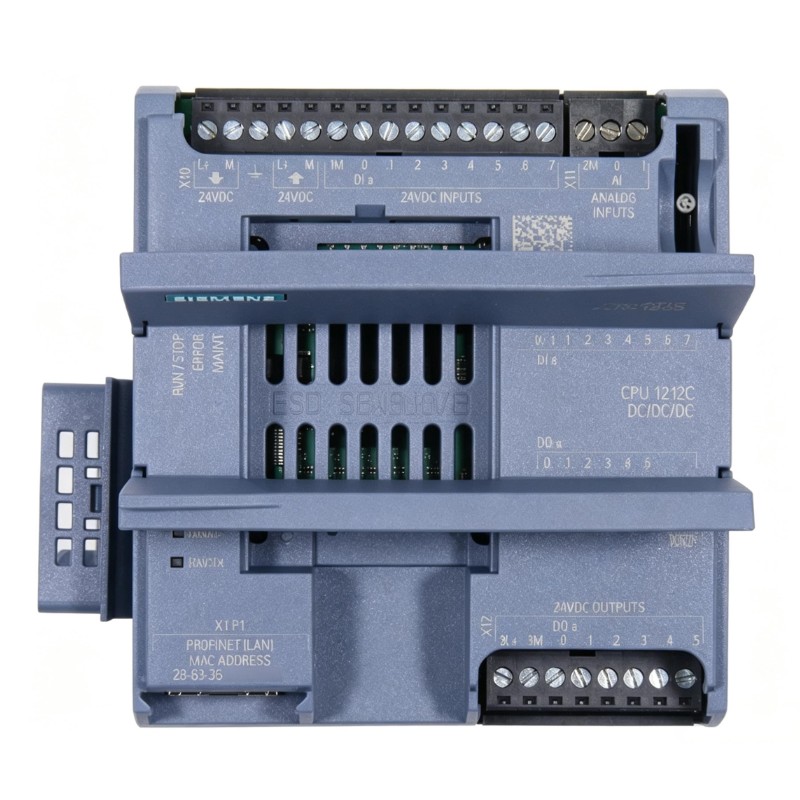

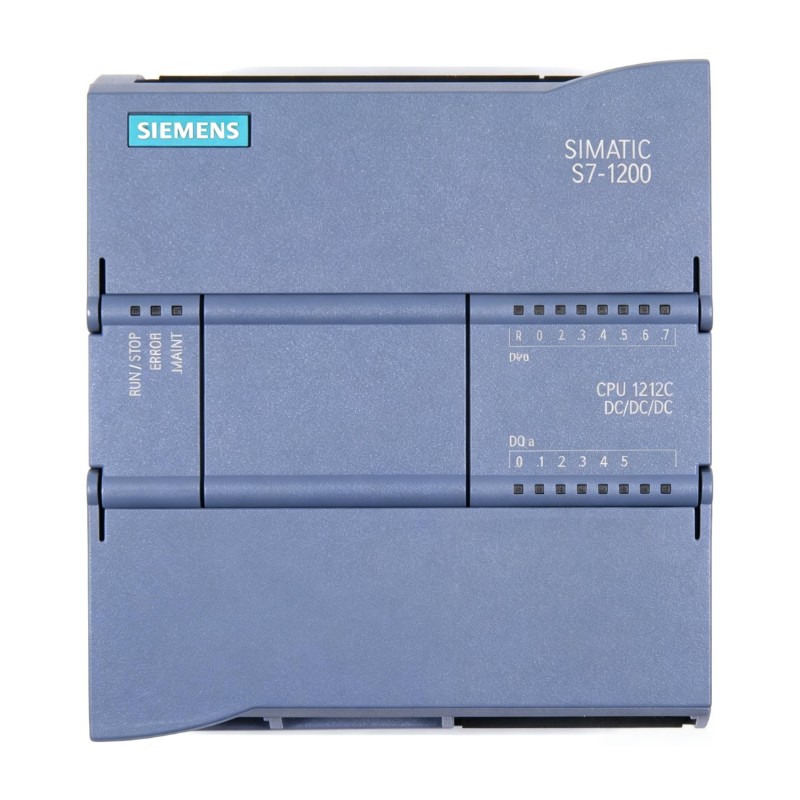

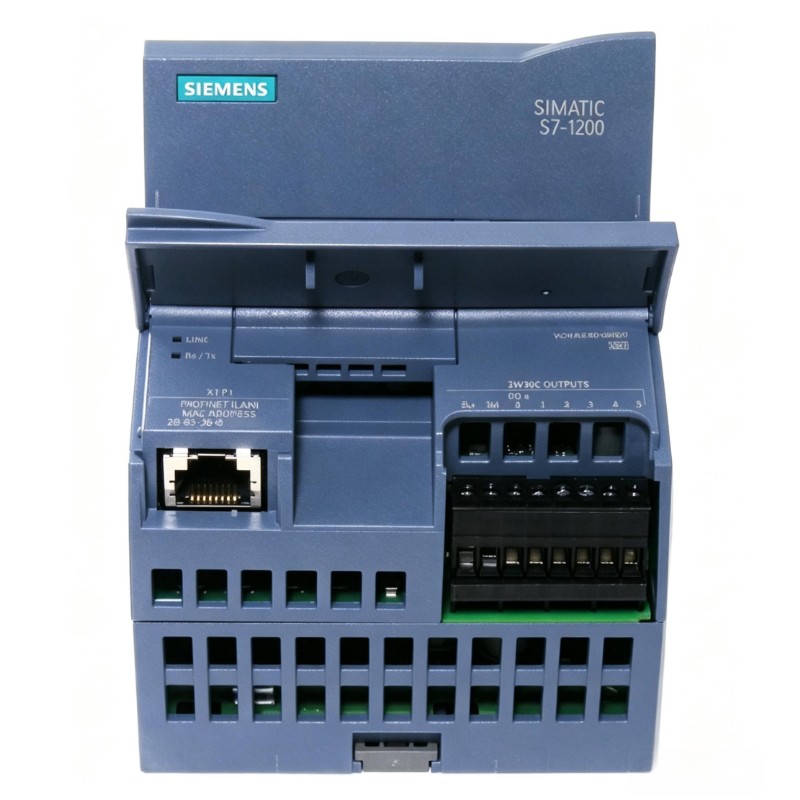

The Siemens 6ES7212-1AE40-0XB0 Compact CPU is a space-efficient PLC solution for machine and industrial automation applications. As part of the SIMATIC S7-1200 family, it provides the central processing function required to execute control logic and coordinate compatible automation components.
For machine builders, choosing a controller often means balancing functionality against physical size and system complexity. A compact CPU can simplify the electrical design while leaving more space for signal modules, communication equipment, power components, and field connections.
The 6ES7212-1AE40-0XB0 is suited to control architectures where the PLC needs to handle machine sequences, logic operations, monitoring, and communication with other automation equipment. Its position within the S7-1200 ecosystem also makes it relevant to both new machine projects and maintenance applications.
The supplied dimensions are 90 × 100 × 75 mm, and the specified weight is 0.37 kg (0.82 lb). This compact profile makes the CPU easy to incorporate into space-constrained electrical cabinets while keeping handling straightforward during installation and servicing.
For OEMs and automation integrators, the 6ES7212-1AE40-0XB0 offers a practical combination of compact construction, scalable architecture, and established Siemens PLC engineering. For replacement applications, engineers should always match the exact article number and verify the existing hardware and software configuration before commissioning.
Technical Specifications
Specification
Details
Product
Siemens 6ES7212-1AE40-0XB0
Product Type
Compact CPU
PLC Family
SIMATIC S7-1200
Controller Function
Programmable logic control
Application
Industrial and machine automation
Engineering Environment
Siemens TIA Portal
Dimensions (W × H × D)
90 × 100 × 75 mm
Weight
0.37 kg (0.82 lb)
System Architecture
Compact PLC
Typical Applications
Machine control, OEM equipment, production automation
The 90 × 100 × 75 mm dimensions provide a compact installation footprint, while the 0.37 kg (0.82 lb) weight allows convenient handling during control-panel assembly, equipment replacement, and maintenance.
Recommended Related Models
For projects based on the SIMATIC S7-1200 platform, these models may be considered alongside the 6ES7212-1AE40-0XB0:
Model
Product Type
Typical Role
Siemens 6ES7212-1AE40-0XB0
Compact CPU
Central machine control
Siemens 6ES7211-1AE40-0XB0
Compact CPU
Compact machine automation
Siemens 6ES7211-1BE40-0XB0
Compact CPU
PLC control applications
Siemens 6ES7211-1HE40-0XB0
Compact CPU
Compact automation
Siemens 6ES7214-1AG40-0XB0
Compact CPU
Expanded machine control
Popular Related Models
The following S7-1200 models are also relevant for compact automation projects, controller replacement, and spare-parts planning:
Model
Product Type
Application
Siemens 6ES7212-1AE40-0XB0
Compact CPU
Industrial machine control
Siemens 6ES7211-1AE40-0XB0
Compact CPU
Small automation systems
Siemens 6ES7211-1BE40-0XB0
Compact CPU
Compact PLC applications
Siemens 6ES7211-1HE40-0XB0
Compact CPU
Machine automation
Siemens 6ES7214-1HG40-0XB0
Compact CPU
Machine and process control
Applications
The Siemens 6ES7212-1AE40-0XB0 Compact CPU is built for industrial automation projects that need a dependable programmable controller without taking up excessive cabinet space. As a SIMATIC S7-1200 CPU, it provides a practical control platform for machine builders, OEM equipment manufacturers, system integrators, and industrial maintenance teams.
This compact controller is well suited to machine sequencing, logic control, equipment monitoring, interlocking, and coordination with compatible field and automation devices. It can be applied to packaging machinery, conveyor systems, assembly equipment, material handling, production machinery, and other compact automation installations.
Its compact form factor is particularly valuable when control cabinets need to accommodate multiple components while maintaining clear wiring and service access. For new machine development or replacement projects, the 6ES7212-1AE40-0XB0 offers a convenient route to a structured Siemens PLC architecture.
Advantages
Compact machine-control solution
The 6ES7212-1AE40-0XB0 delivers central PLC functionality in a compact housing, helping engineers optimize valuable control-panel space.
Flexible automation architecture
The S7-1200 platform allows compatible signal and communication components to be incorporated as system requirements grow.
Reliable logic execution
The CPU provides a dedicated environment for machine sequences, interlocks, monitoring functions, and application-specific PLC logic.
Efficient OEM integration
Its compact construction makes it a practical controller for standardized machine platforms and custom-built industrial equipment.
Streamlined engineering
S7-1200 systems can be configured, programmed, diagnosed, and commissioned within the Siemens engineering environment, helping maintain consistency throughout the project lifecycle.
Convenient maintenance
The compact architecture and established S7-1200 platform make the CPU a practical option for service teams maintaining existing Siemens automation equipment.
Technical FAQs
1. What is the Siemens 6ES7212-1AE40-0XB0 used for?
The 6ES7212-1AE40-0XB0 is a Compact CPU used as the programmable control element in compatible SIMATIC S7-1200 automation systems.
2. What types of equipment can this CPU control?
It can be used for a wide range of machine-control tasks, including packaging, conveying, assembly, material handling, production equipment, and general industrial automation.
3. Can the CPU be expanded with additional modules?
Yes. The S7-1200 platform supports compatible signal and communication modules. The final configuration should be determined according to the CPU capabilities and application requirements.
4. Which engineering software is used with this CPU?
S7-1200 controllers are engineered using Siemens TIA Portal. The appropriate software version should be selected based on the CPU hardware and firmware requirements.
5. Can the CPU communicate with drives and other industrial devices?
Yes, compatible S7-1200 communication interfaces and protocols can be used to connect the controller with drives, remote I/O, HMIs, and other industrial equipment.
6. What should be verified before installing a replacement CPU?
Check the complete article number, hardware configuration, firmware compatibility, PLC project, I/O addressing, communication parameters, and connected modules before installation.
7. Can an existing S7-1200 program be transferred to this CPU?
A compatible project can generally be downloaded to a replacement CPU after verifying the hardware configuration and firmware requirements. The application should then be tested before returning the equipment to service.
8. What are common causes of CPU diagnostic faults?
Configuration errors, programming problems, communication failures, power issues, incompatible hardware, and faults in connected devices can all contribute to diagnostic conditions.
9. Is this CPU a safety PLC?
It should not be treated as a safety controller simply because it is an industrial PLC. Functional-safety applications require appropriately certified hardware, software, and system architecture.
10. What should be checked during commissioning?
Engineers should verify the hardware configuration, PLC program, I/O operation, field wiring, communication parameters, diagnostic status, machine sequence, and required interlocks before normal operation.
