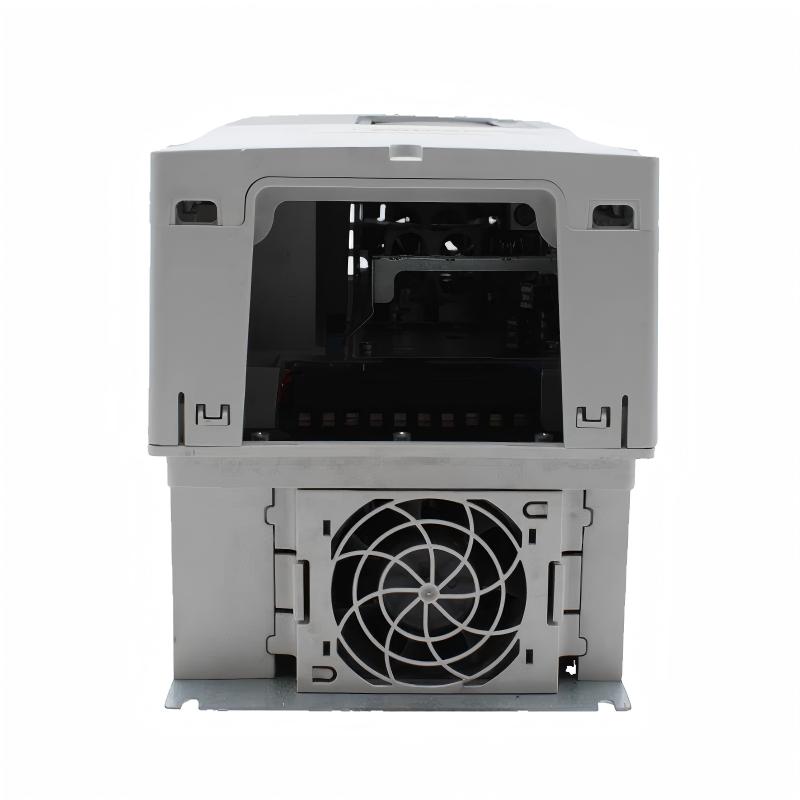

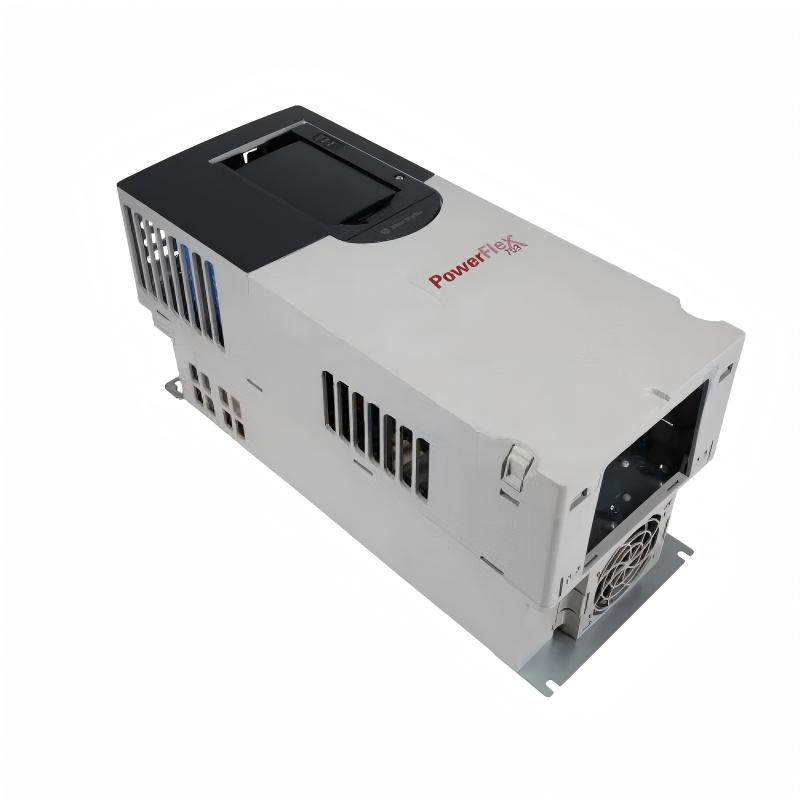

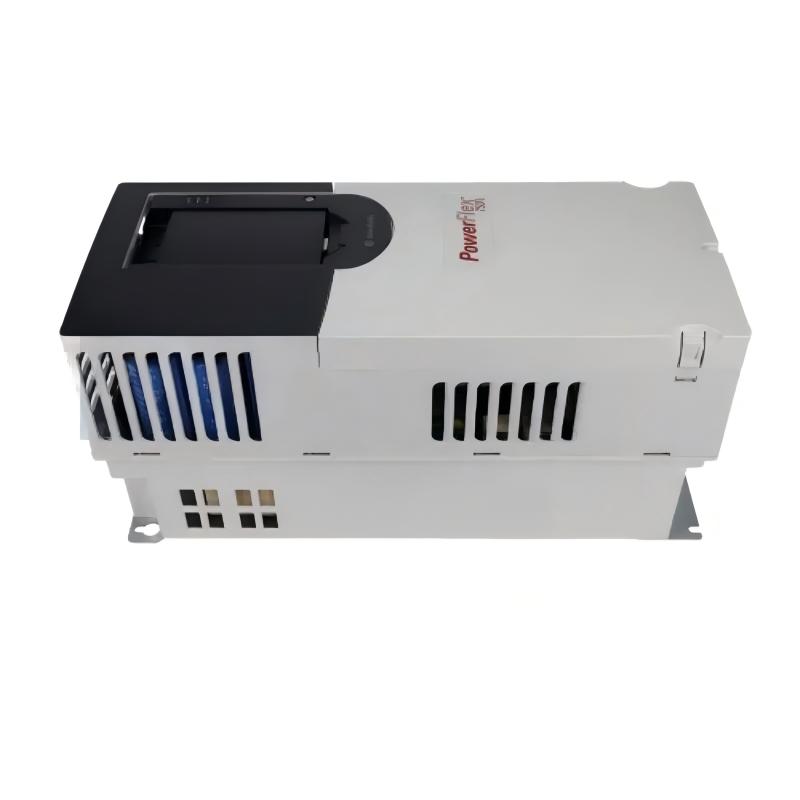

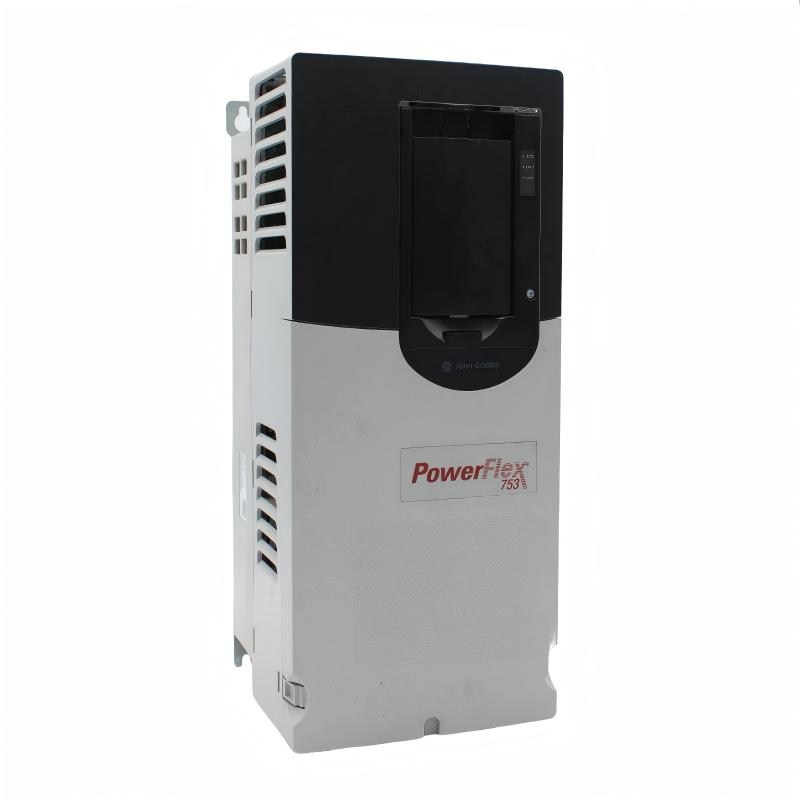

Allen Bradley 20F11NE3P9JA0NNNNN PowerFlex 753 AC Drive

Applications

The Allen Bradley 20F11NE3P9JA0NNNNN PowerFlex 753 AC Drive is an industrial AC drive designed for adjustable-speed motor control in automation, machinery, and process applications. It provides a practical solution for applications where motor speed, acceleration, and deceleration need to be controlled according to changing operating conditions.

The PowerFlex 753 platform is suitable for a broad range of industrial equipment, including conveying systems, pumps, fans, compressors, material-handling equipment, and production machinery.

Typical applications include:

• Conveyor and material-handling systems
• Industrial pumps
• Fans and ventilation equipment
• Compressors
• Packaging machinery
• Production lines
• Machine-building applications
• Process automation equipment
• OEM machinery
• Industrial drive replacement projects

Advantages

The 20F11NE3P9JA0NNNNN combines variable-speed motor control with the flexible PowerFlex 753 drive platform. Its compact 454 × 190 × 212 mm enclosure dimensions can be advantageous when integrating the drive into appropriately designed industrial control cabinets.

Key advantages include:

• Adjustable-speed AC motor control
• PowerFlex 753 platform for industrial automation
• Controlled acceleration and deceleration
• Flexible application configuration
• Suitable for a wide variety of motor-driven machinery
• Compact installation footprint
• Suitable for OEM and system-integrator applications
• Useful for modernization and replacement projects
• 11 kg lightweight configuration for easier handling

Technical FAQs

1. What is the Allen Bradley 20F11NE3P9JA0NNNNN used for?
The 20F11NE3P9JA0NNNNN is a PowerFlex 753 AC drive used for adjustable-speed control of compatible industrial AC motors.

2. What types of machinery can use this drive?
Typical applications include conveyors, pumps, fans, compressors, material-handling equipment, packaging machines, and other industrial motor-driven machinery.

3. What is the main function of a variable frequency drive?
A variable frequency drive regulates motor operation so that the motor can run at a controlled speed rather than operating only at a fixed frequency and speed.

4. Can the PowerFlex 753 control acceleration and deceleration?
Yes. Acceleration and deceleration parameters can be configured to provide controlled motor speed changes according to application requirements.

5. What information is needed when configuring the drive?
The motor nameplate information and application requirements should be reviewed. Relevant motor and control parameters should then be configured according to the selected control method.

6. What should be checked before installing the drive?
Verify the incoming power, motor rating, drive rating, wiring, grounding, protection devices, cabinet ventilation, control connections, and available installation space.

7. What can cause an overcurrent fault?
Possible causes include excessive mechanical load, incorrect motor data, motor or cable faults, overly short acceleration time, or an unsuitable application configuration.

8. What should be checked if the motor does not start?
Check the drive status, active faults, enable signal, start command, speed reference, motor wiring, programmed parameters, and external safety or interlock signals.

9. How can an overheating problem be diagnosed?
Check ambient temperature, cabinet ventilation, cooling airflow, installation clearances, drive loading, and heat accumulation inside the enclosure.

10. Can this PowerFlex 753 drive be used for equipment modernization?
Yes. It can be considered for modernization or replacement projects when the electrical ratings, motor characteristics, control requirements, and mechanical installation are compatible with the application.
