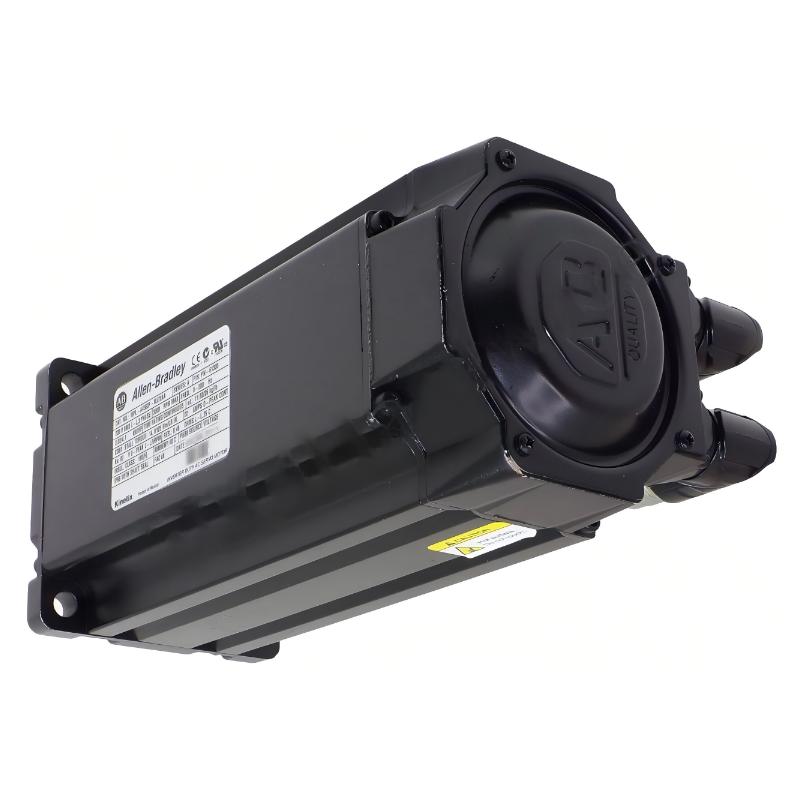

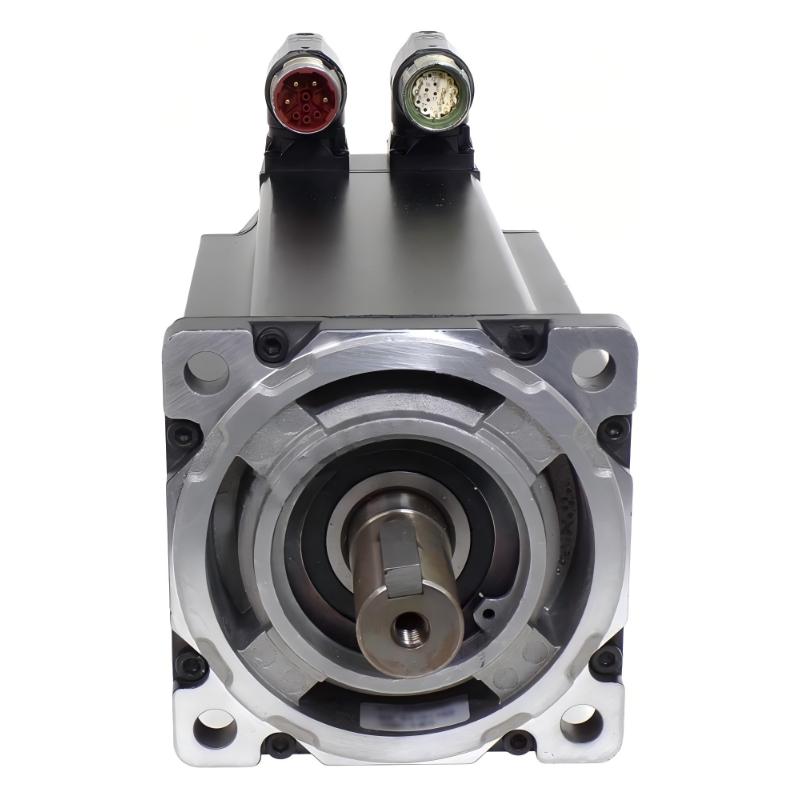

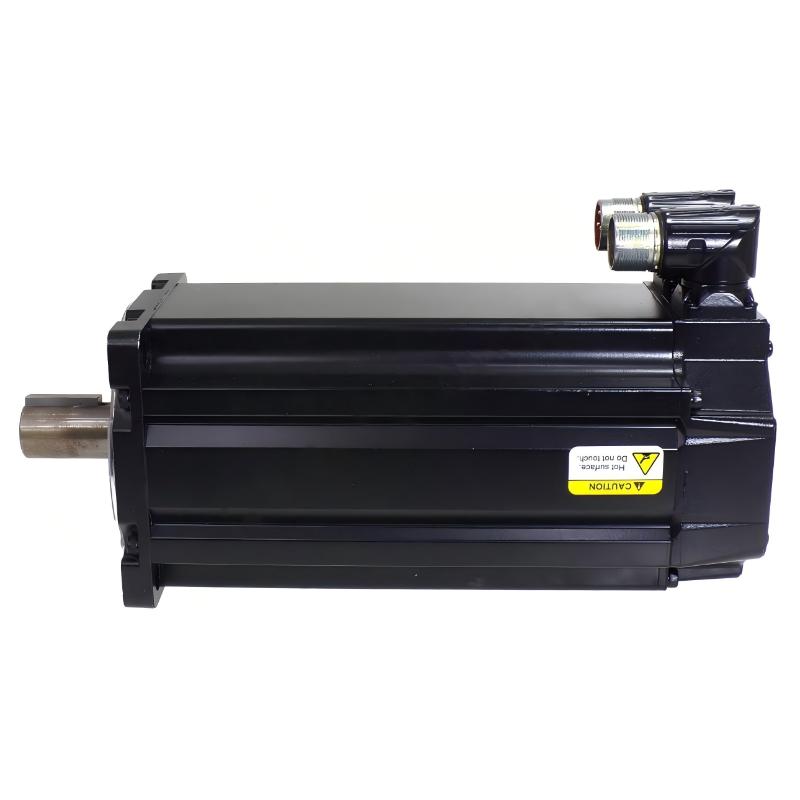

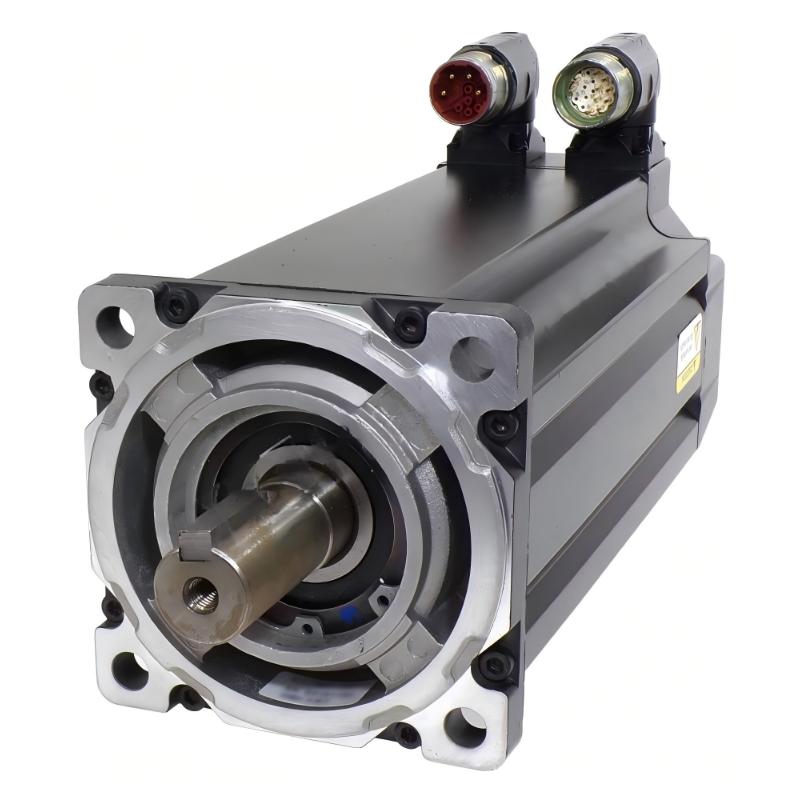

Allen Bradley MPL-A4560F-MJ72AA Servo Motor

Applications

The Allen Bradley MPL-A4560F-MJ72AA Servo Motor is designed for industrial motion-control systems that require accurate positioning, reliable torque output, and consistent dynamic performance. As part of the Allen Bradley MPL servo motor family, it is suitable for automation equipment where precise movement and repeatability are critical.

Typical applications include:

• CNC machine tools
• Robotic automation systems
• Packaging and filling equipment
• Automated assembly machinery
• Material-handling systems
• Printing and converting machines
• Semiconductor manufacturing equipment
• Precision inspection systems
• Production-line automation
• Multi-axis motion-control platforms

This servo motor is suitable for OEM machine builders and industrial integrators developing high-performance automation solutions that require stable and accurate motion.

Advantages

The MPL-A4560F-MJ72AA combines a robust servo design with precise motion capabilities, providing a reliable solution for demanding industrial applications.

Key advantages include:

• High-performance servo motor operation
• Designed for precision industrial automation
• 130 mm frame size for flexible integration
• Supports accurate speed and position control
• Suitable for high-response motion applications
• Reliable operation in continuous production environments
• Compatible with advanced motion-control systems
• Suitable for robotics and automated machinery
• Helps improve machine accuracy and productivity
• 11.82 kg construction for stable industrial installation

Technical FAQs

1. What is the Allen Bradley MPL-A4560F-MJ72AA?
The MPL-A4560F-MJ72AA is an Allen Bradley MPL series servo motor designed for industrial motion-control applications requiring accurate and repeatable movement.

2. What is the main role of a servo motor in automation equipment?
A servo motor provides controlled mechanical movement by regulating position, speed, and torque through feedback-based motion control.

3. What applications are suitable for this servo motor?
It is suitable for robotics, CNC machines, packaging systems, automated assembly equipment, and other precision motion applications.

4. How is a servo motor different from a conventional motor?
A servo motor uses feedback and closed-loop control to achieve precise motion performance, while conventional motors typically provide simpler speed operation.

5. What should be considered when selecting a servo motor?
Important factors include load requirements, torque demand, acceleration, operating speed, mechanical design, feedback compatibility, and servo drive matching.

6. Can the MPL-A4560F-MJ72AA be used in multi-axis systems?
Yes. It can be integrated into coordinated multi-axis automation systems when used with compatible motion controllers and servo drives.

7. What causes servo motor vibration during operation?
Possible causes include incorrect tuning, mechanical resonance, poor alignment, excessive load, loose mounting, or feedback-related problems.

8. Why is feedback important in servo applications?
Feedback allows the control system to compare commanded motion with actual motor movement and make corrections for improved accuracy.

9. What should be checked if the motor does not respond to commands?
Check power supply, servo drive status, motor cables, feedback connections, enable signals, controller commands, and fault information.

10. How can servo motor reliability be maintained?
Regular inspection of mechanical connections, wiring, temperature conditions, vibration levels, and system parameters helps maintain reliable operation.
