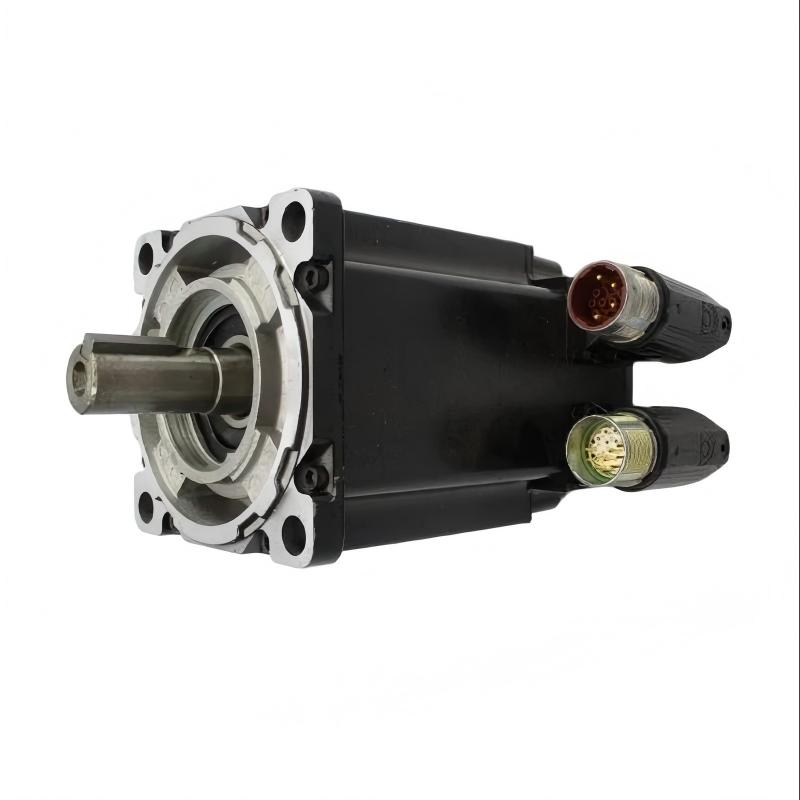

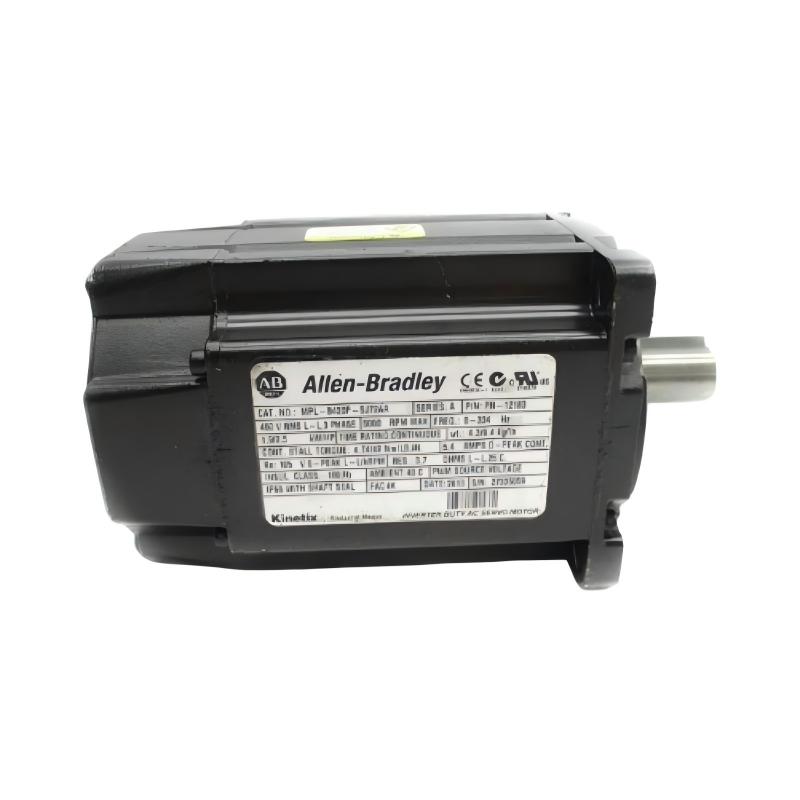

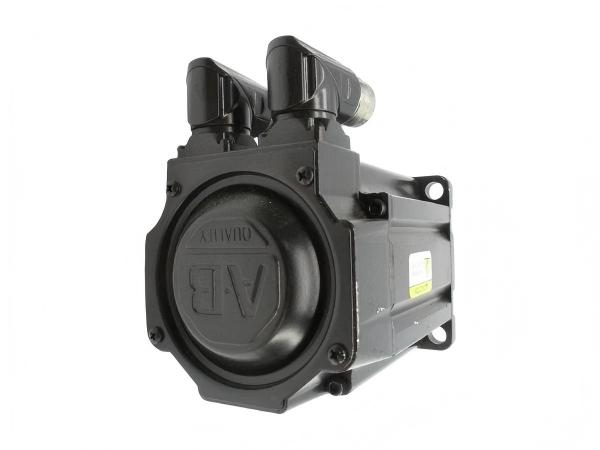

Allen Bradley MPL-B420P-SJ72AA Servo Motor

Applications

The Allen Bradley MPL-B420P-SJ72AA Servo Motor is designed for industrial automation systems that require accurate motion control, dependable performance, and consistent positioning capability. As part of the Allen Bradley MPL-B series servo motor family, it provides a reliable solution for machines that require smooth operation and repeatable movement.

Typical applications include:

• Automated assembly equipment
• Packaging and filling machinery
• Robotics and motion platforms
• CNC machine tools
• Material-handling systems
• Production-line automation
• Printing and converting equipment
• Electronic manufacturing machinery
• Industrial inspection systems
• OEM automation equipment

The servo motor is suitable for manufacturers and system integrators who need compact, efficient, and reliable motion components for modern automation applications.

Advantages

The MPL-B420P-SJ72AA Servo Motor provides a balance of compact design and precise motion performance, making it suitable for a wide range of industrial equipment.

Key advantages include:

• High-precision servo motion capability
• Designed for industrial automation applications
• 115 mm frame size for flexible integration
• Supports accurate speed and position control
• Suitable for dynamic motion requirements
• Reliable performance in continuous operation
• Compact structure for efficient machine design
• Suitable for OEM equipment development
• Supports advanced servo-control systems
• 4.3 kg lightweight construction for easier installation

Technical FAQs

1. What is the Allen Bradley MPL-B420P-SJ72AA?
The MPL-B420P-SJ72AA is an Allen Bradley MPL-B series servo motor designed for industrial motion-control applications.

2. What role does this servo motor play in an automation system?
It provides controlled mechanical movement by regulating speed, position, and torque through a closed-loop control system.

3. What applications can use the MPL-B420P-SJ72AA?
It is suitable for robotics, packaging systems, CNC machinery, automated assembly equipment, and precision positioning applications.

4. Why are servo motors used in industrial automation?
Servo motors provide accurate and repeatable motion control, allowing machines to achieve higher precision than standard motor solutions.

5. What should be considered when selecting this servo motor?
Selection should consider load requirements, torque demand, operating speed, acceleration, feedback compatibility, and servo drive matching.

6. Can the MPL-B420P-SJ72AA be used in multi-axis applications?
Yes. It can be integrated into multi-axis motion systems with compatible servo drives and controllers.

7. What should be checked before installation?
Verify motor specifications, mechanical mounting, shaft alignment, cable connections, feedback wiring, grounding, and drive settings.

8. What causes servo positioning errors?
Possible causes include incorrect tuning, mechanical backlash, excessive load, feedback problems, incorrect parameters, or control-system issues.

9. What should be checked if the servo motor does not rotate?
Check power supply, servo drive status, motor wiring, feedback signals, enable commands, and controller output.

10. How can servo motor performance be maintained?
Regular inspection, proper installation, correct tuning, cable maintenance, and monitoring operating conditions help ensure reliable performance.
