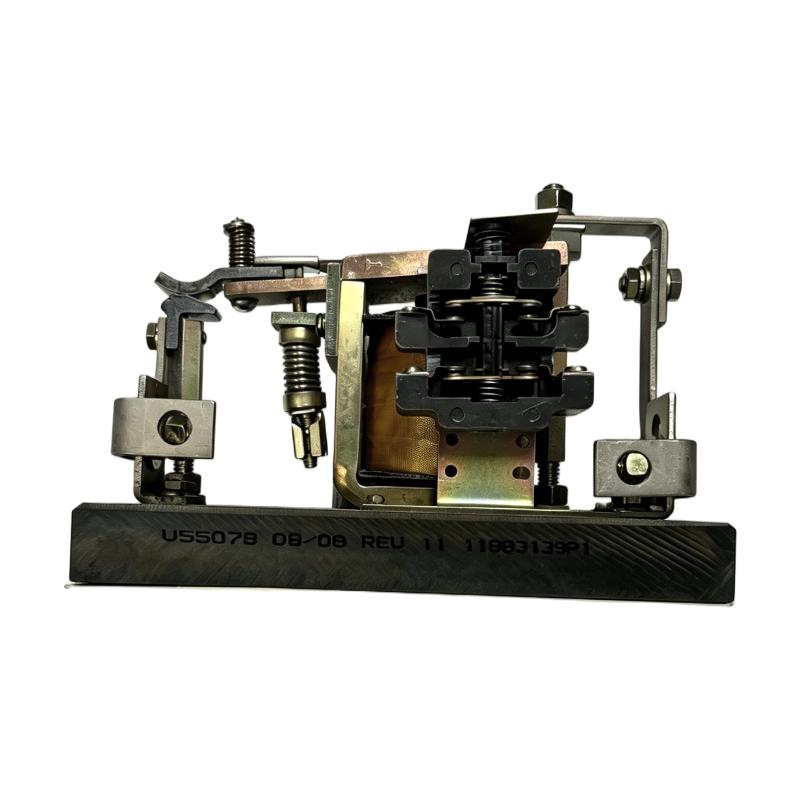

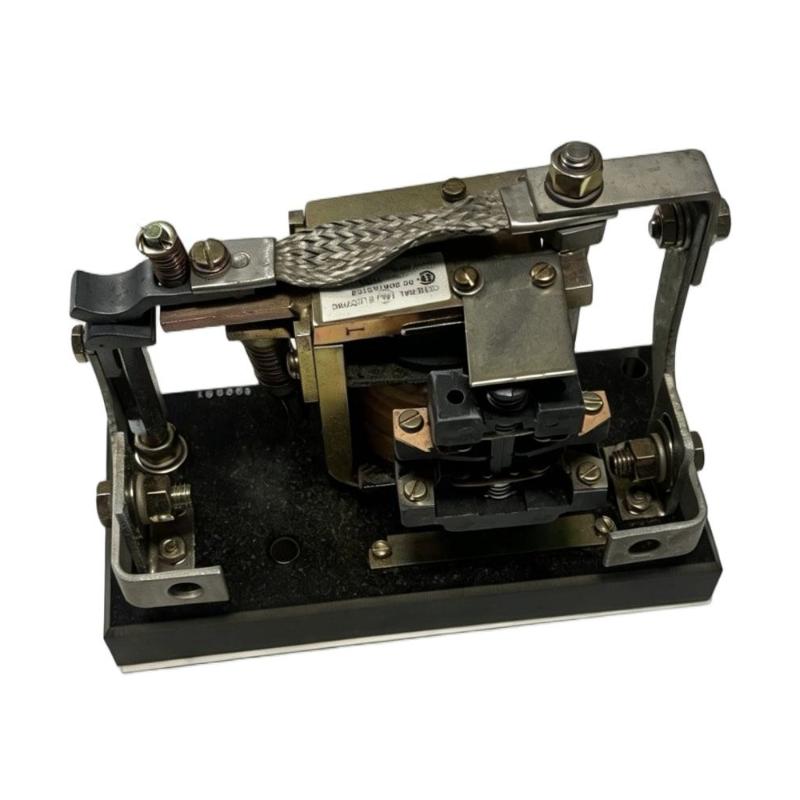

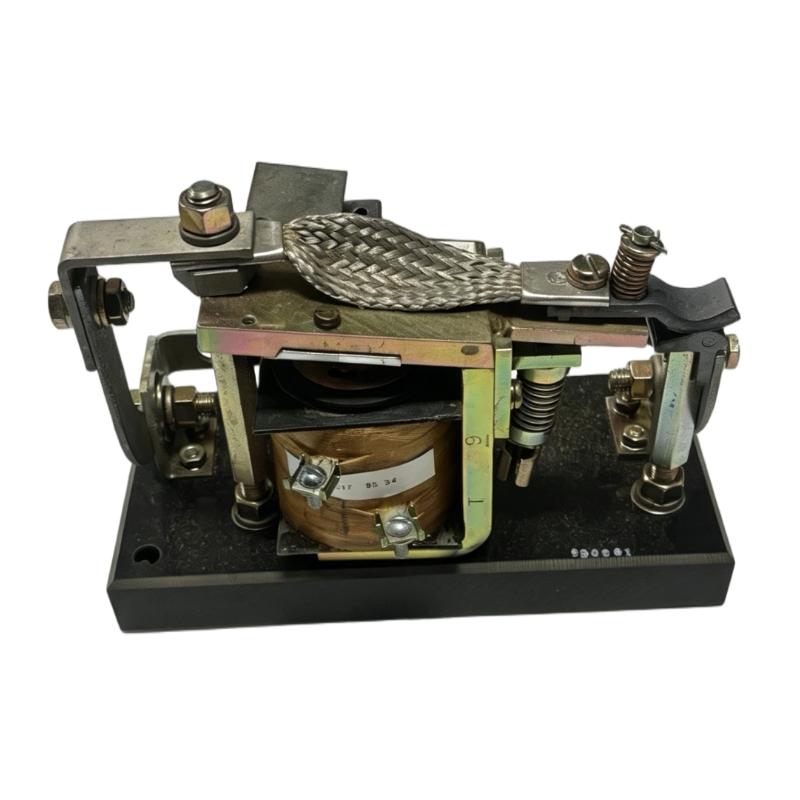

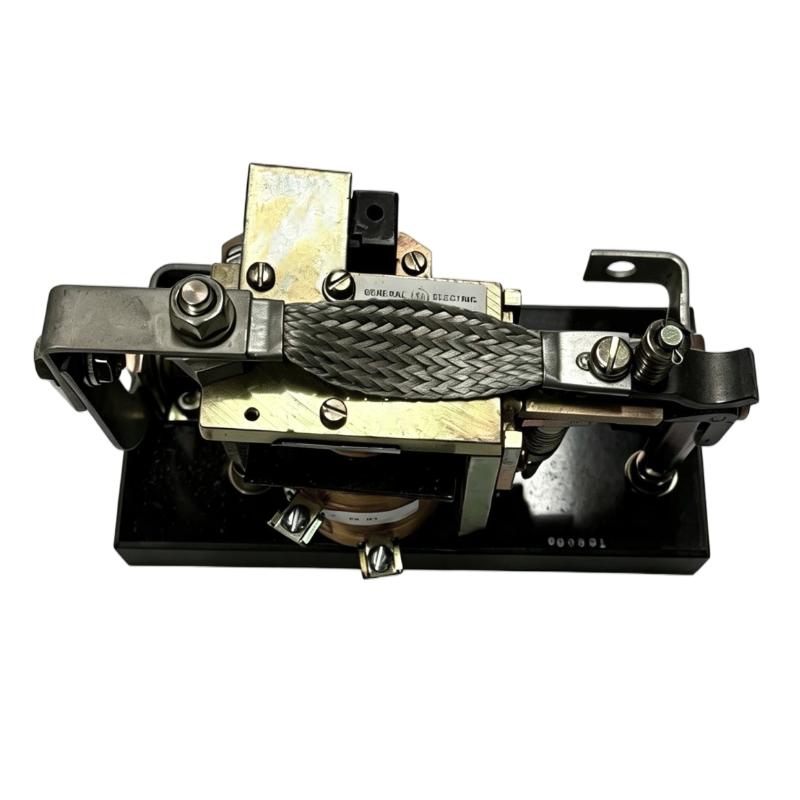

GE IC2800Y109A2 DC Contactor

Industrial Applications and Typical Use Cases

The GE IC2800Y109A2 DC Contactor is a compact and reliable switching component designed for controlling direct current power circuits in industrial and electrical applications. It provides stable DC load switching performance for systems where precise control, high reliability, and long operational life are essential.

This DC contactor is widely applied in industrial automation equipment, battery-powered systems, transportation control applications, and DC distribution systems. Its efficient electromagnetic switching design helps ensure safe operation of DC circuits while supporting frequent switching requirements.

Common application areas include:

• Industrial DC power control systems
• Battery energy storage equipment
• Electric vehicle charging systems
• DC motor control applications
• Automation machinery and control panels
• Renewable energy power systems
• Backup power and UPS-related equipment

Product Strengths and Key Performance Benefits

Reliable DC Circuit Switching
The GE IC2800Y109A2 DC Contactor provides dependable switching capability for DC loads, helping maintain stable operation in industrial electrical systems.

Compact Industrial Design
Its compact structure allows efficient installation in control cabinets and equipment where panel space is limited.

Designed for Long-Term Operation
The contactor is engineered for industrial environments requiring consistent switching performance and reduced maintenance frequency.

Efficient Power Control Solution
By providing controlled connection and disconnection of DC circuits, it supports safer and more efficient power management.

Suitable for Automation Integration
The GE IC2800Y109A2 can work with industrial controllers, relay systems, and automated control equipment for flexible system design.

Improved System Reliability
High-quality switching performance helps reduce operational interruptions caused by unstable DC power connections.

Engineering Questions and Technical FAQs

1. What is the main purpose of the GE IC2800Y109A2 DC Contactor?
The contactor is used to control the connection and disconnection of DC power circuits in industrial and electrical equipment.

2. Why are DC contactors different from AC contactors?
DC contactors are specifically designed to manage direct current loads and address the different arc characteristics produced during DC switching.

3. Can the GE IC2800Y109A2 be used for motor control applications?
Yes. It can be applied in DC motor control systems where reliable switching operation is required.

4. How is this DC contactor typically controlled?
It is normally controlled through an electrical coil signal provided by a control circuit, PLC output, or relay-based system.

5. What should be checked before replacing a DC contactor?
Engineers should verify operating voltage, current requirements, coil specifications, contact configuration, and application compatibility.

6. What are common causes of DC contactor failure?
Possible causes include excessive current load, incorrect coil voltage, contact wear, overheating, and poor electrical connections.

7. How can DC contactor performance be maintained?
Regular inspection of terminals, contacts, and control circuits helps maintain reliable operation.

8. Can this contactor be integrated into automated systems?
Yes. It can be incorporated into PLC-controlled systems and industrial automation equipment requiring DC power switching.

9. What symptoms indicate abnormal contactor operation?
Typical signs include delayed activation, abnormal noise, unstable switching, overheating, or failure to hold the contact position.

10. Why is contactor selection important in DC applications?
Correct selection ensures safe current handling, reliable switching performance, and longer service life of the electrical system.
