Ingersoll Rand 47579189001 23564446 4,000-Hour Maintenance Configuration

Where It Excels in Industrial Use

• The complete 47579189001 23564446 configuration combines the 4,000-hour maintenance package for applicable IRN160K-of systems with the specified PDM pre-filter element.

• Designed for industrial oil-free compressor installations where scheduled maintenance must address both core service requirements and contamination control around the compressor intake system.

• Well suited to manufacturing plants, process-air facilities, utilities, and other continuous-duty applications operating compatible IRN 90–160 kW oil-free compressor systems.

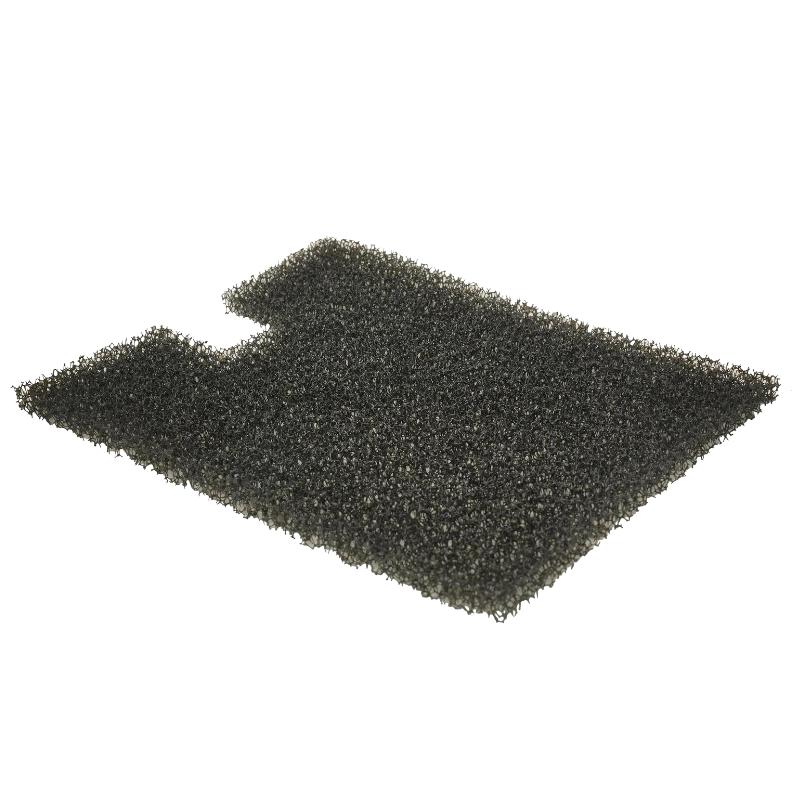

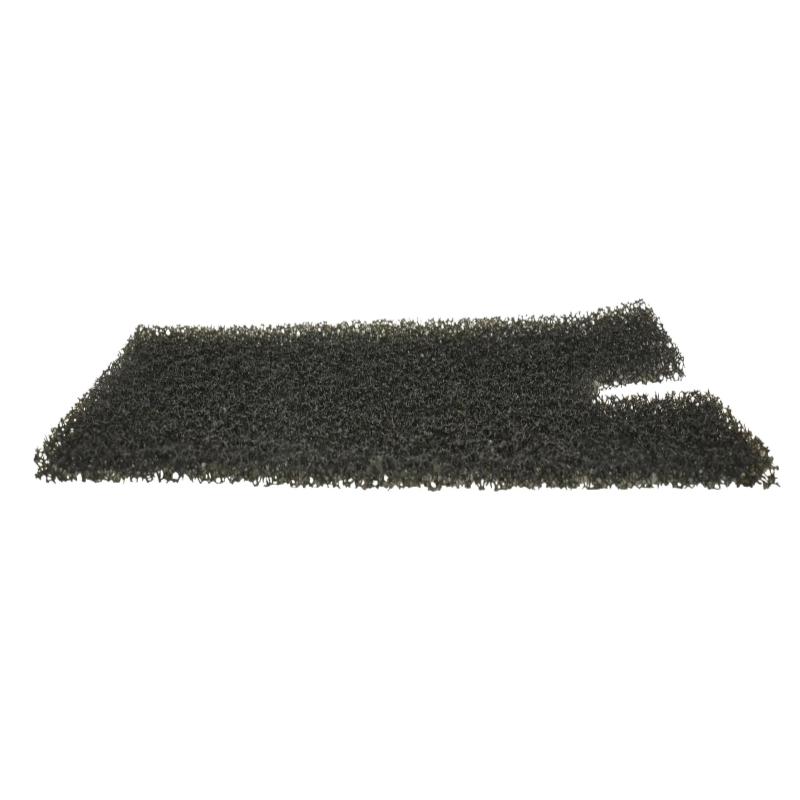

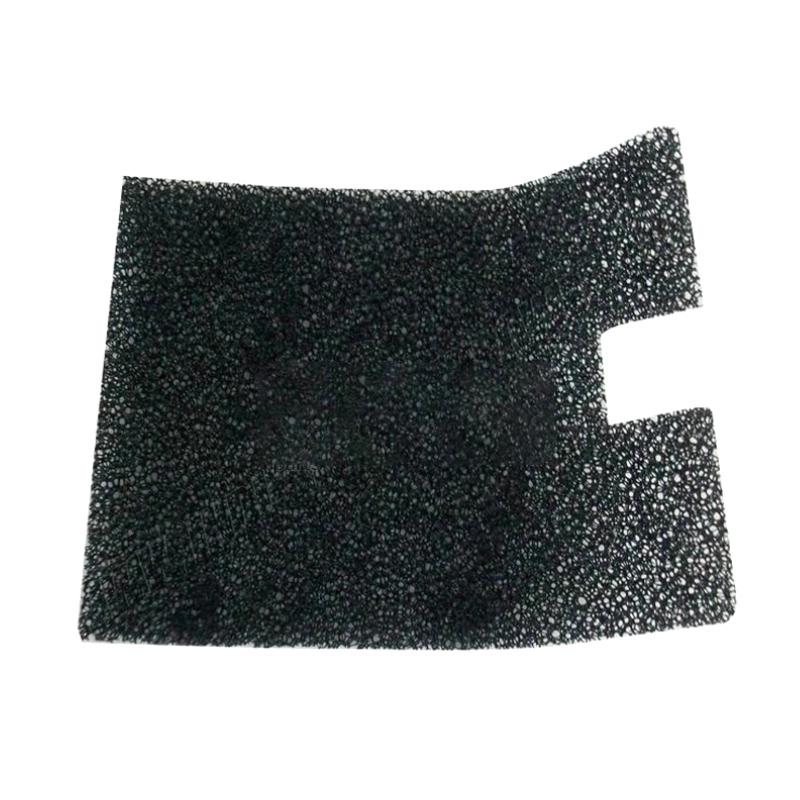

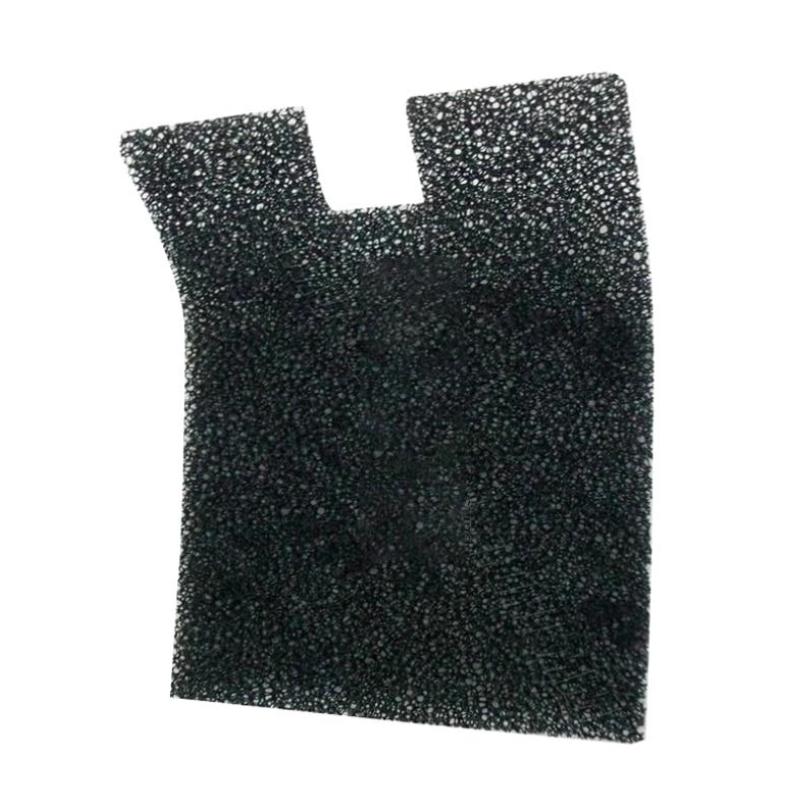

• The 23564446 element provides a panel/pre-filter function within the applicable intake or cabinet filtration arrangement, helping limit particulate entering protected downstream areas.

• Supports organized preventive maintenance by associating the scheduled 4,000-hour service reference with the specified filtration component in one complete configuration.

Key Strengths at a Glance

• 4,000-hour maintenance interval: 47579189001 is identified as a 4,000-hour maintenance package for the IRN160K-of platform.

• PDM pre-filtration: 23564446 is identified as a PDM/panel filter element used in applicable Ingersoll Rand compressor filtration arrangements.

• Contamination control: The pre-filter stage helps reduce particulate exposure to downstream compressor or equipment components.

• Oil-free compressor application: The configuration is associated with IRN 90–160 kW oil-free systems and their corresponding maintenance requirements.

• Service planning support: Combining the maintenance package with the specified filter element provides a practical reference for scheduled parts procurement and service preparation.

Technical FAQs

1. What is Ingersoll Rand 47579189001?

47579189001 is a 4,000-hour maintenance package identified for the IRN160K-of oil-free compressor platform.

2. What is the function of 23564446?

23564446 is a PDM/panel filter element used to provide filtration within the applicable compressor filtration arrangement.

3. Which compressor range is associated with this configuration?

The maintenance package is associated with the IRN160K-of platform and the broader IRN 90–160 kW oil-free compressor range, subject to exact configuration and serial-number verification.

4. Is 23564446 the main compressor intake air filter?

Not necessarily. It is identified as a PDM or panel pre-filter element in applicable arrangements and should not automatically be treated as the primary compressor intake filter.

5. How does a PDM pre-filter support compressor maintenance?

A pre-filter captures particulate before it reaches protected downstream areas, helping reduce contamination and filtration loading within the compressor package.

6. What should be checked before installing 23564446?

The compressor model, serial number, filtration assembly, existing element reference, and current parts documentation should be checked to confirm the correct application.

7. What operating conditions can increase pre-filter loading?

High airborne dust, process contamination, poor surrounding air quality, and continuous operation in particulate-heavy environments can increase the rate at which the filter becomes loaded.

8. When should the 23564446 element be inspected or replaced?

It should be inspected as part of scheduled compressor maintenance and replaced according to the applicable service documentation and its actual contamination condition.

9. Can 23564446 be substituted solely because another filter has similar dimensions?

No. Filter media, airflow characteristics, sealing, mounting arrangement, and compressor-specific approval should all be considered when selecting a replacement.

10. Does this configuration modify the compressor control system?

No. The configuration concerns preventive maintenance and filtration and does not constitute a modification to the compressor's control or drive system.
