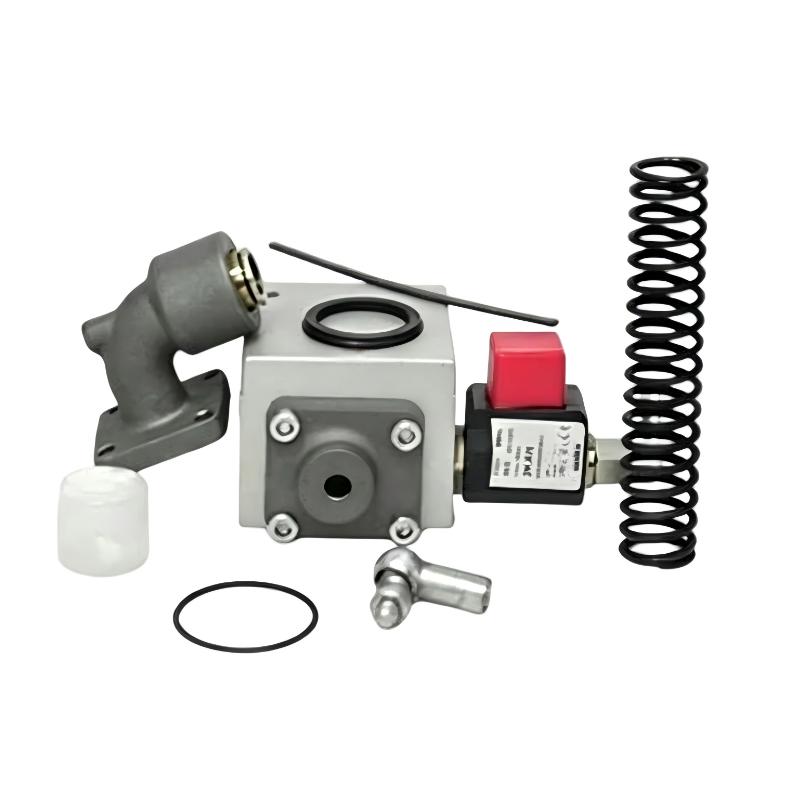

Ingersoll Rand 47579356001 23969298 Water-Cooled Service and Condensate Drain Configuration
Ingersoll Rand 47579356001 23969298 Water-Cooled Service and Condensate Drain Configuration
0.0
Points
Brand:Ingersoll Rand Item No.: 47579356001 23969298 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Ingersoll Rand 47579356001 23969298 Water-Cooled Service and Condensate Drain Configuration combines an 8,000-hour water-cooled maintenance kit with the specified 23969298 condensate drain solenoid valve. The primary service reference is identified for the IRN160K-of platform, while 23969298 provides electrically controlled condensate discharge within the applicable drainage arrangement.
Reliable condensate management is an important part of compressed-air system maintenance. Drain components must discharge accumulated condensate at the appropriate points without creating unnecessary air loss or allowing liquid to remain in areas where it can affect system operation. The solenoid valve therefore forms part of the controlled drainage function rather than the primary compressed-air filtration system.
This complete configuration is intended to simplify scheduled maintenance planning by keeping the major water-cooled service reference and specified drain component together. Before installation, the compressor model, serial number, drain arrangement, electrical requirements, and current Ingersoll Rand parts documentation should be verified.
Technical Specifications
Specification
Details
Complete Model Reference
47579356001 23969298
Primary Maintenance Reference
47579356001
Associated Component
23969298
Product Configuration
Water-cooled maintenance service and condensate drain solenoid valve
Previous Condensate Drain Solenoid Valve Reference for Applicable Configurations
Where It Excels in Industrial Use
• The complete 47579356001 23969298 configuration combines an 8,000-hour water-cooled maintenance package with the specified condensate drain solenoid valve for applicable Ingersoll Rand oil-free compressor systems.
• Designed for scheduled major maintenance on compatible IRN160K-of and related IRN 90–160 kW oil-free water-cooled compressor configurations.
• Supports industrial compressor installations where effective condensate removal is important for maintaining the condition of the air system and associated drainage circuit.
• The 23969298 component is identified as a condensate drain solenoid valve, providing electrically actuated condensate discharge within the applicable compressor drain arrangement.
• Provides maintenance teams with a consolidated reference for extended service work and replacement of the specified condensate-drain component.
Key Strengths at a Glance
• 8,000-hour water-cooled service: 47579356001 is identified as an 8,000-hour water-cooled maintenance kit for applicable IRN160K-of oil-free compressor configurations.
• Automatic condensate control: 23969298 is identified as a condensate drain solenoid valve and is also cross-referenced with 47677733001 in Ingersoll Rand parts listings.
• Drainage-system support: The valve provides electrically actuated opening and closing of the applicable condensate discharge path.
• Maintenance integration: Combining the scheduled service reference with the specified drain valve simplifies parts identification and planned service preparation.
• Configuration-specific compatibility: Compressor model, serial number, drain arrangement, electrical configuration, and current parts documentation should be verified before installation.
Technical FAQs
1. What does the complete 47579356001 23969298 configuration represent?
It represents an 8,000-hour water-cooled maintenance configuration combined with the specified 23969298 condensate drain solenoid valve for applicable Ingersoll Rand oil-free compressor systems.
2. What is 47579356001?
47579356001 is an 8,000-hour water-cooled maintenance kit identified for the IRN160K-of oil-free compressor platform.
3. What is the function of 23969298?
23969298 is a condensate drain solenoid valve that provides electrically controlled discharge of accumulated condensate from the applicable compressor drainage circuit.
4. Why is condensate drainage important in a compressor system?
Condensate can accumulate in air-system components and must be discharged appropriately to help maintain drainage performance and prevent unwanted liquid accumulation.
5. Is 23969298 the same as a complete electronic drain valve assembly?
No. 23969298 is identified specifically as a drain solenoid valve. A complete electronic drain valve assembly can incorporate additional components such as a strainer, isolation arrangement, timer, or manual blowdown function.
6. What should be checked before installing 23969298?
The technician should verify the compressor model and serial number, drain assembly, valve mounting arrangement, electrical specification, connection configuration, and current parts documentation before installation.
7. Can the valve be selected solely by matching its physical dimensions?
No. Electrical characteristics, connection configuration, operating conditions, flow requirements, sealing arrangement, and compressor-specific compatibility should also be confirmed.
8. What conditions can cause a condensate drain solenoid to malfunction?
Contamination, debris, electrical faults, worn sealing components, restricted drainage, and unsuitable operating conditions can affect solenoid-valve operation.
9. What should be inspected when replacing 23969298?
The technician should inspect the drain piping, valve connections, electrical connections, sealing surfaces, upstream strainer or filtration components where applicable, and the condensate outlet for blockage or contamination.
10. Is 23969298 included in every version of 47579356001?
The requested configuration combines 47579356001 with 23969298, but service-package contents can vary by compressor generation and configuration. The applicable parts list should therefore be checked against the machine serial number before ordering.
