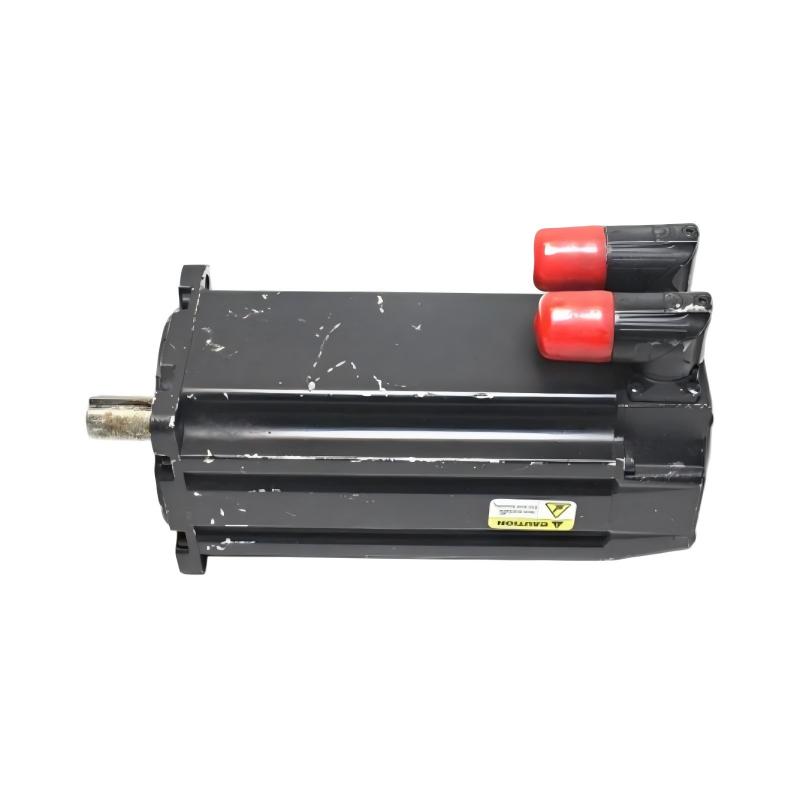

Allen Bradley MPL-A430H-SJ74AA Servo Motor

Precision Motion Automation Applications

The Allen Bradley MPL-A430H-SJ74AA Servo Motor is a compact industrial servo motor designed for precision motion applications that require accurate positioning, responsive control, and dependable long-term operation. As part of the Allen Bradley Kinetix MP servo motor family, this model delivers reliable motion performance for automated machinery and advanced manufacturing systems.

With a 115 mm frame size, the MPL-A430H-SJ74AA Servo Motor provides an excellent balance between compact installation and efficient motion capability. It is designed for equipment where space optimization, repeatable movement, and stable torque performance are important factors in maintaining production quality.

Typical application areas include:

• Automated assembly systems
• Robotic positioning equipment
• Packaging and inspection machinery
• Precision manufacturing lines
• Material handling applications
• Electronic production equipment
• Industrial machine automation

The MPL-A430H-SJ74AA Servo Motor helps automation engineers achieve accurate movement control and improved machine efficiency through dependable servo technology.

Engineering Advantages and Motion Performance

The Allen Bradley MPL-A430H-SJ74AA Servo Motor combines advanced servo technology with a compact mechanical structure to support demanding industrial motion requirements. It is engineered for applications that require fast response, accurate control, and stable operation during continuous production cycles.

The motor provides smooth acceleration and deceleration characteristics, helping reduce mechanical stress while maintaining reliable positioning performance. When integrated with compatible servo drives, it delivers precise control of speed, torque, and movement.

Key advantages include:

• Compact 115 mm frame size for flexible equipment design
• High dynamic response for fast motion applications
• Accurate positioning and repeatability
• Stable torque output under variable loads
• Reliable compatibility with Allen Bradley motion systems
• Efficient operation in industrial environments
• Suitable for both new machines and retrofit projects

The MPL series servo motor platform provides manufacturers with a dependable solution for improving automation performance and achieving consistent production results.

Technical FAQ and Application Guide

1. What is the Allen Bradley MPL-A430H-SJ74AA Servo Motor mainly used for?

The servo motor is used for industrial motion control applications requiring precise speed regulation, torque management, and accurate positioning.

2. How does this servo motor support precision automation?

It works with compatible servo drives and feedback systems to continuously monitor motion conditions and adjust performance for accurate operation.

3. Which servo drives are compatible with the MPL-A430H-SJ74AA?

This motor is designed for integration with compatible Allen Bradley Kinetix servo drive systems supporting MPL series servo motors.

4. Can this servo motor be used for high-cycle machine applications?

Yes. The MPL series is suitable for applications involving frequent movement cycles, rapid acceleration, and repeated positioning operations.

5. What causes a servo motor positioning deviation?

Possible causes include incorrect tuning parameters, feedback signal issues, mechanical alignment problems, or improper system configuration.

6. How should this servo motor be commissioned after installation?

Commissioning includes checking electrical connections, configuring motor parameters, verifying feedback operation, and completing servo tuning.

7. Why might a servo motor produce abnormal vibration?

Common causes include incorrect gain settings, mechanical imbalance, loose mounting, unstable feedback signals, or excessive load conditions.

8. Can the MPL-A430H-SJ74AA Servo Motor operate with PLC-based control systems?

Yes. It can be integrated into PLC automation systems when combined with suitable servo drives and motion controllers.

9. What maintenance is recommended for this servo motor?

Regular maintenance includes checking cables, connectors, mounting conditions, operating performance, and drive diagnostic information.

10. What factors should be considered when selecting this servo motor?

Engineers should evaluate torque requirements, speed range, load inertia, duty cycle, feedback compatibility, and system integration requirements.
