Brand:Ingersoll Rand Item No.:24698441 24191603 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

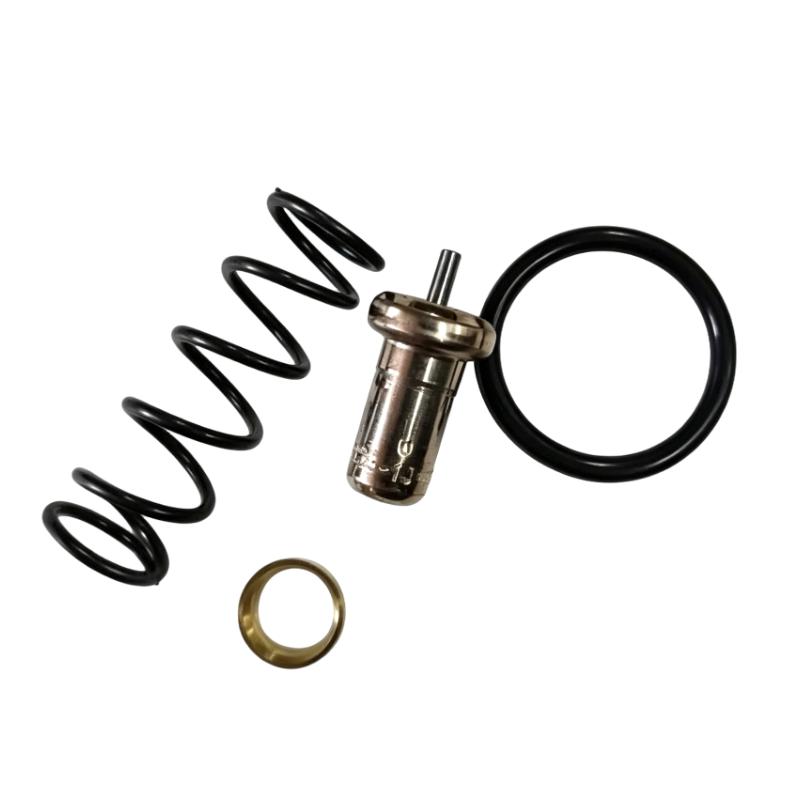

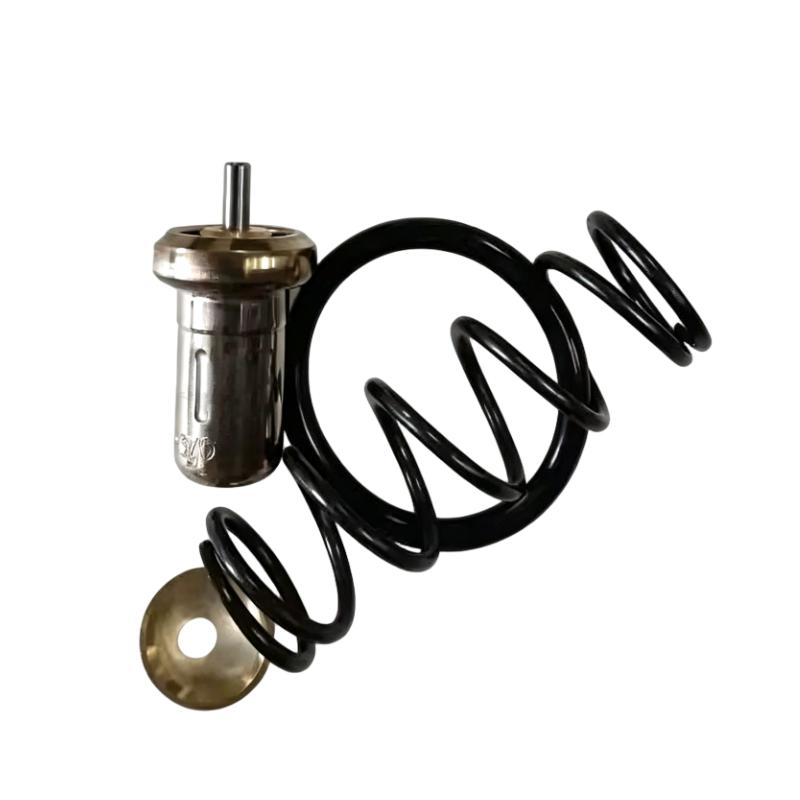

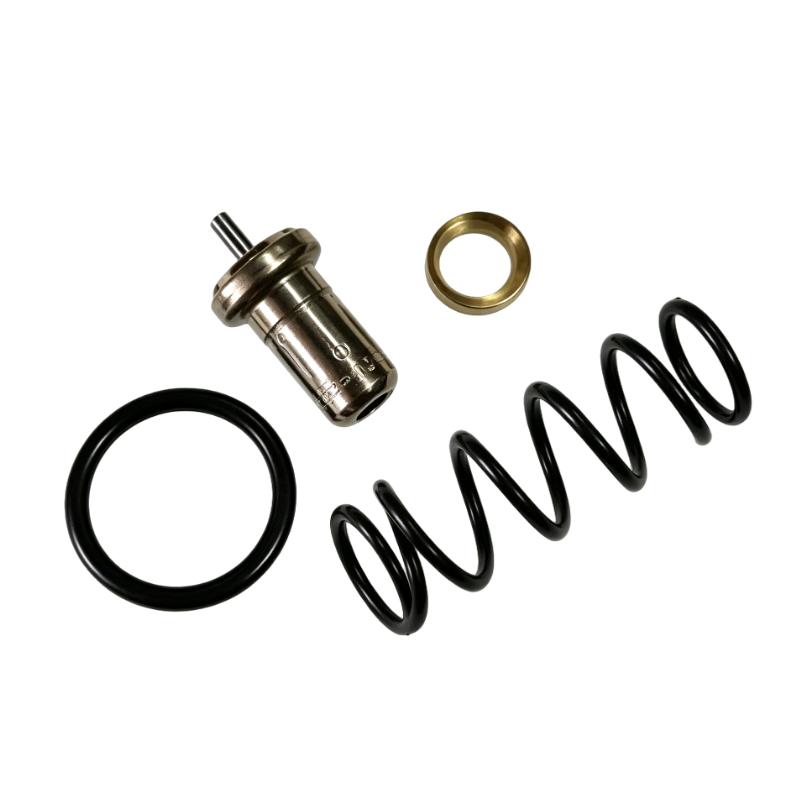

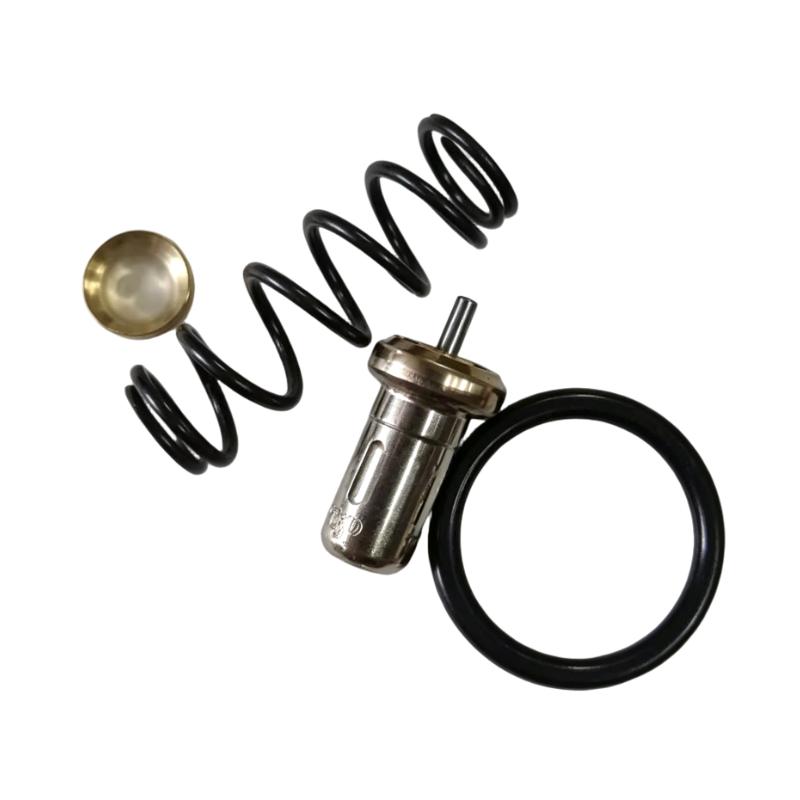

The Ingersoll Rand 24698441 / 24191603 configuration combines a second-stage discharge check valve service kit with the 24191603 check valve poppet spring. Part number 24698441 provides the service-kit reference for the discharge check valve, while 24191603 identifies the spring component used with the applicable check valve poppet.
This configuration is intended for maintenance and overhaul of compatible compressor discharge valve assemblies. Because the exact application depends on the compressor and valve configuration, the equipment model, serial number, and current parts documentation should be checked before installation.
Technical Specifications
Parameter
Specification
Brand
Ingersoll Rand
Primary Service Kit
24698441
Associated Component
24191603
Service Kit Type
Second-stage discharge check valve service kit
Component Type
Check valve poppet spring
Valve Function
One-way discharge-flow control
Spring Function
Poppet return force
Application
Compatible Ingersoll Rand industrial air compressor discharge assemblies
Service Purpose
Discharge check valve inspection, service, and component replacement
Dimensions
Not reliably published as a fixed value for the complete configuration
Weight
Not reliably published as a fixed value for the complete configuration
Installation
Service replacement for specified compressor configurations
• Designed for compatible Ingersoll Rand industrial air compressor systems requiring second-stage discharge check valve service.
• 24698441 is identified as a service kit for the second-stage discharge check valve.
• 24191603 is identified as a spring for the check valve poppet in applicable Ingersoll Rand compressor assemblies.
• The combined configuration supports maintenance of the discharge check valve assembly and its associated spring component.
Key Strengths at a Glance
• Combines a dedicated second-stage discharge check valve service kit with the associated check valve poppet spring.
• Supports planned maintenance of the compressor discharge-side valve assembly.
• Helps restore the mechanical components required for proper check-valve operation.
• Suitable for service and overhaul applications where the specified equipment documentation calls for these part numbers.
Technical FAQs
1. What is Ingersoll Rand 24698441?
24698441 is identified as a service kit for the second-stage discharge check valve.
2. What is Ingersoll Rand 24191603?
24191603 is identified as an Ingersoll Rand check valve poppet spring for applicable compressor assemblies.
3. What is the function of the second-stage discharge check valve?
The second-stage discharge check valve helps control one-way compressed-air flow from the applicable compression stage and helps limit reverse flow.
4. What is the function of the 24191603 spring?
The spring provides the return force required for the check valve poppet within the applicable discharge valve assembly.
5. Are 24698441 and 24191603 the same type of part?
No. 24698441 is a second-stage discharge check valve service kit, while 24191603 is a spring component for the check valve poppet.
6. Is 24191603 a complete check valve?
No. 24191603 is identified as a spring for the check valve poppet rather than the complete valve assembly.
7. Can 24191603 be used on every Ingersoll Rand compressor?
No. Compatibility depends on the compressor model, valve assembly, serial number, and applicable parts documentation.
8. Can 24698441 and 24191603 be installed as interchangeable parts?
No. They perform different functions within the service configuration and should be selected according to the applicable compressor parts documentation.
9. When should the discharge check valve assembly be serviced?
It should be inspected or serviced according to the compressor maintenance procedure and whenever valve operation or the applicable service documentation indicates that maintenance is required.
10. What should be verified before ordering this configuration?
The compressor model, serial number, second-stage discharge valve assembly, existing part numbers, and applicable service documentation should be verified before ordering.
