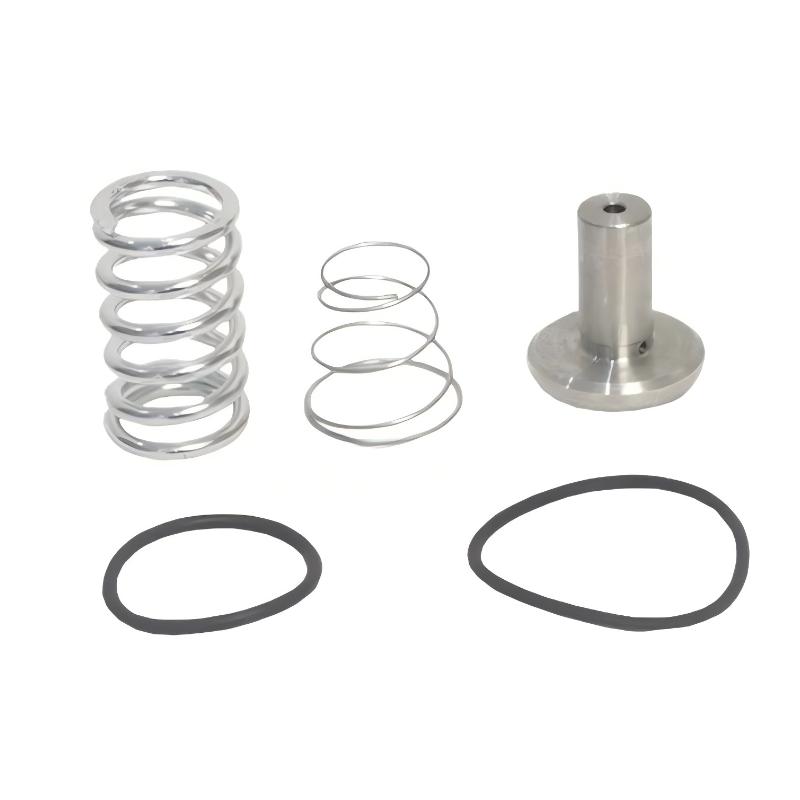

Ingersoll Rand 24698441 / 47678723001 Check Valve Service Tool Module
Ingersoll Rand 24698441 / 47678723001 Check Valve Service Tool Module
0.0
Points
Brand:Ingersoll Rand Item No.:24698441 47678723001 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.11 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

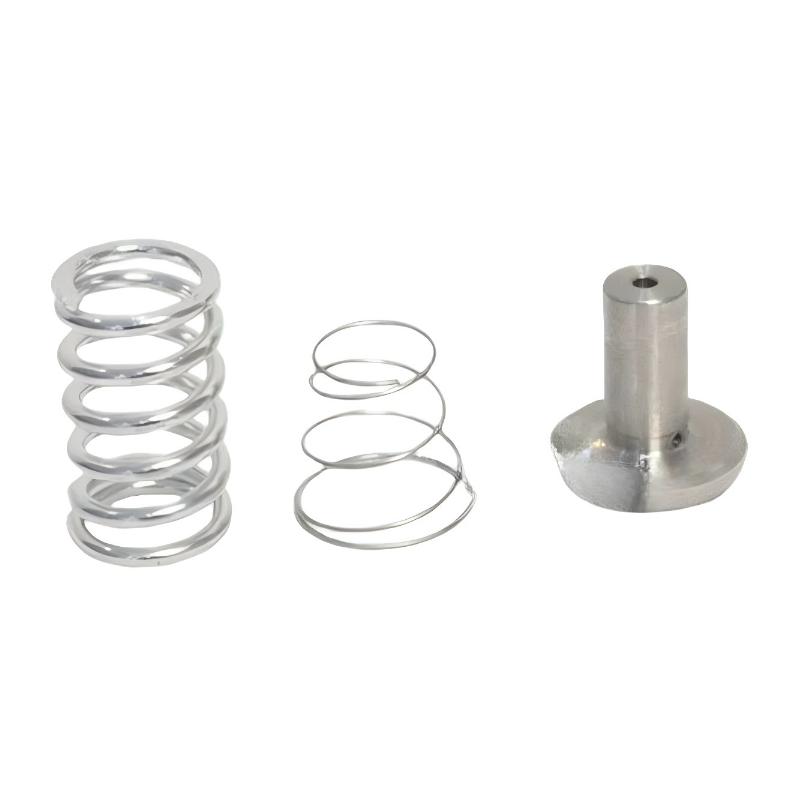

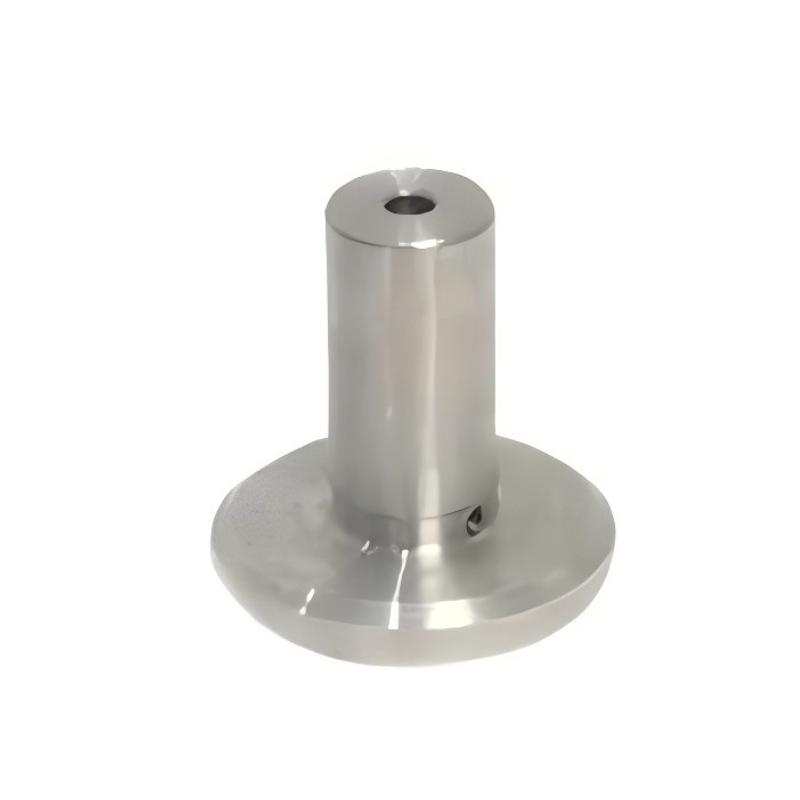

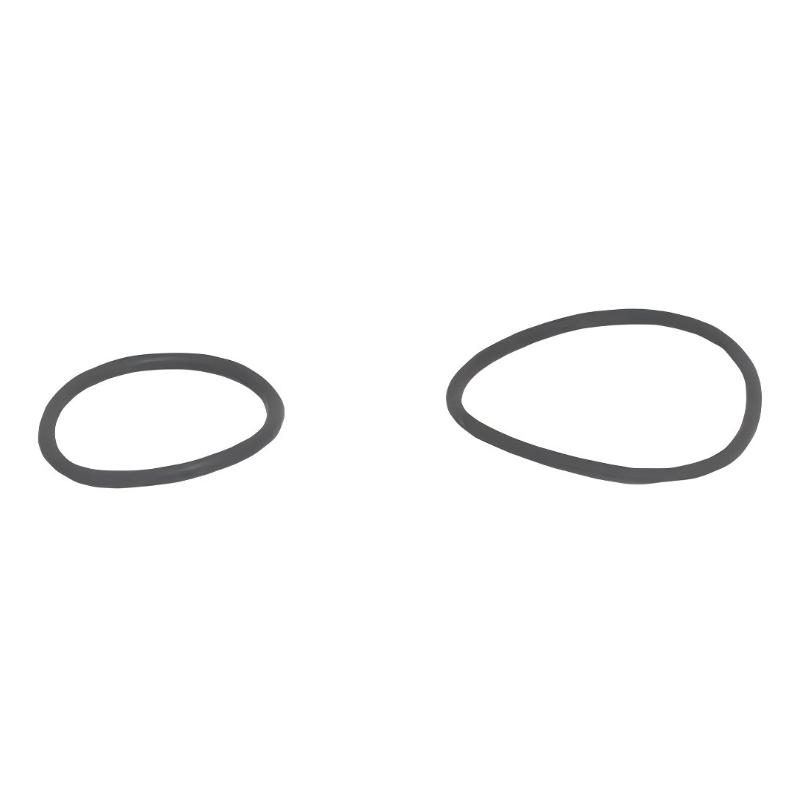

The Ingersoll Rand 24698441 / 47678723001 configuration combines the 24698441 second-stage discharge check valve service kit with the 47678723001 check valve service tool. The service kit is intended for maintenance of the applicable discharge check-valve assembly, while the service tool supports the specialized service procedure.
This configuration is intended for maintenance planning and workshop servicing of compatible Ingersoll Rand industrial air compressor systems. Exact applicability should be confirmed against the compressor model, serial number, and current equipment parts documentation before installation or service.
Technical Specifications
Parameter
Specification
Brand
Ingersoll Rand
Primary Service Kit
24698441
Associated Service Tool
47678723001
Service Kit Type
Second-stage discharge check valve service kit
Tool Type
Check valve service tool
Application
Compatible Ingersoll Rand industrial air compressors
Service Area
Second-stage discharge check valve
Product Type
Check valve service configuration
Installation
Maintenance/service use
Dimensions
Not reliably published as a fixed value for the complete configuration
Weight
Not reliably published as a fixed value for the complete configuration
Ingersoll Rand RS315-355 Industrial Air Compressor
Frequently Selected Alternatives
Model
Product Name
24191603
Ingersoll Rand Check Valve Poppet Spring
24336018
Ingersoll Rand Check Valve Poppet
47642922001
Ingersoll Rand Glass-Filled PTFE Check Valve Seat
23650633
Ingersoll Rand Discharge Check Valve
Where It Fits in Industrial Applications
• Designed for servicing compatible Ingersoll Rand industrial air compressor discharge check-valve assemblies.
• 24698441 is identified as a service kit for the second-stage discharge check valve.
• 47678723001 is identified as a check valve service tool for applicable Ingersoll Rand compressor maintenance work.
• The configuration is intended for maintenance operations involving inspection, servicing, or replacement of second-stage discharge check-valve components.
Key Strengths at a Glance
• Combines the second-stage discharge check valve service kit with the corresponding service-tool reference.
• Supports controlled maintenance of the compressor discharge check-valve assembly.
• Helps maintenance personnel carry out specialized service work without treating the service tool as a standalone replacement valve.
• Suitable for planned compressor maintenance where the specified parts documentation calls for these references.
Technical FAQs
1. What is Ingersoll Rand 24698441?
24698441 is identified as a service kit for the second-stage discharge check valve used on compatible Ingersoll Rand compressor systems.
2. What is Ingersoll Rand 47678723001?
47678723001 is identified as a check valve service tool for compatible Ingersoll Rand air compressor maintenance applications.
3. What is the purpose of combining these two part numbers?
For this product listing, the two supplied part numbers are treated as one complete service configuration, combining the discharge check valve service kit with its associated service tool.
4. Is 47678723001 a replacement check valve?
No. 47678723001 is identified as a service tool rather than the check valve itself.
5. What type of valve is associated with 24698441?
24698441 is associated with the second-stage discharge check valve service assembly.
6. Can 47678723001 be used on every Ingersoll Rand compressor?
No. Compatibility depends on the compressor model, check-valve design, serial number, and applicable parts documentation.
7. Is this configuration intended for routine compressor operation?
No. It is intended for maintenance and servicing of the applicable discharge check-valve assembly rather than for continuous operation as an installed compressor component.
8. Does the service kit replace the complete compressor discharge system?
No. The 24698441 service kit is specific to the second-stage discharge check valve and should not be interpreted as a complete discharge-system replacement package.
9. Should the compressor model be verified before ordering?
Yes. The compressor model, serial number, existing check-valve configuration, and applicable Ingersoll Rand parts list should be checked before ordering.
10. Are dimensions and weight fixed for this configuration?
No reliable fixed dimensions and weight are published for the complete 24698441 / 47678723001 configuration, so these values should be confirmed from the applicable parts documentation or supplier packaging information.
