Brand:Ingersoll Rand Item No.:24698441 47678724001 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

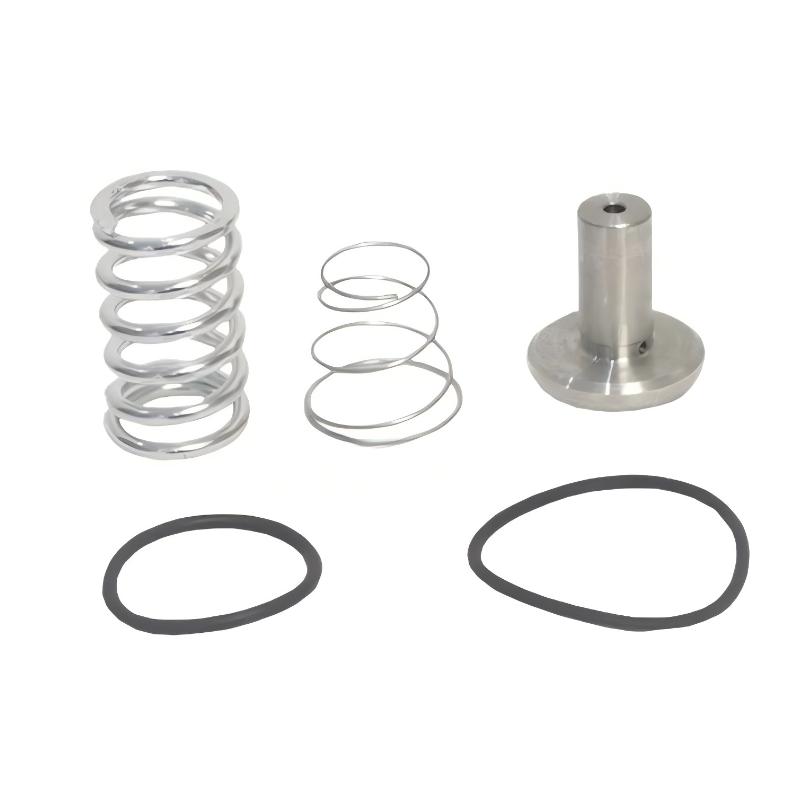

The Ingersoll Rand 24698441 / 47678724001 configuration combines the 24698441 second-stage discharge check valve service kit with the 47678724001 check valve maintenance instruction reference. The service kit provides the applicable maintenance-kit reference, while the instruction reference supports the corresponding check-valve servicing procedure.
This configuration is intended for maintenance planning and workshop servicing of compatible Ingersoll Rand industrial air compressor systems. The exact application should be confirmed against the compressor model, serial number, and current parts and service documentation before use.
Technical Specifications
Parameter
Specification
Brand
Ingersoll Rand
Primary Service Kit
24698441
Associated Reference
47678724001
Service Kit Type
Second-stage discharge check valve service kit
Reference Type
Check valve maintenance instruction
Application
Compatible Ingersoll Rand industrial air compressors
Service Area
Second-stage discharge check valve
Product Type
Check valve maintenance configuration
Installation
Service and maintenance use
Dimensions
Not reliably published as a fixed value for the complete configuration
Weight
Not reliably published as a fixed value for the complete configuration
Ingersoll Rand RS315-355 Industrial Air Compressor
Frequently Selected Alternatives
Model
Product Name
24191603
Ingersoll Rand Check Valve Poppet Spring
24336018
Ingersoll Rand Check Valve Poppet
47642922001
Ingersoll Rand Glass-Filled PTFE Check Valve Seat
23650633
Ingersoll Rand Discharge Check Valve
Where It Fits in Industrial Applications
• Designed for maintenance of compatible Ingersoll Rand industrial air compressor discharge check-valve assemblies.
• 24698441 is identified as a service kit for the second-stage discharge check valve.
• 47678724001 is identified as an Ingersoll Rand check valve maintenance instruction reference.
• The configuration supports service planning and maintenance procedures associated with the applicable compressor check-valve assembly.
Key Strengths at a Glance
• Combines the second-stage discharge check valve service kit with the corresponding maintenance-instruction reference.
• Supports structured servicing of the compressor discharge check-valve system.
• Helps maintenance personnel follow the applicable service procedure when working on the specified check-valve assembly.
• Suitable for planned maintenance programs where the equipment documentation identifies these part numbers.
Technical FAQs
1. What is Ingersoll Rand 24698441?
24698441 is identified as a service kit for the second-stage discharge check valve on compatible Ingersoll Rand compressor systems.
2. What is Ingersoll Rand 47678724001?
47678724001 is identified as a check valve maintenance instruction reference associated with Ingersoll Rand compressor service.
3. What is the purpose of this two-part-number configuration?
For this product listing, the two supplied part numbers are treated as one complete service configuration, combining the second-stage discharge check valve service kit with the applicable maintenance instruction reference.
4. Is 47678724001 a replacement check valve?
No. It is identified as a maintenance instruction reference rather than a replacement mechanical check-valve component.
5. What type of valve does 24698441 service?
24698441 is specifically identified as a second-stage discharge check valve service kit.
6. Can this configuration be used on every Ingersoll Rand compressor?
No. Compatibility depends on the compressor model, serial number, valve configuration, and applicable equipment documentation.
7. Is 47678724001 intended to be installed into the compressor?
No. It is an instruction reference for maintenance work and should not be treated as an installed compressor component.
8. Does 24698441 represent the complete discharge valve assembly?
No. It is a service kit for the second-stage discharge check valve rather than a complete compressor discharge system.
9. Why should the maintenance instructions be checked before servicing?
Check-valve construction and service procedures can vary between compressor configurations, so the applicable instructions should be followed for the specific equipment.
10. What should be verified before ordering this configuration?
The compressor model, serial number, second-stage discharge check-valve configuration, existing part numbers, and applicable Ingersoll Rand service documentation should be verified.
