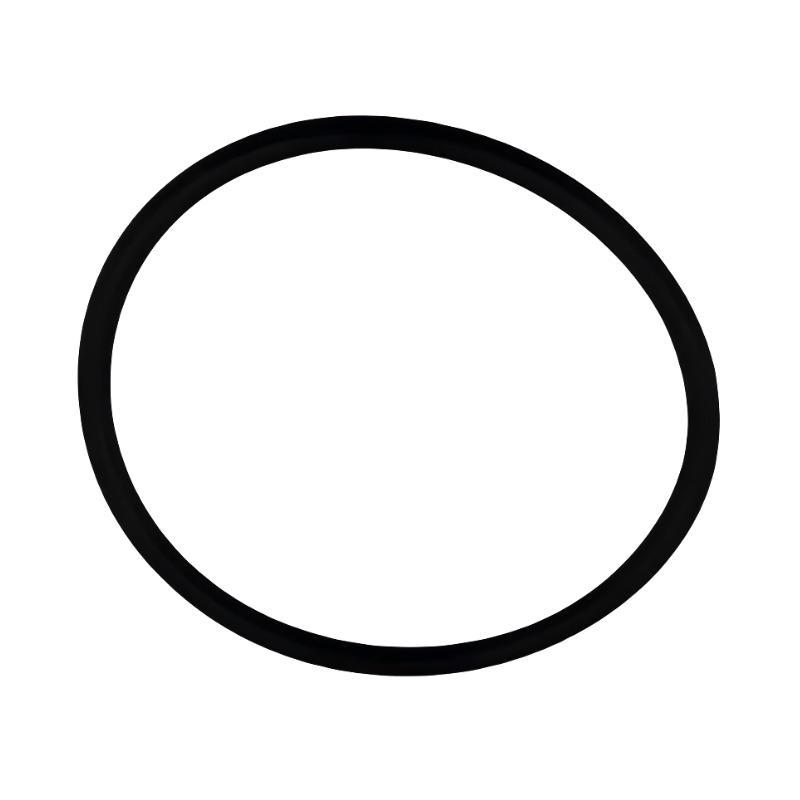

Ingersoll Rand 47688513001 / 22272751 Aftercooler O-Ring Service Module
Ingersoll Rand 47688513001 / 22272751 Aftercooler O-Ring Service Module
0.0
Points
Brand:Ingersoll Rand Item No.:47688513001 22272751 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.85 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

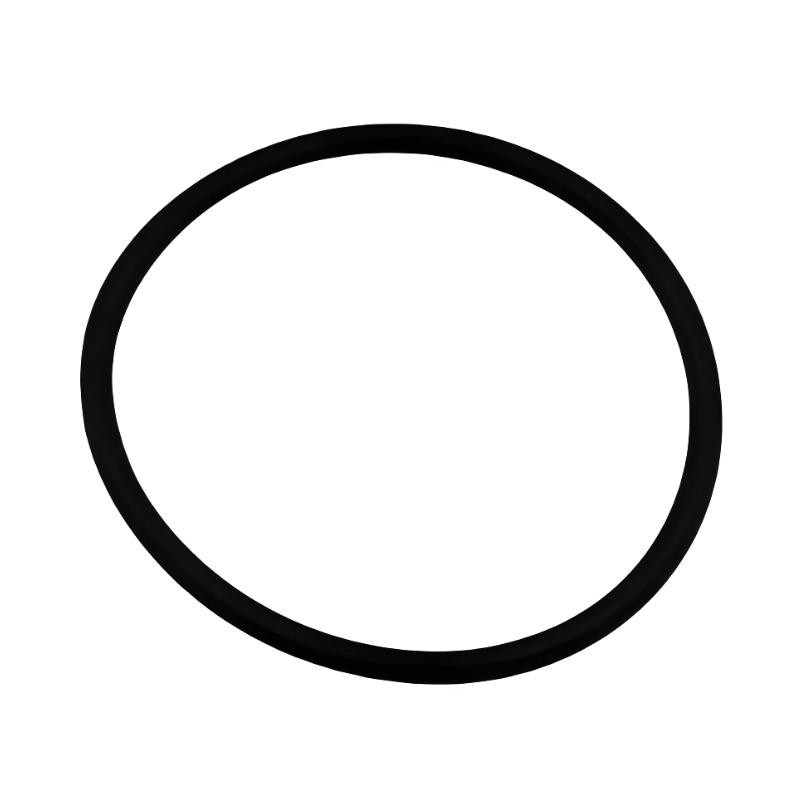

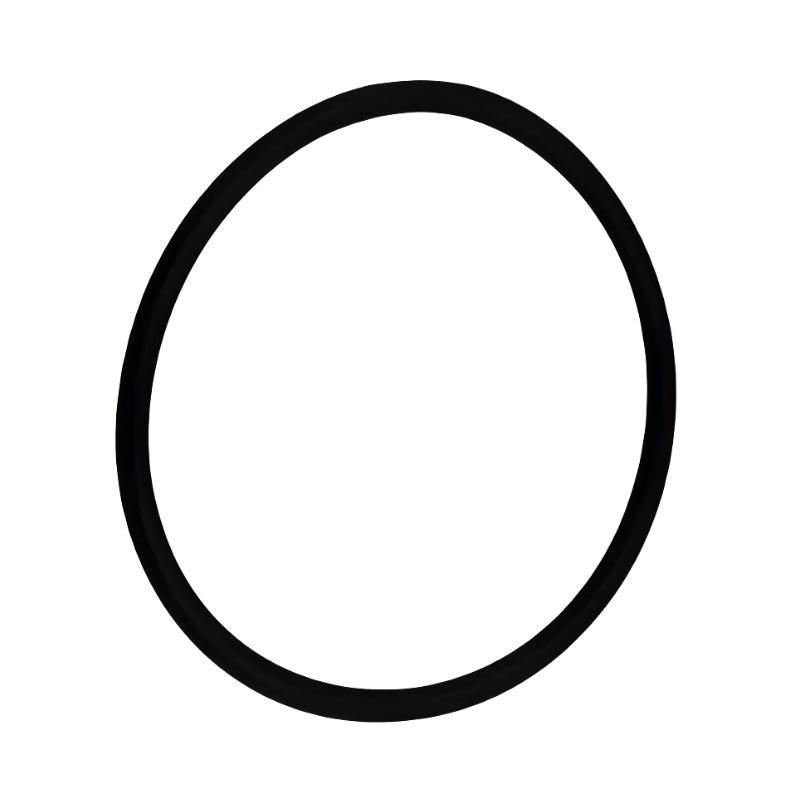

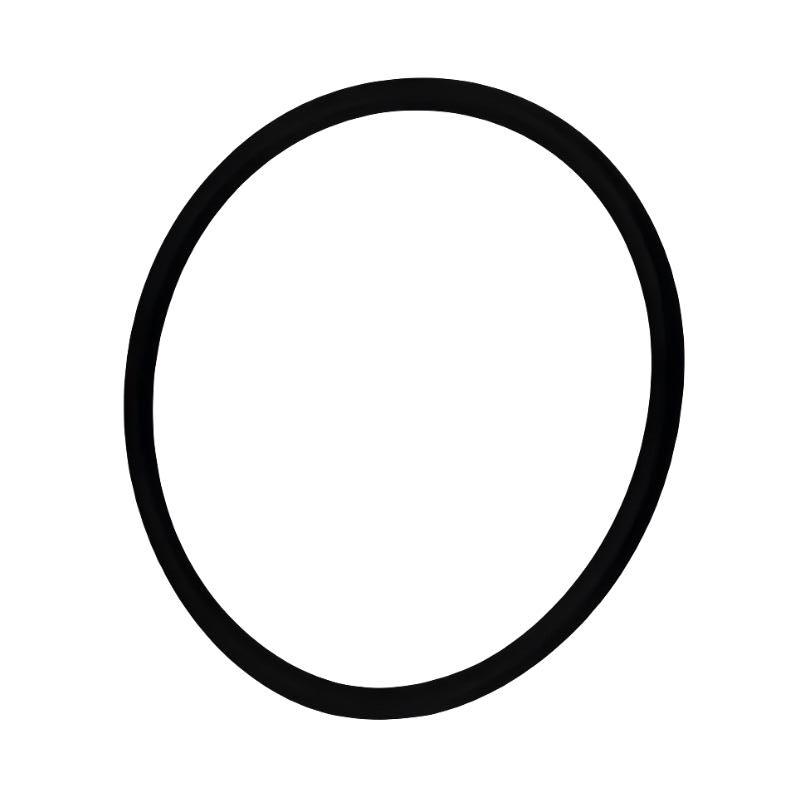

The Ingersoll Rand 47688513001 / 22272751 configuration combines the 47688513001 water-cooled aftercooler kit with the 22272751 cooler O-ring. The aftercooler kit supports scheduled maintenance of the applicable cooling assembly, while the O-ring provides sealing at the tube-bundle flange and shell interface.
This configuration is intended for planned service and repair work on compatible Ingersoll Rand water-cooled compressor systems. Exact applicability and kit contents should be confirmed against the compressor model, serial number, and current parts documentation before installation.
Technical Specifications
Parameter
Specification
Brand
Ingersoll Rand
Primary Maintenance Kit
47688513001
Associated Component
22272751
Maintenance Kit Type
Water-cooled aftercooler kit
Configuration
Applicable YS configurations
Seal Type
O-ring
O-Ring Application
Cooler tube-bundle flange and shell interface
Application
Compatible Ingersoll Rand water-cooled compressor systems
Service Area
Aftercooler / water-cooled cooler assembly
Product Type
Aftercooler and O-ring maintenance configuration
Installation
Scheduled maintenance and service replacement
Dimensions
Not reliably published as a fixed value for the complete configuration
Weight
Not reliably published as a fixed value for the complete configuration
• Designed for maintenance of compatible Ingersoll Rand water-cooled compressor aftercooler assemblies.
• 47688513001 is identified as a water-cooled aftercooler kit for applicable YS configurations.
• 22272751 is identified as an O-ring used at the cooler tube-bundle flange and shell interface.
• The configuration is intended for scheduled service involving the water-cooled cooler assembly and its associated sealing interface.
Key Strengths at a Glance
• Combines the water-cooled aftercooler maintenance kit with the specified cooler O-ring.
• Supports planned servicing of the cooler assembly and tube-bundle sealing interface.
• Helps maintain separation between the cooling-water circuit and compressed-air side at the applicable cooler joint.
• Suitable for maintenance programs where the specified equipment documentation calls for these two part numbers.
Technical FAQs
1. What is Ingersoll Rand 47688513001?
47688513001 is identified as a water-cooled aftercooler kit for applicable Ingersoll Rand YS configurations.
2. What is Ingersoll Rand 22272751?
22272751 is identified as an O-ring used at the cooler tube-bundle flange and shell interface.
3. What is the purpose of combining these two part numbers?
For this product listing, the two supplied part numbers are treated as one complete maintenance configuration, combining the water-cooled aftercooler kit with its associated cooler O-ring.
4. Is 22272751 a gasket or a complete cooler component?
22272751 is an O-ring sealing component rather than a complete cooler or aftercooler assembly.
5. Where is the 22272751 O-ring used?
It is associated with the tube-bundle flange and shell joint of the applicable water-cooled cooler assembly.
6. What function does the O-ring provide?
The O-ring provides sealing at the cooler flange interface, helping prevent unwanted leakage between the mating surfaces.
7. Is 47688513001 a standalone aftercooler?
It is identified as an aftercooler kit, so the exact kit contents should be confirmed against the applicable equipment parts documentation.
8. Can this configuration be used on every Ingersoll Rand water-cooled compressor?
No. Compatibility depends on the compressor model, configuration, serial number, cooler design, and applicable parts documentation.
9. Should 22272751 be replaced when the cooler is disassembled?
Replacement should follow the applicable service procedure. An O-ring that has been removed, damaged, hardened, or otherwise compromised should be replaced where the service documentation requires a new seal.
10. What should be verified before ordering this configuration?
The compressor model, serial number, cooler configuration, existing O-ring part number, aftercooler kit reference, and current Ingersoll Rand parts documentation should be verified before ordering.
