Brand:Ingersoll Rand Item No.:47688513001 47685787001 Product Origin:USA Product Dimensions:650 × 120 × 90 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Ingersoll Rand 47688513001 / 47685787001 configuration combines the 47688513001 water-cooled aftercooler kit with the 47685787001 OEM O-ring. The aftercooler kit supports scheduled maintenance of the applicable YS cooling assembly, while the O-ring provides the sealing function at the aftercooler interface.

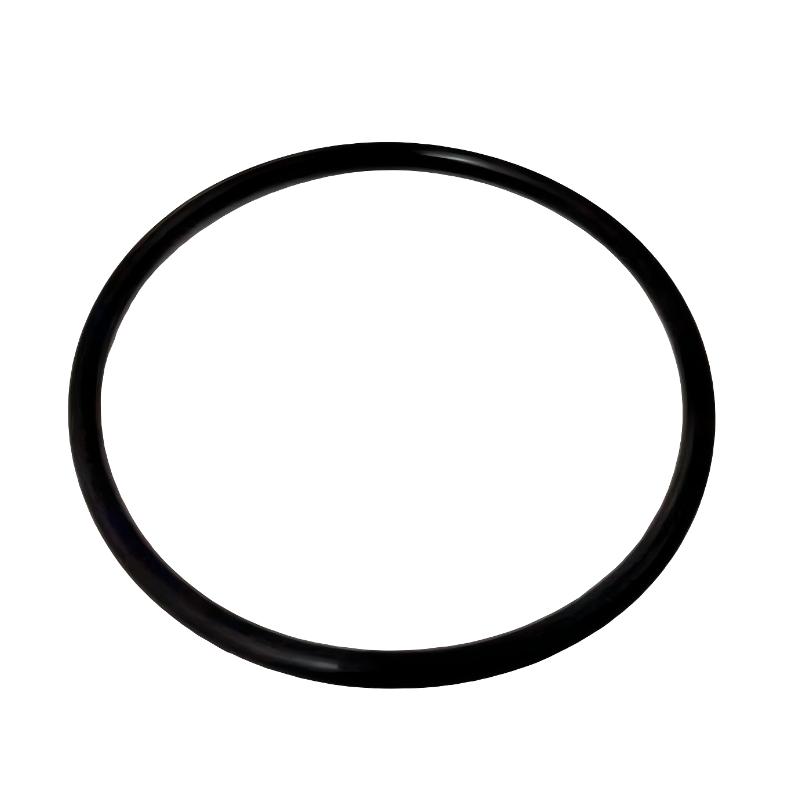

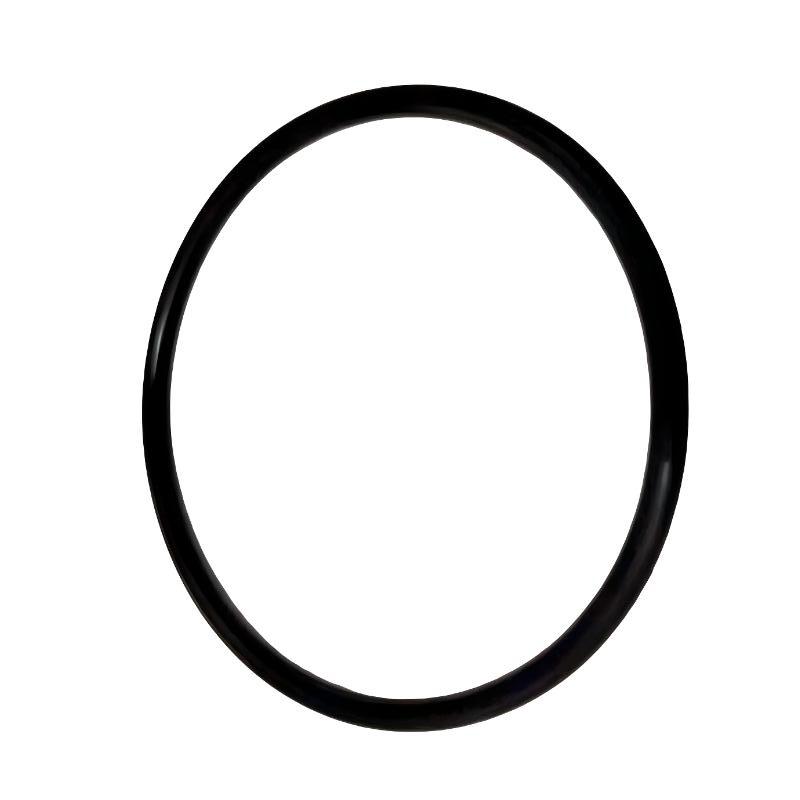

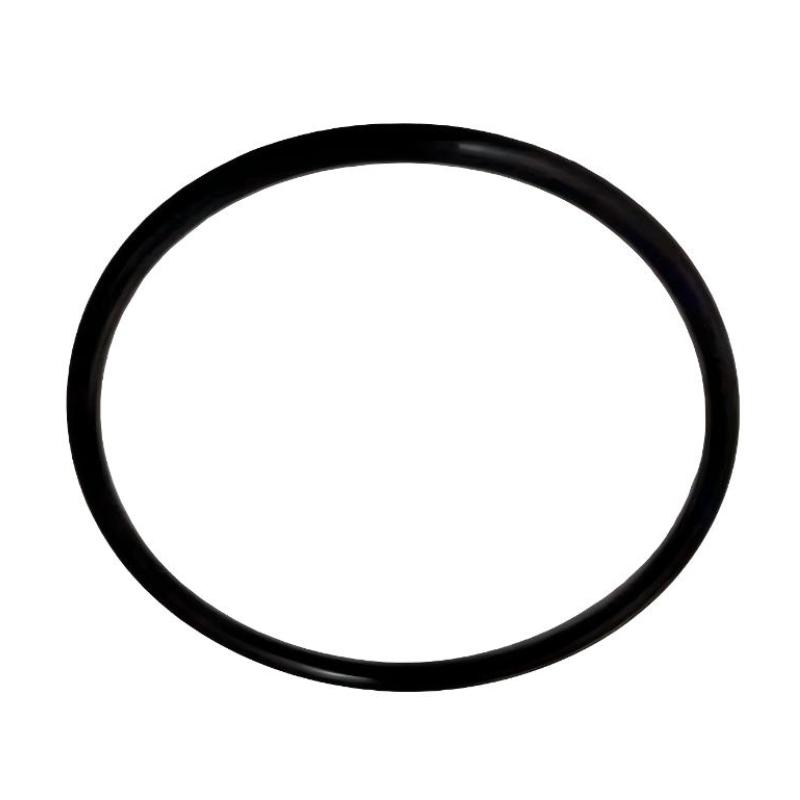

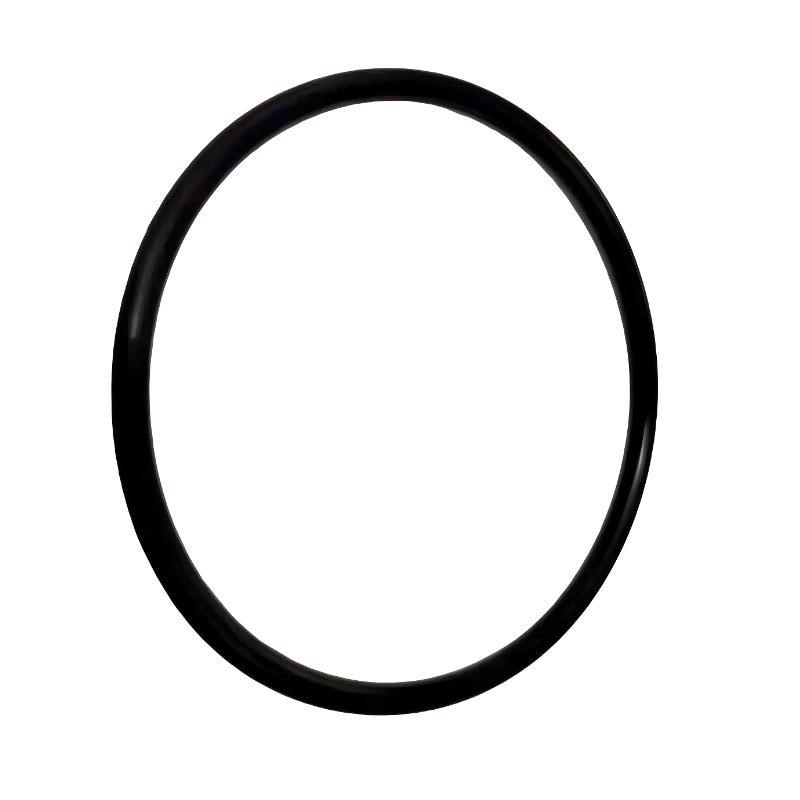

47685787001 is listed with a 204.0 mm inside diameter and is specifically identified for the YS aftercooler. This configuration is intended for planned service and repair work on compatible Ingersoll Rand water-cooled compressor systems. Exact applicability and kit contents should be confirmed against the compressor model, serial number, and current parts documentation before installation.
Technical Specifications
Parameter
Specification
Brand
Ingersoll Rand
Primary Maintenance Kit
47688513001
Associated Component
47685787001
Maintenance Kit Type
Water-cooled aftercooler kit
Configuration
YS
Component Type
O-ring
O-Ring Application
YS aftercooler
O-Ring Inside Diameter
204.0 mm
Component Status
OEM
Application
Compatible Ingersoll Rand water-cooled compressor systems
Service Area
Aftercooler / compressed-air cooling system
Product Type
Aftercooler and O-ring maintenance configuration
Installation
Scheduled maintenance and service replacement
Dimensions
204.0 mm ID for 47685787001; complete configuration varies
Weight
Not reliably published for the complete configuration
Ingersoll Rand RS315-355 Industrial Air Compressor
Frequently Selected Alternatives
Model
Product Name
47685788001
Ingersoll Rand Intercooler O-Ring, ID 311.0 mm
22177000
Ingersoll Rand Air-Side Aftercooler Gasket
22272751
Ingersoll Rand Cooler Tube-Bundle O-Ring
47688515001
Ingersoll Rand Water-Cooled Intercooler Kit
Where It Fits in Industrial Applications
• Designed for maintenance of compatible Ingersoll Rand water-cooled aftercooler assemblies.
• 47688513001 is identified as a water-cooled aftercooler kit for YS configurations.
• 47685787001 is identified as an OEM O-ring with a 204.0 mm inside diameter for the YS aftercooler.
• The configuration is intended for scheduled service involving the aftercooler assembly and its associated sealing interface.
Key Strengths at a Glance
• Combines the water-cooled aftercooler kit with the specified 204.0 mm ID O-ring.
• Supports planned maintenance of the YS aftercooler assembly.
• Provides the dedicated sealing component for the aftercooler interface.
• Suitable for maintenance programs where the specified equipment documentation calls for these two part numbers.
Technical FAQs
1. What is Ingersoll Rand 47688513001?
47688513001 is identified as a water-cooled aftercooler kit for YS configurations.
2. What is Ingersoll Rand 47685787001?
47685787001 is identified as an OEM O-ring for the YS aftercooler, with a listed inside diameter of 204.0 mm.
3. What is the purpose of combining these two part numbers?
For this product listing, the two supplied part numbers are treated as one complete maintenance configuration, combining the water-cooled aftercooler kit with its associated O-ring.
4. What is the inside diameter of 47685787001?
The listed inside diameter of 47685787001 is 204.0 mm.
5. Is 47685787001 a complete aftercooler component?
No. It is an O-ring sealing component used with the applicable YS aftercooler assembly.
6. What function does the O-ring provide?
The O-ring provides sealing at the applicable aftercooler interface and helps prevent leakage between mating components.
7. Is 47688513001 a standalone cooler?
It is identified as an aftercooler kit rather than simply a standalone cooler component. The exact kit contents should be confirmed against the applicable equipment documentation.
8. Can this configuration be used on every Ingersoll Rand water-cooled compressor?
No. Compatibility depends on the compressor model, YS configuration, serial number, aftercooler design, and applicable parts documentation.
9. Should 47685787001 be replaced when the aftercooler is serviced?
Replacement should follow the applicable service procedure. An O-ring that has been removed or shows damage, deformation, or deterioration should be replaced where required by the service documentation.
10. What should be verified before ordering this configuration?
The compressor model, serial number, YS configuration, aftercooler assembly, O-ring dimensions, and current Ingersoll Rand parts documentation should be verified before ordering.
