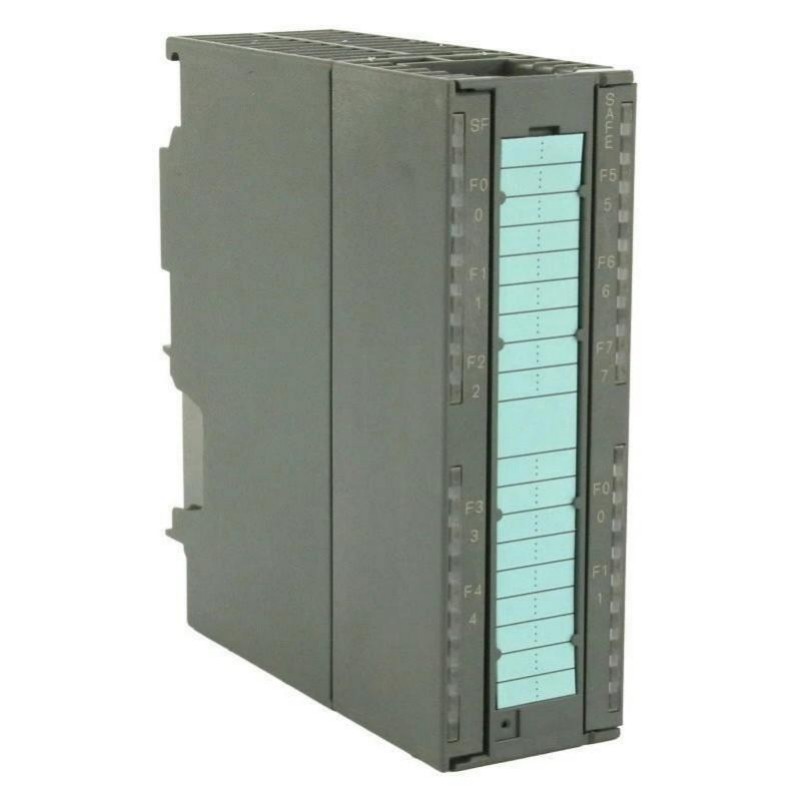

Siemens 6AG2521-7EH00-4AB0 SIPLUS S7-1500 DI 16x110VDC HF TX RAIL Digital Input Module

Where It Excels in Industrial Use

• Railway automation systems requiring digital signal acquisition from medium- and high-voltage field circuits.
• Industrial control panels where 24 V DC through 125 V DC or compatible AC signals must be monitored.
• Railway vehicles and infrastructure systems exposed to wide temperature variations and demanding environmental conditions.
• Distributed S7-1500 automation architectures requiring isolated digital inputs with advanced diagnostics.
• Applications involving sensors, switches, relay contacts, circuit-status monitoring, and discrete equipment feedback.
• Control systems requiring configurable input filtering, diagnostic alarms, and hardware interrupt functionality.

Key Strengths at a Glance

• 16 digital inputs: Provides 16 individually grouped digital input channels for flexible signal acquisition.
• Wide input range: Supports rated DC signal levels from 24 V through 125 V and selected AC signal levels.
• Configurable response: Standard DC inputs offer selectable input delays from 0.05 ms to 20 ms.
• High-feature functionality: Includes diagnostics, diagnostic alarms, and hardware interrupts.
• Flexible operating modes: Supports standard DI, counter, and Multiple Input (MSI) modes.
• Railway protection: Conformal coating helps protect the electronics against demanding environmental conditions.
• Extended temperature capability: Designed for -40°C to +70°C operation, with short-duration operation up to +85°C for 10 minutes under specified conditions.

Technical FAQs

1. What is the primary function of the 6AG2521-7EH00-4AB0?

The module is a SIPLUS S7-1500 DI 16x110VDC HF TX RAIL digital input module designed to acquire 16 discrete field signals and transfer their states to a compatible SIMATIC S7-1500 controller.

2. What input voltage levels can the module process?

The module supports rated DC input values of 24 V, 48 V, 72 V, 96 V, 110 V, and 125 V. It also supports selected AC input values of 24 V, 48 V, and 125 V at 50/60 Hz.

3. Can the input delay be configured?

Yes. For standard DC inputs, the input delay can be parameterized between 0.05 ms and 20 ms, with selectable values including 0.05, 0.1, 0.4, 1.6, 3.2, 12.8, and 20 ms. The appropriate setting depends on the required response time and signal characteristics.

4. Does the module provide electrical isolation?

Yes. The input channels are electrically separated from one another and from the backplane bus. This isolation helps reduce the effects of differing field potentials within the automation installation.

5. Are diagnostic functions available?

Yes. The high-feature module supports diagnostics and diagnostic alarms, allowing the automation system to detect and report relevant input or module conditions.

6. Does the module support hardware interrupts?

Yes. Hardware interrupts are supported, allowing configured input events to trigger an immediate response from the controller rather than waiting for normal cyclic processing.

7. Which operating modes are supported?

The module supports standard digital input operation, counter functionality, and Multiple Input (MSI) mode. The selected mode should match the signal characteristics and application requirements.

8. What input characteristic does the module use?

The digital inputs follow an IEC 61131 Type 3 input characteristic. This provides defined switching behavior for the supported field-signal range and helps ensure consistent signal evaluation.

9. What environmental conditions is the TX RAIL version designed for?

The module uses conformal-coated electronics and is specified for operation from -40°C to +70°C. Temperatures up to +85°C are permitted for 10 minutes under the applicable conditions. Installation must still comply with the complete system's environmental and electrical requirements.

10. Which S7-1500 systems can use this input module?

The module is based on the standard 6ES7521-7EH00-0AB0 and is designed for compatible SIMATIC S7-1500 configurations. Controller compatibility, firmware, TIA Portal version, backplane configuration, and the electrical characteristics of the connected field signals should be verified before installation.
