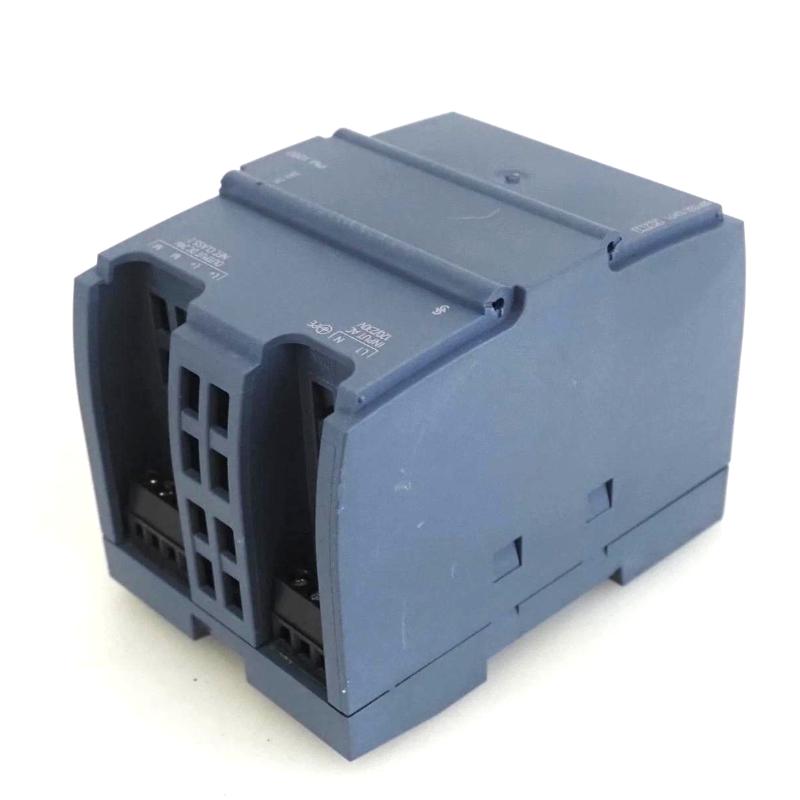

Siemens 6AG2620-0AA00-4AA0 SIPLUS PN/CAN LINK TX RAIL PROFINET-CAN Gateway
Siemens 6AG2620-0AA00-4AA0 SIPLUS PN/CAN LINK TX RAIL PROFINET-CAN Gateway
0.0
Points
Brand:Siemens Item No.:6AG2620-0AA00-4AA0 Product Origin: Germany Product Dimensions:70 × 112 × 75 mm Product Weight:276 g Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6AG2620-0AA00-4AA0 is a SIPLUS PN/CAN LINK TX RAIL communication gateway designed to connect PROFINET automation networks with CAN and CANopen fieldbus systems. Based on the SIMATIC PN/CAN LINK 6BK1620-0AA00-0AA0, it provides a practical bridge between modern Industrial Ethernet architectures and CAN-based equipment.
The gateway supports CAN 2.0A/B as well as CANopen according to CiA 301/302, with the flexibility to operate as a CANopen Manager or Slave. This makes it suitable for applications where CAN drives, sensors, controllers, I/O devices, or other field equipment must exchange information with a PROFINET-based PLC.
On the PROFINET side, two RJ45 ports and an integrated Ethernet switch simplify network integration. On the CAN side, transmission rates from 50 kbit/s to 1 Mbit/s and support for up to 126 CANopen nodes provide flexibility for distributed fieldbus architectures. Up to 16 parallel SDOs and 512 PDOs support both configuration-oriented and process-data communication.
The SIPLUS RAIL version is designed for significantly more demanding environmental conditions than conventional automation hardware. Conformal coating, an operating range of -40 °C to +70 °C, short-term operation at +85 °C, and railway-oriented environmental qualifications make the 6AG2620-0AA00-4AA0 well suited to rolling-stock, transportation infrastructure, and other harsh industrial applications.
Technical Specifications
Specification
Details
Product
SIPLUS PN/CAN LINK TX RAIL
Article Number
6AG2620-0AA00-4AA0
Base Module
6BK1620-0AA00-0AA0
Module Type
PROFINET-to-CAN/CANopen Gateway
PROFINET Function
PROFINET IO Device
PROFINET Ports
2 × RJ45
Integrated Ethernet Switch
Yes
Maximum PROFINET Transmission Rate
100 Mbit/s
CAN Interface
1 × 9-pin Sub-D
CAN Standard
CAN 2.0A/B
CANopen
CiA 301 / CiA 302
CANopen Operating Modes
Manager / Slave
CAN Transmission Rate
50 kbit/s to 1,000 kbit/s
Maximum CANopen Nodes
126
Parallel SDOs
Up to 16
PDOs
Up to 512, transmit/receive
Node/Life Guarding
Supported
Heartbeat
Supported
SYNC
Supported
Firmware Update
Supported
Diagnostics
Status, alarms, diagnostic functions
Status LEDs
RUN, ERROR, MAINT, LINK, RX/TX
Electrical Isolation
Yes
Rated Supply Voltage
24 V DC
Permissible Supply Range
20.4–28.8 V DC
Reverse Polarity Protection
Yes
Overvoltage Protection
Yes
Short-Circuit Protection
Yes
Protection Rating
IP20
Mounting
DIN rail, wall, portrait mounting
Conformal Coating
Yes
Railway Application
Yes
Operating Temperature
-40 °C to +70 °C
Short-Term Temperature
+85 °C for 10 minutes
Relative Humidity
Up to 95% during operation
Dimensions
70 × 112 × 75 mm
Weight
Approx. 276 g
Recommended Companion Models
Model
Product Name
6AG2623-0AA00-4AA0
SIPLUS PN/J1939 LINK TX RAIL PROFINET-J1939 Gateway
6AG2158-3AD10-4XA0
SIPLUS PN/PN Coupler TX RAIL
6AG2512-1DK01-1AB0
SIPLUS ET 200SP CPU 1512SP-1 PN RAIL
6AG2543-6WX00-4XE0
SIPLUS ET 200SP CP 1543SP-1 ISEC TX RAIL Communication Processor
Frequently Selected Alternatives
Model
Product Name
6BK1620-0AA00-0AA0
SIMATIC PN/CAN LINK Gateway
6AG1620-0AA00-7AA0
SIPLUS PN/CAN LINK Communication Gateway
6AG2623-0AA00-4AA0
SIPLUS PN/J1939 LINK TX RAIL PROFINET-J1939 Gateway
6GK1417-5AB00
SIMATIC NET CANopen Link Module
Where It Excels in Industrial Use
Railway automation systems requiring PROFINET-to-CAN or CANopen integration
Vehicle and transportation control systems using CAN-based field devices
Distributed automation architectures combining Industrial Ethernet with CAN networks
CANopen machine networks requiring manager or slave functionality
Infrastructure applications exposed to extended temperature and environmental conditions
Legacy CAN equipment integration into modern PROFINET-based control systems
Industrial installations requiring ruggedized communication electronics with conformal coating
Key Strengths at a Glance
SIPLUS PN/CAN LINK TX RAIL gateway for PROFINET-to-CAN and CANopen communication
Based on the SIMATIC PN/CAN LINK 6BK1620-0AA00-0AA0
Supports CAN 2.0A/B and CANopen according to CiA 301/302
Operates as a CANopen Manager or CANopen Slave
Two PROFINET Ethernet ports with integrated switch
PROFINET IO Device functionality with transmission rates up to 100 Mbit/s
CAN transmission rates from 50 kbit/s up to 1 Mbit/s
Supports up to 126 CANopen nodes
Up to 16 parallel SDOs and 512 PDOs for CANopen communication
24 V DC supply with reverse-polarity, overvoltage, and short-circuit protection
Conformal-coated electronics for demanding railway and industrial environments
Operating temperature from -40 °C to +70 °C, with +85 °C permissible for 10 minutes
IP20 protection and DIN-rail, wall, or portrait mounting capability
Technical FAQs
1. What is the main function of the 6AG2620-0AA00-4AA0?
The 6AG2620-0AA00-4AA0 is a communication gateway that connects a PROFINET network with CAN or CANopen fieldbus networks. It allows CAN-based devices to exchange process data with a PROFINET automation system.
2. Which CAN communication standards are supported?
The module supports standard CAN 2.0A/B as well as CANopen according to CiA 301 and CiA 302. It can operate as either a CANopen Manager or CANopen Slave.
3. What CAN transmission speeds are available?
The CAN interface supports transmission rates from 50 kbit/s up to 1,000 kbit/s. The required CAN baud rate is selected according to the connected network and device configuration.
4. How many CANopen devices can be connected?
The gateway supports up to 126 CANopen slaves under the specified CANopen configuration. The practical number of connected devices also depends on the network topology, addressing, bus length, and communication load.
5. How many PROFINET ports does the module provide?
The gateway provides two RJ45 Ethernet ports with an integrated switch. These ports allow the device to be incorporated into a PROFINET network without requiring a separate external Ethernet switch for basic line-type installations.
6. Does the module support PROFINET IO Device operation?
Yes. The PN/CAN LINK operates as a PROFINET IO Device and can exchange configured process data between the PROFINET controller and the connected CAN or CANopen network.
7. How many SDO and PDO connections are supported?
For CANopen operation, the gateway supports up to 16 SDOs in parallel and up to 512 PDOs for sending and receiving. These services allow both parameter-oriented and cyclic process-data communication.
8. Can the firmware be updated?
Yes. Firmware updating is supported. This provides a method for maintaining the communication gateway as compatible firmware versions and functional improvements become available.
9. What diagnostic functions are available?
The module provides status indication, alarms, diagnostic functions, and dedicated RUN, ERROR, MAINT, LINK, and RX/TX LEDs. These indicators help identify communication and operating states during commissioning and service.
10. What environmental conditions are supported by the SIPLUS RAIL version?
The module is designed for operation from -40 °C to +70 °C, with +85 °C permissible for 10 minutes under the specified railway temperature profile. It uses conformal coating and is designed for railway applications in accordance with the applicable environmental and railway standards.
