Brand:ABB PLC Item No.:MC503 Product Origin:Sweden (SE) Product Dimensions:45 × 10 × 32 mm Product Weight:0.008 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

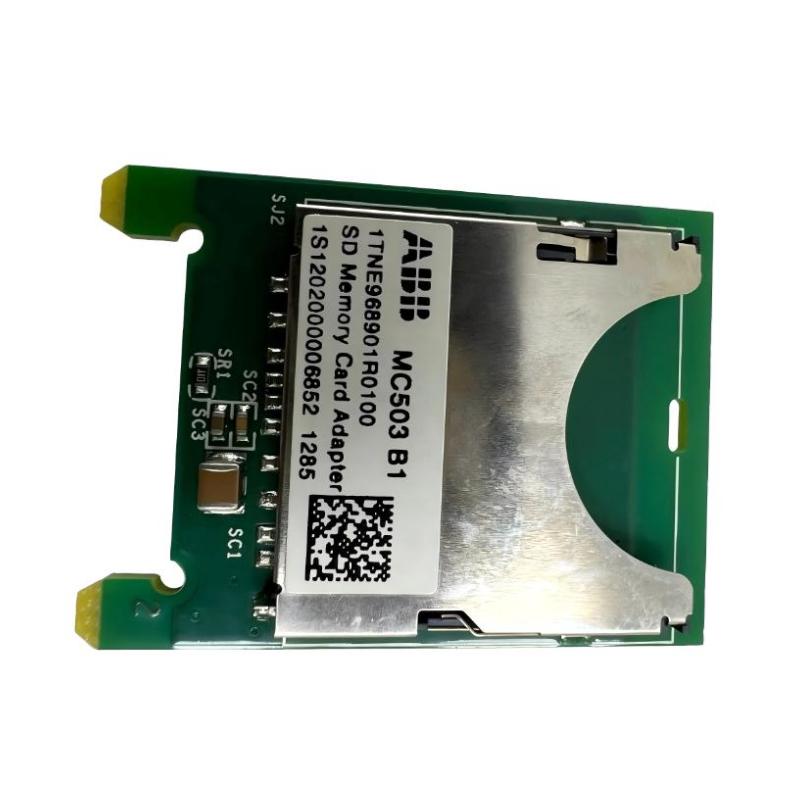

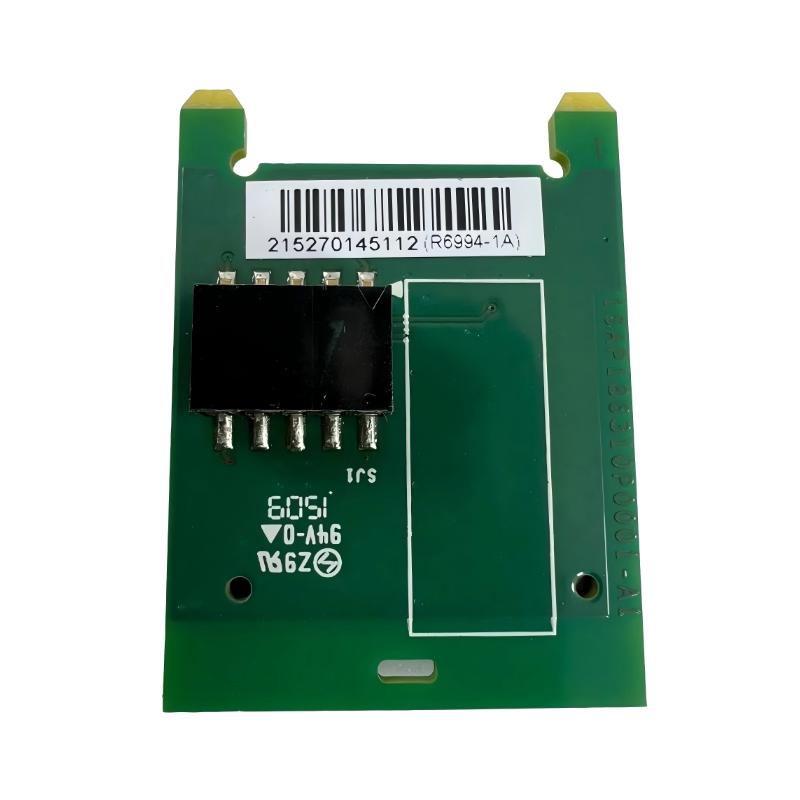

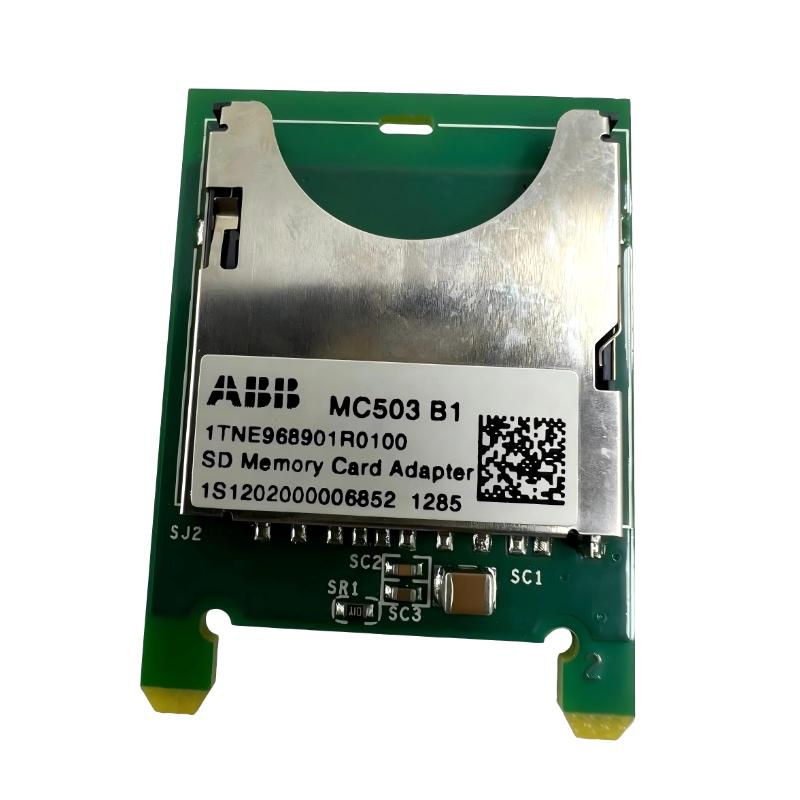

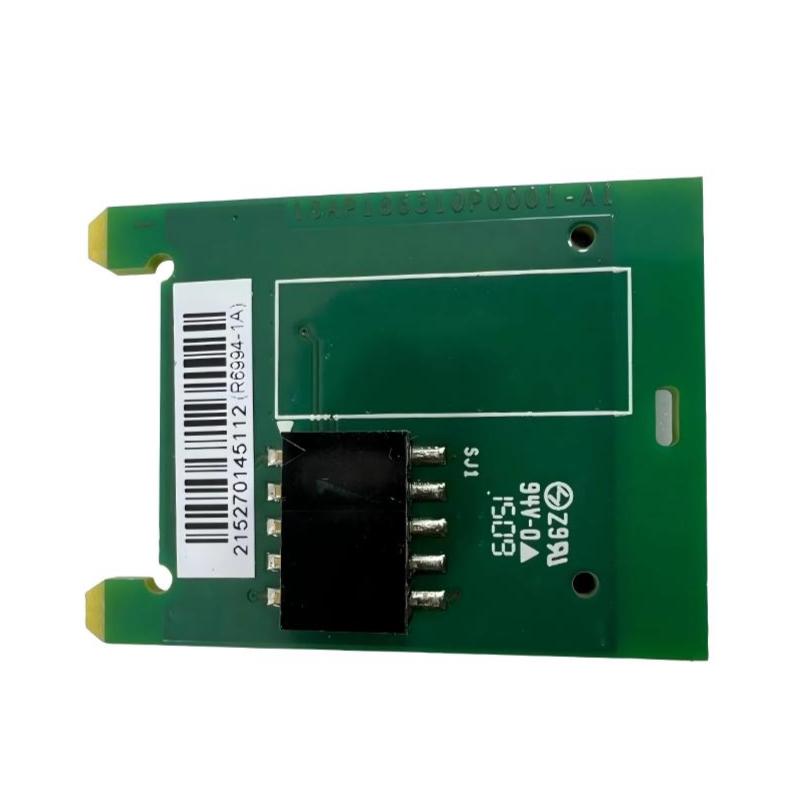

Introduction to ABB MC503 1TNE968901R0100 SD Memory Card Adapter
The ABB MC503 1TNE968901R0100 SD Memory Card Adapter is a practical accessory designed to enhance data management flexibility in industrial automation applications. It provides a simple and efficient method for handling storage functions within compatible ABB control environments.
With its compact construction and dependable connection design, this adapter supports easier commissioning, maintenance, and system configuration tasks. It is a valuable component for engineers who require reliable data storage solutions in industrial control applications.
Technical Specifications
Specification
Details
Manufacturer
ABB
Model Number
MC503
Alternative Part Number
1TNE968901R0100
Product Type
SD Memory Card Adapter
Application
Industrial Automation Data Storage
Dimensions
45 × 10 × 32 mm
Weight
0.01 kg (0.02 lb)
Recommended Related Models
ABB MC503 SD Memory Card Adapter
ABB AC500 PLC Memory Accessories
ABB PM5xx Series Controller Modules
ABB PLC Expansion and Communication Accessories
Popular Related Models
ABB AC500-eCo PLC Series
ABB PM554-T-ETH CPU Module
ABB PM563-T-ETH PLC Controller
ABB CM574-RS Communication Module
ABB TA521 Terminal Base Module
Industrial Applications
The ABB MC503 1TNE968901R0100 SD Memory Card Adapter is a compact data storage accessory designed for ABB automation and control systems. It provides a convenient interface for memory expansion, application data handling, and program storage in compatible industrial controllers.
This adapter is commonly used in industrial automation projects, PLC-based control systems, machine automation equipment, and maintenance environments where reliable data transfer and secure program backup are required. Its small form factor makes it ideal for integration into compact control devices and modern automation solutions.
Compact Design and Functional Benefits
The ABB MC503 1TNE968901R0100 SD Memory Card Adapter combines reliable data access capability with a space-saving design. It supports efficient system management by allowing engineers to store, transfer, and maintain important automation data with greater flexibility.
Key benefits include:
Reliable memory expansion solution for ABB control systems
Easy integration with compatible automation devices
Compact structure for space-limited installations
Supports convenient program backup and data management
Simplifies maintenance and system upgrades
Designed for professional industrial applications
Technical FAQs
1. What is the main purpose of the ABB MC503 memory card adapter? The adapter provides a connection interface for SD memory cards used in compatible ABB automation systems.
2. What type of data can be managed with this adapter? It can support storage and transfer of application programs, configuration data, and system-related files depending on the connected controller.
3. Is the MC503 compatible with all ABB controllers? Compatibility depends on the specific ABB automation platform and controller model being used.
4. How does an SD memory card adapter help industrial maintenance? It allows technicians to easily transfer, back up, and restore important control system data.
5. Can this adapter be used for controller upgrades? Yes, it can support data migration and configuration transfer in compatible upgrade processes.
6. Does the adapter affect PLC processing performance? No, the adapter mainly provides storage access and does not directly increase controller processing capability.
7. What should be checked before installing this adapter? Engineers should confirm controller compatibility, memory card requirements, and system configuration.
8. Can the adapter support industrial data backup applications? Yes, it is suitable for backup and storage tasks in compatible automation environments.
9. Why is removable memory useful in industrial systems? Removable memory allows easier system recovery, maintenance operations, and software management.
10. What precautions are recommended when using memory accessories? Proper installation procedures, compatible memory media, and regular data backups are recommended for reliable operation.
