Brand:Allen Bradley PLC Item No.:MPL-B4560F-MK74AA Product Origin:USA Product Dimensions:Frame Size: 130 mm Product Weight:11.82 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

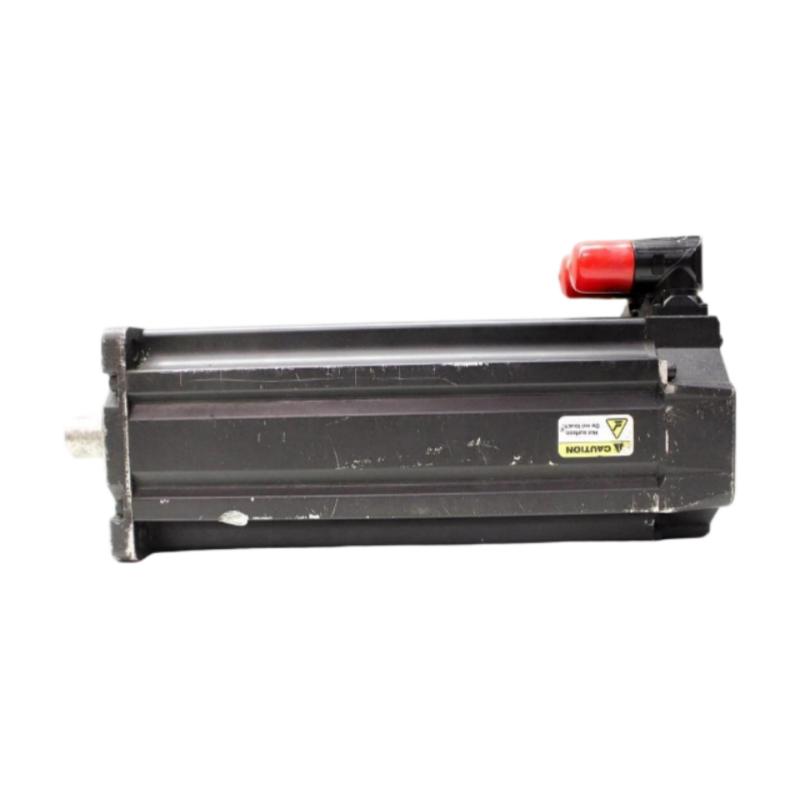

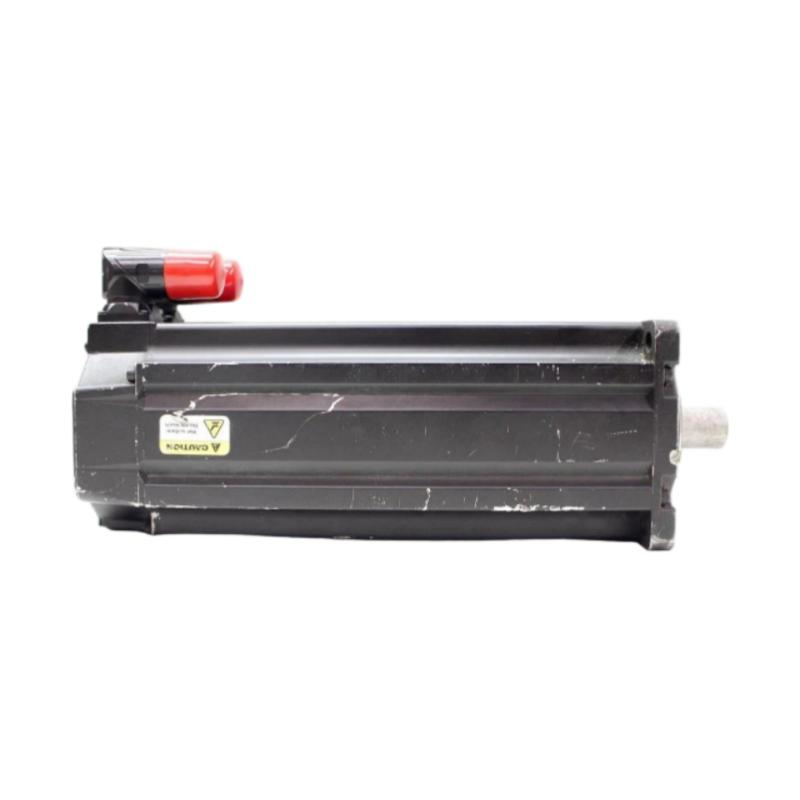

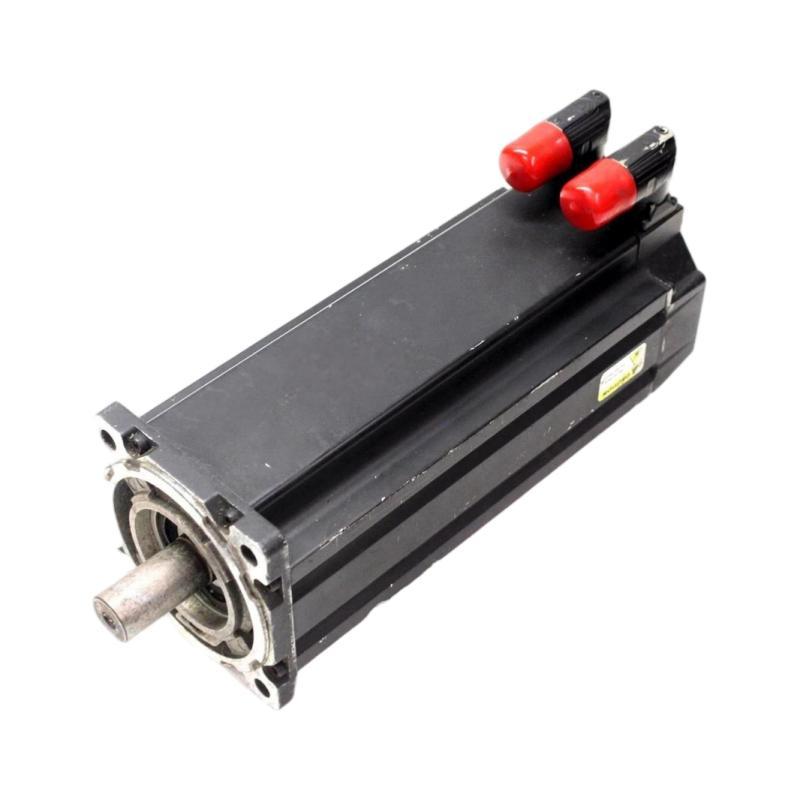

The Allen Bradley MPL-B4560F-MK74AA Servo Motor is intended for integration into compatible industrial automation and motion-control systems. Servo motors are widely used in machinery that requires coordinated movement, controlled rotation, and repeatable positioning.
The supplied specifications identify a frame size of 130 mm and a weight of 11.82 kg. These values provide useful reference information for equipment identification and preliminary mechanical planning, but they are not sufficient to establish compatibility with another motor or servo drive.
When purchasing a replacement, confirm the full catalog number and compare the motor's electrical, mechanical, and feedback requirements with the installed system. Careful model verification helps reduce incorrect substitutions and supports effective maintenance planning.
Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Model
MPL-B4560F-MK74AA
Product Type
Servo Motor
Frame Size
130 mm
Weight
11.82 kg (26.06 lb)
Rated power, voltage, speed, torque, feedback type, shaft configuration, and other detailed specifications should be confirmed using the manufacturer's documentation for this exact model.
Recommended Related Models
The following Allen-Bradley MPL servo motor models may be useful for product-family comparison. Their specifications should be checked before considering any of them as a replacement.
MPL-B4560F-MK72AA – MPL Series Servo Motor
MPL-B4560F-MJ72AA – MPL Series Servo Motor
MPL-B4540F-MJ72AA – MPL Series Servo Motor
MPL-B4530F-MJ72AA – MPL Series Servo Motor
Popular Related Models
The following Allen-Bradley motion-control components may be relevant to broader servo system maintenance and integration projects. Compatibility with the MPL-B4560F-MK74AA must be verified before use.
The Allen Bradley MPL-B4560F-MK74AA Servo Motor is an industrial motion-control component intended for use in compatible automated machinery. As part of the Allen-Bradley MPL servo motor family, it can be used in applications requiring controlled rotation, repeatable movement, and coordinated machine operation when paired with a suitable servo drive and feedback system.
Typical application areas include:
Automated production lines: Supports controlled movement in machinery used for manufacturing and assembly.
Packaging equipment: Can be integrated into motion systems requiring repeatable positioning and coordinated operation.
Material handling systems: Suitable for compatible servo-driven positioning and transfer mechanisms.
Industrial machinery: Provides motorized motion for equipment designed around an appropriate servo control system.
Machine automation upgrades: May be considered for replacement or maintenance projects when the complete motor configuration matches the original installation.
Before selecting this motor, verify the catalog number, drive compatibility, mechanical interface, and feedback configuration.
Key Advantages
Designed for Motion-Control Applications
Servo motors are intended for systems requiring controlled speed and position. Actual motion performance depends on the selected drive, feedback system, and application configuration.
Industrial Integration
The MPL series is designed for industrial automation environments. Confirm that the motor's specific electrical and mechanical characteristics match the target system.
Defined Mechanical Frame Size
The specified 130 mm frame size provides a useful reference for preliminary installation planning and comparison with existing equipment.
Support for Maintenance and Replacement
Using the full catalog number helps distinguish the required motor configuration from other models in the same product family.
System-Level Flexibility
When correctly matched with a servo drive and motion controller, the motor can support a range of automated movement tasks in industrial equipment.
Technical FAQs
Q1: What is the Allen Bradley MPL-B4560F-MK74AA Servo Motor used for?
It is intended for compatible industrial motion-control applications. The precise operating characteristics depend on the motor's full configuration and the associated drive system.
Q2: Does the motor require a compatible servo drive?
Yes. A servo motor generally operates with a compatible servo drive that supplies controlled power and manages motor operation according to the system configuration.
Q3: How do I confirm servo drive compatibility?
Check the manufacturer's compatibility documentation for the exact motor catalog number. Verify electrical ratings, feedback requirements, connector configuration, and drive support.
Q4: Why is the complete model number important?
The complete catalog number can distinguish configuration options that affect electrical connections, feedback, mechanical interfaces, or other installation requirements.
Q5: Can this motor be used for positioning applications?
Servo motors are commonly used for controlled positioning when paired with a compatible drive, feedback system, and properly configured motion controller.
Q6: What should be checked before mounting the motor?
Verify mounting dimensions, shaft and coupling details, alignment, available clearance, and the mechanical requirements of the driven equipment.
Q7: Can the MPL-B4560F-MK74AA replace the MPL-B4560F-MK72AA?
Do not assume direct interchangeability based on the similar model numbers. Compare the complete manufacturer specifications and confirm that the relevant configuration options match.
Q8: What may cause a servo motor fault?
Possible causes include drive configuration errors, feedback problems, wiring faults, mechanical obstruction, or incorrect tuning. Use the drive's diagnostic information and the manufacturer's troubleshooting procedures to determine the cause.
Q9: What maintenance checks are recommended?
Inspect the motor mounting, shaft coupling, connectors, cables, and operating environment. Follow the manufacturer's instructions for any additional inspection or servicing requirements.
Q10: Can a motor with the same frame size be used as an alternative?
Not necessarily. Frame size alone does not establish compatibility. Electrical ratings, torque and speed requirements, shaft dimensions, feedback, connectors, and drive support must also be considered.
