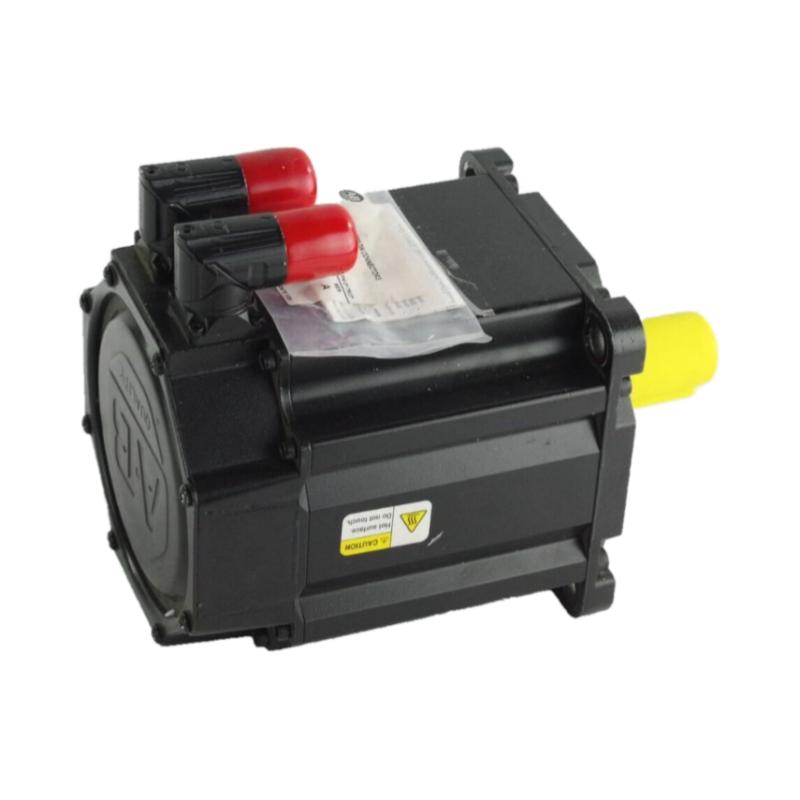

Allen Bradley MPL-B520K-MK72AA Servo Motor

Applications

The Allen Bradley MPL-B520K-MK72AA Servo Motor is an industrial motion-control component intended for applications requiring accurate motor control and dependable performance. As part of the Allen-Bradley MP-Series servo motor family, it can be considered for suitable automated machinery and motion systems when its electrical and mechanical specifications match the application requirements.

Typical application areas include:

• Industrial Automation: Motion control in automated production equipment.

• Packaging Machinery: Controlled movement in packaging and material-handling processes.

• Machine Tools: Servo-driven positioning and coordinated motion applications.

• Assembly Systems: Repeatable movement in automated assembly equipment.

• Material Handling: Motion systems used in industrial conveying and handling machinery.

The final application should be determined by verifying the motor's nameplate information, drive requirements, feedback configuration, and mechanical interface.

Key Features and Benefits

• Industrial Motion Control: Designed for use in compatible servo-based automation systems.

• Precision Positioning Potential: Supports motion applications that require controlled movement when paired with an appropriate servo drive and control system.

• Compact Servo Motor Design: The 165 mm frame size provides a useful reference when evaluating installation space and mounting arrangements.

• Automation Integration: Can be considered for machinery using compatible Allen-Bradley motion-control equipment.

• Maintenance and Replacement Planning: The complete catalog number helps identify the motor when sourcing replacement components or maintaining existing equipment.

Exact performance characteristics, including rated speed, torque, voltage, and feedback type, should be confirmed against the manufacturer's specifications for the specific catalog number.

Technical FAQs

Q1: What is the Allen Bradley MPL-B520K-MK72AA?

It is an Allen-Bradley MPL-Series servo motor intended for industrial motion-control applications. Confirm the exact product configuration using its nameplate and product documentation.

Q2: What is the primary function of a servo motor in an automation system?

A servo motor converts electrical energy into controlled mechanical motion. When used with a compatible servo drive and feedback system, it can support accurate positioning, speed regulation, and torque control.

Q3: Does this motor require a servo drive?

Yes. A servo motor generally operates with a compatible servo drive that supplies and regulates motor power. The drive must match the motor's electrical and feedback requirements.

Q4: How can I verify compatibility with an existing servo drive?

Compare the motor's full catalog number, rated electrical characteristics, feedback configuration, connector arrangement, and applicable drive compatibility documentation before installation.

Q5: What information should be checked before replacing an existing motor?

Check the complete catalog number, mounting dimensions, shaft and coupling details, electrical ratings, feedback type, and cable connections. Similar model numbers do not necessarily indicate interchangeable components.

Q6: What role does feedback play in servo motor operation?

Feedback allows the control system to monitor motor position, speed, or other motion-related information, depending on the feedback device and drive configuration. This information helps the drive regulate the commanded movement.

Q7: Can this motor be used for continuous-duty applications?

Suitability depends on the motor's rated operating conditions, load profile, ambient temperature, cooling requirements, and duty cycle. Confirm these details in the relevant technical documentation.

Q8: What installation factors affect servo motor performance?

Important factors include secure mounting, correct alignment, suitable coupling, proper grounding, cable routing, environmental conditions, and compliance with the manufacturer's installation instructions.

Q9: What maintenance checks are recommended for a servo motor?

Inspect the mounting hardware, shaft coupling, cables, connectors, grounding, and surrounding environment. Investigate unusual noise, vibration, or temperature changes according to the equipment maintenance procedure.

Q10: What should be verified before commissioning this motor?

Confirm the motor and drive combination, wiring, protective grounding, feedback connections, mechanical alignment, parameter settings, and machine safety measures before enabling motion.
