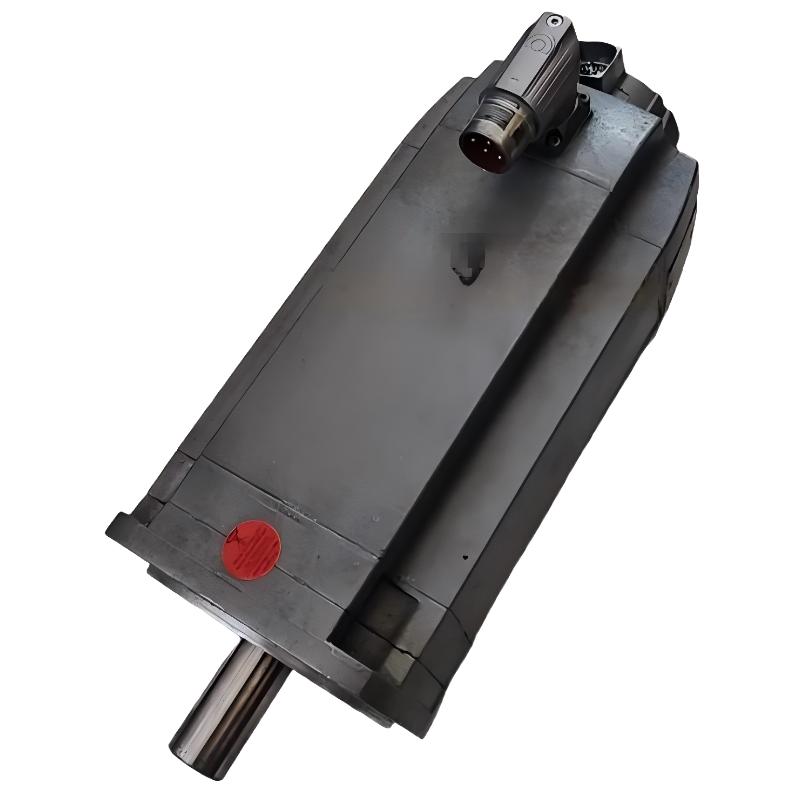

Siemens 1FT7068-5AF71-1CG1 Servo Motor

Applications

The Siemens 1FT7068-5AF71-1CG1 Servo Motor is an industrial motion-control component intended for applications that require accurate positioning, controlled speed, and reliable dynamic performance. As part of Siemens' SIMOTICS servo motor portfolio, it can be considered for use in automation systems where coordinated motion and repeatable operation are essential. Actual suitability depends on the motor's complete electrical and mechanical specifications and the selected drive system.

Typical application areas include:

• Machine Tools: Supports controlled movement of machine axes and positioning mechanisms.

• Packaging Machinery: Used in motion systems requiring coordinated movement and repeatable positioning.

• Material Handling: Suitable for automated positioning and transfer mechanisms when correctly sized.

• Industrial Robotics: Can be evaluated for servo-driven axes and automated motion assemblies.

• Production Automation: Supports precision movement in machinery and automated manufacturing equipment.

• Assembly Systems: Can be integrated into positioning and indexing applications according to system requirements.

Key Features and Benefits

• Precision Motion Control: Designed for servo applications that require accurate control of position and speed when paired with a compatible drive.

• Industrial Automation Integration: Suitable for evaluation in Siemens-based motion-control architectures.

• Dynamic Operation: Servo motor technology supports controlled acceleration, deceleration, and changes in commanded speed.

• Compact Mechanical Design: The supplied shaft-height specification is 63 mm; verify the complete mounting dimensions before installation.

• Drive-System Coordination: Performance depends on the matching drive, feedback configuration, control parameters, and application load.

• Flexible Application Potential: Can be considered for automated machinery, positioning systems, and production equipment after compatibility checks.

• Maintainability: Routine inspection of mechanical mounting, cabling, connectors, and cooling arrangements can help support long-term operating reliability.

Technical FAQs

Q1: What is the Siemens 1FT7068-5AF71-1CG1 Servo Motor used for?

It is an industrial servo motor model intended for controlled motion applications. Its suitability for a particular machine depends on required torque, speed, positioning accuracy, duty cycle, and drive compatibility.

Q2: Which drive system is compatible with this motor?

The exact compatible drive and required drive configuration should be confirmed using Siemens documentation for the complete motor order number. Do not select a drive based only on the motor's physical dimensions.

Q3: Can this servo motor provide precise positioning?

Servo motors can support precise positioning when used with a compatible drive, suitable feedback configuration, and properly tuned motion-control system. Achievable accuracy depends on the complete mechanical and electrical system.

Q4: What does the 63 mm shaft-height specification mean?

Shaft height generally refers to the distance from the mounting surface to the centerline of the motor shaft. Confirm the dimension and mounting standard against the manufacturer's dimensional drawing before designing the installation.

Q5: How should the motor be selected for a new application?

Selection should consider load inertia, required torque, operating speed, acceleration, duty cycle, ambient conditions, mounting arrangement, and the characteristics of the drive. Engineering calculations and the official motor data are recommended.

Q6: Is feedback required for servo operation?

Servo systems generally rely on feedback to regulate motion. The exact feedback device and interface for this model should be verified from its official product documentation and the intended drive configuration.

Q7: Can the 1FT7068-5AF71-1CG1 replace another Siemens servo motor?

Not automatically. A replacement must match the electrical ratings, mechanical dimensions, shaft and mounting details, feedback system, connectors, and drive requirements. Confirm the complete order numbers before substitution.

Q8: What factors can affect servo motor performance?

Load conditions, drive configuration, parameter tuning, feedback integrity, temperature, vibration, mechanical alignment, and power quality can all influence performance.

Q9: What maintenance does this motor require?

Follow Siemens' maintenance instructions for the specific motor version. General checks may include mounting security, cable and connector condition, abnormal noise or vibration, and signs of overheating. Bearing maintenance requirements depend on the motor design.

Q10: What information is needed before commissioning?

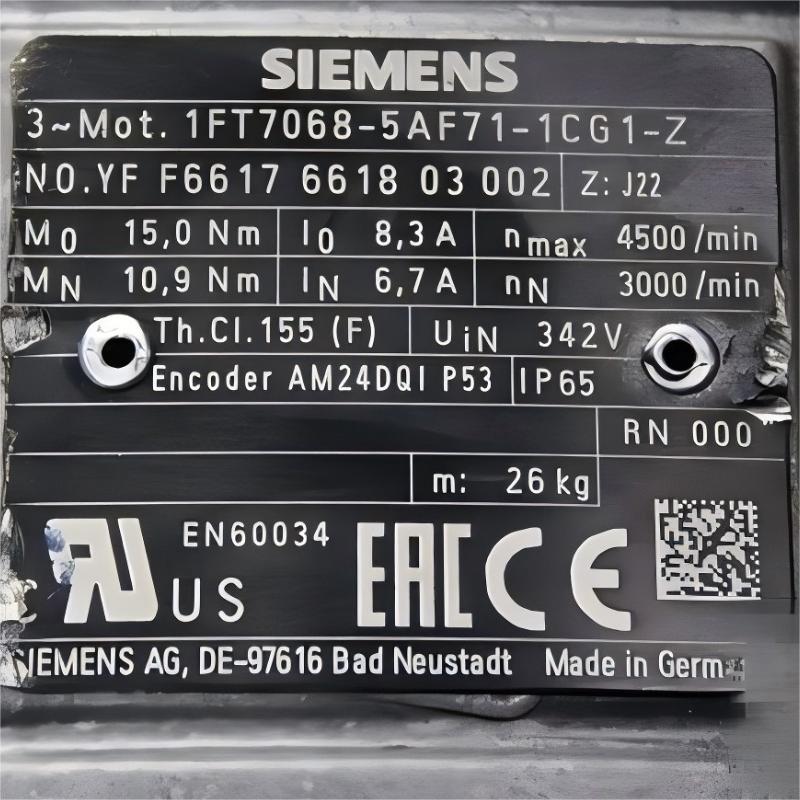

Verify the motor nameplate, electrical connections, compatible drive, feedback wiring, protective grounding, mechanical alignment, load conditions, and applicable safety procedures. Commission the system according to the manufacturer's instructions.
