Brand:Siemens Item No.:6ES7590-0BD00-0AA0 Product Origin:Germany Product Dimensions:154 x 14 x 99 mm Product Weight:0.128 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

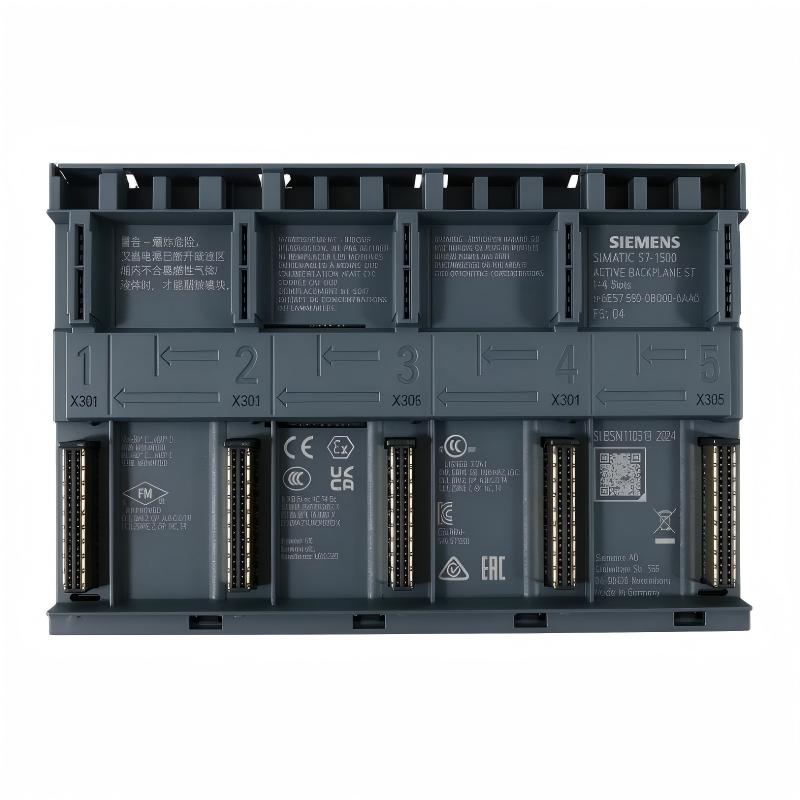

The Siemens 6ES7590-0BD00-0AA0 Active Backplane Bus is identified as a component for industrial automation hardware. Backplane bus technology is important in modular control architectures because it provides internal connectivity between supported modules and forms part of the system's overall communication and integration structure.
When sourcing this component for maintenance or a replacement project, confirm the exact Siemens part number and its intended hardware configuration. Backplane components are not universally interchangeable, and the correct selection depends on the supported rack or assembly, module types, and system requirements.
Based on the supplied information, the component measures 154 × 14 × 99 mm and weighs 0.13 kg (0.28 lb) when rounded to two decimal places. These values should be verified against the official dimensional drawing before finalizing installation or procurement plans.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model / Part Number
6ES7590-0BD00-0AA0
Product Type
Active Backplane Bus
Dimensions
154 × 14 × 99 mm (as supplied)
Weight
0.13 kg (0.28 lb), based on supplied information
Application
Internal connectivity in compatible automation hardware
System Compatibility
Confirm with manufacturer documentation
Supported Modules
Confirm with manufacturer documentation
Electrical Characteristics
Confirm with manufacturer documentation
Power Requirements
Confirm with manufacturer documentation
Mounting Configuration
Confirm with manufacturer dimensional drawing
Installation Requirements
Refer to the applicable Siemens hardware manual
Recommended Related Models
The following Siemens automation product families may be relevant when evaluating modular control hardware. They are not confirmed compatible systems for the 6ES7590-0BD00-0AA0.
Related category for hardware-specific installation and connection components
Popular Related Models
Model or Product Family
Product Type
Typical Role
Siemens SIMATIC S7-1500
PLC System
Advanced machine and process automation
Siemens SIMATIC S7-300
PLC System
Modular machine control
Siemens SIMATIC S7-400
PLC System
Industrial and process control
Siemens SIMATIC ET 200SP
Distributed I/O System
Distributed field I/O
Siemens SIMATIC S7-1200
PLC System
Compact machine automation
Siemens SIMATIC System Accessories
Automation Accessories
Installation and maintenance of compatible equipment
Note:The related product families are provided for general reference only and do not establish compatibility. Confirm the exact function, supported hardware, and installation requirements of 6ES7590-0BD00-0AA0 in Siemens documentation before ordering or installing the component.
