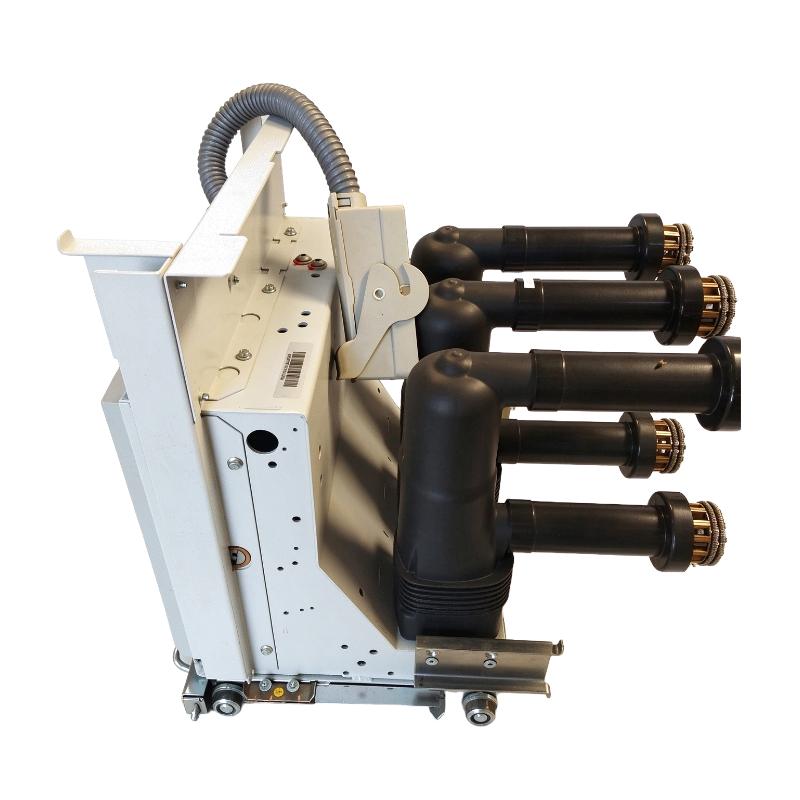

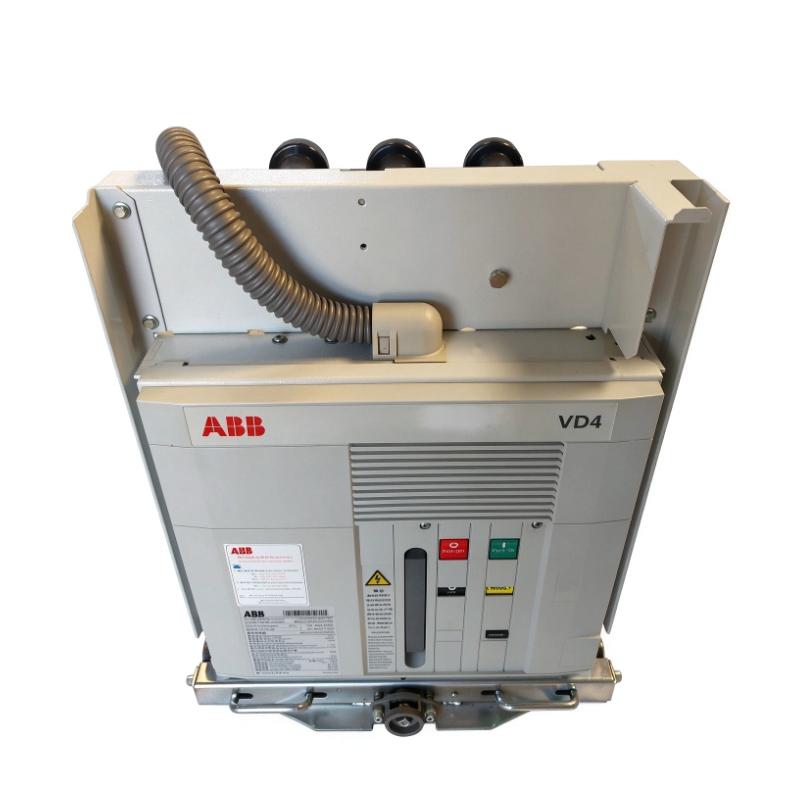

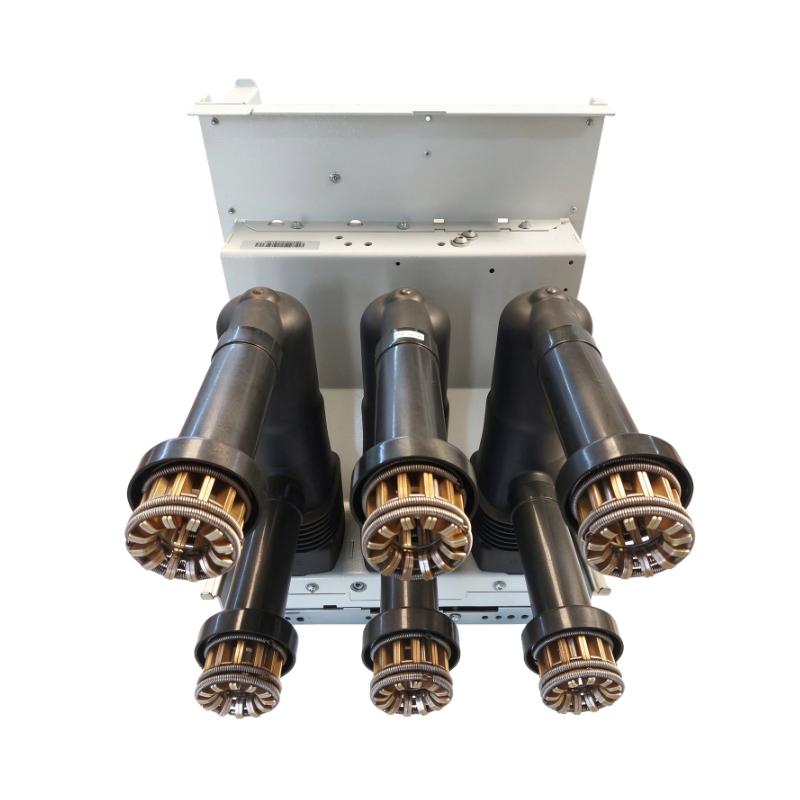

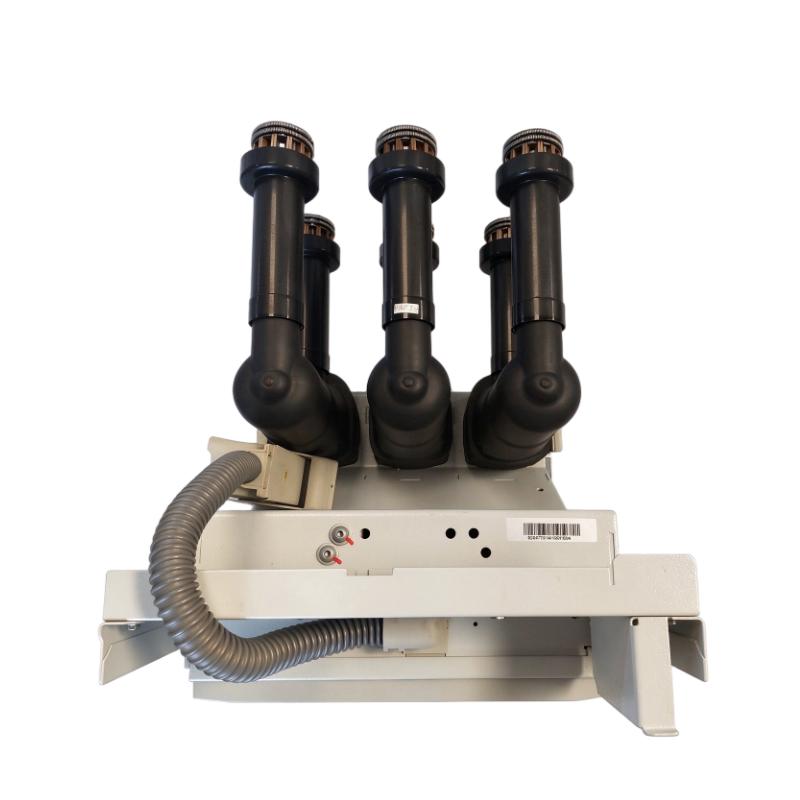

ABB VD4/P 12.16.25 Medium-Voltage Vacuum Circuit Breaker

Industrial Applications

ABB VD4/P 12.16.25 Medium-Voltage Vacuum Circuit Breaker is designed for reliable switching and protection in medium-voltage electrical distribution systems. It is widely applied in industrial plants, power generation facilities, infrastructure projects, and utility substations where high operational safety and dependable fault interruption are essential.

This vacuum circuit breaker is suitable for controlling and protecting medium-voltage feeders, transformers, motors, and distribution equipment. With advanced vacuum interruption technology and a compact mechanical design, the VD4/P series helps improve system availability while reducing maintenance requirements.

Core Advantages and Performance Benefits

The ABB VD4/P 12.16.25 combines proven vacuum switching technology with robust mechanical performance, making it a trusted solution for demanding medium-voltage applications.

• High-speed fault interruption capability ensures effective protection against short circuits and electrical faults.
• Vacuum interrupter technology provides excellent arc extinguishing performance and long electrical service life.
• Compact construction allows flexible integration into medium-voltage switchgear assemblies.
• Low maintenance requirements help reduce operational costs over the equipment lifecycle.
• Reliable mechanical operating mechanism supports frequent switching operations.
• Designed for safe operation in modern industrial power distribution environments.
• ABB engineering quality ensures stable performance in critical electrical networks.

Technical FAQs

1. What type of protection applications is ABB VD4/P 12.16.25 suitable for?
The circuit breaker is designed for medium-voltage protection applications including feeders, transformers, motors, and industrial distribution networks.

2. How does vacuum interruption technology improve circuit breaker performance?
Vacuum interruption minimizes arc duration during switching operations, improving contact durability and increasing operational reliability.

3. Can the VD4/P 12.16.25 be installed in existing medium-voltage switchgear systems?
Yes, it can be integrated into compatible ABB and third-party medium-voltage switchgear solutions when mechanical and electrical requirements are met.

4. What operating mechanism is used in this vacuum circuit breaker?
The VD4/P series uses a reliable stored-energy spring operating mechanism designed for fast and consistent switching performance.

5. Is this circuit breaker suitable for frequent switching operations?
Yes, the vacuum interrupter design supports repeated switching cycles while maintaining stable electrical performance.

6. What types of faults can this breaker interrupt?
It is capable of interrupting medium-voltage short-circuit currents and protecting electrical equipment from abnormal operating conditions.

7. Does the VD4/P 12.16.25 require special maintenance procedures?
Routine inspection and mechanical checks are recommended, but vacuum technology significantly reduces maintenance compared with traditional interruption methods.

8. What voltage range does this breaker belong to?
The VD4/P 12.16.25 belongs to ABB’s medium-voltage vacuum circuit breaker family designed for distribution systems up to the rated voltage class of the product.

9. Can auxiliary accessories be added to this circuit breaker?
Yes, compatible auxiliary contacts, trip coils, motor operators, and monitoring accessories can be configured according to system requirements.

10. Why is vacuum technology preferred in medium-voltage applications?
Vacuum technology provides reliable insulation performance, fast interruption, environmental advantages, and extended service life.
