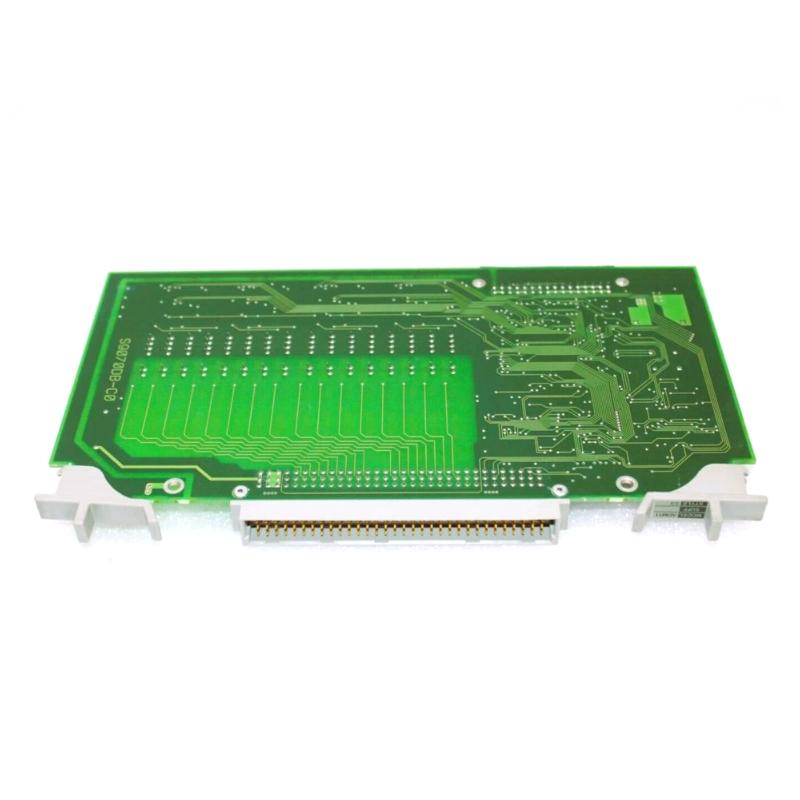

Yokogawa ADM11-S3 – Advanced Analog/Digital Input Module for Precise Signal Acquisition and Control

Applications

The Yokogawa ADM11-S3 is designed for use in industries where accurate input signal measurement and control are essential:

• Process Control Systems: Used in chemical, pharmaceutical, petrochemical, and food & beverage industries for precise measurement of parameters such as temperature, pressure, flow, and level.

• Energy Management: Ideal for integrating with energy meters, sensors, and power meters, the ADM11-S3 helps optimize energy consumption and reduce operational costs in industrial plants.

• Manufacturing Automation: Monitors and controls sensors, actuators, and switches in production lines, improving operational efficiency and ensuring high levels of automation.

• Building Automation: Controls HVAC systems, lighting, and security in commercial buildings and industrial facilities, helping to reduce energy consumption and enhance system performance.

• Environmental Monitoring: Collects data from environmental sensors for monitoring air and water quality, temperature, humidity, and other critical parameters in industries like waste management, agriculture, and environmental protection.

• Safety and Alarm Systems: Interfaces with critical safety devices such as emergency shutdown switches, fire alarms, and gas detectors, ensuring real-time monitoring and fast response to hazardous conditions.

Advantages

• High-Resolution Data Acquisition: The ADM11-S3 provides 16-bit resolution for analog inputs, ensuring high-precision signal processing, which is crucial for controlling sensitive processes.

• Dual Analog and Digital Inputs: The module supports both analog inputs (4-20mA and 0-10V) and digital inputs (dry contact), making it suitable for a wide range of industrial sensors and devices.

• Compact and Durable Design: With compact dimensions of 135 mm x 95 mm x 60 mm, the ADM11-S3 fits easily into standard control panels while offering a robust design suitable for industrial environments.

• Fast Data Sampling: The 100 ms sampling rate per channel ensures fast, real-time acquisition of data, which is essential for dynamic control and monitoring.

• Flexible Input Configuration: The ADM11-S3 can be configured for different signal types, offering versatility in connecting various sensors and monitoring systems in industrial applications.

• Protection Features: Equipped with overcurrent protection, overvoltage protection, and short-circuit protection, the ADM11-S3 ensures safe operation and protects connected devices from electrical faults.

• Wide Temperature Range: The ADM11-S3 operates in a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for use in both controlled and harsh environments.

• Effortless Integration: The ADM11-S3 integrates easily with other Yokogawa products, such as CENTUM VP DCS, for centralized monitoring and control, ensuring scalability and flexibility.

• Global Compliance: Certified with UL, CE, RoHS, and CSA, the ADM11-S3 meets international standards for safety, environmental impact, and quality assurance.

• Low Maintenance Requirements: Designed for long-term reliability, the ADM11-S3 is built to last with minimal maintenance needs, ensuring continuous operation in demanding industrial settings.

Technical FAQs

1. What are the input channels of the ADM11-S3?

   • The ADM11-S3 offers 8 analog input channels (configurable for 4-20mA or 0-10V) and 8 digital input channels (dry contact), providing flexibility for diverse sensor types.

2. What is the resolution for the analog inputs?

   • The ADM11-S3 provides 16-bit resolution for analog inputs, ensuring high-precision data acquisition for critical applications.

3. What is the sampling rate for the ADM11-S3?

   • The sampling rate for each channel is 100 ms, providing fast and real-time data collection to support responsive control and monitoring.

4. What protection features does the ADM11-S3 offer?

   • The ADM11-S3 includes overcurrent protection, overvoltage protection, and short-circuit protection to ensure the module and connected devices are protected from electrical faults.

5. What is the temperature range for the ADM11-S3?

   • The ADM11-S3 operates within a temperature range of -10°C to 60°C (14°F to 140°F), suitable for most industrial environments.

6. What is the weight of the ADM11-S3?

   • The ADM11-S3 weighs approximately 0.35 kg (0.77 lbs), making it compact and lightweight for easy integration.

7. How is the ADM11-S3 mounted?

   • The ADM11-S3 is designed for DIN rail mounting, making installation straightforward and quick in industrial control panels.

8. Can the ADM11-S3 be used in outdoor applications?

   • The ADM11-S3 is intended for indoor use with an IP20 protection rating. For outdoor use, it must be housed in a suitable protective enclosure.

9. What input voltage is required for the ADM11-S3?

   • The ADM11-S3 requires a 24V DC ±20% input voltage, which is common for many industrial control systems.

10. What certifications does the ADM11-S3 have?

• The ADM11-S3 is certified with UL, CE, RoHS, and CSA, ensuring that it meets global standards for safety and quality.
