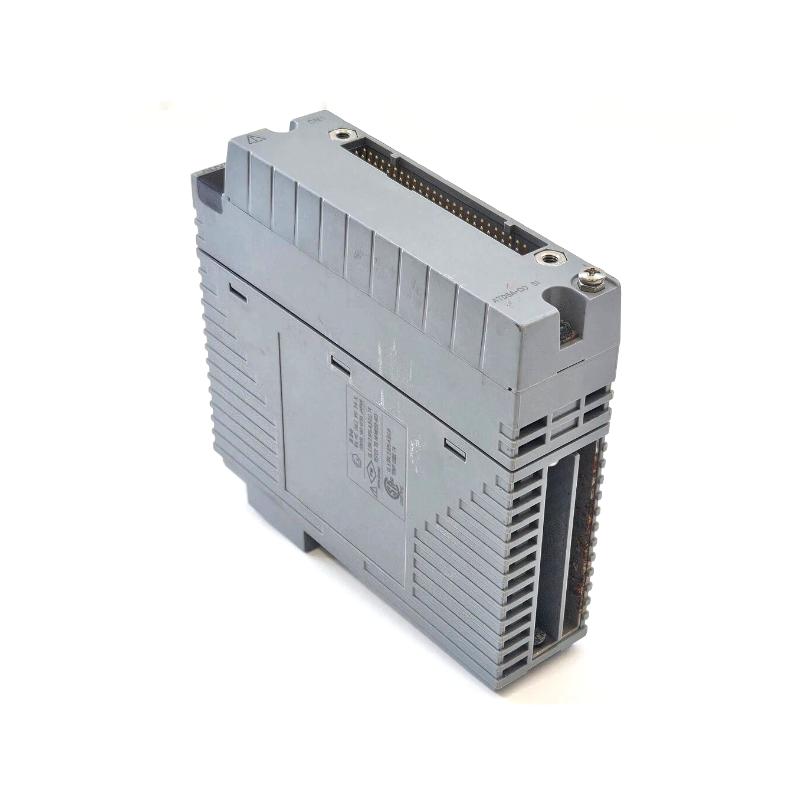

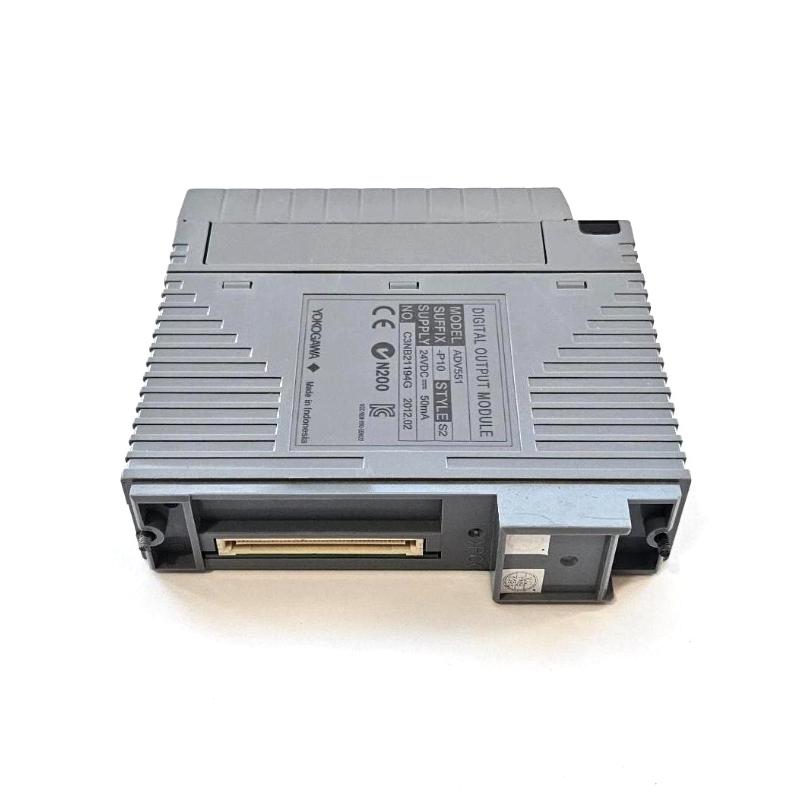

Yokogawa ADV561-P10 Advanced Control CPU Module – Dual-Core Processing, Scalable I/O Capacity, and Robust Communication for Industrial Automation Applications

Applications

The Yokogawa ADV561-P10 is designed for a wide range of industrial automation applications, including:

• Process Control: Ideal for industries like chemicals, pharmaceuticals, food & beverage, and oil & gas, where continuous and precise control is required.

• Manufacturing Automation: Perfect for controlling high-speed production lines, assembly processes, and machinery requiring real-time decision-making.

• Building Automation: Used in controlling HVAC systems, lighting, and energy management for large buildings, campuses, and industrial sites.

• Energy & Utilities: Manages power generation, distribution, and energy consumption, optimizing efficiency in energy plants and utilities.

• Robotics: Suitable for controlling automated systems, robotic arms, and material handling equipment in manufacturing and logistics.

With its powerful features and broad I/O capabilities, the ADV561-P10 is suitable for both small and large-scale systems in diverse industrial sectors.

Advantages

• Dual-Core Processing Power: The 1.8 GHz dual-core processor delivers exceptional processing speed, enabling efficient and real-time control for a variety of complex automation tasks.

• Scalable I/O Capacity: Supporting up to 4000 I/O modules, the ADV561-P10 can easily scale to meet the demands of large and complex systems.

• Multiple Communication Ports: Equipped with two Ethernet ports, two USB ports, and one serial port, the ADV561-P10 offers flexible and reliable communication for seamless integration with other devices and systems.

• Wide Temperature Range: Operating from -10°C to 60°C, the module is designed to function in a broad range of environments, ensuring reliable performance in both hot and cold industrial settings.

• Compact and Rugged Design: The module’s compact footprint (9.5 x 6.2 x 4.2 inches) makes it easy to install in space-constrained environments while maintaining rugged durability for long-term reliability.

• Advanced Diagnostics: The ADV561-P10 includes integrated diagnostic tools, allowing for quick troubleshooting and reducing downtime in mission-critical applications.

Technical FAQs

1. What is the processing speed of the ADV561-P10?

   • The ADV561-P10 is powered by a 1.8 GHz dual-core processor, ensuring fast and reliable control.

2. How many I/O modules can the ADV561-P10 support?

   • The ADV561-P10 supports up to 4000 I/O modules, offering flexibility for both small and large systems.

3. What is the weight of the ADV561-P10?

   • The ADV561-P10 weighs 2.9 lbs (1.31 kg), making it both lightweight and easy to install.

4. What is the operating temperature range of the ADV561-P10?

   • The module operates between -10°C and 60°C, suitable for a wide range of industrial environments.

5. Does the ADV561-P10 support Ethernet communication?

   • Yes, the ADV561-P10 includes two Ethernet ports for reliable communication with other devices and systems.

6. Can the ADV561-P10 be used in vibration-prone environments?

   • Yes, the ADV561-P10 is rated for resistance to vibration up to 3 g at frequencies between 5–500 Hz.

7. What are the power consumption requirements for the ADV561-P10?

   • The ADV561-P10 has a typical power consumption of 16W, which makes it energy-efficient for its performance.

8. Can I expand the I/O capacity with the ADV561-P10?

   • Yes, the ADV561-P10 can support up to 4000 I/O modules, making it scalable for larger systems.

9. Does the ADV561-P10 include diagnostic features?

   • Yes, the ADV561-P10 includes advanced diagnostic features that allow quick identification of system issues, reducing downtime.

10. In which industries is the ADV561-P10 commonly used?

• The ADV561-P10 is used in process control, manufacturing automation, energy & utilities, building automation, and robotics.
