Brand:Siemens Item No.:6AG1222-1BF32-2XB0 Product Origin:Germany Product Dimensions:45 × 100 × 75 mm Product Weight:0.18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

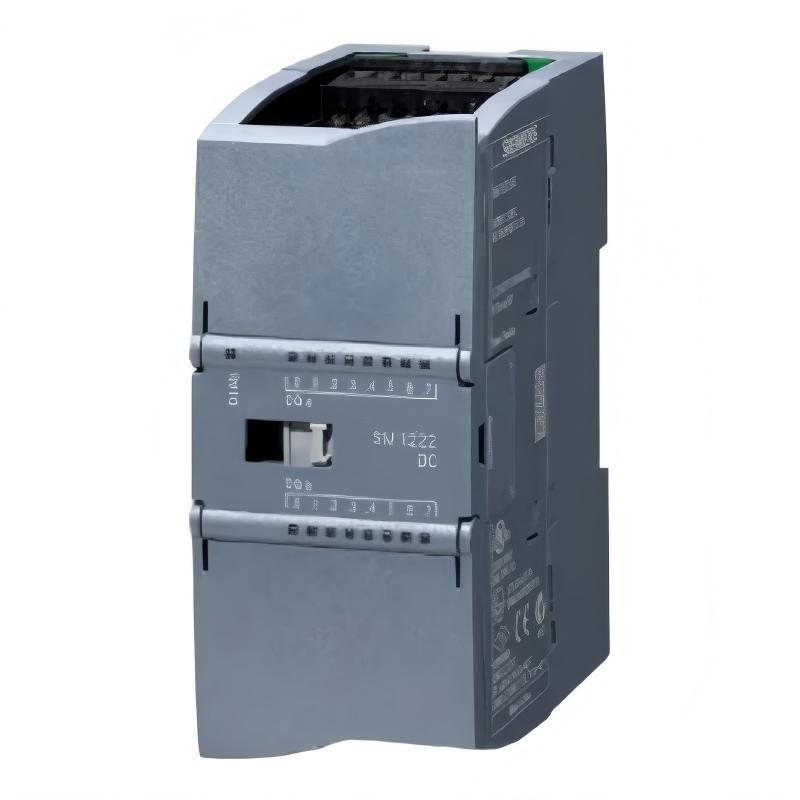

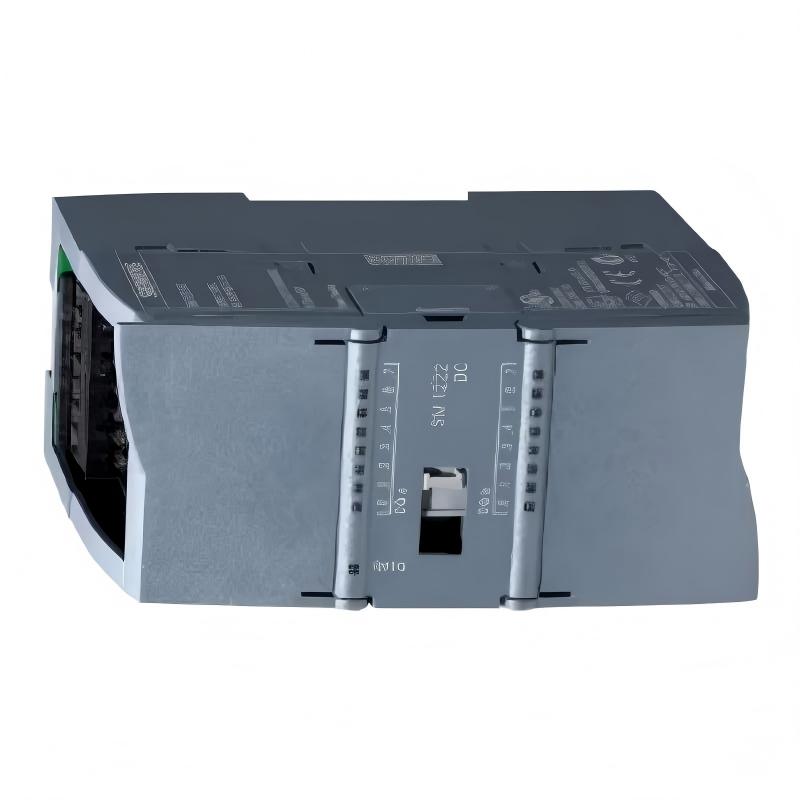

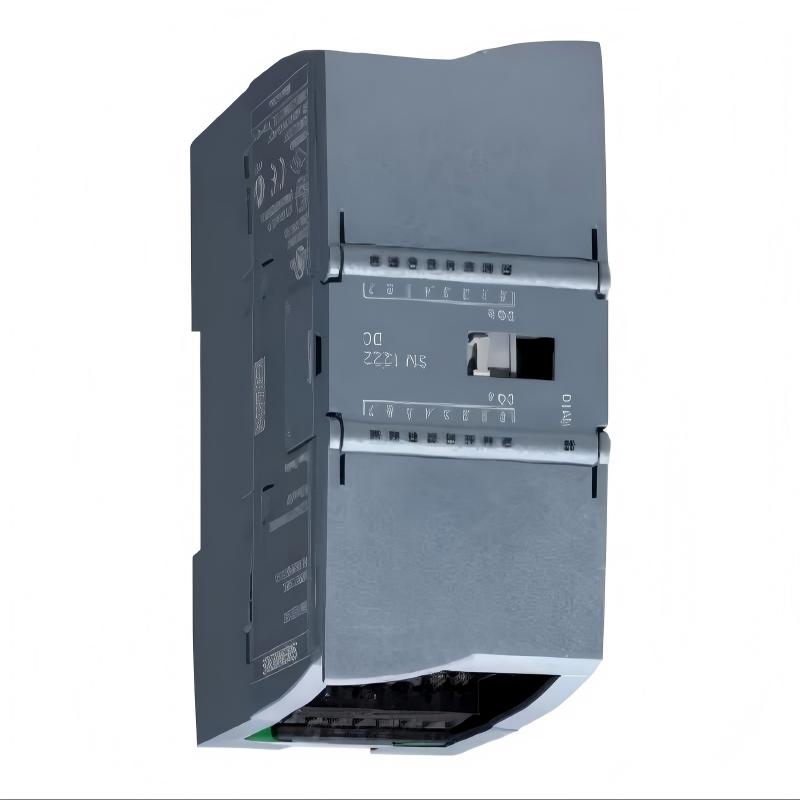

The Siemens 6AG1222-1BF32-2XB0 Digital Output Module is part of the SIPLUS S7-1200 product range. It expands the digital output capacity of compatible PLC systems, allowing control programs to operate connected equipment through eight 24 V DC transistor outputs.
Its conformal coating and extended temperature specifications make it suitable for applications where standard environmental conditions may not be sufficient. The module also supports diagnostic functions that help maintenance personnel identify supply-voltage and module-related issues.
When selecting this module for a new project or as a replacement, engineers should verify the S7-1200 configuration, electrical load requirements, output-group current limits, and external protection arrangements.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1222-1BF32-2XB0
Product Series
SIPLUS SIMATIC S7-1200
Product Type
SM 1222 Digital Output Module
Standard Base Model
6ES7222-1BF32-0XB0
Number of Digital Outputs
8
Output Type
Transistor
Rated Output Voltage
24 V DC
Permissible Supply Voltage
20.4–28.8 V DC
Rated Output Current
0.5 A per channel
Maximum Resistive Load Current
0.5 A
OFF-to-ON Delay
Maximum 50 μs
ON-to-OFF Delay
Maximum 200 μs
Short-Circuit Protection
No; external protection required
Conformal Coating
Yes
Operating Temperature
-40°C to +70°C
Cold Startup Temperature
-25°C
Typical Power Loss
1.5 W
Protection Rating
IP20
Dimensions
45 × 100 × 75 mm
Weight
0.18 kg / 0.40 lb
Recommended Related Models
Siemens 6ES7222-1BF32-0XB0 Digital Output Module – Standard S7-1200 SM 1222 version on which the SIPLUS model is based.
Siemens 6AG1222-1BH32-2XB0 Digital Output Module – SIPLUS S7-1200 module with 16 digital outputs.
Siemens 6AG1222-1BF32-4XB0 Digital Output Module – SIPLUS variant with a different environmental temperature specification.
Siemens 6AG1223-0BD30-5XB0 Digital I/O Module – A compact S7-1200 signal-board option; verify the exact part number and I/O configuration before selection.
Siemens 6AG1221-1BF32-2XB0 Digital Input Module – SIPLUS S7-1200 digital input module for compatible signal acquisition applications.
Popular Related Models
Siemens 6ES7222-1BF32-0XB0 Digital Output Module
Siemens 6AG1222-1BH32-2XB0 Digital Output Module
Siemens 6AG1222-1BF32-4XB0 Digital Output Module
Siemens 6ES7223-0BD30-0XB0 Digital I/O Signal Board
Siemens 6AG1221-1BF32-2XB0 Digital Input Module
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200 CPU Module
Applications
Factory Automation: Controls compatible actuators and electrical loads on automated production lines.
Machine Control: Provides digital switching signals for valves, relays, and other compatible devices.
Packaging Equipment: Supports output control for machine sequences and production operations.
Industrial Process Control: Connects PLC logic with compatible field-level equipment.
Harsh Industrial Environments: Conformal coating and extended temperature capability support use in demanding operating conditions.
S7-1200 PLC Expansion: Adds eight digital output channels to a compatible SIMATIC controller configuration.
Advantages
Eight Digital Outputs: Provides eight transistor output channels in one module.
24 V DC Operation: Designed for common industrial control voltage applications.
0.5 A per Output: Supports compatible loads within the specified current and group limits.
Fast Switching Response: Maximum switching delay is approximately 50 μs for OFF-to-ON and 200 μs for ON-to-OFF with resistive loads.
Conformal Coating: Helps protect electronic assemblies against environmental contaminants.
Extended Temperature Range: Supports operation from -40°C to +70°C, with cold startup specified from -25°C.
Integrated Diagnostics: Supports diagnostic functions, diagnostic alarms, and supply-voltage monitoring.
Technical FAQs
Q1: What is the Siemens 6AG1222-1BF32-2XB0 used for?
It provides eight digital transistor outputs for controlling compatible loads in a Siemens SIMATIC S7-1200 PLC system.
Q2: How many digital output channels does it have?
The module has eight digital outputs arranged in one group.
Q3: What is the rated output voltage?
The rated output voltage is 24 V DC. The permissible supply voltage range is 20.4–28.8 V DC.
Q4: What is the maximum output current per channel?
Each output is rated at 0.5 A. The total current per output group must also remain within the manufacturer's specified limits.
Q5: Does the module use relay or transistor outputs?
It uses transistor outputs, making it suitable for electronic switching of compatible DC loads.
Q6: What is the operating temperature range?
The specified operating temperature range is -40°C to +70°C. Cold startup is specified from -25°C.
Q7: What is the purpose of the conformal coating?
It provides an additional protective layer over electronic assemblies to help withstand demanding environmental conditions.
Q8: Does the module have built-in short-circuit protection?
No. The outputs are not short-circuit protected, so suitable external protection and correct load selection are required.
Q9: Which standard Siemens module is the SIPLUS version based on?
It is based on the Siemens 6ES7222-1BF32-0XB0 SM 1222 digital output module.
Q10: What should be checked before replacing an existing output module?
Verify the complete part number, output type, load current, wiring arrangement, PLC compatibility, and environmental requirements before installation.
