Brand:Siemens Item No.:6AG1222-1BH32-2XB0 Product Origin:Germany Product Dimensions:45 × 100 × 75 mm Product Weight:0.205 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

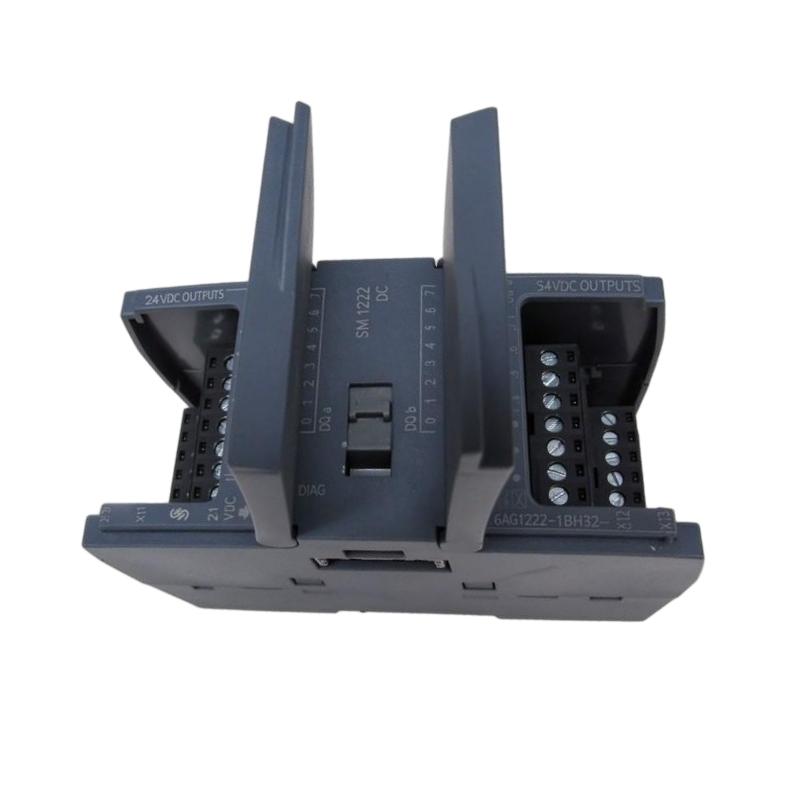

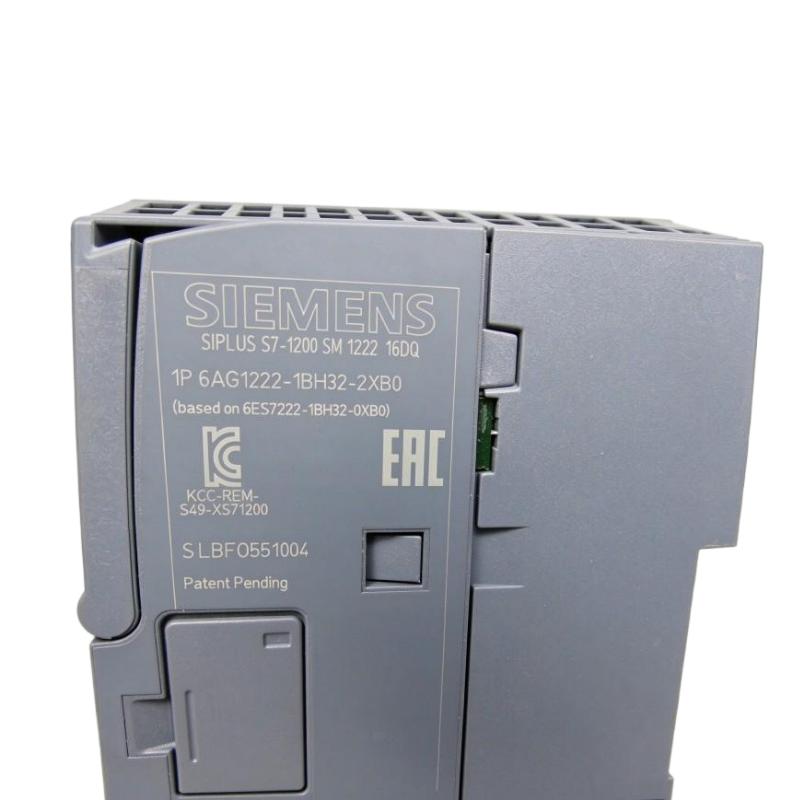

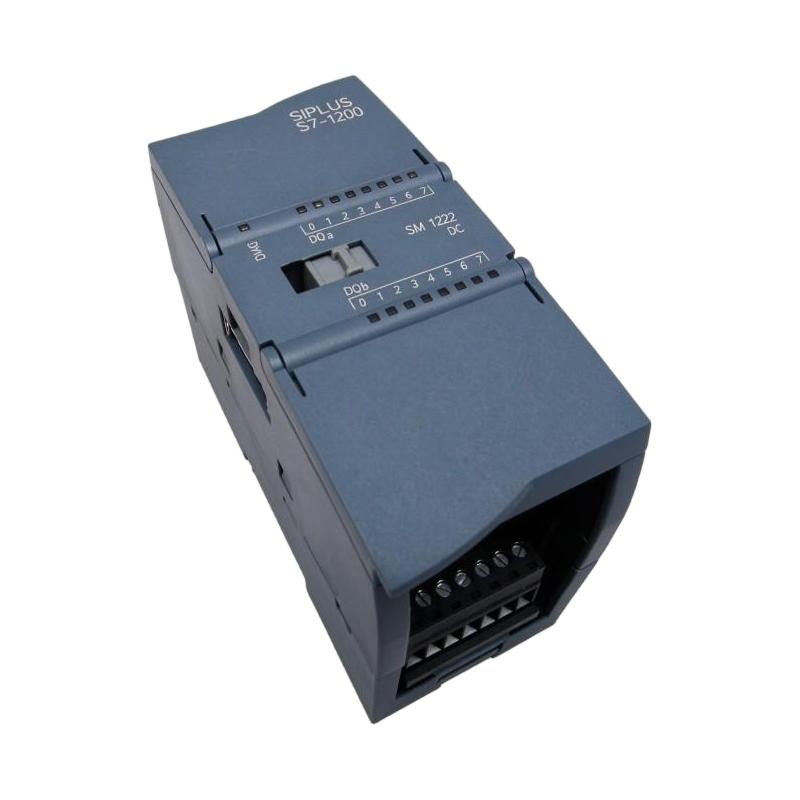

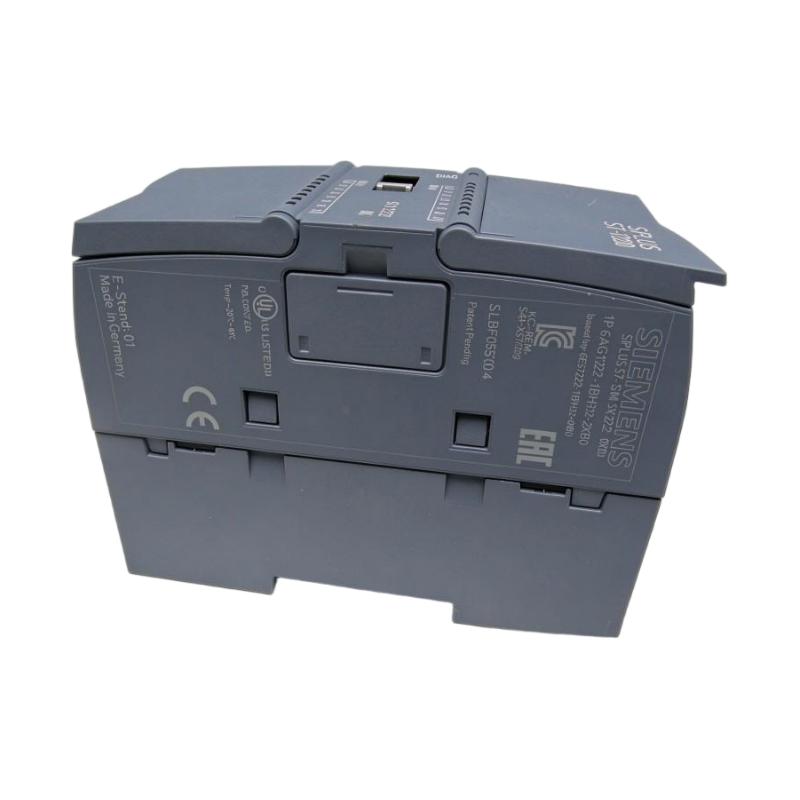

The Siemens 6AG1222-1BH32-2XB0 Digital Output Module belongs to the SIPLUS S7-1200 product family. It expands the output capacity of compatible PLC systems, allowing the controller to operate external equipment through 16 transistor-based digital output channels.
Its conformal coating and extended temperature specification make it suitable for demanding industrial environments where standard operating conditions may be insufficient. Diagnostic functions also help maintenance personnel monitor output states and supply-voltage conditions.
For replacement or new installations, verify the CPU compatibility, electrical load requirements, output-group current limits, and wiring configuration before commissioning.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1222-1BH32-2XB0
Product Series
SIPLUS SIMATIC S7-1200
Product Type
SM 1222 Digital Output Module
Standard Base Model
6ES7222-1BH32-0XB0
Number of Digital Outputs
16
Output Type
Transistor
Rated Output Voltage
24 V DC
Permitted Supply Voltage
20.4–28.8 V DC
Rated Output Current
0.5 A per channel
Maximum Output Group Current
8 A up to 50°C, subject to installation conditions
Output Switching Delay
Up to 50 μs OFF-to-ON; 200 μs ON-to-OFF
Short-Circuit Protection
No
Conformal Coating
Yes
Operating Temperature
-40°C to +70°C
Startup Temperature
-25°C
Protection Rating
IP20
Dimensions
45 × 100 × 75 mm
Weight
0.205 kg / 0.45 lb
Recommended Related Models
Siemens 6ES7222-1BH32-0XB0 Digital Output Module – Standard S7-1200 SM 1222 version on which this SIPLUS model is based.
Siemens 6AG1222-1BH32-4XB0 Digital Output Module – SIPLUS version with an operating temperature range of -20°C to +60°C.
Siemens 6AG1222-1BF32-2XB0 Digital Output Module – SIPLUS module with eight transistor output channels.
Siemens 6AG1222-1HF32-2XB0 Digital Output Module – SIPLUS S7-1200 relay output option; verify electrical requirements before selection.
Siemens 6AG1221-1BH32-2XB0 Digital Input Module – SIPLUS digital input option for compatible S7-1200 systems.
Popular Related Models
Siemens 6ES7222-1BH32-0XB0 Digital Output Module
Siemens 6AG1222-1BH32-4XB0 Digital Output Module
Siemens 6AG1222-1BF32-2XB0 Digital Output Module
Siemens 6AG1222-1HF32-2XB0 Relay Output Module
Siemens 6AG1221-1BH32-2XB0 Digital Input Module
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200 CPU Module
Applications
Factory Automation: Controls compatible electrical loads across automated production lines.
Machine Control: Switches DC actuators, solenoids, and other supported field devices.
Packaging Systems: Supports automated sequencing and equipment control.
Material Handling: Provides digital output signals for compatible conveyor and handling equipment.
Industrial Process Control: Connects PLC logic with suitable field-level control devices.
Harsh-Environment Applications: Supports installations requiring conformal coating and an extended operating temperature range.
Advantages
16 Digital Output Channels: Provides high-density output control in a single module.
24 V DC Transistor Outputs: Suitable for compatible industrial DC switching applications.
0.5 A per Channel: Supports loads within the specified current and group limits.
Extended Temperature Range: Designed for operation from -40°C to +70°C.
Conformal Coating: Helps protect electronic assemblies against environmental contaminants.
Integrated Diagnostics: Supports output-status indication, diagnostic alarms, and supply-voltage monitoring.
S7-1200 Integration: Designed for compatible SIMATIC S7-1200 configurations.
Technical FAQs
Q1: What is the Siemens 6AG1222-1BH32-2XB0 used for?
It provides 16 digital transistor outputs for controlling compatible devices in a SIMATIC S7-1200 PLC system.
Q2: How many digital outputs does this module have?
It provides 16 digital output channels.
Q3: What is the rated output voltage?
The rated output voltage is 24 V DC, with a permitted supply voltage range of 20.4–28.8 V DC.
Q4: What is the rated output current per channel?
The rated output current is 0.5 A per channel. The total current per output group must remain within the manufacturer's limits.
Q5: Does the module use relay or transistor outputs?
It uses transistor outputs, which support electronic switching of compatible DC loads.
Q6: What is the operating temperature range?
The specified operating temperature range is -40°C to +70°C, with startup permitted from -25°C under the stated conditions.
Q7: What is the purpose of the conformal coating?
It provides an additional protective layer over electronic assemblies to help withstand specified environmental conditions.
Q8: Does the module have short-circuit protection?
No. The outputs are not short-circuit protected. Appropriate external protection and correct load selection are required.
Q9: Which standard Siemens model is this module based on?
It is based on the Siemens 6ES7222-1BH32-0XB0 SM 1222 digital output module.
Q10: Which engineering software is used with this module?
The module is configured within the compatible SIMATIC S7-1200 engineering environment using STEP 7 in TIA Portal.
