Brand:Siemens Item No.:6AV2123-2MB03-0AX0 Product Origin:Germany Product Dimensions:330 × 245 × 54.9 mm Product Weight:2.05 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

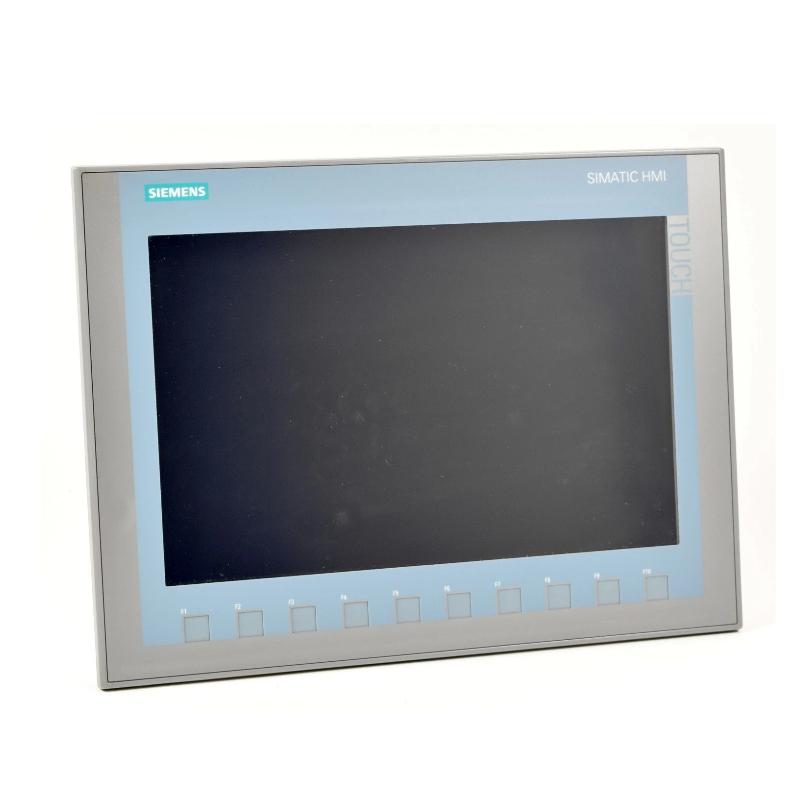

The Siemens 6AV2123-2MB03-0AX0 Basic Panel, also known as the SIMATIC HMI KTP1200 Basic, is an operator interface designed for industrial machine control and process visualization. It combines a 12-inch TFT widescreen display with touchscreen and physical key operation, giving operators flexible access to configured machine functions and process information.
Equipped with a PROFINET communication interface, the panel can be integrated into compatible Siemens automation systems. It supports graphical operating screens, process value displays, and alarm handling according to the engineering project, helping operators monitor equipment and interact with production processes.
The Siemens 6AV2123-2MB03-0AX0 is suitable for machine control panels, manufacturing lines, and industrial equipment requiring a practical HMI solution. Before installation, users should verify software compatibility, mounting dimensions, and communication requirements to ensure the panel matches the existing automation configuration.
Siemens 6AV2123-2DB03-0AX0 – SIMATIC HMI KTP400 Basic Panel with a smaller display for compact operator stations.
Siemens 6AV2123-2GB03-0AX0 – SIMATIC HMI KTP700 Basic Panel for applications requiring a 7-inch display.
Siemens 6AV2123-2JB03-0AX0 – SIMATIC HMI KTP900 Basic Panel with a 9-inch display.
Siemens 6AV2123-2MA03-0AX0 – SIMATIC HMI KTP1200 Basic DP variant with a PROFIBUS DP interface.
Siemens 6AG1123-2MB03-2AX0 – SIPLUS HMI KTP1200 Basic variant for applications with specific environmental requirements.
Popular Related Models
Siemens 6AV2123-2DB03-0AX0
Siemens 6AV2123-2GB03-0AX0
Siemens 6AV2123-2JB03-0AX0
Siemens 6AV2123-2MA03-0AX0
Siemens 6AG1123-2MB03-2AX0
Applications
The Siemens 6AV2123-2MB03-0AX0 is a SIMATIC HMI Basic Panel designed for operator interaction and machine visualization in industrial automation systems. Human-machine interfaces (HMIs) allow operators to monitor machine status, view process information, acknowledge alarms, and interact with automation equipment through graphical screens.
Typical applications include:
Machine Operation: Providing operators with a graphical interface for starting, stopping, and monitoring compatible machinery.
Production Line Monitoring: Displaying operating status, process values, and machine messages.
Industrial Process Visualization: Presenting key operating parameters in a clear, accessible format.
Alarm and Message Handling: Helping operators identify equipment faults and respond to system notifications.
PLC-Based Automation: Supporting operator interaction with compatible Siemens SIMATIC controllers.
Control Cabinet Installation: Integrating an HMI into machine panels and industrial control enclosures.
Advantages
User-Friendly Operation: Provides a graphical interface for straightforward machine interaction.
Industrial Visualization: Displays operating values, machine states, and messages in an organized format.
SIMATIC Integration: Designed for use in Siemens industrial automation environments.
Compact Panel Design: Supports installation in machine control panels and operator stations.
Centralized Operator Access: Allows key machine functions and status information to be accessed from a single interface.
Improved Operational Visibility: Helps operators identify machine conditions and respond to alarms more efficiently.
Technical FAQs
Q1: What is the Siemens 6AV2123-2MB03-0AX0?
The Siemens 6AV2123-2MB03-0AX0 is a SIMATIC HMI KTP1200 Basic Panel designed for operator control and visualization in industrial automation systems.
Q2: What screen size does this Basic Panel have?
It features a 12-inch TFT widescreen display with LED backlighting.
Q3: What is the display resolution?
The display resolution is 1280 × 800 pixels, supporting clear presentation of machine status, process values, and operator interface screens.
Q4: Does the panel support touchscreen operation?
Yes. It supports touchscreen operation as well as physical key operation, allowing operators to interact with the configured interface.
Q5: What communication interface does it provide?
This model features a PROFINET interface for communication with compatible automation equipment.
Q6: Which engineering software is used to configure the panel?
The model was designed for configuration with WinCC Basic V13 or STEP 7 Basic V13 and compatible software environments. Confirm software compatibility before commissioning.
Q7: Can this panel communicate with Siemens PLCs?
Yes. It supports communication with compatible SIMATIC controllers, including suitable S7-1200 and S7-1500 configurations, when properly configured.
Q8: What types of information can the panel display?
Depending on the project configuration, it can display process values, machine status, alarm messages, operating screens, and other visualization elements.
Q9: Is the Siemens 6AV2123-2MB03-0AX0 suitable for industrial machine control?
Yes. It is intended for operator interfaces in industrial machinery, production equipment, and compatible automation systems.
Q10: What should be checked before replacing an existing HMI panel?
Check the complete model number, display size, mounting cutout, communication interface, project compatibility, and configured PLC connections before replacing the panel.
