Brand:Siemens Item No.:6AV2124-0JC01-0AX0 Product Origin:Germany Product Dimensions:274 × 190 × 62.7 mm Product Weight:2.482 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

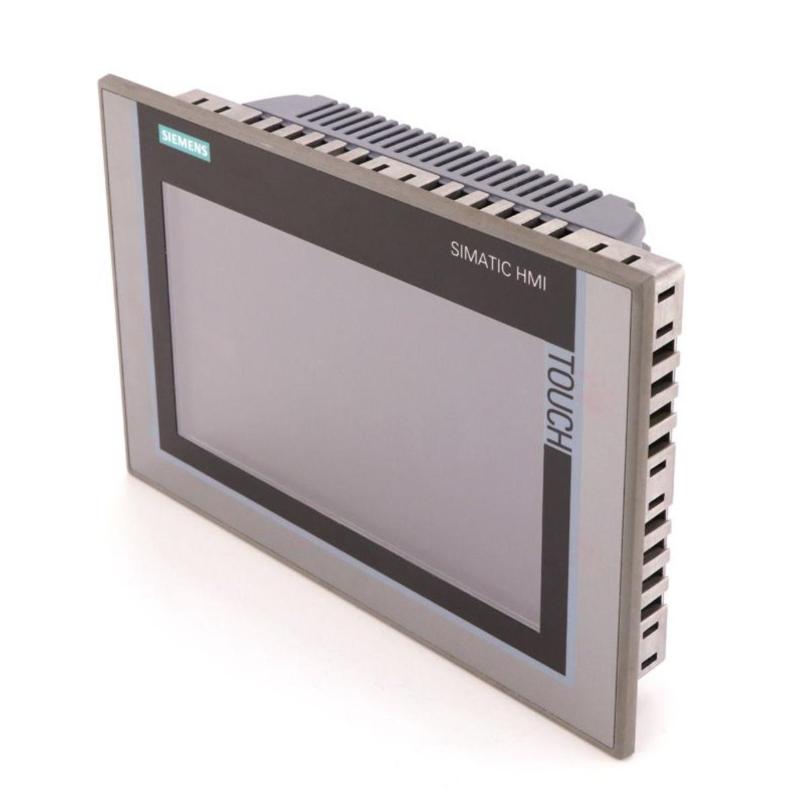

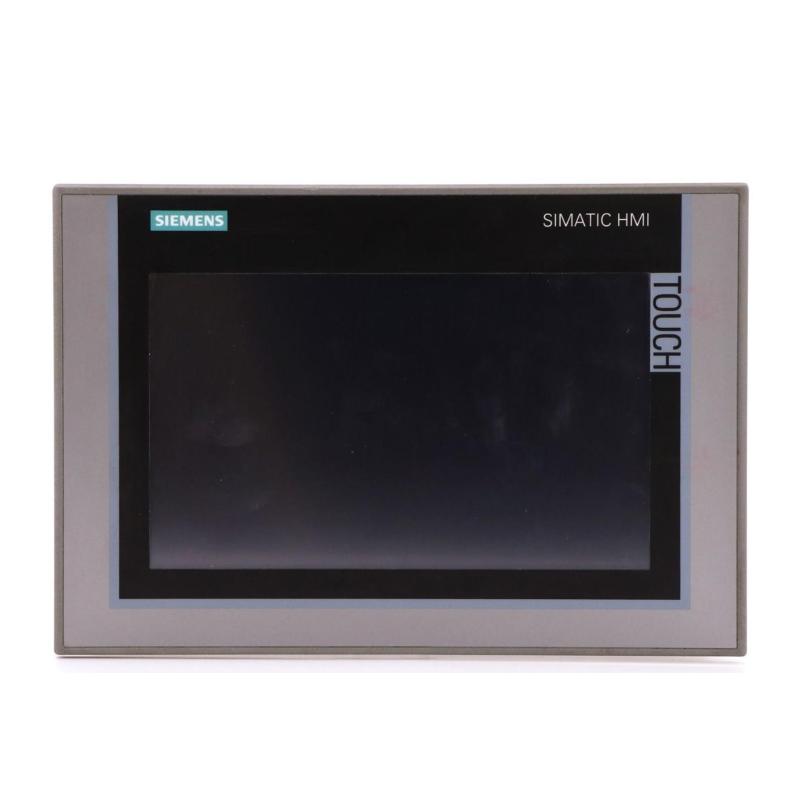

The Siemens 6AV2124-0JC01-0AX0 Comfort Panel is a SIMATIC HMI TP900 Comfort operator interface designed for industrial machine operation and process monitoring. Its 9-inch widescreen TFT display supports 16 million colors and an 800 × 480 pixel resolution, providing a clear interface for displaying machine status, process values, alarms, and operating graphics.

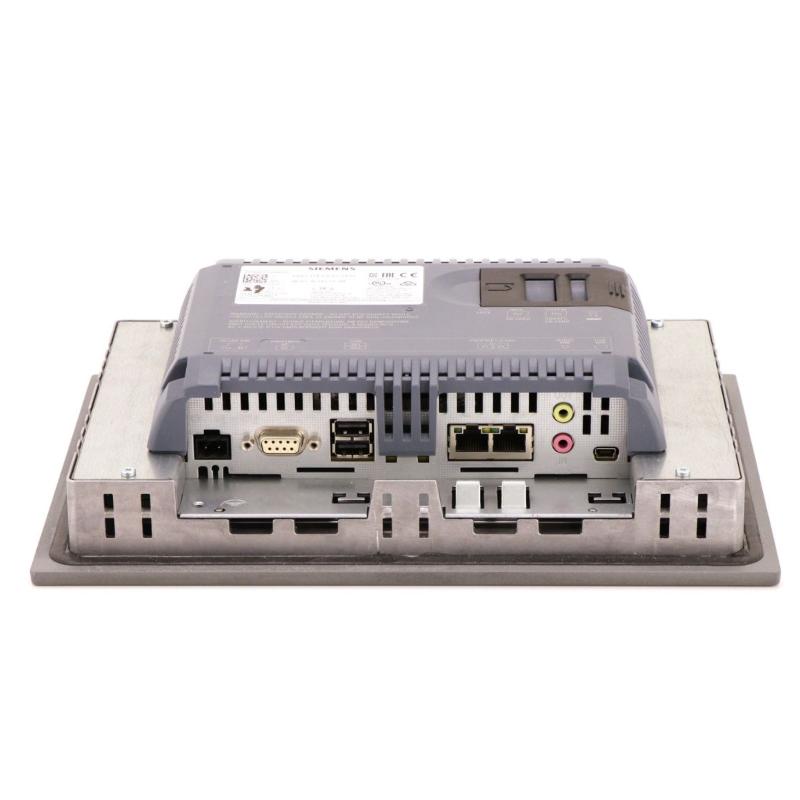

The panel combines touchscreen operation with PROFINET and MPI/PROFIBUS DP communication interfaces. It can be configured to communicate with compatible PLCs and automation equipment, enabling operators to monitor processes, acknowledge alarms, and interact with machine functions through project-defined screens.
With 12 MB of configuration memory and support for WinCC Comfort engineering software, the TP900 Comfort is suitable for a range of industrial HMI applications. Its dimensions are 274 × 190 × 62.7 mm, and its supplied weight specification is 2.482 kg. Before installation or replacement, verify mounting requirements, electrical compatibility, and project software support.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AV2124-0JC01-0AX0
Product Family
SIMATIC HMI Comfort Panels
Product Type
Comfort Panel / HMI Operator Panel
Model Designation
TP900 Comfort
Display Type
Widescreen TFT
Display Size
9 inches
Display Resolution
800 × 480 pixels
Number of Colors
16,777,216
Operating Method
Touchscreen
Rated Supply Voltage
24 V DC
Permissible Supply Voltage
19.2–28.8 V DC
Communication Interfaces
PROFINET, MPI/PROFIBUS DP
Configuration Memory
12 MB
Operating System
Windows CE 6.0
Configuration Software
WinCC Comfort V11 or compatible environment
Dimensions
274 × 190 × 62.7 mm
Weight
2.482 kg / 5.47 lb
Recommended Related Models
Siemens 6AV2124-0GC01-0AX0 – TP700 Comfort Panel with a 7-inch display for compact operator interfaces.
Siemens 6AV2124-0MC01-0AX0 – TP1200 Comfort Panel with a larger display for applications requiring more screen space.
Siemens 6AV2124-0XC02-0AX1 – TP2200 Comfort Panel for applications requiring a large-format operator interface.
Siemens 6AG1124-0JC01-4AX0 – SIPLUS TP900 Comfort variant with conformal coating for specified environmental conditions.
Popular Related Models
Siemens 6AV2124-0GC01-0AX0
Siemens 6AV2124-0MC01-0AX0
Siemens 6AV2124-0QC02-0AX1
Siemens 6AV2124-0XC02-0AX1
Siemens 6AG1124-0JC01-4AX0
Applications
The Siemens 6AV2124-0JC01-0AX0 is a SIMATIC HMI TP900 Comfort Panel designed for industrial machine operation, process visualization, and operator monitoring. Featuring a 9-inch widescreen display, it provides a graphical interface for viewing process data, checking equipment status, managing alarms, and interacting with compatible automation systems.
Typical applications include:
Industrial Machine Control: Displaying operating screens and providing access to configured machine functions.
Production Line Monitoring: Presenting machine status, production parameters, and operational messages.
Process Visualization: Displaying process values and graphical information for industrial systems.
Alarm and Event Management: Helping operators identify faults and monitor equipment notifications.
PLC-Based Automation: Connecting with compatible SIMATIC controllers through supported communication interfaces.
Control Cabinet Integration: Providing a centralized operator interface for industrial machinery and production equipment.
Advantages
9-Inch Widescreen Display: Provides more screen space for operating graphics and process information.
Touchscreen Operation: Allows direct interaction with configured HMI screens.
High-Color Visualization: Supports detailed graphical elements and clear process displays.
Industrial Communication: Supports PROFINET and MPI/PROFIBUS DP connectivity.
Flexible Operator Interface: Can display process values, alarms, trends, and machine status according to the project configuration.
Compact Panel Design: Suitable for integration into industrial control cabinets and operator stations.
SIMATIC Integration: Designed for use in compatible Siemens automation environments.
Technical FAQs
Q1: What is the Siemens 6AV2124-0JC01-0AX0?
The Siemens 6AV2124-0JC01-0AX0 is a SIMATIC HMI TP900 Comfort Panel designed for industrial operator control and process visualization.
Q2: What is the display size?
It features a 9-inch widescreen TFT display.
Q3: What is the display resolution?
The display resolution is 800 × 480 pixels.
Q4: Does the panel support touchscreen operation?
Yes. The panel uses touchscreen operation for navigating configured screens and interacting with machine functions.
Q5: Which communication interfaces are available?
The panel provides PROFINET and MPI/PROFIBUS DP interfaces for compatible industrial automation systems.
Q6: What is the rated power supply voltage?
The panel operates on a nominal 24 V DC supply. The specified permissible range is 19.2–28.8 V DC.
Q7: Which engineering software is used to configure this panel?
The TP900 Comfort can be configured using WinCC Comfort V11 or a compatible later engineering environment that supports the device.
Q8: How much configuration memory does the panel provide?
It provides 12 MB of configuration memory for supported HMI project data.
Q9: Can the panel communicate with Siemens PLCs?
Yes. It supports communication with compatible SIMATIC controllers, subject to the PLC model, communication protocol, and project configuration.
Q10: What should be checked before replacing this HMI panel?
Confirm the full order number, display resolution, mounting dimensions, supply voltage, communication interfaces, and compatibility of the existing HMI project with the replacement device.
