Brand:Siemens Item No.:6AV2124-0MC01-0AX0 Product Origin:Germany Product Dimensions:330 × 241 × 64 mm Product Weight:3.46 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

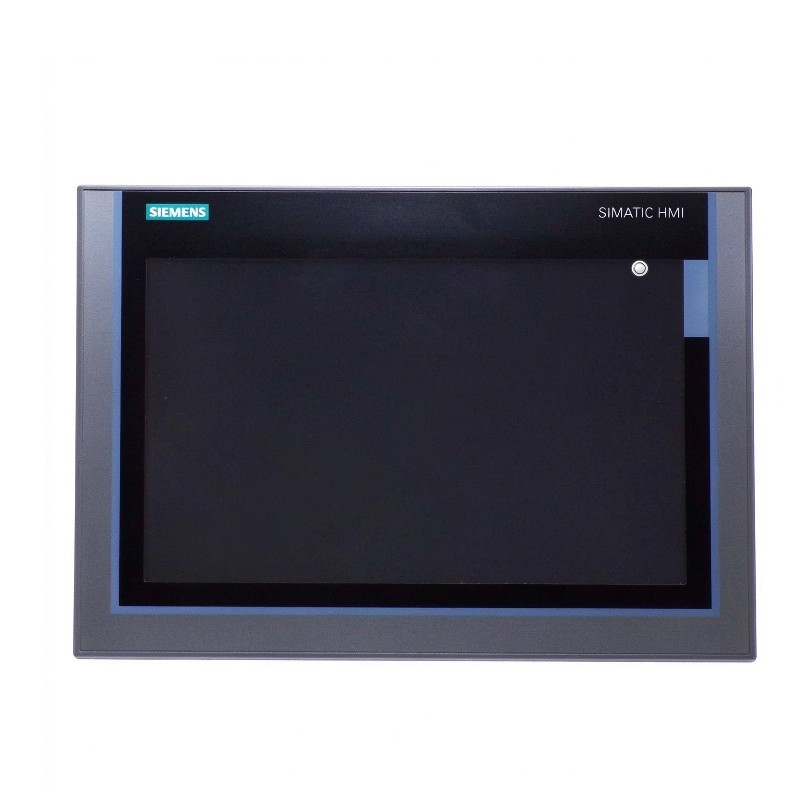

The Siemens 6AV2124-0MC01-0AX0 Comfort Panel is a SIMATIC HMI TP1200 Comfort operator interface designed for industrial automation and machine visualization. Its 12.1-inch widescreen TFT display supports 16 million colors and a resolution of 1280 × 800 pixels, providing a clear interface for displaying machine status, process values, alarms, and operating graphics.
The panel combines touchscreen operation with PROFINET and MPI/PROFIBUS DP communication interfaces. It can be integrated with compatible SIMATIC controllers to support operator interaction, equipment monitoring, and process visualization. With 12 MB of configuration memory and support for WinCC Comfort engineering software, it is suitable for industrial HMI projects designed for this hardware generation.
The Siemens TP1200 Comfort is used in manufacturing equipment, production lines, and industrial control stations where a larger operator display is beneficial. Its specified dimensions are 330 × 241 × 64 mm, and its weight is 3.46 kg. Before purchasing or replacing the unit, verify mounting requirements, electrical specifications, and engineering software compatibility.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AV2124-0MC01-0AX0
Product Family
SIMATIC HMI Comfort Panels
Product Type
Comfort Panel / HMI Operator Panel
Model Designation
TP1200 Comfort
Display Type
Widescreen TFT
Display Size
12.1 inches
Display Resolution
1280 × 800 pixels
Number of Colors
16,777,216
Operating Method
Touchscreen
Communication Interfaces
PROFINET, MPI/PROFIBUS DP
Configuration Memory
12 MB
Operating System
Windows CE 6.0
Configuration Software
WinCC Comfort V11 or compatible environment
Dimensions
330 × 241 × 64 mm
Weight
3.46 kg / 7.63 lb
Recommended Related Models
Siemens 6AV2124-0GC01-0AX0 – TP700 Comfort Panel with a 7-inch display for compact operator interfaces.
Siemens 6AV2124-0JC01-0AX0 – TP900 Comfort Panel with a 9-inch display for medium-sized visualization applications.
Siemens 6AV2124-0QC02-0AX1 – TP1500 Comfort Panel for applications requiring a larger operator display.
Siemens 6AG1124-0MC01-4AX0 – SIPLUS TP1200 Comfort variant with conformal coating for specified environmental conditions.
Popular Related Models
Siemens 6AV2124-0GC01-0AX0
Siemens 6AV2124-0JC01-0AX0
Siemens 6AV2124-0QC02-0AX1
Siemens 6AV2124-0UC02-0AX1
Siemens 6AG1124-0MC01-4AX0
Applications
The Siemens 6AV2124-0MC01-0AX0 is a SIMATIC HMI TP1200 Comfort Panel designed for industrial machine operation, process visualization, and automation monitoring. Its 12-inch widescreen display provides operators with a larger viewing area for process values, machine status, alarm messages, and graphical operating screens.
Typical applications include:
Industrial Machine Operation: Providing an interface for monitoring and controlling compatible automated machinery.
Production Line Monitoring: Displaying equipment status, production data, and operating parameters.
Process Visualization: Presenting process values and graphical information through configured HMI screens.
Alarm and Event Handling: Helping operators identify faults and respond to machine notifications.
PLC-Based Automation: Connecting to compatible SIMATIC controllers through supported communication interfaces.
Industrial Control Stations: Integrating operator visualization into manufacturing equipment and control cabinets.
Advantages
12-Inch Widescreen Display: Provides more space for detailed process graphics and operator controls.
Touchscreen Operation: Allows direct interaction with configured HMI screens.
High-Color Visualization: Supports detailed graphical elements and process displays.
Industrial Communication Interfaces: Supports PROFINET and MPI/PROFIBUS DP for compatible automation configurations.
Flexible HMI Functions: Can display alarms, trends, process values, and machine status according to the configured project.
SIMATIC Integration: Designed for compatible Siemens automation systems.
Industrial Panel Installation: Suitable for control cabinets and machine operator stations.
Technical FAQs
Q1: What is the Siemens 6AV2124-0MC01-0AX0?
The Siemens 6AV2124-0MC01-0AX0 is a SIMATIC HMI TP1200 Comfort Panel designed for industrial operator control, machine visualization, and process monitoring.
Q2: What is the screen size of this Comfort Panel?
It features a 12.1-inch widescreen TFT display.
Q3: What is the display resolution?
The display resolution is 1280 × 800 pixels, providing space for detailed graphics, process values, and operator controls.
Q4: Does the panel support touchscreen operation?
Yes. The panel supports touch operation for navigating screens and interacting with configured HMI functions.
Q5: Which communication interfaces does it provide?
It provides PROFINET and MPI/PROFIBUS DP interfaces for communication with compatible industrial automation devices.
Q6: What is the rated power supply voltage?
The panel uses a DC power supply. Confirm the permissible voltage range and power requirements in the technical documentation before installation.
Q7: Which engineering software is used to configure this panel?
The device is configurable with WinCC Comfort V11 or a compatible engineering environment that supports the hardware.
Q8: How much configuration memory does it have?
The TP1200 Comfort provides 12 MB of configuration memory for supported HMI project data.
Q9: Can it communicate with Siemens PLCs?
Yes. It can communicate with compatible SIMATIC controllers when the appropriate interface, communication settings, and HMI project are configured.
Q10: What should be checked before replacing an existing panel?
Verify the full order number, mounting dimensions, display resolution, power supply, communication interfaces, and compatibility of the existing HMI project.
