Brand:Siemens Item No.:6ES7521-1BL10-0AA0 Product Origin:Germany Product Dimensions:25 × 147 × 129 mm Product Weight:0.26 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

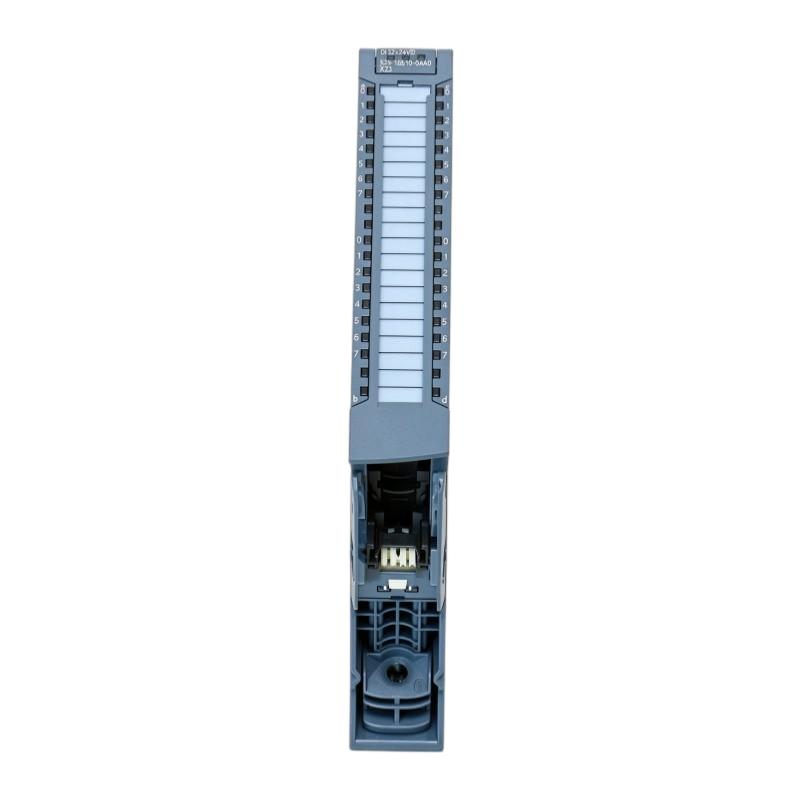

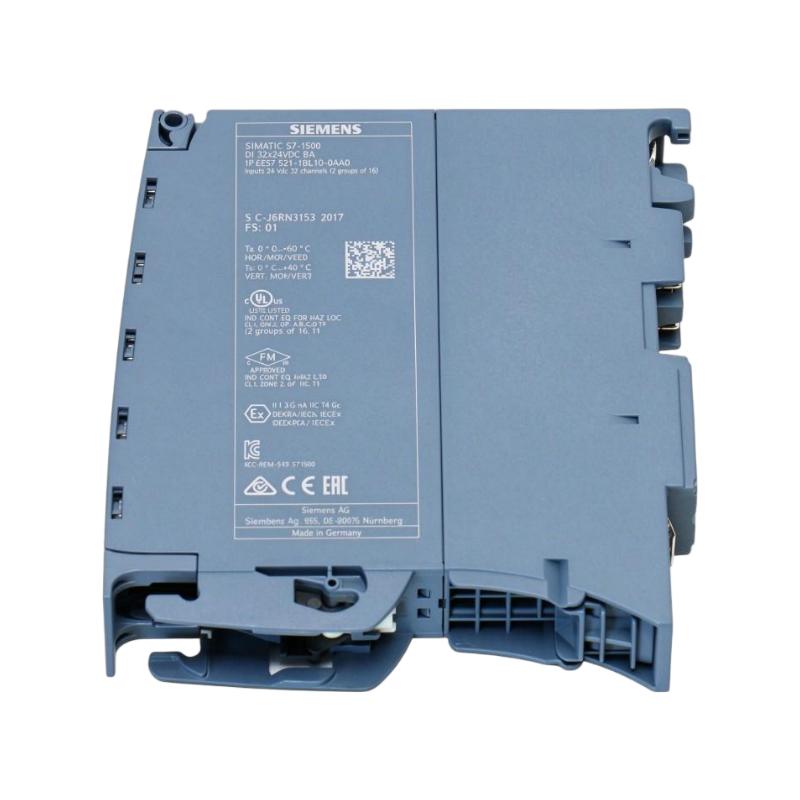

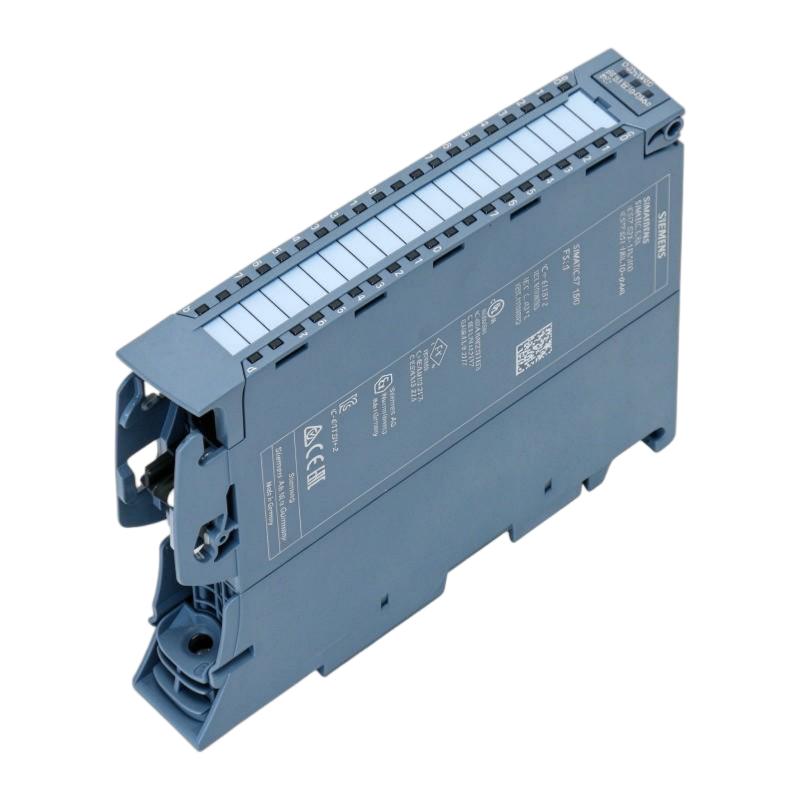

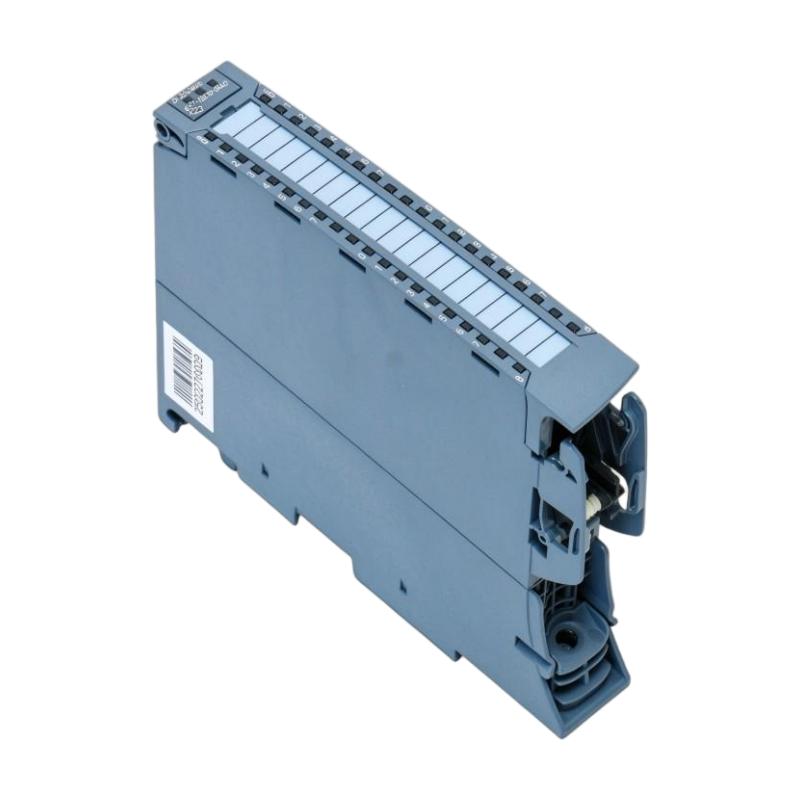

The Siemens 6ES7521-1BL10-0AA0 Digital Input Module is part of the SIMATIC S7-1500 SM 521 product family. It provides 32 digital inputs for collecting 24 V DC signals from sensors, switches, and other industrial field devices, allowing a compatible PLC to monitor equipment conditions and execute programmed control logic.
Designated DI 32x24VDC BA, this module features two groups of 16 input channels and a typical input delay of 3.2 ms. Its Type 3 input characteristics follow IEC 61131 requirements, making it suitable for common industrial signal acquisition tasks. The module also supports multi-channel signal monitoring in compatible S7-1500 and ET 200MP automation architectures.
The 6ES7521-1BL10-0AA0 is supplied with a 40-pin push-in front connector, simplifying wiring and installation. With dimensions of 25 × 147 × 129 mm and a specified module weight of 0.26 kg, it is designed for compact integration into modular industrial control systems.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6ES7521-1BL10-0AA0
Product Family
SIMATIC S7-1500 SM 521
Product Type
Digital Input Module
Module Designation
DI 32x24VDC BA
Number of Digital Inputs
32
Channel Arrangement
2 groups of 16
Rated Input Voltage
24 V DC
Permissible Input Voltage
19.2–28.8 V DC
Input Characteristic
Type 3, IEC 61131
Typical Input Delay
3.2 ms
Counter Function
Not supported
Front Connector
40-pin push-in connector
Engineering Software
Compatible STEP 7 / TIA Portal
Dimensions
25 × 147 × 129 mm
Weight
0.26 kg / 0.57 lb
Recommended Related Models
Siemens 6ES7521-1BL00-0AB0 – SIMATIC S7-1500 digital input module with 32 channels and high-feature input functions.
Siemens 6ES7521-1BH00-0AB0 – Digital input module with 16 channels for smaller I/O configurations.
Siemens 6ES7522-1BL01-0AB0 – SIMATIC S7-1500 digital output module for compatible output-control applications.
Siemens 6ES7523-1BL00-0AA0 – Digital input/output module for applications requiring combined signal acquisition and output control.
Siemens 6ES7590-1AE80-0AA0 – SIMATIC S7-1500 mounting rail accessory for compatible system installations.
Popular Related Models
Siemens 6ES7521-1BL00-0AB0
Siemens 6ES7521-1BH00-0AB0
Siemens 6ES7522-1BL01-0AB0
Siemens 6ES7523-1BL00-0AA0
Siemens 6ES7590-1AE80-0AA0
Applications
The Siemens 6ES7521-1BL10-0AA0 is a SIMATIC S7-1500 SM 521 digital input module designed to collect signals from sensors, switches, and other field devices in industrial automation systems. With 32 digital inputs operating at 24 V DC, it enables a compatible PLC to monitor machine status, detect signal changes, and support automated control sequences.
Typical applications include:
Industrial Machine Control: Monitoring proximity sensors, limit switches, and equipment status signals.
Production Line Automation: Collecting digital signals from manufacturing and assembly equipment.
Process Monitoring: Detecting operating conditions and changes in industrial processes.
Equipment Status Detection: Receiving signals from push buttons, auxiliary contacts, and compatible digital sensors.
PLC System Expansion: Increasing the digital input capacity of compatible SIMATIC S7-1500 and ET 200MP systems.
Distributed I/O Systems: Supporting suitable automation architectures that use compatible distributed input/output configurations.
Advantages
32 Digital Input Channels: Connects multiple field signals through one module.
24 V DC Input Operation: Supports a common voltage level used in industrial control circuits.
Grouped Channel Configuration: Organizes the 32 inputs into two groups of 16 channels.
Standardized Input Characteristics: Uses Type 3 digital inputs according to IEC 61131.
Defined Input Delay: Provides a typical input delay of 3.2 ms for signal acquisition.
Multi-Channel Signal Collection: Helps reduce the number of separate input modules needed in suitable installations.
Push-In Front Connector: Supports convenient field wiring and maintenance.
SIMATIC S7-1500 Compatibility: Integrates into compatible modular PLC and ET 200MP systems.
Technical FAQs
Q1: What is the Siemens 6ES7521-1BL10-0AA0?
It is a SIMATIC S7-1500 SM 521 digital input module, designated DI 32x24VDC BA, for collecting digital signals from industrial field devices.
Q2: How many digital inputs does this module provide?
It provides 32 digital input channels arranged in two groups of 16.
Q3: What is the rated input voltage?
The rated input voltage is 24 V DC, with a permissible range of 19.2–28.8 V DC.
Q4: What types of devices can be connected?
Compatible devices include digital sensors, switches, push buttons, and other field devices that meet the module's electrical input specifications.
Q5: What is the typical input delay?
The module has a typical input delay of 3.2 ms.
Q6: Does this module support counter functions?
No. The 6ES7521-1BL10-0AA0 is a standard digital input module and does not provide the counter functionality available on certain high-feature input modules.
Q7: Does it support diagnostic information?
The module provides status and diagnostic information for supported operating conditions, helping users identify issues during system maintenance.
Q8: Which engineering software can configure the module?
It can be configured using compatible STEP 7 engineering software in the TIA Portal environment. Confirm the minimum software version required by the installed hardware and firmware.
Q9: Is the module compatible with SIMATIC S7-1500 systems?
Yes. It is designed for compatible SIMATIC S7-1500 and ET 200MP configurations.
Q10: What should be checked before replacing the module?
Verify the complete order number, input voltage, channel count, wiring arrangement, front connector type, controller compatibility, and engineering software configuration.
