Brand:Siemens Item No.:6ES7540-1AB00-0AA0 Product Origin:Germany Product Dimensions:35 x 147 x 127 mm Product Weight:0.268 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

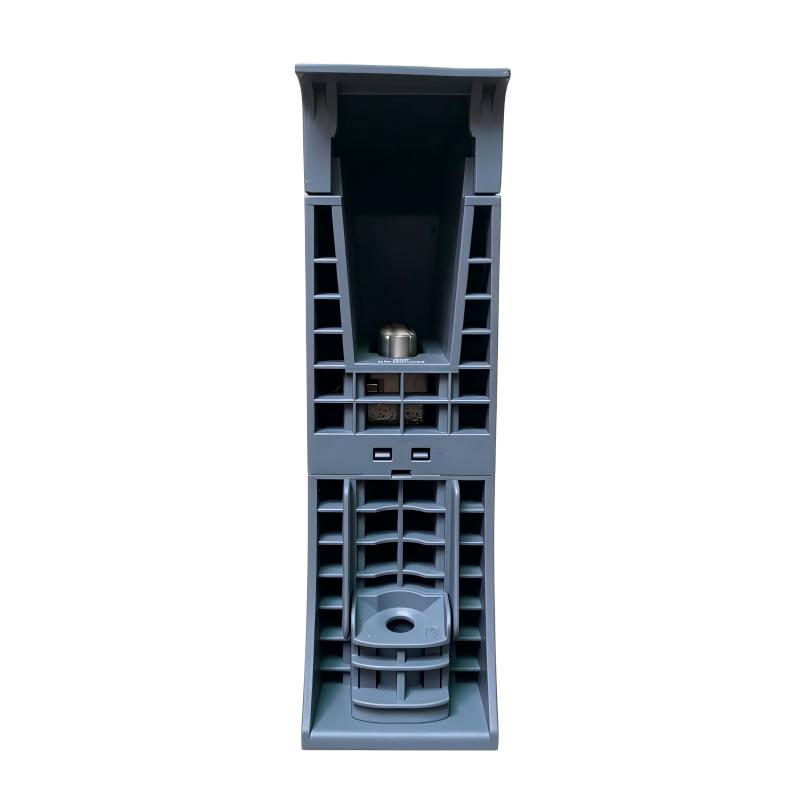

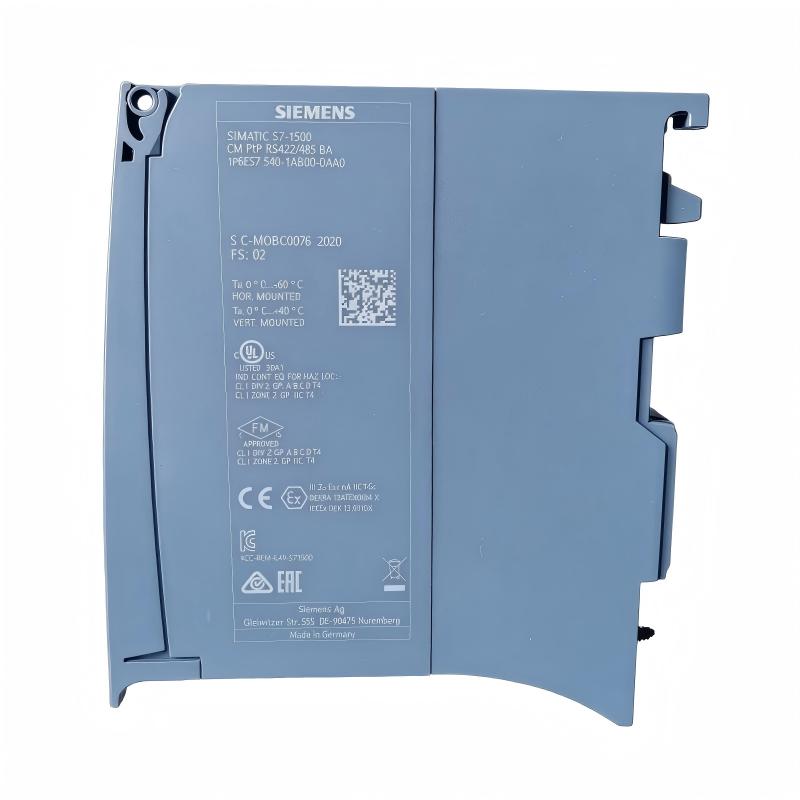

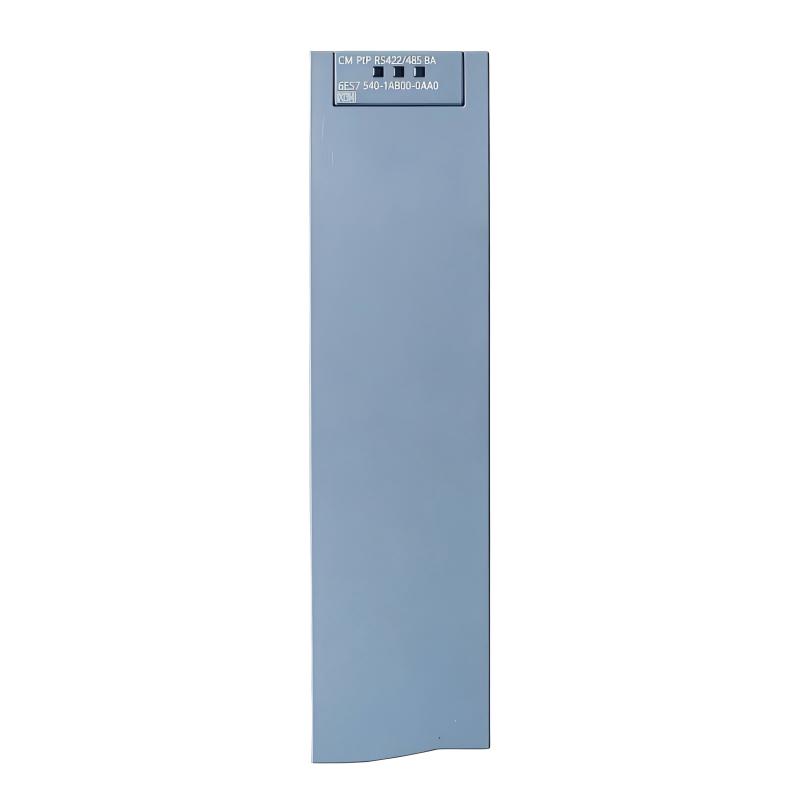

Industrial automation rarely evolves in clean slates. Facilities accumulate equipment over decades, and serial communication remains the connective tissue for countless field devices that simply refuse to become obsolete. The SIMATIC CM PtP RS422/485 BA exists precisely for this reality—it is the bridge between modern S7-1500 control architecture and the serial devices that still perform critical functions on plant floors worldwide. With support for RS-422 and RS-485 interfaces, Freeport, 3964(R), and USS protocols, and cable reach extending to 1,200 meters, this module transforms serial communication from an integration challenge into a straightforward engineering task. At just 0.268 kg (0.59 lb), it occupies minimal panel space while delivering maximum connectivity options.
Technical Specifications
Parameter
Value
Product Type
CM PtP RS 422 / 485 BA
Article Number
6ES7540-1AB00-0AA0
System Family
SIMATIC S7-1500 / ET 200MP
Interface
RS-422 / RS-485 (15-pin D-sub socket)
Transmission Rate
Max. 19.2 kbit/s
Cable Length
Max. 1,200 m
Supported Protocols
Freeport, 3964(R), USS
Telegram Buffer
2 kbyte / 255 telegrams
Power Consumption (Backplane)
0.65 W
Power Loss (Typ.)
0.6 W
Dimensions (W × H × D)
35 × 147 × 127 mm
Net Weight
0.268 kg / 0.59 lb
Protection Class
IP20
Mounting
S7-1500 mounting rail
Recommended Related Models
6ES7541-1AB00-0AB0 — CM PtP RS422/485 HF, high-feature variant with extended performance capabilities
6ES7540-1AD00-0AA0 — CM PtP RS232 BA, basic module for RS-232 serial connections
6ES7541-1AD00-0AB0 — CM PtP RS232 HF, high-feature RS-232 module
6ES7540-1AB01-0AA0 — CM PtP RS422/485 BA (latest firmware revision, TIA Portal V18/V19 compatible)
Popular Related Models
6ES7511-1AK02-0AB0 — SIMATIC S7-1500 CPU 1511-1 PN, entry-level controller for compact applications
6ES7513-1AL02-0AB0 — SIMATIC S7-1500 CPU 1513-1 PN, mid-range controller with enhanced performance
6ES7155-5AA00-0AB0 — SIMATIC ET 200MP IM 155-5 PN interface module
Applications
The 6ES7540-1AB00-0AA0 is the CM PtP RS422/485 BA communication module, engineered to bridge SIMATIC S7-1500 and ET 200MP controllers with legacy serial devices that remain vital to industrial operations. This module excels in applications where PROFINET or PROFIBUS cannot directly interface with existing equipment—such as barcode scanners, weighing terminals, RFID readers, and older drives that communicate through RS-422 or RS-485 protocols. Production lines with mixed-vintage machinery particularly benefit, as the module enables seamless integration of serial field devices into modern S7-1500 architectures without costly equipment replacement. The module supports Freeport (ASCII), 3964(R), and USS protocols, offering exceptional flexibility for diverse serial communication requirements.
Advantages
Dual Interface Flexibility — The CM PtP RS422/485 BA supports both RS-422 and RS-485 physical interfaces, allowing a single module to accommodate different serial device types across your facility. RS-422 delivers full-duplex capability for bidirectional simultaneous communication, while RS-485 supports multidrop configurations for connecting multiple devices on a single bus.
Extended Cable Reach — With maximum cable lengths of 1,200 meters for both RS-422 and RS-485, the module eliminates the need for signal repeaters in most industrial installations. This remarkable reach enables communication with devices positioned far from the control cabinet without sacrificing signal integrity.
Predefined Protocol Support — Beyond basic Freeport communication, the module natively supports 3964(R) for enhanced transmission reliability and USS for seamless integration with Siemens drives. These protocols are configurable through TIA Portal, reducing engineering effort and commissioning time.
Comprehensive Diagnostics — Wire-break detection, diagnostic alarms, and dedicated LED indicators (RUN, ERROR, RxD, TxD) provide real-time visibility into communication status. These features dramatically reduce troubleshooting time by pinpointing faults at the module level.
Integrated in TIA Portal — Configuration and parameterization are performed entirely within STEP 7 Professional V12 or higher, with the module appearing as a native component of the S7-1500 station. The latest firmware supports TIA Portal V18 with HSP 0367 for simplified integration.
Technical FAQs
Q1: What protocols does the CM PtP RS422/485 BA support?
The module supports Freeport (user-parameterizable ASCII telegram format), 3964(R) for enhanced transmission reliability, and USS for communication with Siemens drives.
Q2: What is the maximum telegram length for Freeport communication?
Freeport supports a maximum telegram length of 1 kilobyte, with configurable character framing including 7 or 8 bits per character, 1 or 2 stop bits, and parity options (none, even, odd, always 1, always 0).
Q3: How many telegrams can the module buffer?
The telegram buffer accommodates 2 kilobytes of memory, capable of storing up to 255 telegrams for reliable data handling during peak communication loads.
Q4: Does the module support full-duplex communication?
Yes. Over RS-422, the module supports 4-wire full-duplex connection, enabling simultaneous data transmission and reception. Note that 4-wire multipoint connection is not supported.
Q5: What is the maximum transmission rate?
The module supports transmission rates up to 19.2 kbit/s for both RS-422 and RS-485 interfaces.
Q6: What diagnostic functions are available?
The module provides diagnostic alarms, wire-break detection, and comprehensive status indication through RUN (green), ERROR (red), RxD (yellow), and TxD (yellow) LEDs.
Q7: Is potential separation provided between the backplane bus and serial interface?
Yes. The module provides galvanic isolation between the backplane bus and the serial interface, type-tested at 707 V DC for enhanced noise immunity.
Q8: Can the module operate in extended temperature environments?
For standard operation, the module supports 0°C to +60°C horizontal installation and 0°C to +40°C vertical installation. SIPLUS variants extend this range to -40°C to +70°C for extreme conditions.
Q9: What TIA Portal version is required for configuration?
STEP 7 Professional V12 or higher supports configuration. The latest firmware revision (6ES7540-1AB01-0AA0) requires TIA Portal V18 with HSP 0367 or V19.
Q10: How much power does the module draw from the backplane bus?
The module consumes approximately 43 mA at rated current, with 0.65 W power consumption and typical power loss of 0.6 W.
